Nexcom X200 3.5" SBCs with 11th Gen Intel Core and Triple 4K Display

Multimedia displays, outdoor terminals and compact machine controllers increasingly want 4K on every screen and 11th Gen Core performance, from a board that fits the 3.5 inch footprint and handles a cold start. The Nexcom X200 series is a 3.5 inch SBC with an onboard 11th Gen Intel Core processor at 15 W, three 4K display outputs and a -20 to 70 °C operating range.

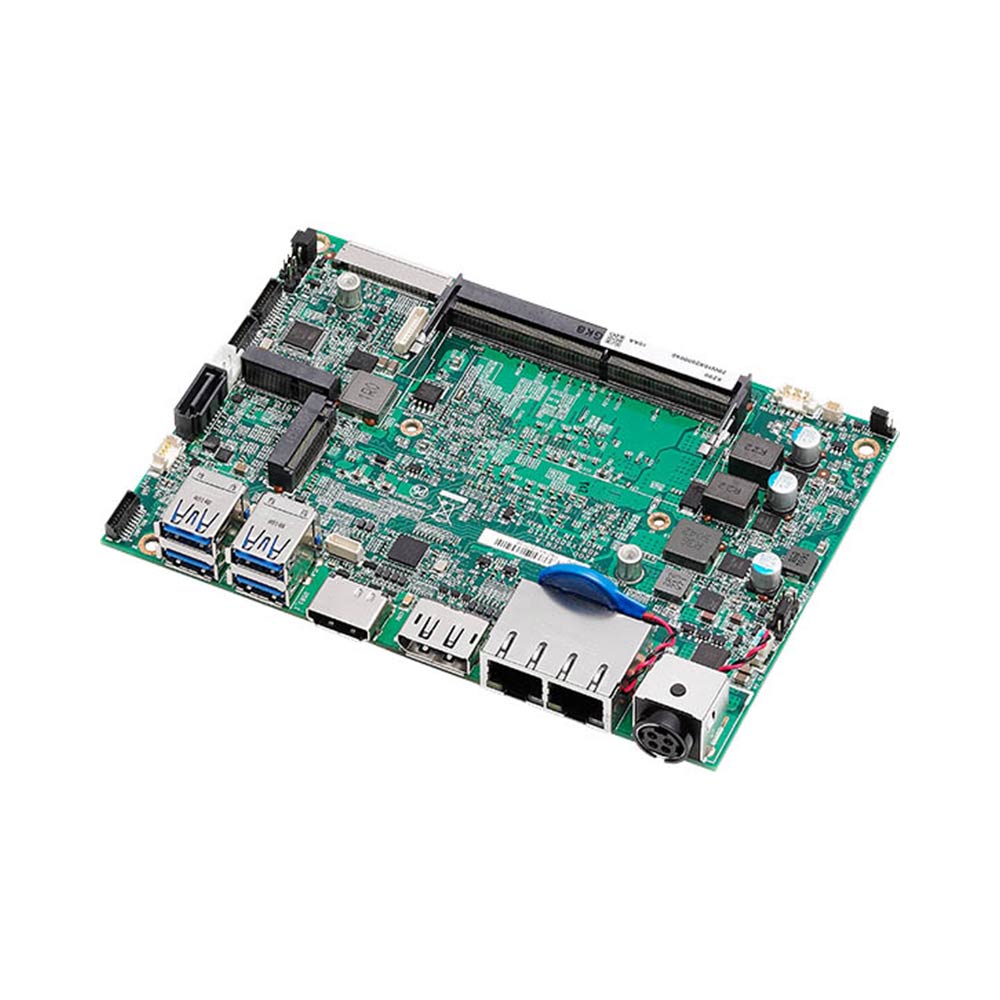

Every X200 shares the same layout. One 260-pin DDR4 non-ECC SO-DIMM socket takes up to 32 GB. DP++ runs at up to 4096 x 2304 at 60 Hz, HDMI 2.0 at up to 4096 x 2160 at 60 Hz and an internal eDP at up to 4096 x 2160 at 60 Hz, so one board drives three 4K screens. I/O covers two Gigabit Ethernet ports on an Intel I219-LM PHY and an Intel I211-AT controller, four USB 3.2 Gen 2 ports on the edge and four USB 2.0 internally, one RS-232/422/485 and one RS-232 port, 3 GPI and 3 GPO, and Realtek ALC888S audio with a 2 W 4 ohm speaker output. Storage is an M.2 2280 Key M socket on PCIe x4 for SSDs up to 512 GB plus a SATA 3 port with power, and an M.2 2230 Key E socket takes a Wi-Fi module. A 12 V 2 A output powers an add-on module, and TPM 2.0 and a watchdog timer are onboard.

The X200-i3 carries the dual-core Intel Core i3-1115G4E at 2.2 GHz base with 6 MB cache and Intel UHD graphics. The X200-i5 carries the Intel Core i5-1145G7E at 1.5 GHz base with 8 MB cache and Intel Iris Xe graphics, and adds Intel vPro support on the I219-LM for remote management. Nexcom lists a Core i7-1185G7E build by request.

Power is 12 V DC through a DC jack, with a 2-pin internal DC input as an option. The series operates from -20 to 70 °C, stores from -20 to 80 °C and handles 10 to 90% humidity, non-condensing. The boards measure 146 x 102 mm, with plain and finned heatsinks offered as accessories. Windows 10 and Linux are supported, and the boards carry CE approval and an FCC Class A mark. Nexcom positions the X200 for multimedia applications and for extended-temperature and outdoor use, where its low power consumption and small footprint suit a sealed enclosure.
