Nexcom XPPC 10-200 10.1" Slim PCAP Touchscreen Computers with 11th Gen Intel Core Processors

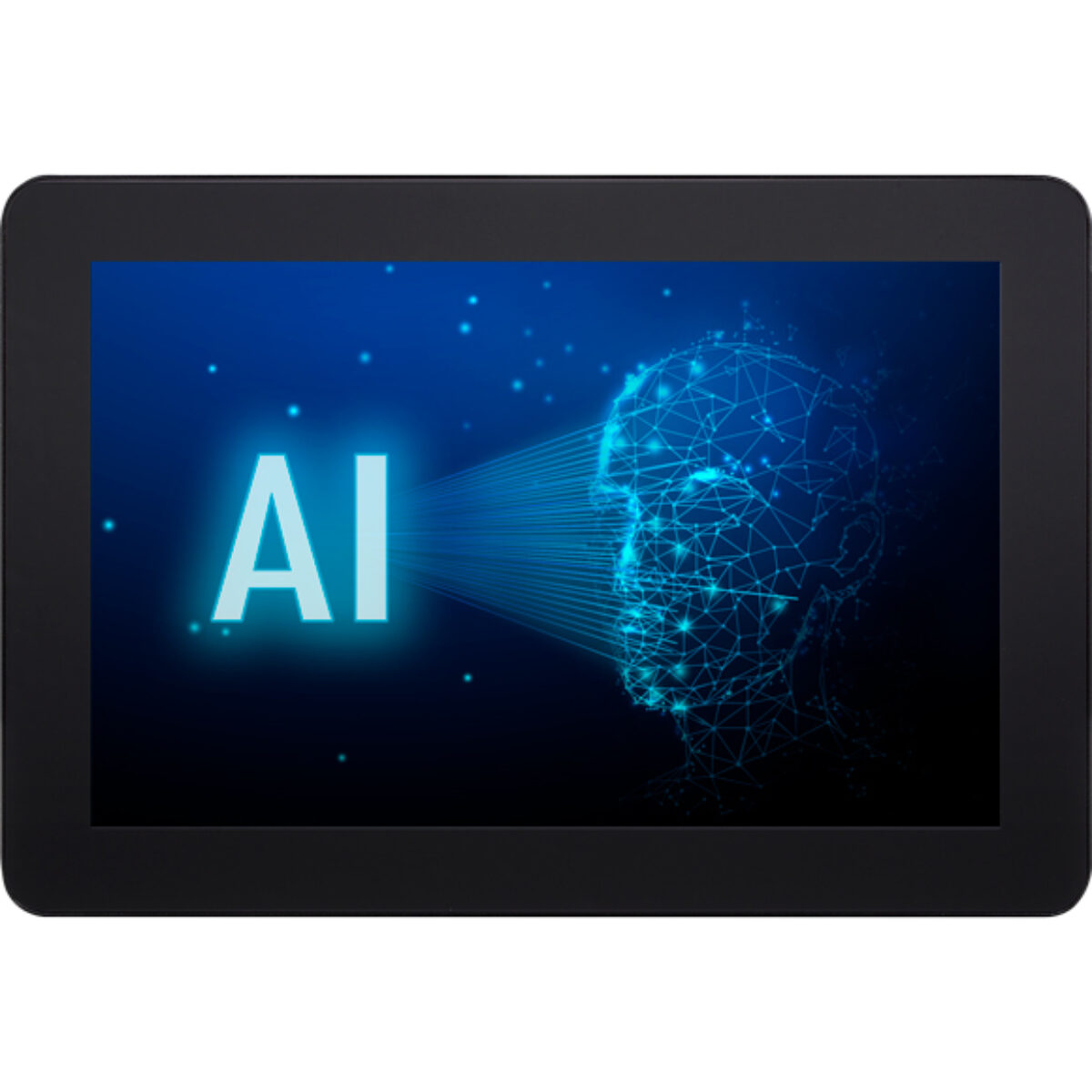

A check-in terminal, information point or welcome board has to respond to a light tap, show a clear image under shop lighting and fit a slim wall recess or counter without a fan. The Nexcom XPPC 10-200 series is built for that brief: a family of 10.1 inch slim touchscreen computers in an enclosed black-silver metal chassis, with a slim-bezel PCAP front that meets IP65 when panel mounted and no fan to draw in dust or grease.

Every XPPC 10-200 shares the same build. The 10.1 inch LED-backlit LCD runs at 1280 x 800 (WXGA) with 360 nits brightness, 800:1 contrast and 178° viewing angles, and the 10-point PCAP touch is optically bonded behind anti-smudge glass to cut reflections. One DDR4 SO-DIMM socket takes up to 32 GB and an M.2 2280 Key M socket on PCIe x4 takes an NVMe SSD, with Windows 10 64-bit and Linux supported. I/O covers two Intel Gigabit LAN ports, four USB 3.0 ports, one RS-232/422/485 port, an HDMI 2.0 output and a line-out, and an M.2 2230 Key E socket takes an optional Wi-Fi module. Units ship as barebones, so memory and storage are specified to the project.

The series offers the XPPC 10-200-i3, the standard build with an Intel Core i3-1115G4E dual-core processor at 2.2 GHz base with 6 MB cache and Intel UHD Graphics, and the XPPC 10-200-i5, available by request, with an Intel Core i5-1145G7E at 1.5 GHz base with 8 MB cache and Intel Iris Xe Graphics for video-rich signage and dashboards.

Power is 12 V DC on a DC jack, with a locking 60 W 100 to 240 V AC adapter included. The XPPC 10-200 is fanless, operates from 0 to 50 °C at 10 to 90% humidity, non-condensing, is shock-tested to 50 g peak under IEC 60068-2-27 and carries CE and FCC Class A marks, meeting EN 62368-1 under the LVD. It measures 260.3 x 178.3 x 50.4 mm, weighs 2.0 kg and mounts on 75 x 75 mm VESA as standard, with panel-mount and open-frame kits as ordering options. Nexcom names hotel self-check-in systems, department stores, welcome boards and advertising as target applications.
