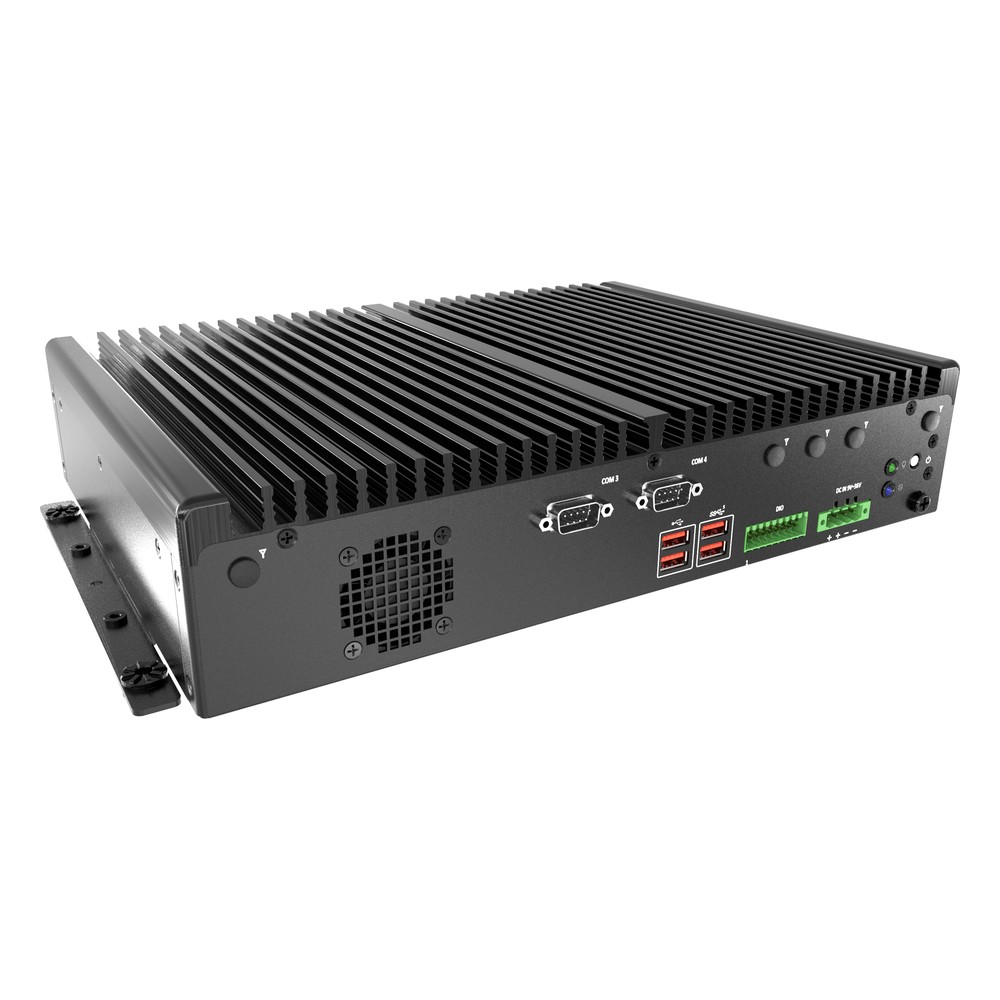

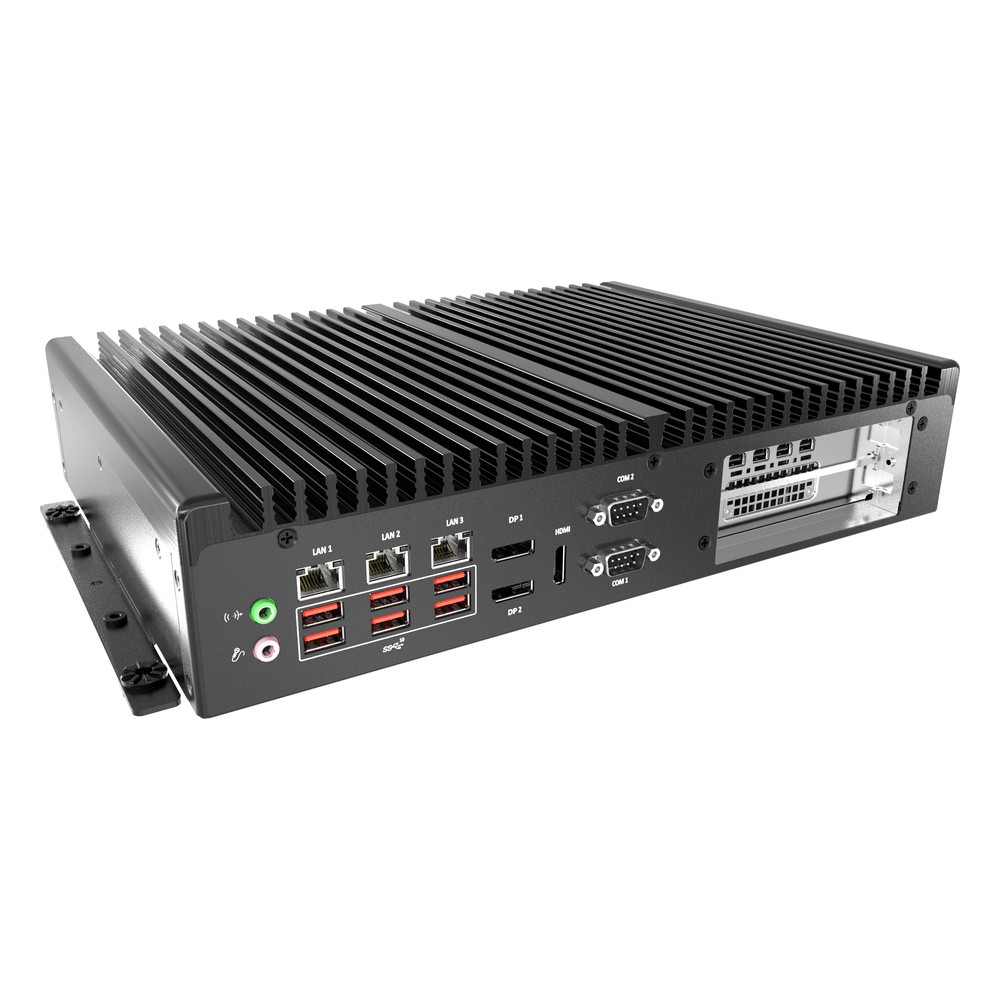

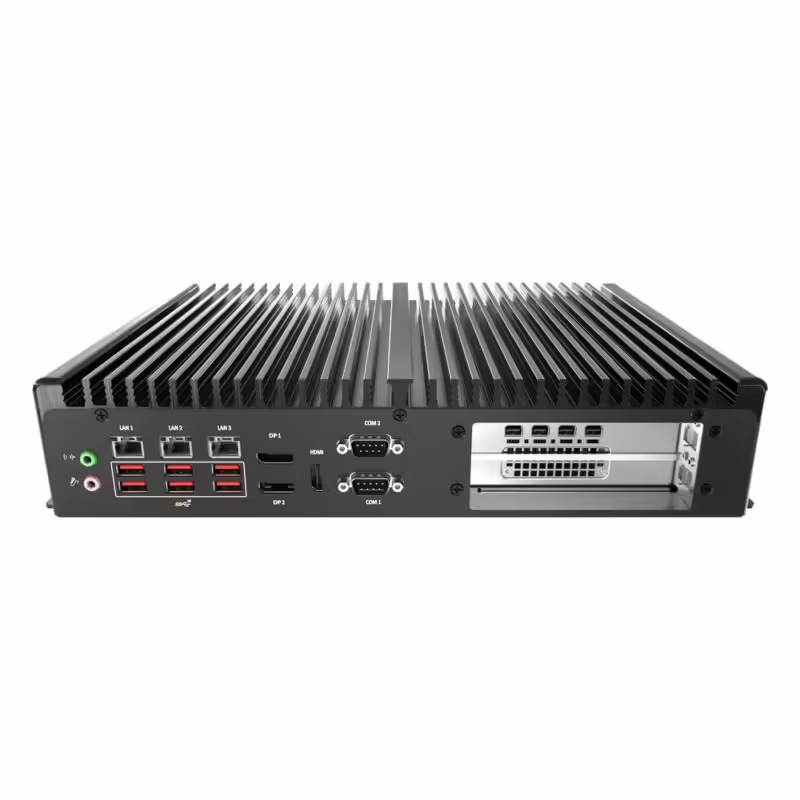

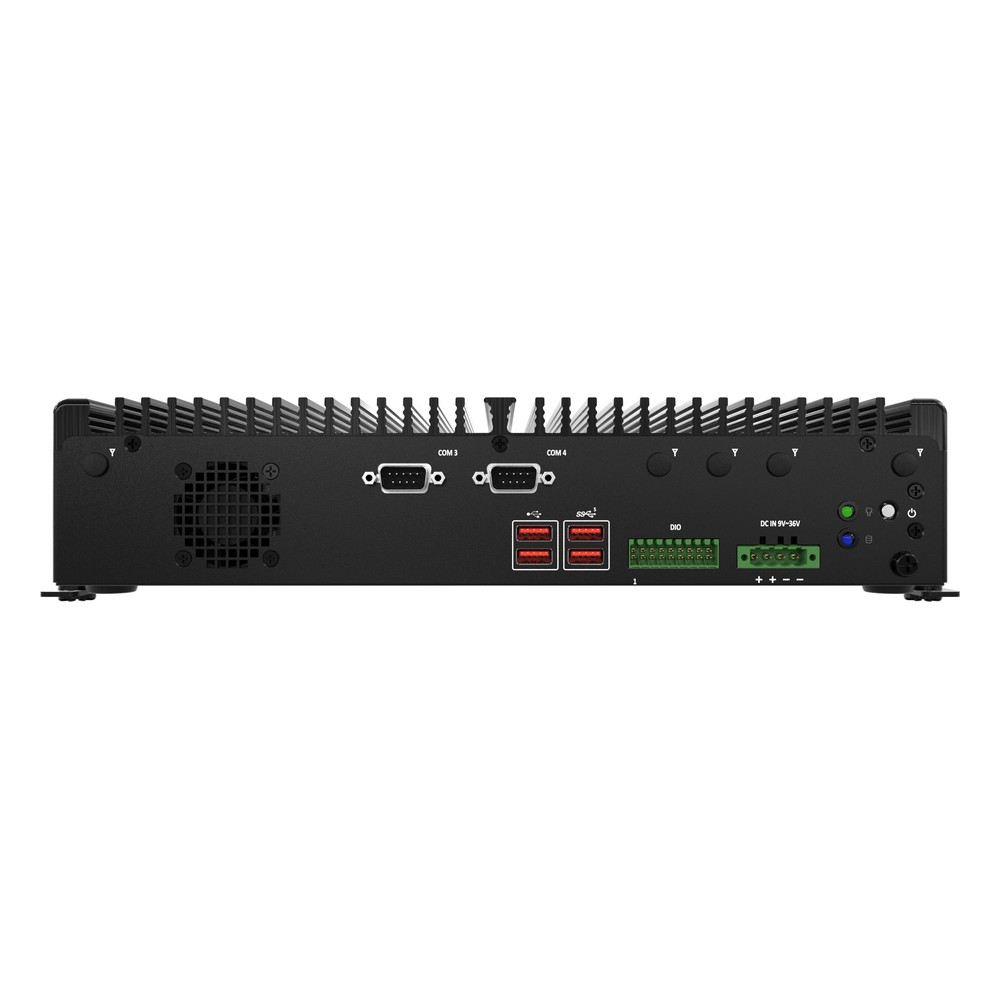

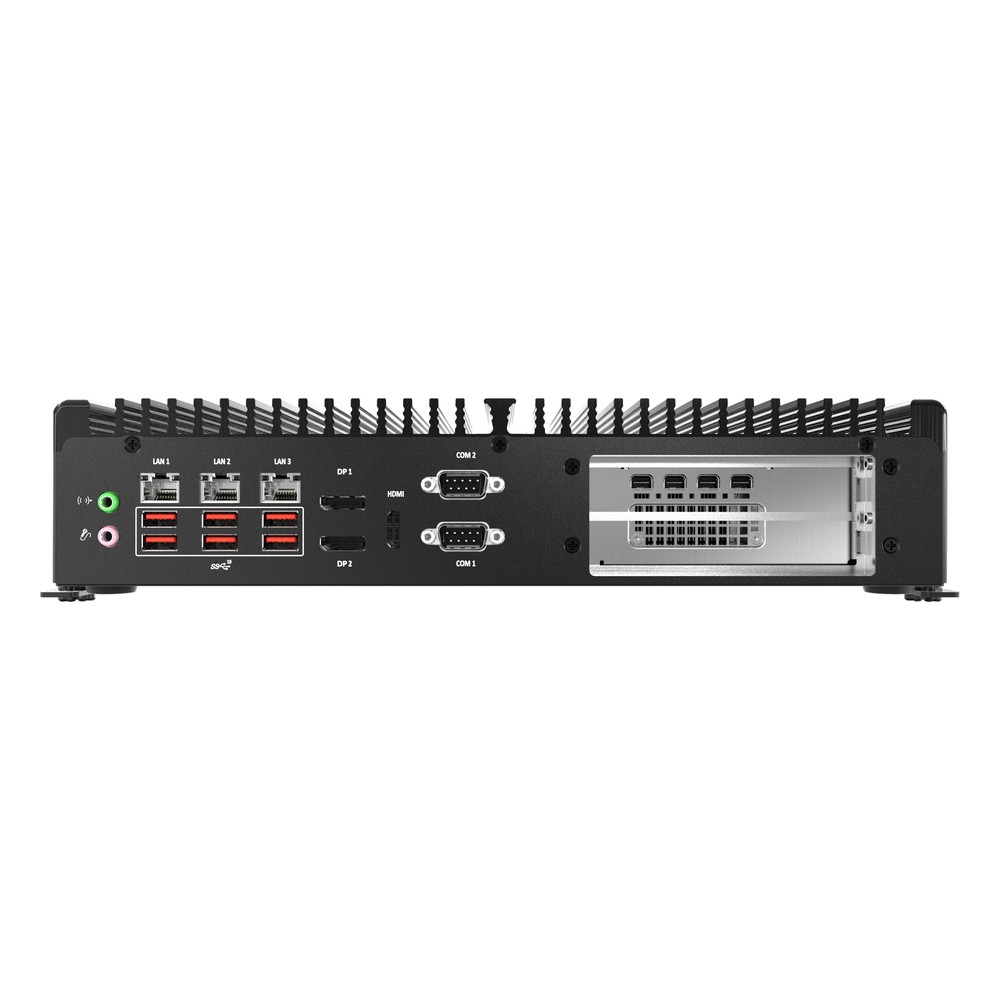

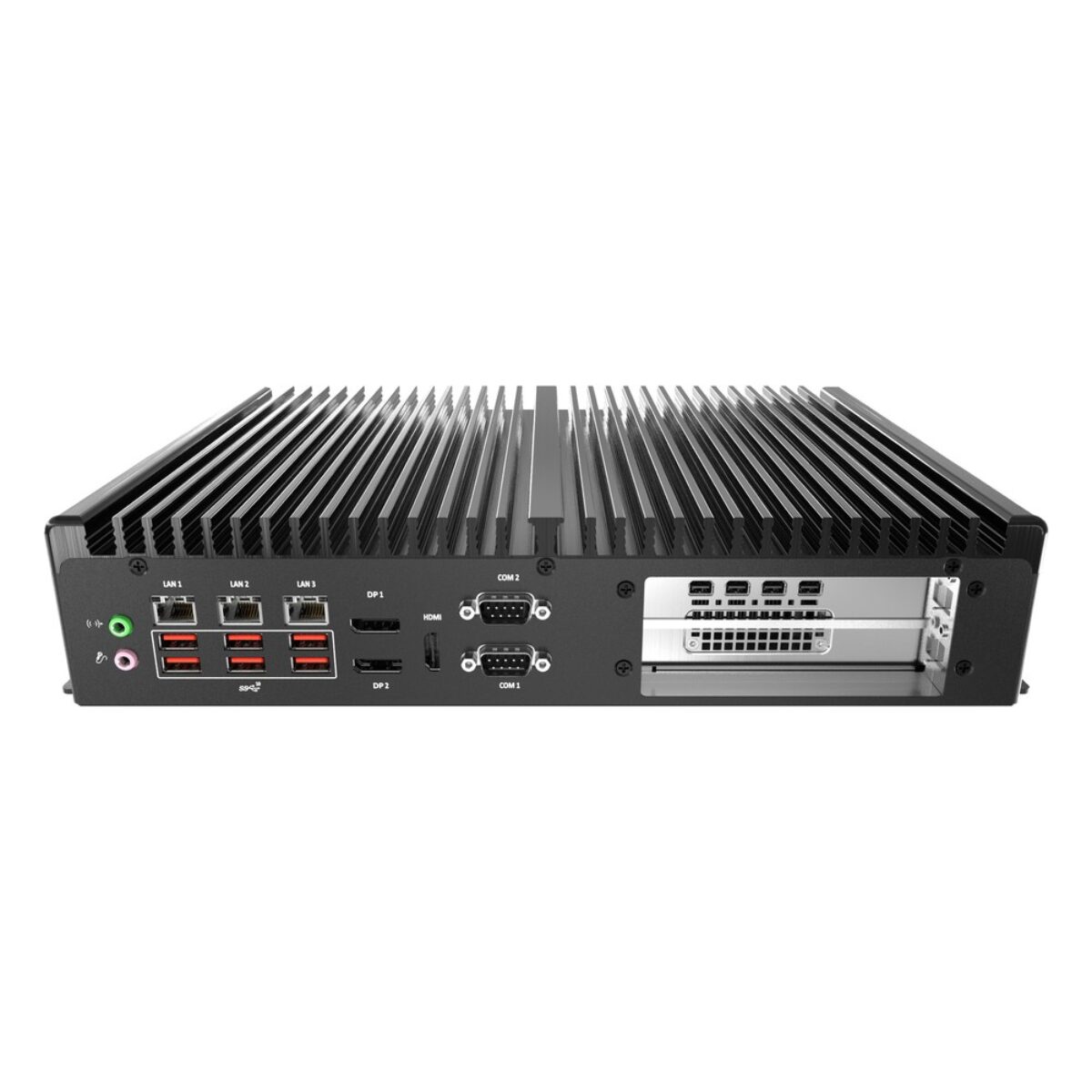

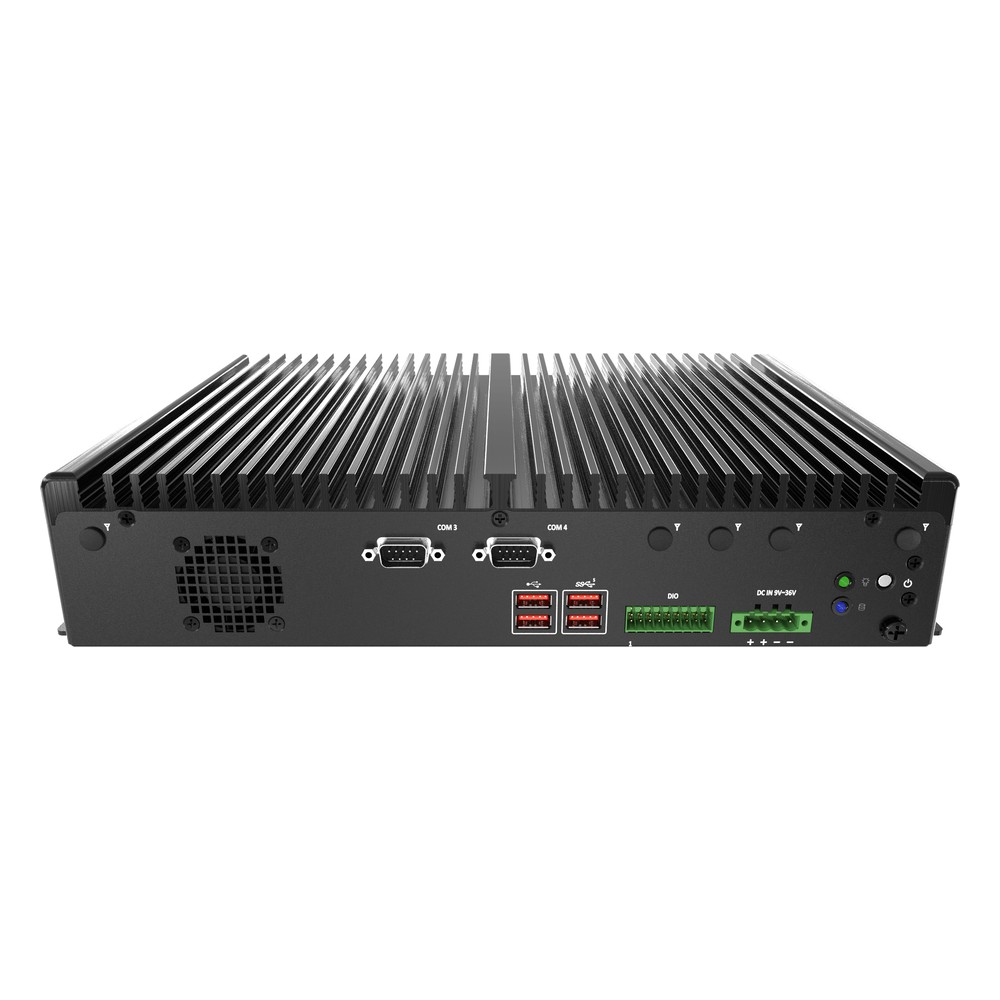

Premio BCO-6000-RPL Intel 14th Gen Core Industrial GPU Computers with PCIe Expansion
The Premio BCO-6000-RPL series is a family of industrial GPU computers for 35 W 12th to 14th Gen Intel Core processors on the Q670E chipset, with a PCIe x16 or dual x8 Gen4 slot for a 70 W NVIDIA card, three 2.5GbE ports, four COM ports, isolated DIO, triple display and a 9 to 36 V DC input. The BCO-6000-RPL series suits machine vision, edge AI inference, factory automation and data acquisition deployments.
- PCIe Gen4 GPU Expansion: A riser gives one PCIe x16 or two PCIe x8 Gen4 slots, with a 70 W NVIDIA RTX GPU from the AVL.
- 35W 12th to 14th Gen Intel Core: LGA1700 on the Intel Q670E chipset takes T and TE Core i3 to i9 processors, with DDR4 3200 up to 64 GB.
- Triple 2.5GbE and 4x COM: Three Intel I226 2.5GbE ports and four DB9 COM ports, two of them RS-232/422/485, for machines and networks.
- Isolated DIO and Triple Display: Eight isolated inputs and eight outputs, plus two DisplayPort 1.4a outputs and one HDMI output for three displays.
- 9 to 36 V DC and 5G Ready: A 9 to 36 V DC terminal block input, with an M.2 B key and nano SIM for an optional 4G or 5G module.
Intel- Linux
- Windows
Triple Display Support
2.5GbE
USB3- 3x M.2
- 2x PCIe
- 1x SIM
- 4G
- 5G
- Wi-Fi
- NVMe SSD
- CE
- FCC
- 1x PCIe
BCO-6000-RPL Description
Many vision and automation cells need just one modest GPU, and a 70 W low-profile card can run that inference without the power and cooling of a full workstation. Premio built the BCO-6000-RPL series around that idea, an industrial GPU computer with a single PCIe expansion riser, a 9 to 36 V DC input and the serial and isolated I/O that machine builders tend to expect. The range was designed by C&T Solution, which became Premio Taiwan in January 2026.
Every BCO-6000-RPL model shares an LGA1700 socket on the Intel Q670E chipset for 35 W 14th Gen T and 12th and 13th Gen TE Core i3 to i9 processors, with two DDR4 3200 SO-DIMM sockets for up to 64 GB. The GPU AVL lists the NVIDIA RTX PRO 4000 Blackwell SFF, RTX PRO 2000 Blackwell, RTX 4000 SFF Ada, RTX 2000 Ada and RTX A1000, and the range is ready for an optional Hailo-8 AI module. I/O includes three Intel I226 2.5GbE ports, six USB 3.2 Gen 2, two USB 3.2 Gen 1 and two USB 2.0 ports, four DB9 COM ports, isolated 8-in/8-out DIO, two DisplayPort 1.4a outputs and one HDMI output, an M.2 M key for NVMe, and M.2 B and E keys for optional 5G, 4G and Wi-Fi modules.
The riser sets the difference between the two models. The BCO-6000-RPL-1E16 has a single PCIe x16 Gen4 slot for one 70 W GPU from the AVL, the simpler choice where the card is the main reason for the slot. The BCO-6000-RPL-2E8 splits the slot into two PCIe x8 Gen4 slots, so a GPU can sit beside a second add-in card. For the same I/O without a slot and with no fan, the BCO-3000-RPL is the fanless small form factor option.
In practice the BCO-6000-RPL series suits machine vision, edge AI inference, factory automation and data acquisition. Every model runs from 9 to 36 V DC on a terminal block with AT or ATX power-on, operates from 0 °C to 50 °C with an industrial fan, and is designed to comply with MIL-STD-810H for shock and vibration. The range is UL listed to UL 62368-1 with CE, FCC and UKCA marks, supports Windows 11 and Linux with TPM 2.0, and mounts on a wall kit, with an optional AC/DC adapter for CPU and GPU power.
BCO-6000-RPL Specifications
| Overview | |
|---|---|
| Brand & Model | Premio BCO-6000-RPL |
| Features | Embedded Expandable GPU Industrial |
| Performance | |
| Processor Series | Intel Core 14th Gen Raptor Lake Refresh Intel Core 12th Gen Alder Lake Intel Core 13th Gen Raptor Lake |
| Processor Models | Intel Core i3-14100T: 2.7~4.4GHz, 4 Cores, 8 Threads, 12MB Cache, 35W Intel Core i5-14500T: 1.7~4.8GHz, 14 Cores, 20 Threads, 24MB Cache, 35W Intel Core i7-14700T: 1.3~5.2GHz, 20 Cores, 28 Threads, 33MB Cache, 35W Intel Core i9-14900T: 1.1~5.5GHz, 24 Cores, 32 Threads, 36MB Cache, 35W Intel Core i3-12100TE: 2.1~4.0GHz, 4 Cores, 8 Threads, 12MB Cache, 35W Intel Core i3-13100TE: 2.4~4.1GHz, 4 Cores, 8 Threads, 12MB Cache, 35W Intel Core i5-12500TE: 1.9~4.3GHz, 6 Cores, 12 Threads, 18MB Cache, 35W Intel Core i5-13500TE: 1.3~4.5GHz, 14 Cores, 20 Threads, 24MB Cache, 35W Intel Core i7-12700TE: 1.4~4.6GHz, 12 Cores, 20 Threads, 25MB Cache, 35W Intel Core i7-13700TE: 1.1~4.8GHz, 16 Cores, 24 Threads, 30MB Cache, 35W Intel Core i9-12900TE: 1.1~4.8GHz, 16 Cores, 24 Threads, 30MB Cache, 35W Intel Core i9-13900TE: 1.0~5.0GHz, 24 Cores, 32 Threads, 36MB Cache, 35W |
| Performance Cores | 4 Cores 6 Cores 12 Cores 14 Cores 16 Cores 20 Cores 24 Cores |
| GPU / AI Accelerator | Discrete GPU (PCIe) |
| Supported GPUs | RTX 4000 SFF Ada RTX A1000 NVIDIA RTX PRO 2000 Blackwell: 4352 CUDA Cores, 16GB GDDR7 ECC, 70W NVIDIA RTX PRO 4000 Blackwell SFF Edition: 8960 CUDA Cores, 24GB GDDR7 ECC, 70W NVIDIA RTX 2000 Ada Generation: 2816 CUDA Cores, 88 Tensor Cores, 16GB GDDR6 ECC, 70W |
| AI Performance | 54–770 TOPS |
| Number of GPUs | Single GPU Support |
| GPU Family | NVIDIA RTX Ada NVIDIA RTX Ampere NVIDIA RTX PRO Blackwell |
| GPU Architecture | NVIDIA Ada Lovelace NVIDIA Blackwell NVIDIA Ampere |
| System GPU Power Budget | 70W |
| Memory | 2x DDR4 3200MHz SO-DIMM Slots, 64GB |
| Chipset | Intel Q670E |
| PCIe Gen Support | PCIe 4.0 |
| BIOS | AMI UEFI |
| Secure Crypto Processor | TPM 2.0 (Trusted Platform Module) |
| Operating System | Linux Windows 11 |
| Graphics | |
| Integrated GPU | Intel UHD Series |
| Display Standards | Display Port 1.4a DP++ HDMI 1.4b |
| Multi Display Support | Triple Display Support |
| Display Outputs | 1x HDMI 2x Display Port |
| Audio | |
| Codec | Realtek ALC897, HD Audio |
| Interface | Line-Out Mic-In |
| I/O | |
| Ethernet | 3x Ethernet Ports |
| 3x 2.5 GbE LAN [RJ45] | |
| LAN Controllers | Intel I226LM Intel I226V |
| USB | 10x USB Ports |
| 2x USB 2.0 [Type A] 2x USB 3.2 Gen 1 [Type A] 6x USB 3.2 Gen 2 [Type A] | |
| Serial | 4x Serial Ports |
| 2x RS232 [DB9] 2x RS232/422/485 [DB9] | |
| Digital I/O | Isolated DIO [8-in, 8-out] |
| Expansion | |
| M.2 | 3x M.2 Expansion Slots |
| 1x M.2 B-Key [PCIe x1/USB/SIM] [3042] 1x M.2 E-Key [PCIe x1/USB 2.0] [2230] 1x M.2 M-Key [PCIe x4] [2242/2280] | |
| PCIe | See Variant Specifications |
| SIM Slots | 1x SIM Slots |
| Wireless Connectivity | Optional 4G Modem Optional 5G Modem Optional WiFi/Bluetooth |
| Storage | |
| Storage | 1x M.2 SSD [M-Key 2242/2280, PCIe Gen 3 x4] |
| NVMe | NVMe SSD Support |
| Power | |
| Power Input | 9-36V DC Input [Terminal Block] |
| Power Support Modes | AT: PWR on Input ATX: Press Button to Power |
| Environmental Conditions | |
| Thermal Dissipation | Onboard Fan |
| Operating Temperature | 0°C to 50°C [32°F to 122°F] |
| Storage Temperature | -30°C to 85°C [-22°F to 185°F] |
| Humidity | 10% - 95% (Non-condensing) |
| Certification | IEC 62368-1 CB CE FCC IC (ICES-003) UKCA UL 62368-1 |
| Mechanical Properties | |
| Weight | 4.8 Kg (10.6 Lbs) |
| Dimensions | 330mm x 240mm x 69mm (12.99" x 9.45" x 2.72") |
| Mounting Options | Wall Mount |
No specifications match your search.
See product variants.
BCO-6000-RPL Variants
Premio BCO-6000-RPL-2E8 Intel Raptor Lake Industrial GPU Computer with Dual PCIe x8 Slots, Triple 2.5GbE and 4x COM
BCO-6000-RPL-2E8 with dual PCIe x8 Gen4 slots, triple 2.5GbE, 4x COM and isolated DIO
| Overview | |
|---|---|
| Brand & Model | Premio BCO-6000-RPL-2E8 |
| Expansion | |
| PCIe | 2x PCIe Slots |
| 2x PCIe [x8 Slot] [Gen4] | |
Premio BCO-6000-RPL-1E16 Intel 14th Gen Core Industrial GPU Computer with PCIe x16 Slot, Triple 2.5GbE and 4x COM
BCO-6000-RPL-1E16 with PCIe x16 Gen4 slot, triple 2.5GbE, 4x COM and isolated DIO
| Overview | |
|---|---|
| Brand & Model | Premio BCO-6000-RPL-1E16 |
| Expansion | |
| PCIe | 1x PCIe Slots |
| 1x PCIe [x16 Slot] [x16 Signal] [Gen4] | |
No related media available for this product series.
Official Premio USA Distributor
Things Embedded is an official Premio USA distributor, and we supply the BCO-6000-RPL series configured and tested, with DDR4 memory, NVMe storage, the NVIDIA GPU card, any 5G, 4G or Wi-Fi modules and a Windows 11 or Linux image fitted before it ships. Within the Premio range, the BCO-3000-RPL keeps the same I/O in a fanless small form factor box with no PCIe slot, and the VCO-6000-RPL takes a full-height GPU on a 600W power board with a -25 to 70 °C operating range. If you are unsure whether a single x16 or dual x8 slot suits your cards, our team can help you choose.
