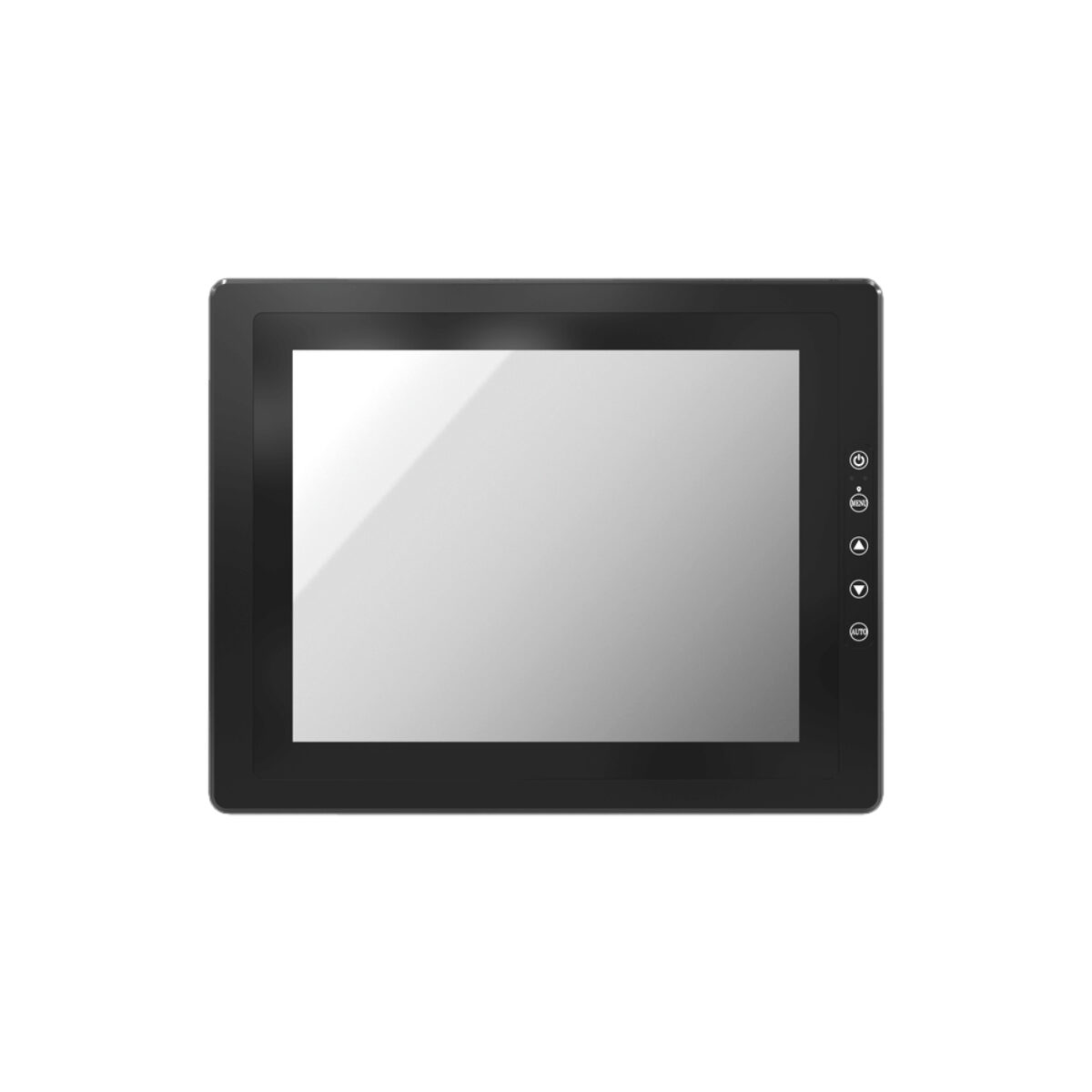

Premio VIO-110-PC100-EHL Intel Celeron J1900 10.4-Inch Industrial Panel PCs
The VIO-110-PC100 Series is a 10.4-inch SVGA industrial panel PC powered by the Intel Celeron J1900 quad-core processor. It combines a compact design with resistive or capacitive touch options, multiple COM and USB interfaces, and isolated digital I/O for reliable control and monitoring in embedded and industrial environments.
C&T Solution is now Premio. C&T Solution joined Premio on 1 January 2026 and the VIO-110-PC100-EHL series continues under the Premio brand. See the full Premio range.
PCAP
Intel- Linux
- Windows
Triple Display Support
2.5GbE
USB3- 2x M.2
- 1x mPCIe
- 1x SIM
- 4G
- 5G
- Wi-Fi
- Extended Temp
Front IP65- CE
- FCC
- Resistive
VIO-110-PC100-EHL Description
The VIO-110-PC100 Series delivers compact, reliable performance for embedded automation and HMI applications.
Powered by the Intel Celeron J1900 processor, it integrates a 10.4-inch SVGA display with optional resistive or capacitive touch to suit varied industrial operating conditions.
With dual LAN, six serial ports, multiple USB interfaces, and isolated digital I/O, the system provides flexible connectivity for industrial controllers and field devices.
Expansion options include dual Mini PCIe slots, mSATA, CFast, and SIM support for wireless or storage modules.
Its die-cast aluminum front, IP65 protection, wide 9–50 V DC input, and fanless thermal design ensure durability in factory, vehicle, or process automation installations.
Operating reliably from –10 °C to +60 °C, the VIO-110-PC100 Series is a robust solution for compact industrial computing and control.
VIO-110-PC100-EHL Specifications
| Overview | |
|---|---|
| Brand & Model | Premio VIO-110-PC100-EHL |
| Features | Embedded Fanless Industrial |
| Display | |
| Touch Controller | See Variant Specifications |
| Brightness | 400 Nits |
| 160° Horizontal, 130° Vertical | |
| Aspect Ratio | 4:3 |
| Format | Standard |
| Contrast | 700:1 |
| Performance | |
| Processor Series | Intel Celeron J Series Elkhart Lake |
| Processor Models | Intel Celeron J6413: 1.8~3.0GHz, 4 Cores, 4 Threads, 1.5MB Cache, 10W |
| Performance Cores | 4 Cores |
| Memory | 1x DDR4 2666MHz SO-DIMM Slot, 32GB |
| BIOS | AMI |
| Secure Crypto Processor | TPM 2.0 (Trusted Platform Module) |
| Operating System | Linux |
| Graphics | |
| Integrated GPU | Intel UHD Series |
| Display Standards | DP++ HDMI 2.0 |
| Multi Display Support | Triple Display Support |
| Display Outputs | 1x Display Port 1x HDMI |
| Audio | |
| Codec | RealTek ALC888S, HD Audio |
| Interface | Line-Out Mic-In |
| I/O | |
| Ethernet | 2x Ethernet Ports |
| 1x 2.5 GbE LAN [RJ45] 1x GbE LAN [RJ45] | |
| LAN Controllers | Intel I210 Intel I225 |
| USB | 4x USB Ports |
| 2x USB 2.0 [Type A] 2x USB 3.2 Gen 2 [Type A] | |
| Serial | 6x Serial Ports |
| 2x RS232/422/485 [Board] 4x RS232/422/485 [DB9] | |
| Digital I/O | Isolated DIO [8-in, 8-out] |
| Expansion | |
| M.2 | 2x M.2 Expansion Slots |
| 1x M.2 B-Key [PCIe x2/USB] [2242/3042/3052] 1x M.2 E-Key [USB/PCIe] [2230] | |
| mPCIe | 1x mPCIe Slots |
| 1x mPCIe [SATA/USB] | |
| SIM Slots | 1x SIM Slots |
| Wireless Connectivity | Optional 4G Modem Optional 5G Modem Optional WiFi/Bluetooth |
| Storage | |
| Storage | 1x 2.5" HDD/SSD 1x mSATA 2x M.2 SSD |
| Power | |
| Power Input | 9-36V DC Input [Terminal Block] Optional AC Power Supply |
| Power Support Modes | AT: PWR on Input ATX: Press Button to Power |
| Environmental Conditions | |
| Operating Temperature | -10°C to 60°C [14°F to 140°F] |
| Storage Temperature | -20°C to 70°C [-4°F to 158°F] |
| Humidity | 10-80% (Non-condensing) |
| Ingress Protection | Front IP65 Front IP65 [Dustproof, Protection against low pressure water jets spraying from the front side] |
| Certification | CE FCC |
| Mechanical Properties | |
| Weight | See Variant Specifications |
| Dimensions | See Variant Specifications |
| Mounting Options | VESA Mount |
No specifications match your search.
See product variants.
VIO-110-PC100-EHL Variants
Premio VIO-110C-PC100-EHL-1E 10″ SVGA Intel Celeron Industrial Touchscreen PC
VIO-110-PC100-EHL with Capactive Touch and PCIe
| Overview | |
|---|---|
| Brand & Model | Premio VIO-110C-PC100-EHL-1E |
| Display | |
| Touch Controller | Projective Capacitive Touch |
| Mechanical Properties | |
| Weight | 5.52 Kg (12.14 Lbs) |
| Dimensions | 300mm x 238.5mm x 93mm (11.81" x 9.39" x 3.66") |
Premio VIO-110R-PC100-EHL-1E 10″ Resistive Touch Panel PC with Intel Elkhart Lake CPU
VIO-110-PC100-EHL with Resistive Touch and PCIe
| Overview | |
|---|---|
| Brand & Model | Premio VIO-110R-PC100-EHL-1E |
| Display | |
| Touch Controller | Resistive Touch |
| Mechanical Properties | |
| Weight | 5.48 Kg (12.06 Lbs) |
| Dimensions | 300mm x 238.5mm x 93mm (11.81" x 9.39" x 3.66") |
Premio VIO-110C-PC100-EHL 10″ J6413 Celeron Touch Screen Computer
VIO-110-PC100-EHL with Capactive Touch
| Overview | |
|---|---|
| Brand & Model | Premio VIO-110C-PC100-EHL |
| Display | |
| Touch Controller | Projective Capacitive Touch |
| Mechanical Properties | |
| Weight | 5.42 Kg (11.92 Lbs) |
| Dimensions | 300mm x 238.5mm x 71mm (11.81" x 9.39" x 2.8") |
Premio VIO-110R-PC100-EHL 10″ SVGA Industial Panel PC with Quad Core CPU
VIO-110-PC100-EHL with Resistive Touch
| Overview | |
|---|---|
| Brand & Model | Premio VIO-110R-PC100-EHL |
| Display | |
| Touch Controller | Resistive Touch |
| Mechanical Properties | |
| Weight | 5.39 Kg (11.86 Lbs) |
| Dimensions | 300mm x 238.5mm x 71mm (11.81" x 9.39" x 2.8") |
- VIO-110-PC100-EHL Datasheet Download
