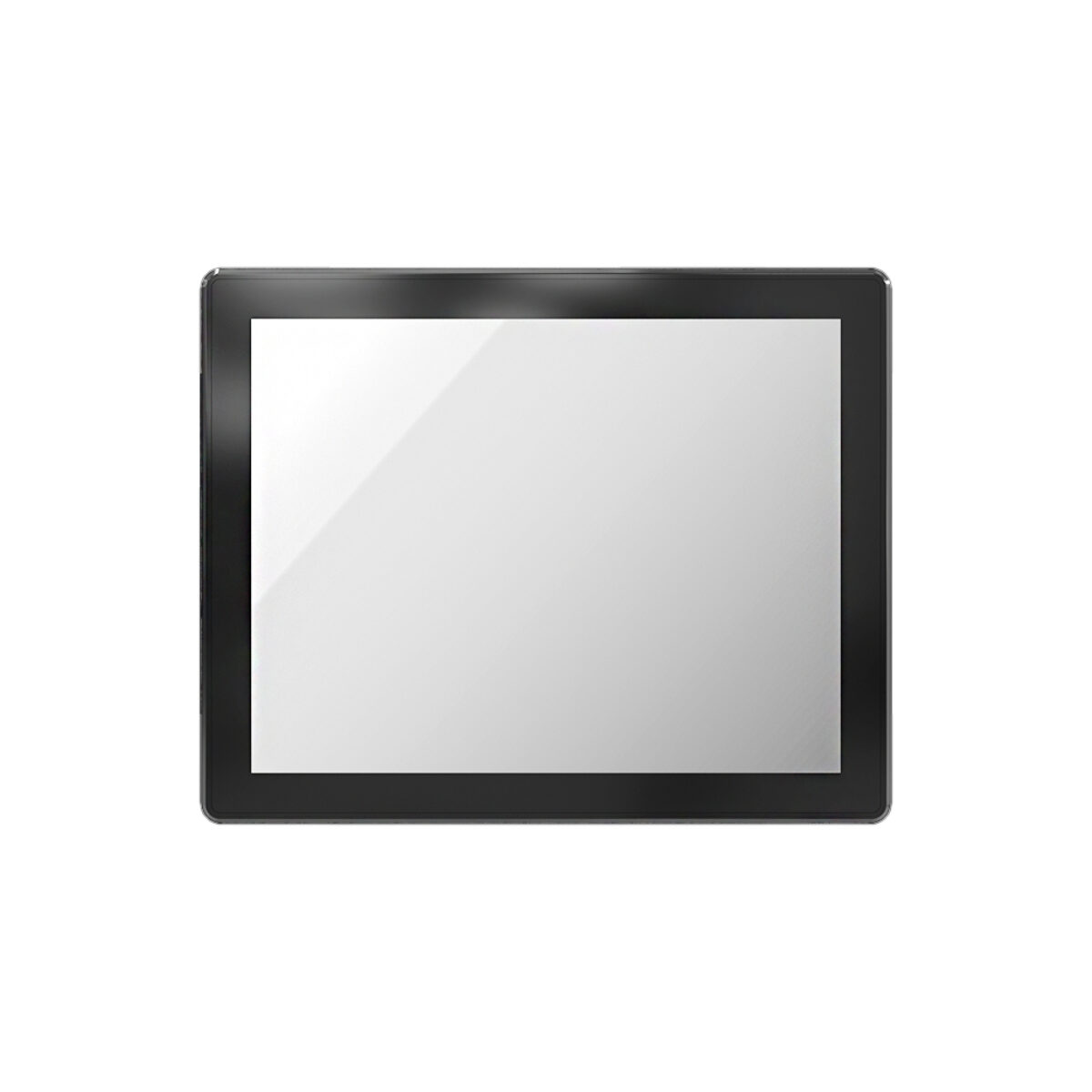

Premio VIO-212-PC100-EHL Intel Celeron Elkhart Lake 12.1-Inch Industrial Panel PCs
The VIO-212-PC100-EHL Series is a 12.1-inch XGA industrial panel PC powered by Intel Celeron Elkhart Lake processors. It offers resistive or capacitive touch options, dual LAN, multiple serial ports, and isolated digital I/O, combining reliable performance and modular expansion for industrial automation and control applications.
C&T Solution is now Premio. C&T Solution joined Premio on 1 January 2026 and the VIO-212-PC100-EHL series continues under the Premio brand. See the full Premio range.
PCAP
Intel- Linux
- Windows
Triple Display Support
2.5GbE
USB3- 2x M.2
- 1x mPCIe
- 1x PCIe
- 1x SIM
- 4G
- 5G
- Wi-Fi
- Extended Temp
Front IP65- CE
- FCC
- Resistive
VIO-212-PC100-EHL Description
The VIO-212-PC100-EHL Series delivers reliable embedded computing performance in a compact 12.1-inch industrial panel PC form factor.
Powered by the Intel Celeron J6413 processor, it provides efficient quad-core processing and high-resolution XGA display options with either resistive or capacitive touch technology.
Designed for industrial automation and machine interface applications, the system includes dual Intel LAN, multiple serial ports, and isolated digital I/O for device integration.
Expansion through PCIe, M.2, and Mini PCIe enables support for storage, wireless communication, or I/O modules.
With fanless operation, a die-cast aluminum front bezel, and IP65-rated protection, the VIO-212-PC100-EHL Series ensures long-term durability in harsh environments.
Support for 9–36 V DC power, TPM 2.0 security, and operating temperatures up to +60 °C makes it ideal for use in manufacturing, energy, and process control systems.
VIO-212-PC100-EHL Specifications
| Overview | |
|---|---|
| Brand & Model | Premio VIO-212-PC100-EHL |
| Features | Embedded Fanless Industrial |
| Display | |
| Touch Controller | See Variant Specifications |
| Brightness | 500 Nits |
| Viewing Angle | Wide Viewing Angle |
| 160° Horizontal, 160° Vertical | |
| Aspect Ratio | 4:3 |
| Format | Standard |
| Contrast | 700:1 |
| Performance | |
| Processor Series | Intel Celeron J Series Elkhart Lake |
| Processor Models | Intel Celeron J6413: 1.8~3.0GHz, 4 Cores, 4 Threads, 1.5MB Cache, 10W |
| Performance Cores | 4 Cores |
| Memory | 1x DDR4 2666MHz SO-DIMM Slot, 32GB |
| BIOS | AMI |
| Secure Crypto Processor | TPM 2.0 (Trusted Platform Module) |
| Operating System | Linux |
| Graphics | |
| Integrated GPU | Intel UHD Series |
| Display Standards | DP++ HDMI 2.0 |
| Multi Display Support | Triple Display Support |
| Display Outputs | 1x Display Port 1x HDMI |
| Audio | |
| Codec | RealTek ALC888S, HD Audio |
| Interface | Line-Out Mic-In |
| I/O | |
| Ethernet | 2x Ethernet Ports |
| 1x 2.5 GbE LAN [RJ45] 1x GbE LAN [RJ45] | |
| LAN Controllers | Intel I210 Intel I225 |
| USB | 4x USB Ports |
| 2x USB 2.0 [Type A] 2x USB 3.2 Gen 2 [Type A] | |
| Serial | 6x Serial Ports |
| 2x RS232/422/485 [Board] 4x RS232/422/485 [DB9] | |
| Digital I/O | Isolated DIO [8-in, 8-out] |
| Expansion | |
| M.2 | 2x M.2 Expansion Slots |
| 1x M.2 B-Key [PCIe x2/USB] [2242/3042/3052] 1x M.2 E-Key [USB/PCIe] [2230] | |
| mPCIe | 1x mPCIe Slots |
| 1x mPCIe [SATA/USB] | |
| PCIe | See Variant Specifications |
| SIM Slots | 1x SIM Slots |
| Wireless Connectivity | Optional 4G Modem Optional 5G Modem Optional WiFi/Bluetooth |
| Storage | |
| Storage | 1x 2.5" HDD/SSD 1x mSATA 2x M.2 SSD |
| Power | |
| Power Input | 9-36V DC Input [Terminal Block] Optional AC Power Supply |
| Power Support Modes | AT: PWR on Input ATX: Press Button to Power |
| Environmental Conditions | |
| Operating Temperature | -10°C to 60°C [14°F to 140°F] |
| Storage Temperature | -20°C to 70°C [-4°F to 158°F] |
| Humidity | 10-80% (Non-condensing) |
| Ingress Protection | Front IP65 Front IP65 [Dustproof, Protection against low pressure water jets spraying from the front side] |
| Certification | CE FCC |
| Mechanical Properties | |
| Weight | See Variant Specifications |
| Dimensions | 319mm x 257mm x 61.7mm (12.56" x 10.12" x 2.43") |
| Mounting Options | VESA Mount |
No specifications match your search.
See product variants.
VIO-212-PC100-EHL Variants
Premio VIO-212C-PC100-EHL-1E 12″ All In One PC with Touch Screen
VIO-212-PC100-EHL with Capactive Touch and PCIe
| Overview | |
|---|---|
| Brand & Model | Premio VIO-212C-PC100-EHL-1E |
| Display | |
| Touch Controller | Projective Capacitive Touch |
| Expansion | |
| PCIe | 1x PCIe Slots |
| 1x PCIe [x4 Slot] | |
| Mechanical Properties | |
| Weight | 6.29 Kg (13.84 Lbs) |
Premio VIO-212R-PC100-EHL-1E 12″ Industrial All-In-One Touch Screen PC
VIO-212-PC100-EHL with Resistive Touch and PCIe
| Overview | |
|---|---|
| Brand & Model | Premio VIO-212R-PC100-EHL-1E |
| Display | |
| Touch Controller | Resistive Touch |
| Expansion | |
| PCIe | 1x PCIe Slots |
| 1x PCIe [x4 Slot] | |
| Mechanical Properties | |
| Weight | 6.26 Kg (13.77 Lbs) |
Premio VIO-212C-PC100-EHL 12″ Quad Core Industrial Touchscreen PC
VIO-212-PC100-EHL with Capactive Touch
| Overview | |
|---|---|
| Brand & Model | Premio VIO-212C-PC100-EHL |
| Display | |
| Touch Controller | Projective Capacitive Touch |
| Mechanical Properties | |
| Weight | 6.17 Kg (13.57 Lbs) |
Premio VIO-212R-PC100-EHL 12″ Touchscreen PC with Intel Celeron Elkhart Lake CPU
VIO-212-PC100-EHL with Resistive Touch
| Overview | |
|---|---|
| Brand & Model | Premio VIO-212R-PC100-EHL |
| Display | |
| Touch Controller | Resistive Touch |
| Mechanical Properties | |
| Weight | 6.14 Kg (13.51 Lbs) |
- VIO-212-PC100-EHL Datasheet Download
