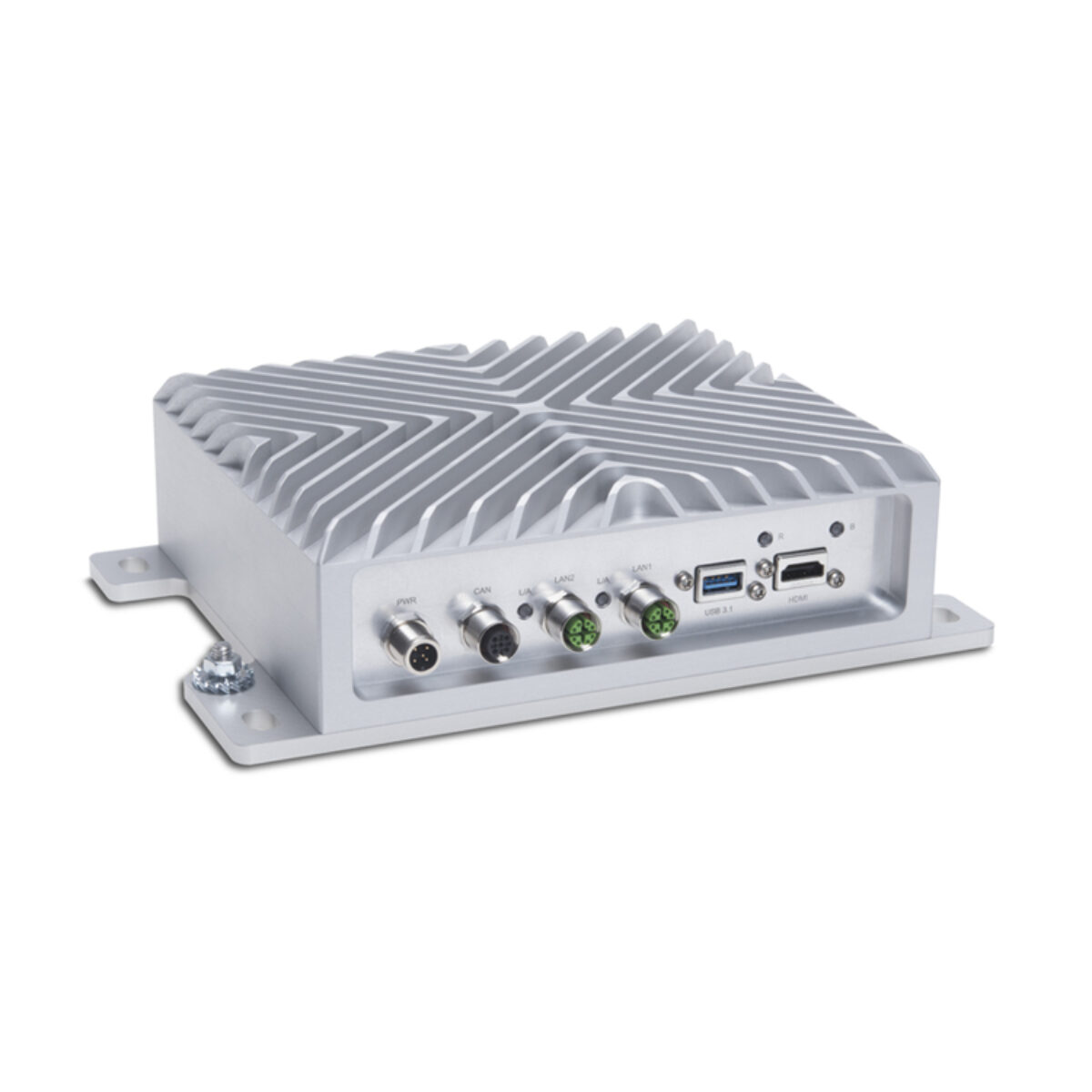

Syslogic RPC/RSA2NH20-A102S NVIDIA Jetson TX2 NX 4GB Rugged Waterproof Computer with M12 Dual GbE

The RPC/RSA2NH20-A102S is the standard build of the Syslogic RPC/COMPACT A2N series, detailed in full in the datasheet with no wireless modules fitted. This rugged waterproof computer pairs a Jetson TX2 NX with dual Gigabit M12 ports and IP67 sealing for wired robots and machines.

  • NVIDIA Jetson TX2 NX 4GB: A 256-core Pascal GPU with dual-core Denver 2 and quad-core Cortex-A57 CPUs, 4GB LPDDR4 and 1.33 TFLOPs AI performance.
  • Wired M12 Networking: Two Gigabit Ethernet ports on M12 x-coded connectors, one native and one Intel I210-IT, with no wireless modules fitted.
  • IP67 Sealed Housing: Sealed aluminum housing rated IP67 to EN 60529, with a pressure equalisation membrane and no moving parts.
  • Isolated CAN FD on M12: One isolated CAN 2.0A/B port with CAN FD support on an M12 a-coded connector for vehicle and machine networks.
  • 9 to 45 V DC, -25 to 70 °C: Reverse-polarity protected 9 to 45 V DC M12 input with ignition control and passive cooling from -25 to 70 °C.
View RPC/COMPACT A2N Series
Operating Software: LinuxLinux
USB Generation: USB3USB3
M.2: 11x M.2
mPCIe: 33x mPCIe
Ignition Sensing: Supports Ignition ControlIgnition Control
Operating Temperature: Extended TemperatureExtended Temp
USA Support Team: +1 407 214 9446 Call
Select section
  • Overview
  • Specifications
  • Downloads
  • Media

RPC/RSA2NH20-A102S Overview

A robot or machine that is always on a wired network has no need for a modem, and every extra antenna is another seal to maintain. The RPC/RSA2NH20-A102S is the standard build of the Syslogic RPC/COMPACT A2N series: a rugged waterproof computer with an NVIDIA Jetson TX2 NX, dual Gigabit Ethernet on M12 connectors and no wireless modules fitted.

The Jetson TX2 NX combines a 256-core NVIDIA Pascal GPU with a dual-core NVIDIA Denver 2 and a quad-core Arm Cortex-A57 CPU, for 1.33 TFLOPs of AI performance, with 4GB of 128-bit LPDDR4 and 16GB of eMMC 5.1 on board. An M.2 2280 Key M slot takes an NVMe SSD of up to 2TB, which Syslogic fits at the factory in 120GB to 960GB sizes, and a microSD socket sits behind the service cover. The RPC/RSA2NH20-A102S runs Linux for Tegra, with a hardware watchdog and temperature supervisor.

Two Gigabit Ethernet ports on M12 x-coded connectors and one isolated CAN 2.0A/B port with CAN FD support on M12 a-coded keep the RPC/RSA2NH20-A102S connected under vibration. One USB 3.1 Type-A port and an HDMI 2.0 output sit on the front, with DisplayPort 1.4 and two USB 2.0 ports behind the service cover. RS-232, an extra M12 USB 2.0 port, an IMU and camera interfaces are available on request.

Power is 9 to 45 V DC on an M12 connector, reverse-polarity protected with an ignition controller, and the waterproof computer idles at about 8.5 W at 24 V. Syslogic rates it from -25 to 70 °C and IP67 to EN 60529, designed to meet EN 60068-2-27 shock and EN 60068-2-64 vibration, in a 245 x 66 x 165 mm housing of about 2.3 kg. Where a machine needs LTE, GNSS or Wi-Fi, the RPC/RSA2NH20-B102S is the alternative build in the same family.

RPC/RSA2NH20-A102S Specifications

Overview
Brand & ModelSyslogic RPC/RSA2NH20-A102S
FeaturesCompact
Fanless
GPU
Industrial
M12 Connectors
Rugged
Waterproof
Performance
AI Performance1.3 TOPS
System-on-ModuleNVIDIA Jetson TX2 NX 4GB: 1.33 TFLOPS, 256-core Pascal GPU, 2-core NVIDIA Denver 2 + 4-core Arm Cortex-A57 2.0GHz, 4GB 128-bit LPDDR4, 16GB eMMC, 7.5-15W
Operating SystemLinux Ubuntu 18.04
Jetpack VersionJetPack 4.6
Graphics
Display Outputs1x HDMI
I/O
Ethernet2x Ethernet Ports
2x GbE LAN [M12]
USB1x USB Ports
1x USB 3.1 Gen 1 [M12]
Serial1x Serial Ports
Optional: 1x RS232 [M12]
CANbus1x CANbus Ports
1x Isolated CANbus, M12
Expansion
M.21x M.2 Expansion Slots
1x M.2 M-Key [PCIe x4/SATA] [2280]
mPCIe3x mPCIe Slots
3x mPCIe [PCIe/USB/SIM]
Storage
Storage16GB eMMC
1x M.2 SSD
1x Micro SD
Power
Power Input9-45V DC Input, M12
Ignition SensingSupports Ignition Control
Environmental Conditions
Operating Temperature-25°C to 70°C [-13°F to 158°F]
Ingress ProtectionIP67
IP67 [Dustproof, Protection against immersion in water up to 1 meter for 30 minutes]
Mechanical Properties
Chassis MaterialAluminum
Dimensions245mm x 66mm x 165mm (9.65" x 2.6" x 6.5")
RSA2NH20-B102S Case Study Card
Case Study Construction Industry Deploys Rugged Jetson AI Computers & LiDAR Sensors A leading construction vehicle manufacturer runs LiDAR-based perception on sealed, fanless Jetson AI computers that take wash-downs, dust, shock and vibration on graders, loaders and dozers.

Official Syslogic USA Distributor

Things Embedded is an official Syslogic USA distributor, and the RPC/RSA2NH20-A102S is part of the RPC/COMPACT A2N family, the Jetson TX2 NX member of the Syslogic rugged AI range. It is the only Syslogic family we list today, and the RPC/RSA2NH20-B102S is its one sibling build.

Within our wider range the RPC/RSA2NH20-A102S sits among our IP67 computers and rugged Jetson computers. Its sealed housing and M12 I/O suit machines that are hosed down, work outdoors or travel over rough ground, and both categories list sealed Jetson computers from several manufacturers.
