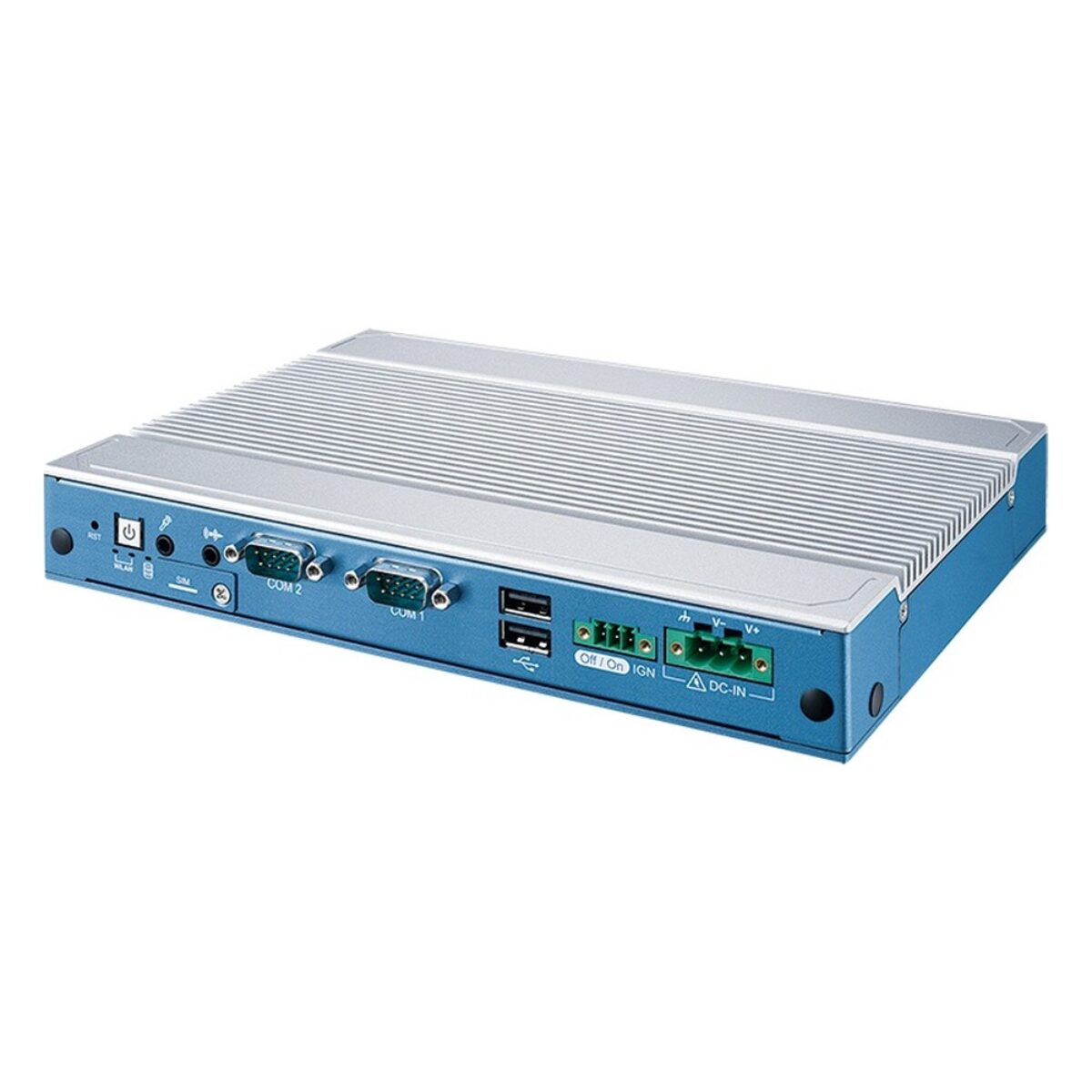

Vecow ABP-4000 Intel 13th Gen Core Ultra-Slim Fanless PCs with Quad HDMI, Dual 2.5GbE TSN and 9-55V DC

Screens in stations, shops and vehicles tend to be mounted where there is little depth behind them and no airflow worth the name, and the computer driving them often has to handle several displays at once. The Vecow ABP-4000 series is a family of ultra-slim fanless PCs designed for that kind of installation: a cableless fanless design rated from -25 °C to 70 °C, with four HDMI outputs and a fifth display through USB-C.

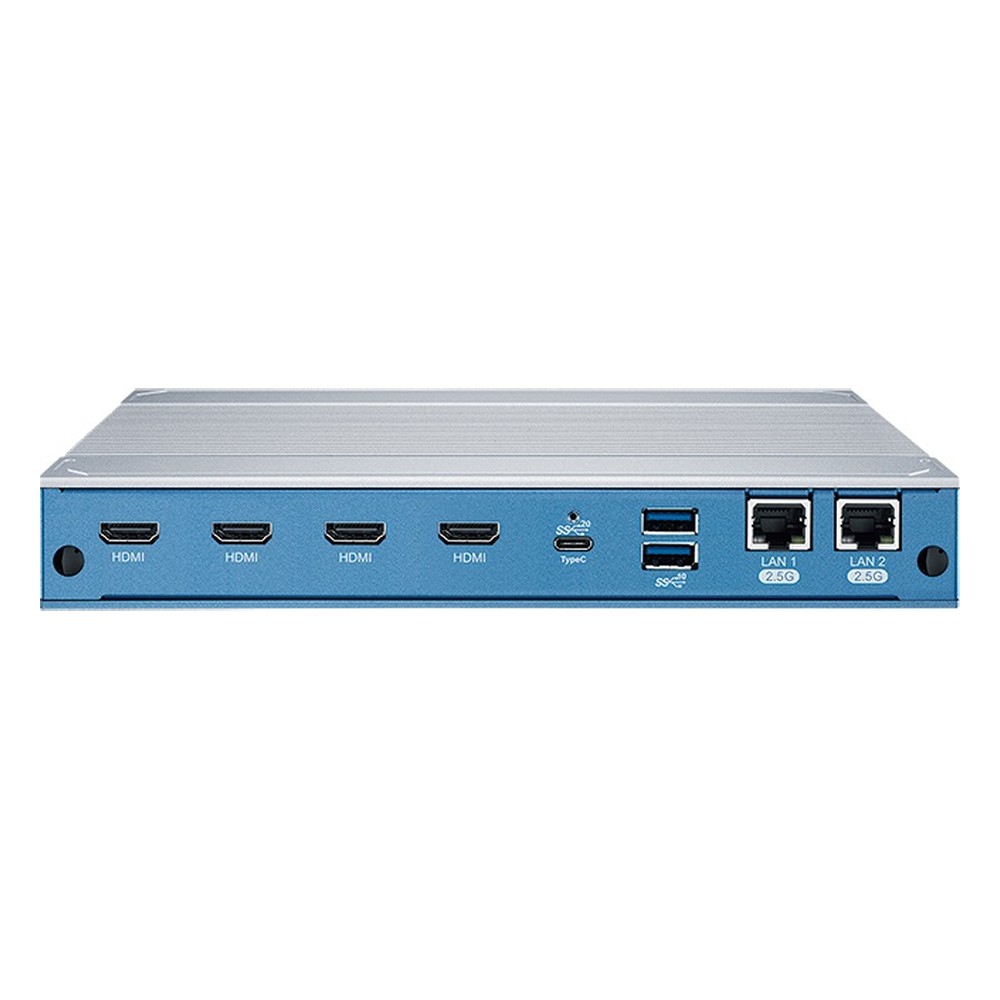

Every ABP-4000 model uses an onboard 13th Gen Intel Core U-series processor (Raptor Lake-P) at 15 W, with two DDR4 3200 MHz SO-DIMM slots for up to 64 GB. Display output is four HDMI 2.0 ports at up to 3840 x 2160 at 60 Hz plus DisplayPort 1.4a through a USB 3.2 Gen 2×2 Type-C port. Two Intel I226 2.5GbE ports support TSN, and two USB 3.2 Gen 2, two USB 2.0 and two RS-232/422/485 COM ports cover peripherals and serial devices. Storage sits on two M.2 M key sockets, one on PCIe 4.0 x4, and the M.2 B key and E key sockets take optional 5G, 4G or Wi-Fi modules, with an external nano SIM socket. Vecow also lists full OpenVINO toolkit support for AI workloads.

The range has three models, split by processor. The ABP-4000-1365UE uses a 10-core Core i7-1365UE with Intel Iris Xe graphics, for video walls, analytics and AMR control where the processing load is highest. The ABP-4000-1345UE uses a 10-core Core i5-1345UE, also with Iris Xe graphics, and suits most signage and kiosk work. The ABP-4000-1315UE uses a six-core Core i3-1315UE with Intel UHD Graphics, for content playback, dashboards and browser-based HMIs where cost matters more than headroom.

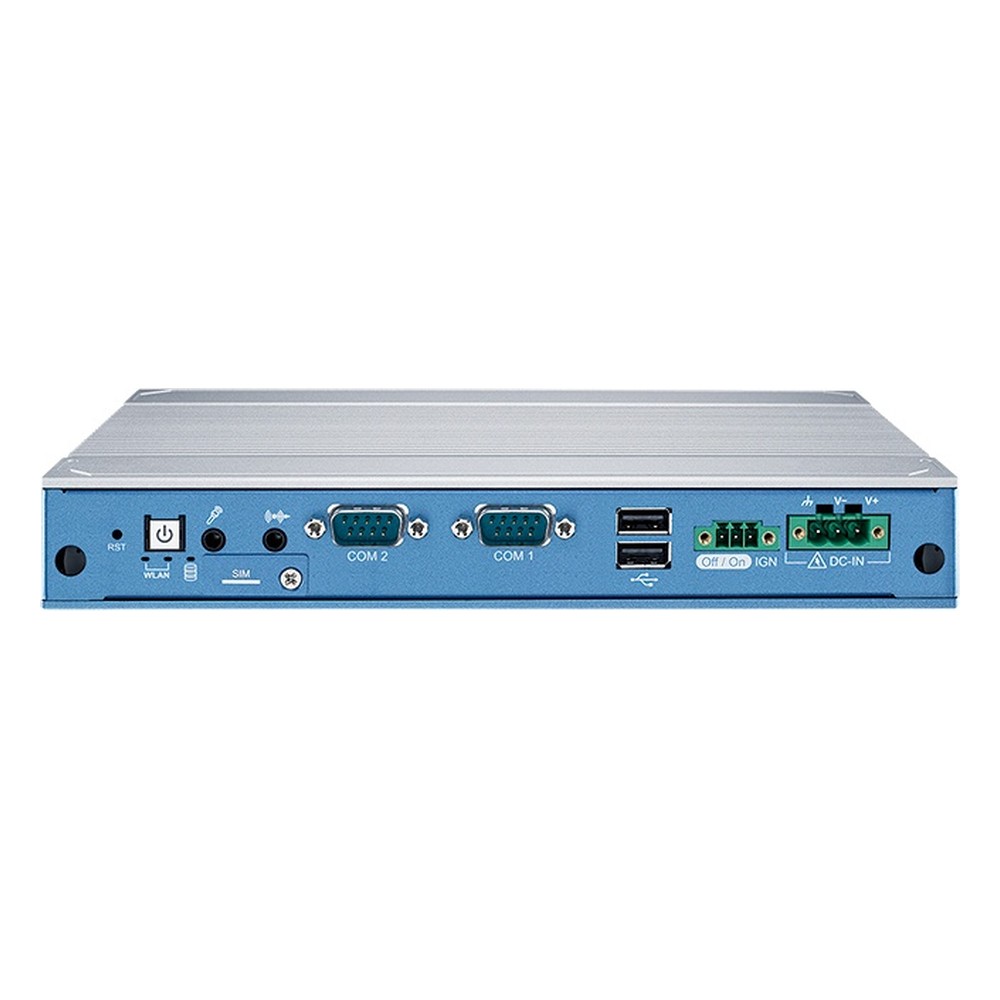

In practice the ABP-4000 series suits digital signage players, self-service kiosks, passenger information displays, AMRs and in-vehicle systems. Power is 9 to 55 V DC on a three-pin terminal block, with 16-mode software ignition control and a remote switch block, and TPM 2.0 is onboard. The ABP-4000 is rated for 50 G shock and 5 Grms vibration, carries CE, FCC and ICES marks, and is designed to EN 50155 and EN 50121-3-2 requirements. It mounts on a wall bracket, with optional VESA and DIN rail kits.
