Vecow AIC-200-eMMC-64GB Octa-Core Qualcomm IQ-615 Industrial IoT Gateway with 64GB eMMC, Dual GbE, 9 to 50 V DC and -30 to 70 °C

Many IoT gateway jobs are about collecting, converting and forwarding data reliably, not about storing a lot of it on the box. The Vecow AIC-200-eMMC-64GB is the 64 GB eMMC build of the AIC-200 series, an industrial IoT gateway on the Qualcomm Dragonwing IQ-615, for smart building, energy management and roadside projects where protocol conversion and a cellular uplink matter more than local capacity.

The IQ-615 has eight Kryo cores, two high-performance cores at 1.9 GHz and six efficiency cores at 1.6 GHz, with 8 GB of LPDDR4x on board. That is typically enough to run protocol conversion, edge analytics and a local dashboard at the same time, and the gateway runs a Yocto-based Linux. Storage on the AIC-200-eMMC-64GB is 64 GB of eMMC on board, against 128 GB of UFS on the AIC-200-UFS-128GB, plus a micro SD socket for SDHC cards up to 128 GB.

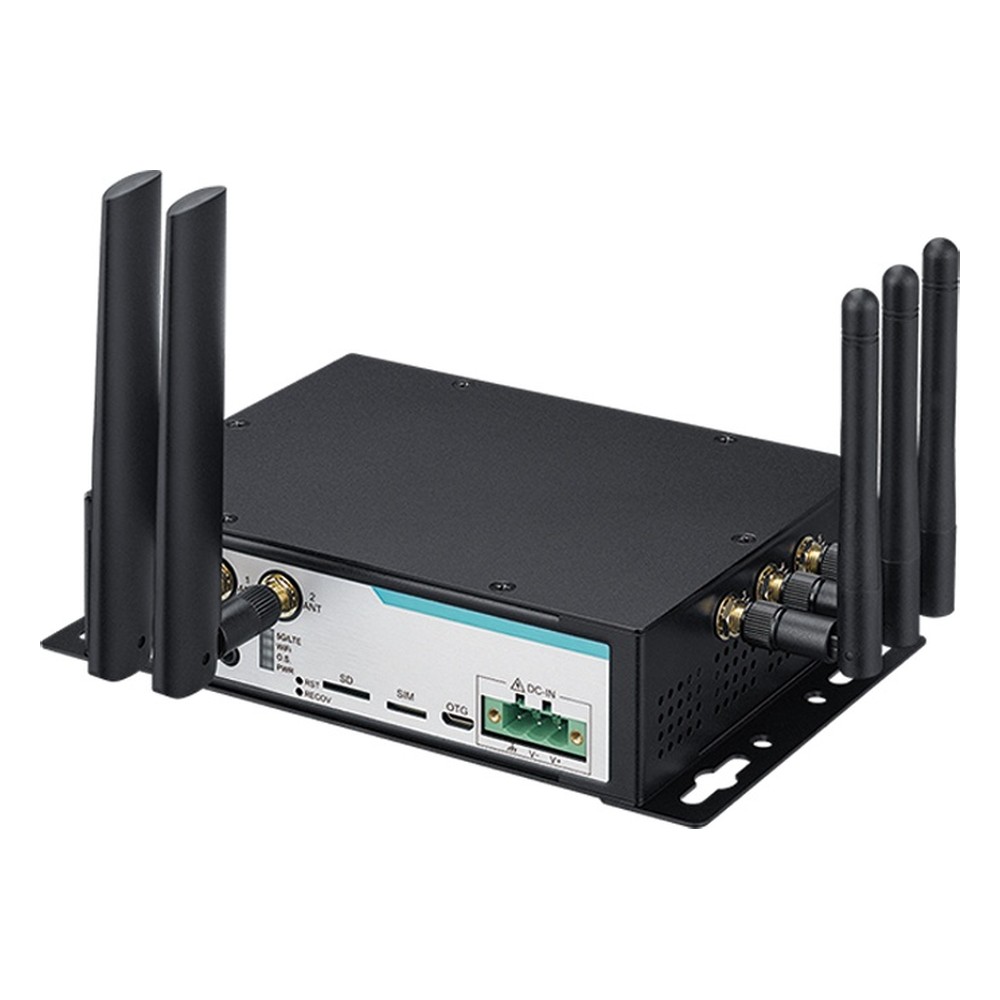

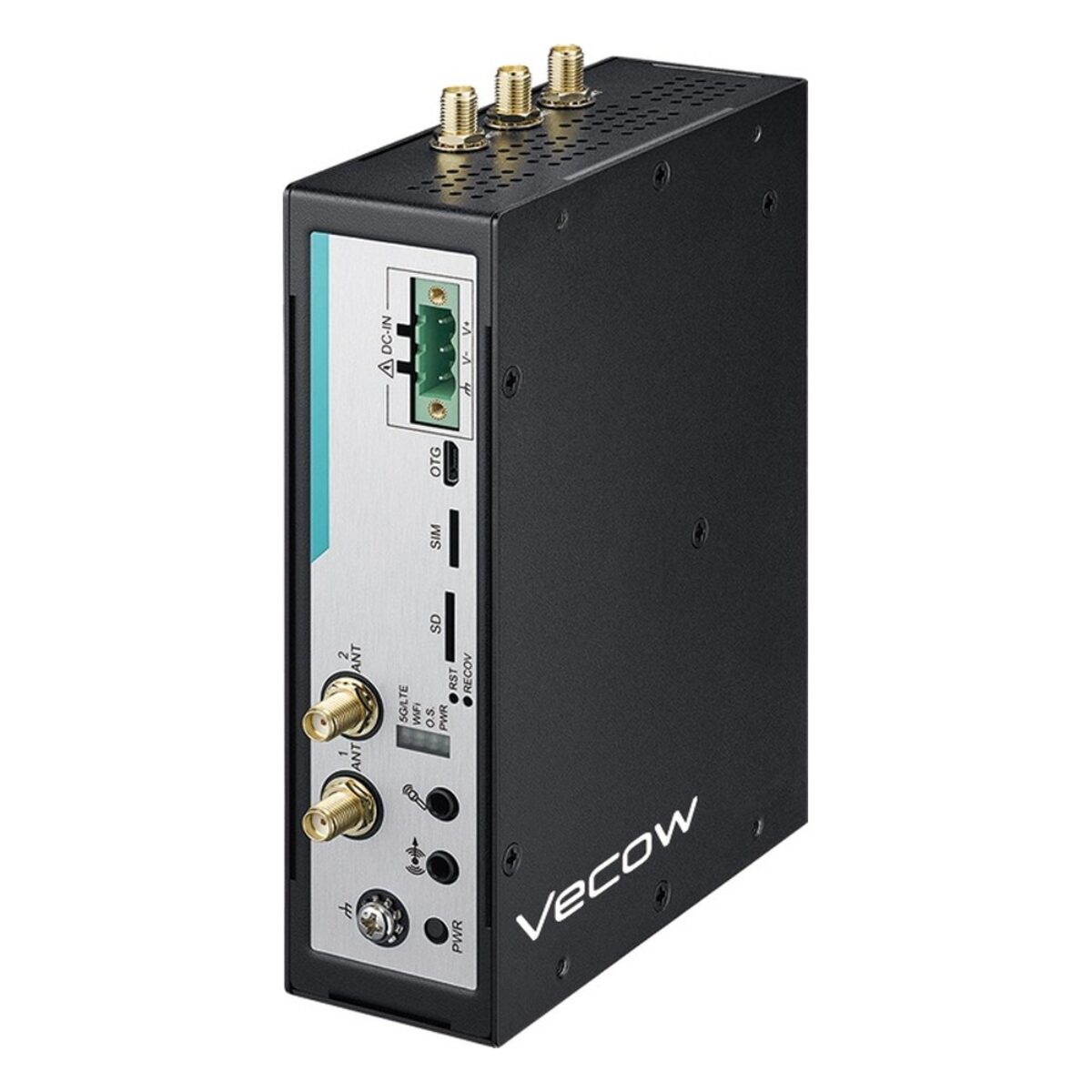

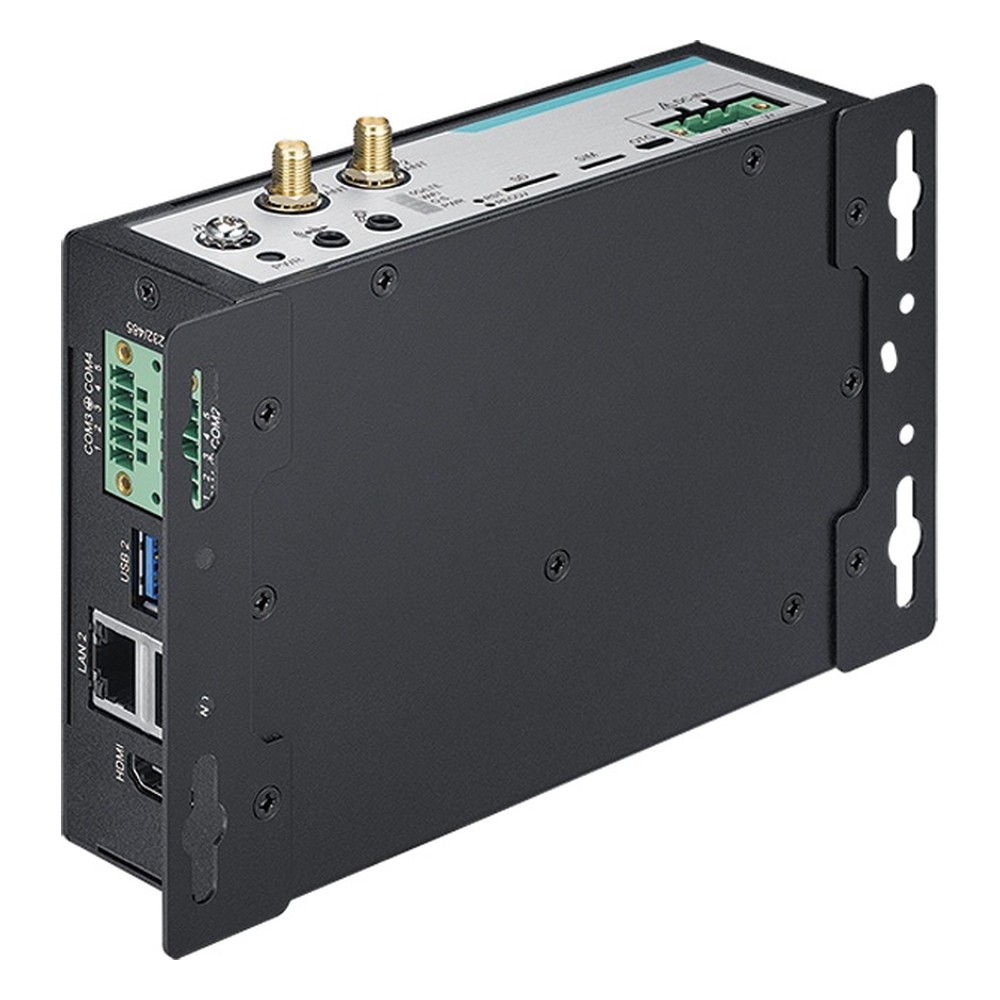

I/O covers two Gigabit Ethernet ports on RJ45, two USB 3.0 ports and two RS-232/485 serial ports on terminal blocks, which suit meters, PLCs and building controllers. One HDMI 1.4 output can drive a local status screen. An M.2 Key B 3052 socket with a nano SIM takes an optional 5G or 4G LTE module, and an M.2 Key E 2230 socket takes an optional Wi-Fi and Bluetooth card, with five antenna cutouts on the case.

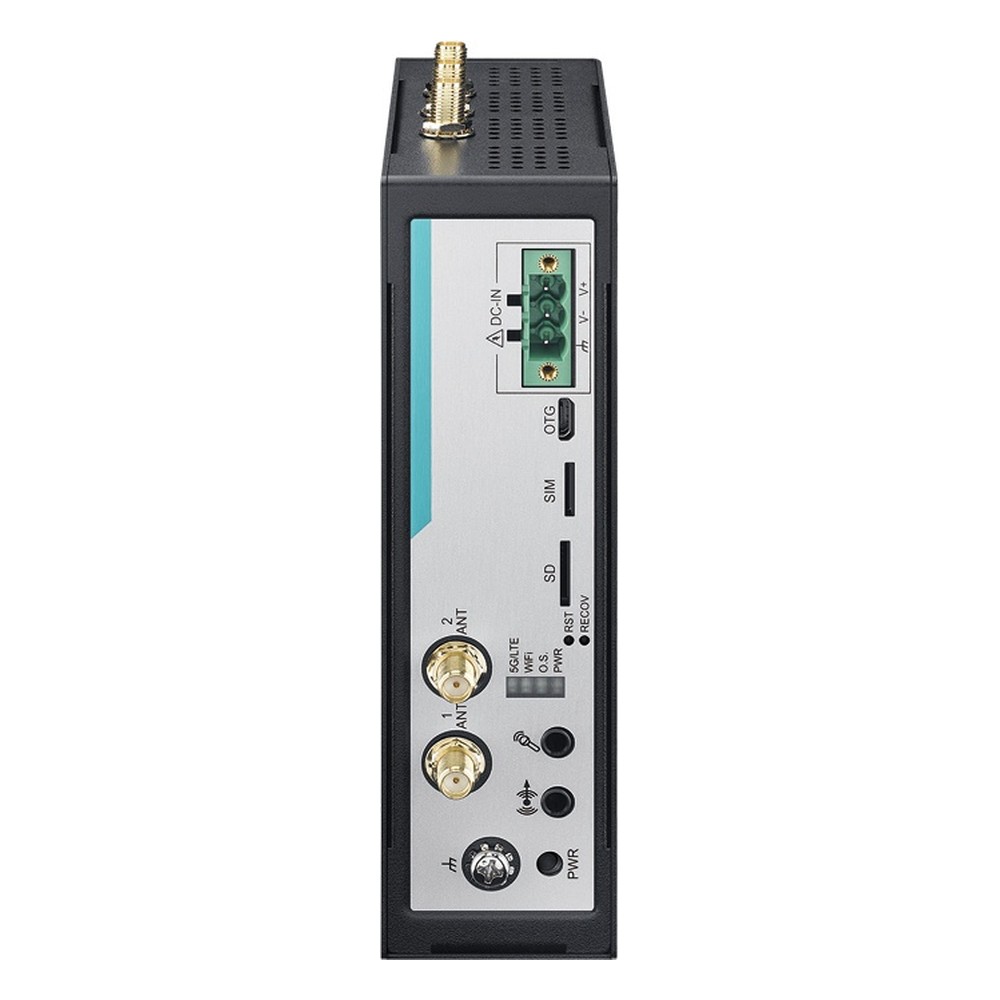

Power is 9 to 50 V DC on a three-pin terminal block, and the AIC-200-eMMC-64GB runs fanless from -30 °C to 70 °C, with shock and vibration tested to IEC 60068-2-27 and IEC 60068-2-64. The EMC list covers CE and FCC, and the gateway is designed to EN 50155 and EN 50121-3-2 requirements for rail use. It wall-mounts on a bracket or fits an optional DIN rail kit, and a watchdog timer restarts it if the software stops responding. For lighter jobs, the AIC-100 and VIG-100 offer smaller NXP i.MX 6 gateways.
