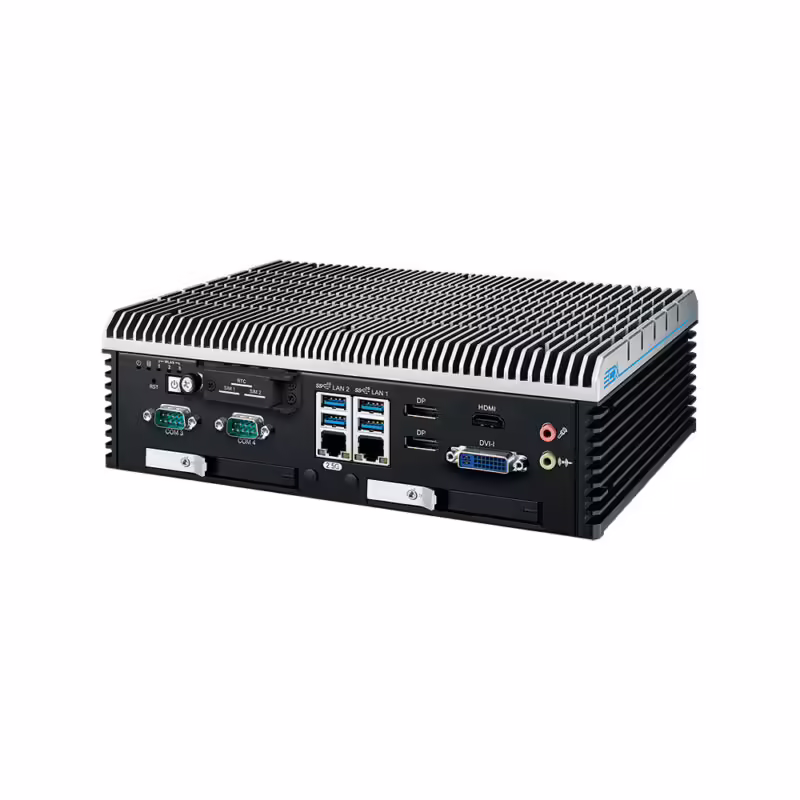

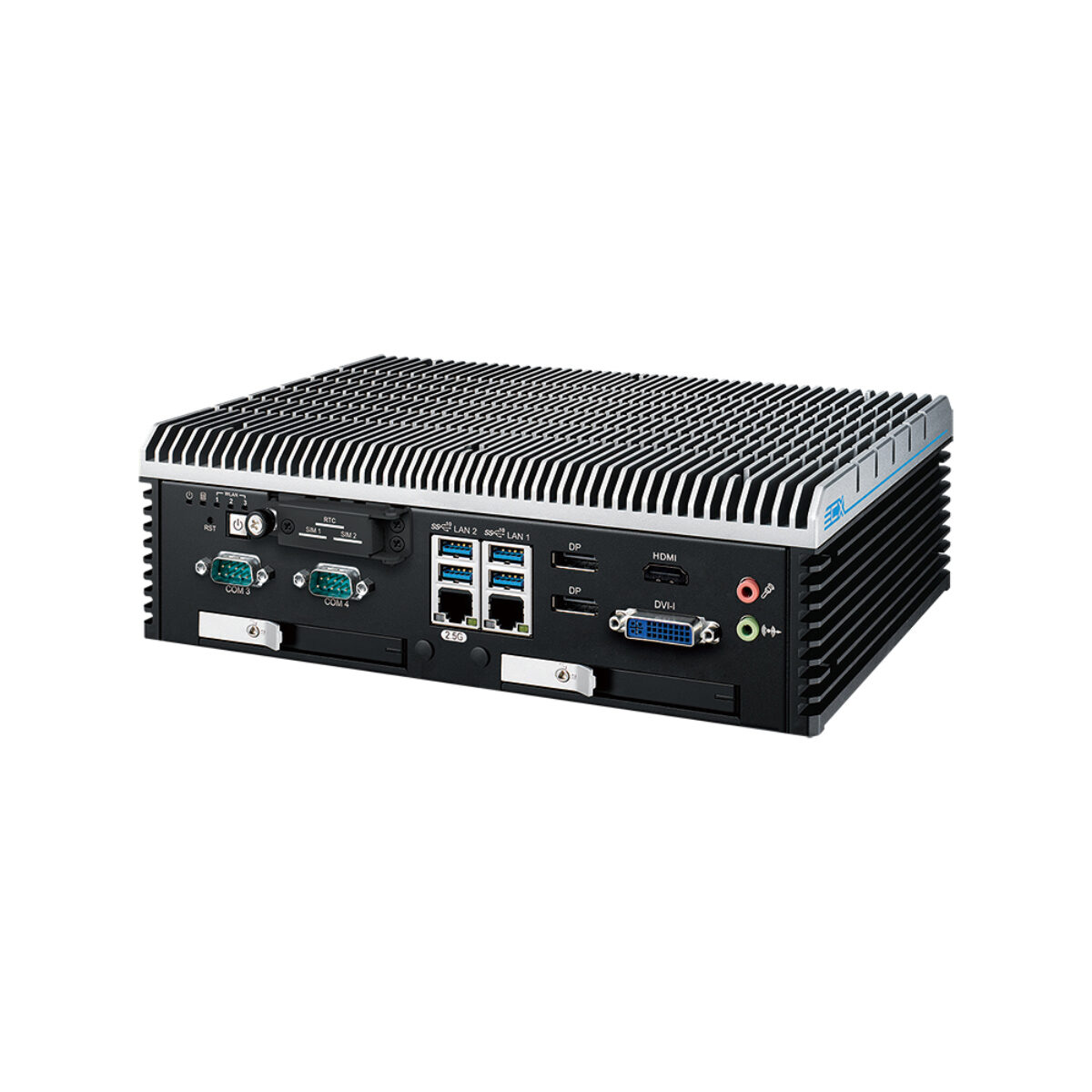

Vecow ECX-3000-2G AI Intel Core i9-13900E Hailo-8 AI Edge Computer with Dual LAN

Not every AI inspection point needs a rack of cameras or a stack of drives. Many run one or two cameras, a display and a network uplink, and the priority is inference that keeps up without a hot GPU card. The ECX-3000-2G AI is the two-LAN AI edge computer in the Vecow ECX-3000 AI series, pairing a Hailo-8 accelerator with 12th or 13th Gen Intel Core in a compact fanless chassis.

The ECX-3000-2G AI runs 12th or 13th Gen Intel Core i9, i7, i5 and i3 processors on the Intel R680E chipset, up to the 24-core Core i9-13900E at 65 W TDP, with two DDR4 3200 MHz SO-DIMMs for up to 64 GB. The Hailo-8 AI processor adds up to 26 TOPS for TensorFlow and ONNX models, so detection and classification run on the accelerator while the CPU handles the application, and Intel UHD Graphics 770 drives up to four displays over two DisplayPort, DVI-I and HDMI.

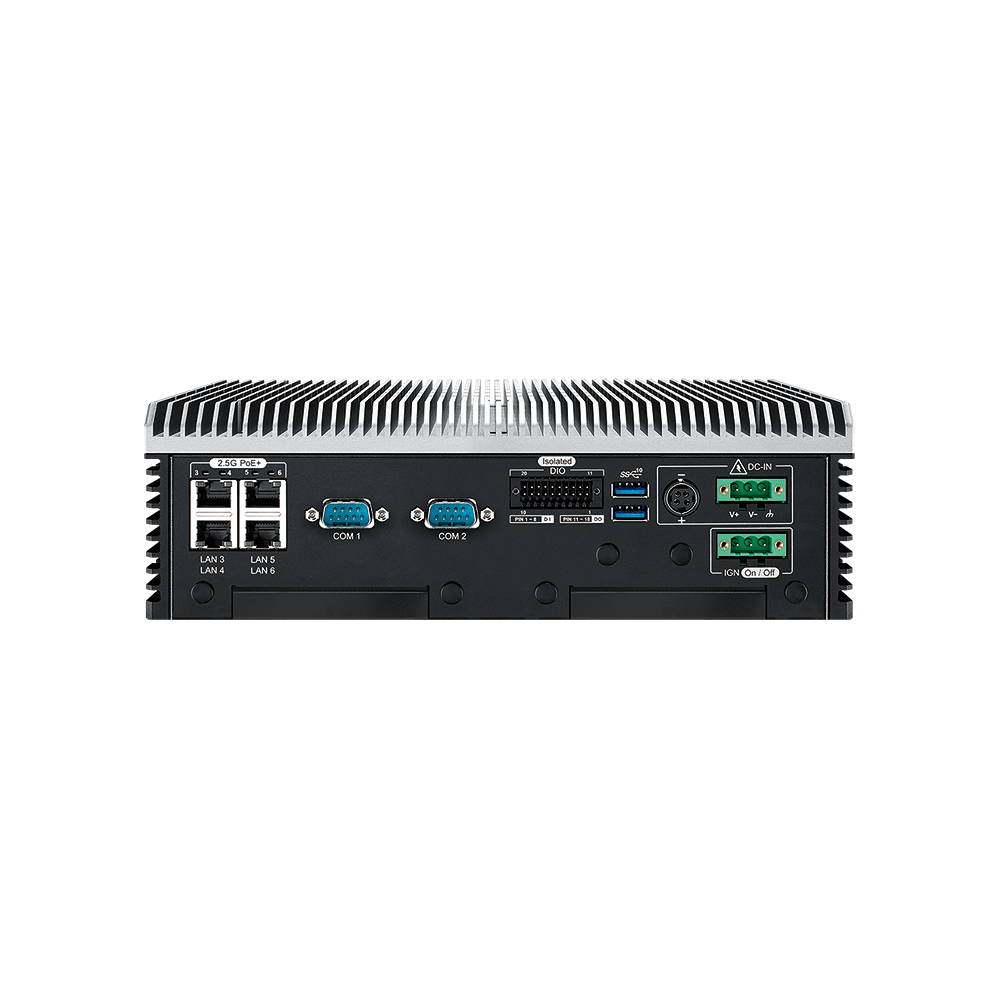

Networking on the ECX-3000-2G AI is one Intel I226 2.5GbE port with TSN and one Intel I219LM GbE port with iAMT. Storage fits internally on mSATA or an M.2 Key B SSD. Six USB 3.2 Gen 2 ports, four COM ports, 16 GPIO, a Mini PCIe socket, M.2 Key B and Key E sockets and two external SIM sockets cover field I/O and 4G, 5G or Wi-Fi modules.

The AI edge computer runs on 9 V to 50 V DC through a terminal block or 4-pin Mini-DIN, with 16-mode software ignition control for vehicle installs. Fanless operation is rated from -40 °C to 65 °C with 35 W processors and -40 °C to 45 °C with 65 W parts, backed by IEC 60068 shock and vibration testing and EN 50155 and EN 50121-3-2 EMC listings. The 260 x 175 x 79 mm Vecow chassis wall-mounts as standard, with DIN-rail and 2U rack kits optional. For more ports, see the ECX-3000-4G AI.
