Vecow ECX-3200G Intel Core 200S and 14th Gen Machine Vision PC with 16 GMSL Cameras, 4x 2.5GbE PoE+ and Extended Temperature

The ECX-3200G is the PoE+ model of the Vecow ECX-3200G series: a fan-cooled machine vision PC for Core 200S and 12th to 14th Gen CPUs, with 16 GMSL 1/2 camera inputs on mini Fakra, four 2.5GbE PoE+ ports and 32 isolated DIO. Suits vehicles and machines that mix GMSL cameras with PoE network cameras.

  • 16 GMSL 1/2 Camera Inputs: Four 4-way mini Fakra connectors take up to 16 GMSL 1 or GMSL 2 automotive cameras for surround view and inspection.
  • 4x 2.5GbE PoE+ and Dual GbE: Four Intel I226 2.5GbE ports with IEEE 802.3at PoE+ at 25.5 W each, plus two GbE ports, one with iAMT.
  • Core 200S and 12th to 14th Gen CPUs: Socketed Intel processors at up to 65 W TDP on the R680E chipset, with up to 24 cores and 96 GB of DDR5.
  • 32 Isolated DIO and Four COM: Sixteen isolated inputs and 16 isolated outputs, four RS-232/422/485 ports and three nano SIM sockets for optional 5G or 4G.
  • -40 °C to 60 °C with System Fan: Rated -40 °C to 60 °C with 35 W CPUs or -40 °C to 50 °C with 65 W CPUs, using the system fan.
View ECX-3200G Series
Processor Brand: IntelIntel
Operating Software: LinuxLinux
Ethernet Speed: 2.5GbE2.5GbE
PoE Support: PoE SupportPoE Support
USB Connector Type: Type CType C
USB Generation: USB3USB3
M.2: 44x M.2
mPCIe: 11x mPCIe
SIM Slots: 33x SIM
Connectivity: 4G4G
Connectivity: 5G5G
Connectivity: GPS/GLONASSGPS/GLONASS
Connectivity: WirelessWi-Fi
NVMe: NVMe SSD SupportNVMe SSD
Ignition Sensing: Supports Ignition ControlIgnition Control
Operating Temperature: Extended TemperatureExtended Temp
Certification: CECE
Certification: EN50155EN50155
Certification: FCCFCC
USA Support Team: +1 407 214 9446 Call
Select section
  • Overview
  • Specifications
  • Downloads

ECX-3200G Overview

Surround view, driver assistance and multi-angle inspection all need many synchronized camera feeds close to the vehicle or machine. The Vecow ECX-3200G is a machine vision PC for that work, with 16 GMSL 1/2 camera inputs on mini Fakra and four 2.5GbE PoE+ ports for network cameras. It belongs to the ECX-3200G series, which adds GMSL capture to the ECX-3200 design with a system fan.

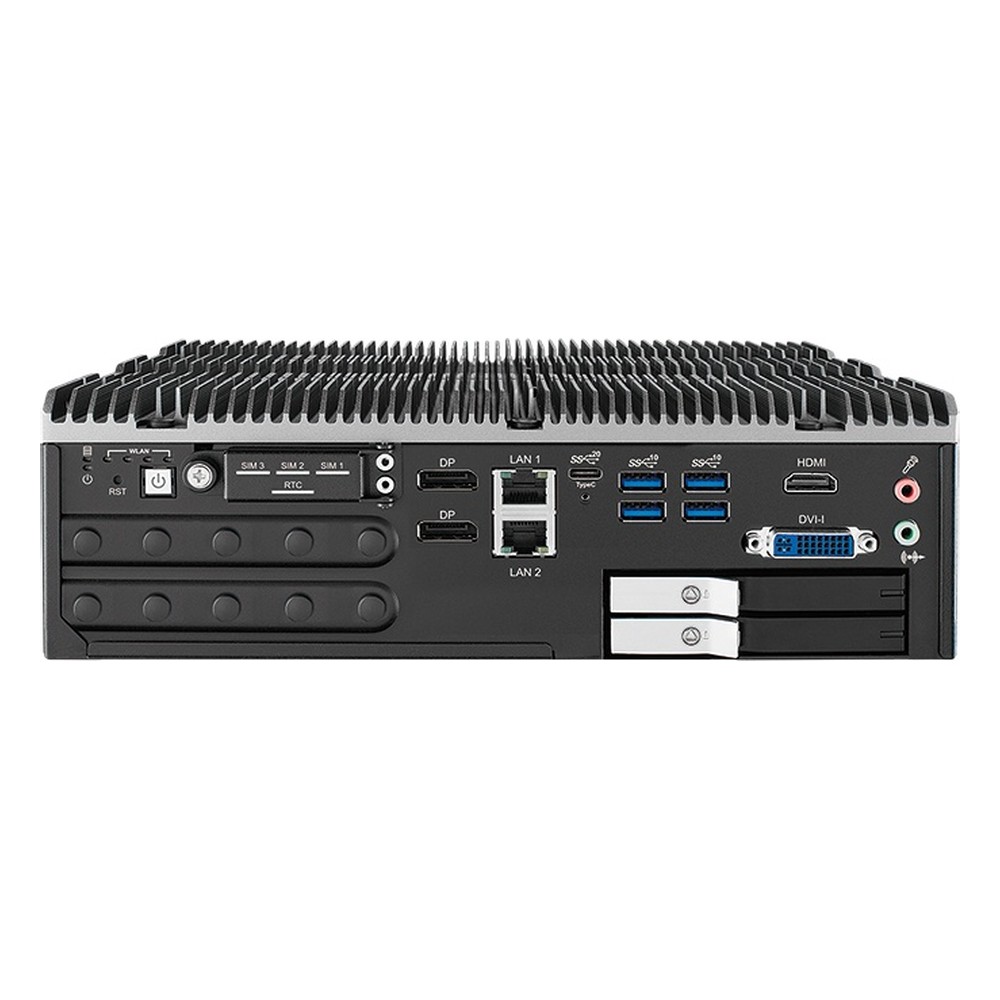

The ECX-3200G takes socketed Intel Core 200S (Bartlett Lake-S), 14th, 13th and 12th Gen processors on the R680E chipset at up to 65 W TDP, with up to 24 cores, so several camera pipelines can share one CPU. Two DDR5 5200 SO-DIMM sockets take up to 96 GB, and Intel UHD 770/730 graphics drive DVI-I, HDMI and two DisplayPort outputs at up to 7680 x 4320. Vecow lists Linux for the G models.

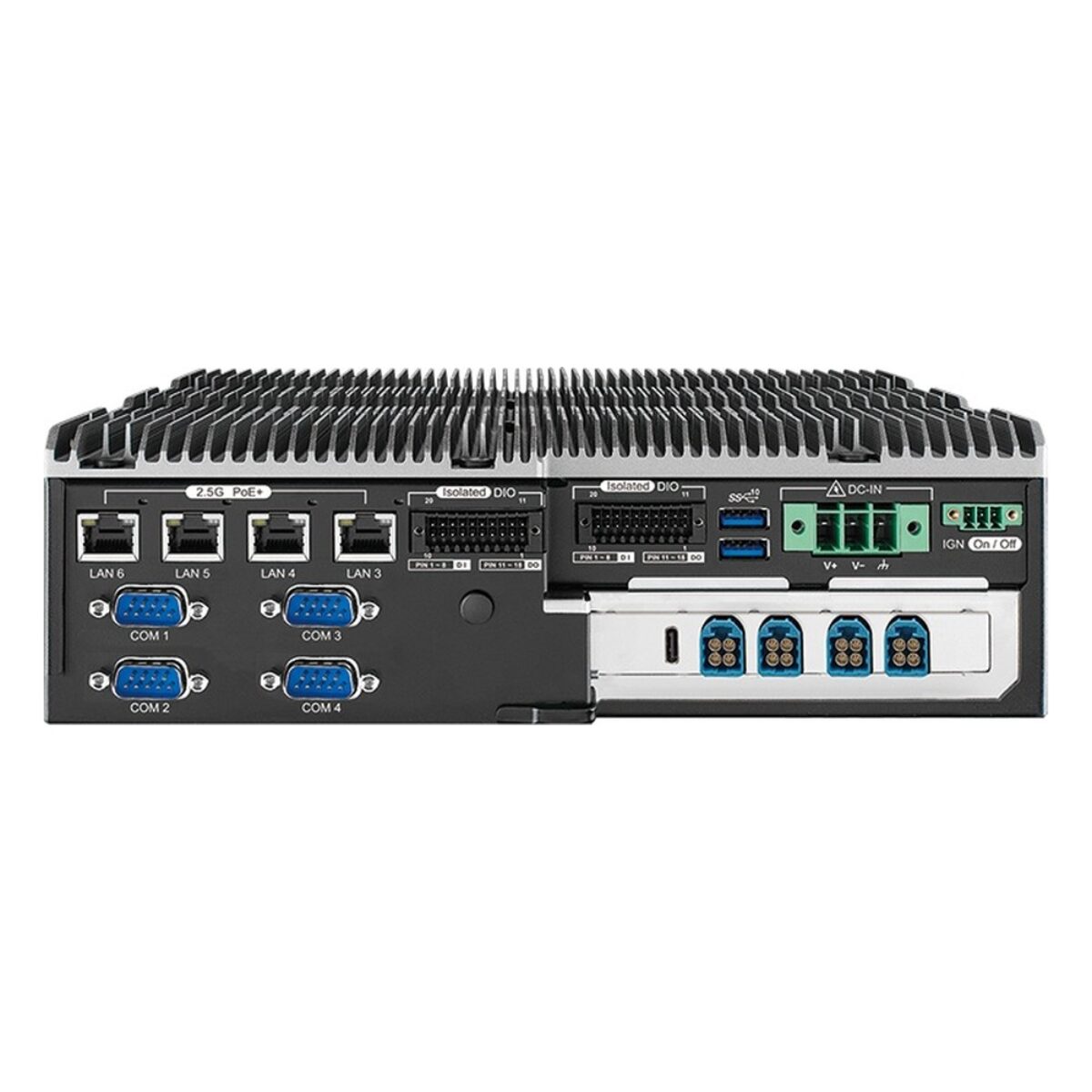

Cameras connect through four 4-way mini Fakra connectors for GMSL 1 or GMSL 2 automotive cameras. Networking is an Intel I219LM GbE port with iAMT, an I210 GbE port and four Intel I226 2.5GbE ports with IEEE 802.3at PoE+ at 25.5 W each. Six USB 3.2 Gen 2 ports, a 20 Gbps USB-C port, four RS-232/422/485 ports, 32 isolated DIO and three nano SIM sockets complete the I/O. Mini PCIe, two M.2 B key sockets and an M.2 E key socket take optional 5G, 4G and Wi-Fi modules; there is no PCIe x16 slot on the G models. Storage is an M.2 M key PCIe x4 SSD and two front-access 2.5″ trays with RAID 0 and 1.

Power is 9 to 50 V DC with 16-mode software ignition control and a remote switch. With its system fan, the ECX-3200G runs from -40 °C to 60 °C with 35 W CPUs or -40 °C to 50 °C with 65 W CPUs. Vecow rates operating shock and vibration to MIL-STD-810G Methods 516.7 and 514.7, and lists CE, FCC, EN 50155 and EN 50121-3-2 for EMC. It wall mounts, with optional VESA and 2U rack kits. The ECX-3100G keeps the 16 cameras without PoE, and the ECX-3200 swaps GMSL for a PCIe x16 slot.

ECX-3200G Specifications

Overview
Brand & ModelVecow ECX-3200G
FeaturesEmbedded
Industrial
Isolated I/O
Performance
Processor SeriesIntel Core 14th Gen Raptor Lake Refresh
Intel Core Series 2 Bartlett Lake
Intel Core 12th Gen Alder Lake
Intel Core 13th Gen Raptor Lake
Processor ModelsIntel Core 3 201E: 3.6~4.8GHz, 4 Cores, 8 Threads, 12MB Cache, 60W
Intel Core 3 201TE: 2.9~4.6GHz, 4 Cores, 8 Threads, 12MB Cache, 45W
Intel Core 5 221E: 2.7~5.2GHz, 14 Cores, 20 Threads, 24MB Cache, 65W
Intel Core 5 221TE: 1.8~5.0GHz, 14 Cores, 20 Threads, 24MB Cache, 45W
Intel Core 5 223PE: 2.9~5.4GHz, 8 Cores, 16 Threads, 24MB Cache, 65W
Intel Core 5 223PTE: 2.3~5.4GHz, 8 Cores, 16 Threads, 24MB Cache, 45W
Intel Core 7 251E: 2.1~5.6GHz, 24 Cores, 32 Threads, 36MB Cache, 65W
Intel Core 7 251TE: 1.4~5.4GHz, 24 Cores, 32 Threads, 36MB Cache, 45W
Intel Core 7 253PE: 2.5~5.5GHz, 10 Cores, 20 Threads, 33MB Cache, 65W
Intel Core 7 253PTE: 1.8~5.4GHz, 10 Cores, 20 Threads, 33MB Cache, 45W
Intel Core 9 273PE: 2.3~5.7GHz, 12 Cores, 24 Threads, 36MB Cache, 65W
Intel Core 9 273PTE: 1.4~5.5GHz, 12 Cores, 24 Threads, 36MB Cache, 45W
Intel Core i3-14100: 3.5~4.7GHz, 4 Cores, 8 Threads, 12MB Cache, 60W
Intel Core i3-14100T: 2.7~4.4GHz, 4 Cores, 8 Threads, 12MB Cache, 35W
Intel Core i5-14500: 2.6~5.0GHz, 14 Cores, 20 Threads, 24MB Cache, 65W
Intel Core i5-14500T: 1.7~4.8GHz, 14 Cores, 20 Threads, 24MB Cache, 35W
Intel Core i7-14700: 2.1~5.4GHz, 20 Cores, 28 Threads, 33MB Cache, 65W
Intel Core i7-14700T: 1.3~5.2GHz, 20 Cores, 28 Threads, 33MB Cache, 35W
Intel Core i9-14900: 2.0~5.8GHz, 24 Cores, 32 Threads, 36MB Cache, 65W
Intel Core i9-14900T: 1.1~5.5GHz, 24 Cores, 32 Threads, 36MB Cache, 35W
Intel Core i3-12100E: 3.2~4.2GHz, 4 Cores, 8 Threads, 12MB Cache, 60W
Intel Core i3-12100TE: 2.1~4.0GHz, 4 Cores, 8 Threads, 12MB Cache, 35W
Intel Core i3-13100E: 3.3~4.4GHz, 4 Cores, 8 Threads, 12MB Cache, 60W
Intel Core i3-13100TE: 2.4~4.1GHz, 4 Cores, 8 Threads, 12MB Cache, 35W
Intel Core i5-12500E: 2.9~4.5GHz, 6 Cores, 12 Threads, 18MB Cache, 65W
Intel Core i5-12500TE: 1.9~4.3GHz, 6 Cores, 12 Threads, 18MB Cache, 35W
Intel Core i5-13500E: 2.4~4.6GHz, 14 Cores, 20 Threads, 24MB Cache, 65W
Intel Core i5-13500TE: 1.3~4.5GHz, 14 Cores, 20 Threads, 24MB Cache, 35W
Intel Core i7-12700E: 2.1~4.8GHz, 12 Cores, 20 Threads, 25MB Cache, 65W
Intel Core i7-12700TE: 1.4~4.6GHz, 12 Cores, 20 Threads, 25MB Cache, 35W
Intel Core i7-13700E: 1.9~5.1GHz, 16 Cores, 24 Threads, 30MB Cache, 65W
Intel Core i7-13700TE: 1.1~4.8GHz, 16 Cores, 24 Threads, 30MB Cache, 35W
Intel Core i9-12900E: 2.3~5.0GHz, 16 Cores, 24 Threads, 30MB Cache, 65W
Intel Core i9-12900TE: 1.1~4.8GHz, 16 Cores, 24 Threads, 30MB Cache, 35W
Intel Core i9-13900E: 1.8~5.2GHz, 24 Cores, 32 Threads, 36MB Cache, 65W
Intel Core i9-13900TE: 1.0~5.0GHz, 24 Cores, 32 Threads, 36MB Cache, 35W
Performance Cores4 Cores
6 Cores
8 Cores
10 Cores
12 Cores
14 Cores
16 Cores
20 Cores
24 Cores
Memory2x DDR5 5200MHz SO-DIMM Slot, 96GB
ChipsetIntel R680E
BIOSAMI
Secure Crypto ProcessorTPM 2.0 (Trusted Platform Module)
Operating SystemLinux
Graphics
Integrated GPUIntel UHD Series
Display Outputs1x DVI
1x HDMI
2x Display Port
Audio
CodecRealtek ALC888S-VD, 7.1 Channel HD Audio
InterfaceLine-Out
Mic-In
I/O
Ethernet6x Ethernet Ports
2x GbE LAN [RJ45]
4x 2.5 GbE LAN [RJ45] [PoE]
LAN ControllersIntel I210
Intel I219LM
Intel I226
PoE StandardPoE+ [IEEE 802.3at]
PoE Power Budget25.5W
USB7x USB Ports
1x USB 3.2 Gen 2x2 [Type C]
6x USB 3.2 Gen 2 [Type A]
Serial4x Serial Ports
4x RS232/422/485 [DB9]
Digital I/OIsolated DIO [16-in, 16-out]
MIPI Interface16x GMSL Automotive Camera Inputs [Mini Fakra]
Remote ManagementIntel AMT
Intel vPro
Expansion
M.24x M.2 Expansion Slots
1x M.2 B-Key [PCIe/USB 3.0/USB] [2280/3042]
1x M.2 B-Key [PCIe/USB 3.0/USB] [2280/3052]
1x M.2 E-Key [USB/PCIe] [2230]
1x M.2 M-Key [PCIe x4] [2280]
mPCIe1x mPCIe Slots
1x mPCIe [PCIe/USB/SIM]
SIM Slots3x SIM Slots
Wireless ConnectivityOptional 4G Modem
Optional 5G Modem
Optional GPS/GLONASS
Optional WiFi/Bluetooth
Storage
Storage1x M.2 SSD
2x 2.5" HDD/SSD [SATA]
NVMeNVMe SSD Support
Front Accessible StorageFront Accessible Storage
RAIDRAID 0 (Striping)
RAID 1 (Mirroring)
Power
Power Input9-50V DC Input [Terminal Block]
Power Support ModesAT: PWR on Input
ATX: Press Button to Power
Ignition SensingSupports Ignition Control
Environmental Conditions
Thermal DissipationOnboard Fan
Operating Temperature-40°C to 50°C [-40°F to 122°F]
-40°C to 60°C [-40°F to 140°F]
Storage Temperature-40°C to 85°C [-40°F to 185°F]
Humidity5% - 90% (Non-condensing)
ShockMIL-STD-810G, Method 516.7, Procedure I
VibrationMIL-STD-810G, Method 514.7, Category 4
CertificationCE
EN50121-3-2
EN50155
FCC
Mechanical Properties
Weight4.8 Kg (10.6 Lbs)
Dimensions260mm x 240mm x 79mm (10.24" x 9.45" x 3.11")
Mounting OptionsDIN Mount
Rack Mount
VESA Mount
Wall Mount

Official Vecow USA Distributor

Things Embedded is an official Vecow USA distributor, and we supply the ECX-3200G configured and tested, with the processor, memory, storage and operating system image fitted before it ships. Within the Vecow range, the ECX-3100G keeps the 16 GMSL camera inputs with two GbE ports and 16 GPIO instead of PoE+ and isolated DIO.

Across our range, the ECX-3200G sits with our in-vehicle computers, PoE computers and Bartlett Lake systems.
