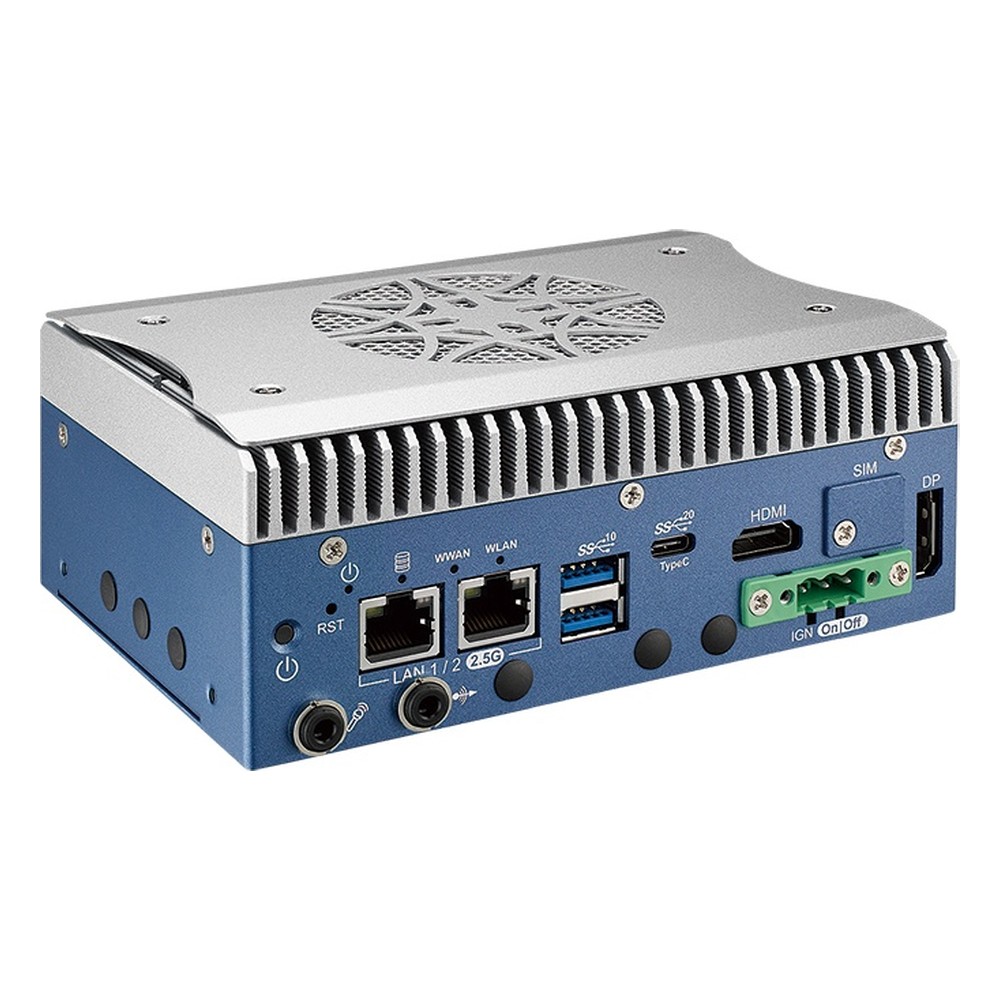

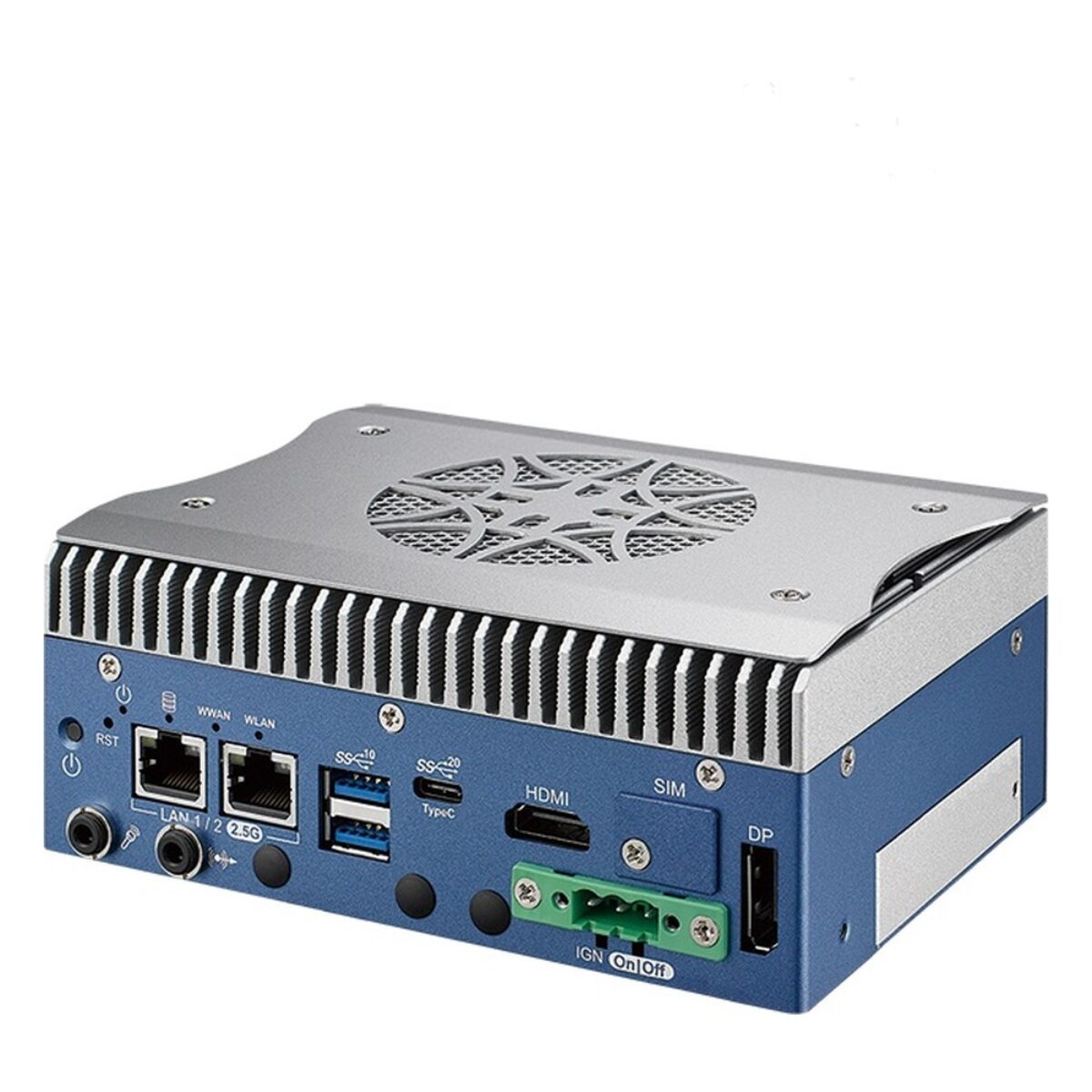

Vecow SPC-9200-135U Intel Core Ultra 5 Mini Industrial PC with Fan-Cooled Design, Dual 2.5GbE TSN and Extended Temperature

Packaging lines and vending machines may run around the clock, and a computer under constant load benefits from active cooling. The Vecow SPC-9200-135U brings that to the Core Ultra 5 tier of the SPC-9000 series, with a fan sink in place of the fanless heatsink.

The Intel Core Ultra 5 135U is a Meteor Lake-U processor with 12 cores, Intel graphics and an Intel AI Boost NPU rated at 11 TOPS. One DDR5 5600 SO-DIMM socket takes up to 48 GB. With Intel vPro, TCC and TPM 2.0 support, the SPC-9200-135U handles control software, HMI and light inference together, on Windows 11 or Linux.

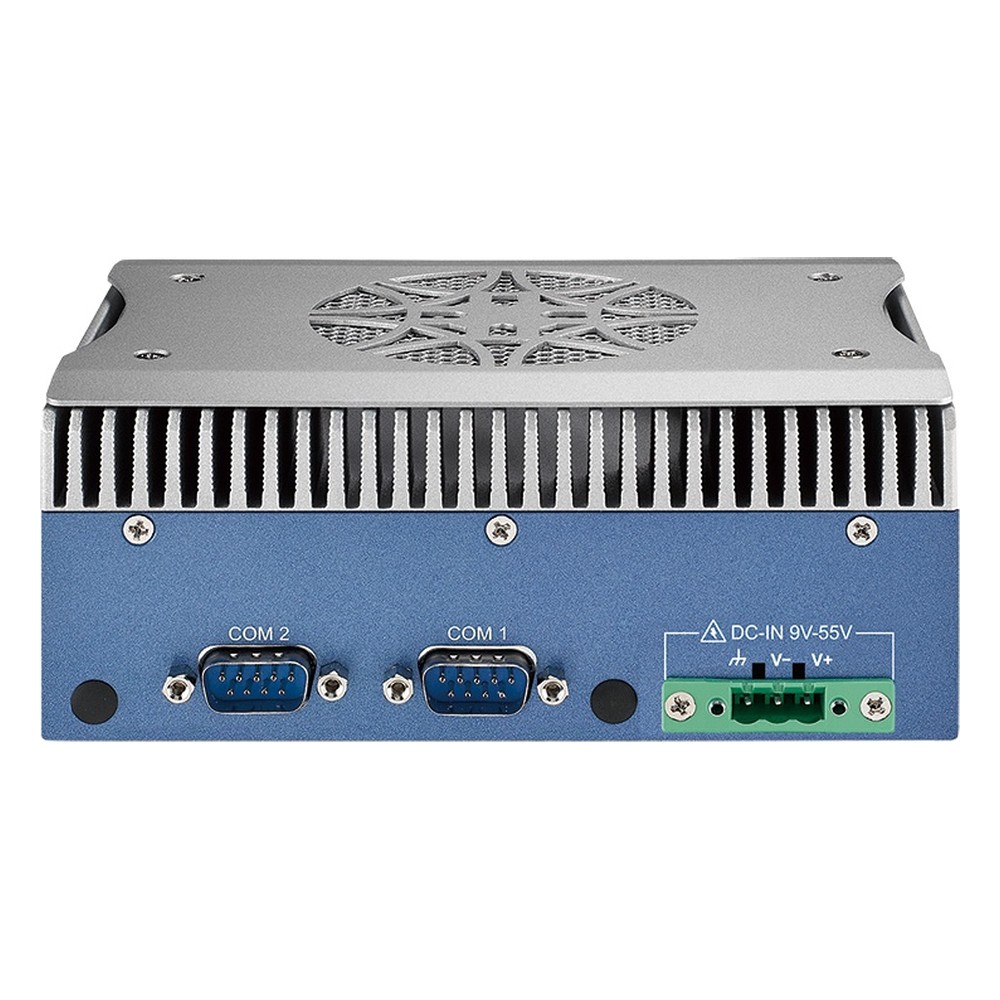

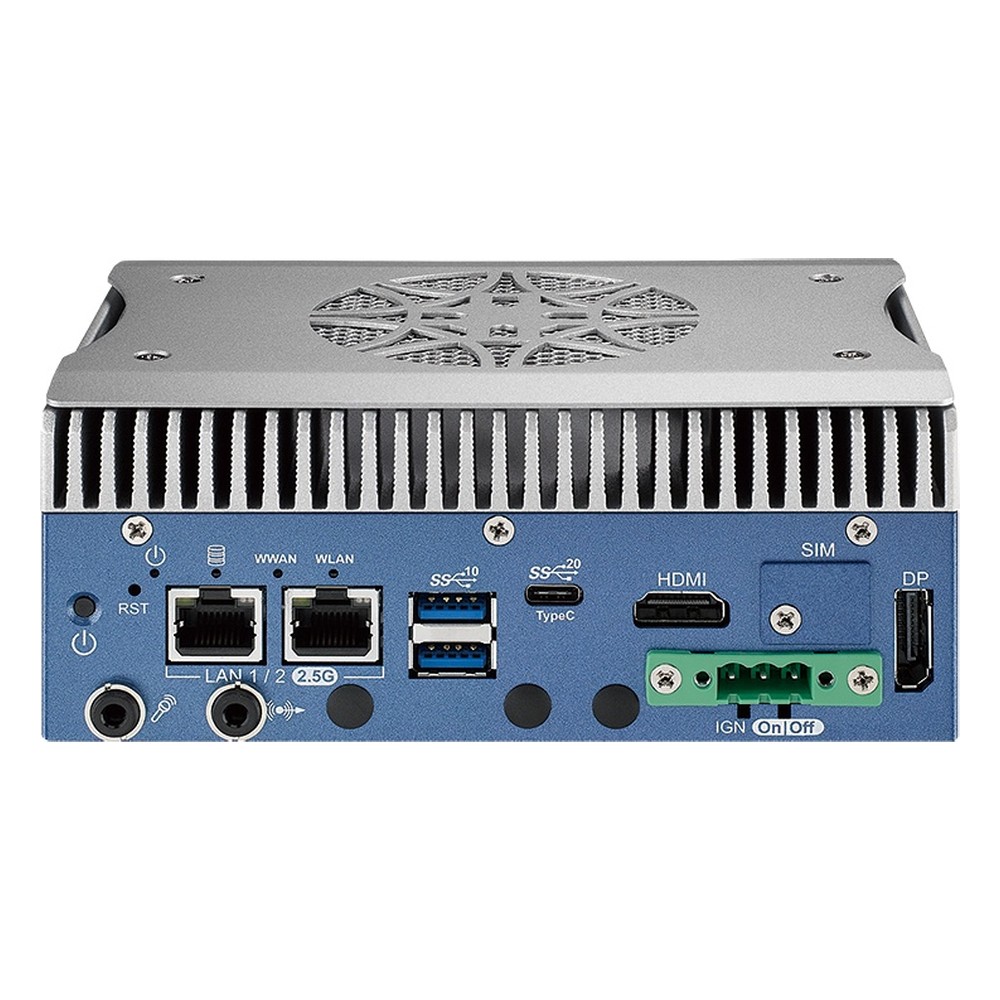

Networking is two Intel I226 2.5GbE ports with TSN, and two COM ports configurable for RS-232, RS-422 or RS-485 carry 8 kV ESD protection. Displays run from HDMI 2.1, DisplayPort 1.4 and DisplayPort over a USB 3.2 Gen 2×2 Type-C port, with two USB 3.2 Gen 2 Type-A alongside. Storage is an M.2 2280 M key socket on PCIe 4.0 x4 or SATA and an internal SATA III drive bay. An M.2 B key socket with an external nano SIM takes an optional 4G or 5G module, an M.2 E key socket takes optional Wi-Fi, and an optional SUMIT B module, in a customized chassis, can add 10GigE, 10G SFP+ or 4G.

Power is 9 to 55 V DC on a terminal block, with 16-mode software ignition control. The SPC-9200-135U is rated from -40 °C to 70 °C with its fan sink, with shock to IEC 60068-2-27 and vibration to IEC 60068-2-64. Vecow lists CE, FCC and ICES marks and EN 50155 and EN 50121-3-2 compliance. Wall mounting is standard, with optional VESA and DIN rail kits. We supply it configured and tested, with memory, storage and the OS image fitted. The SPC-9200-165U moves to a Core Ultra 7, and the SPC-9100-135U is the fanless heatsink build.
