Vecow TGS-2000F-336H Intel Core Ultra 5 Series 3 Edge AI Computer with 47 TOPS NPU, Dual 2.5GbE and -25 to 55 °C

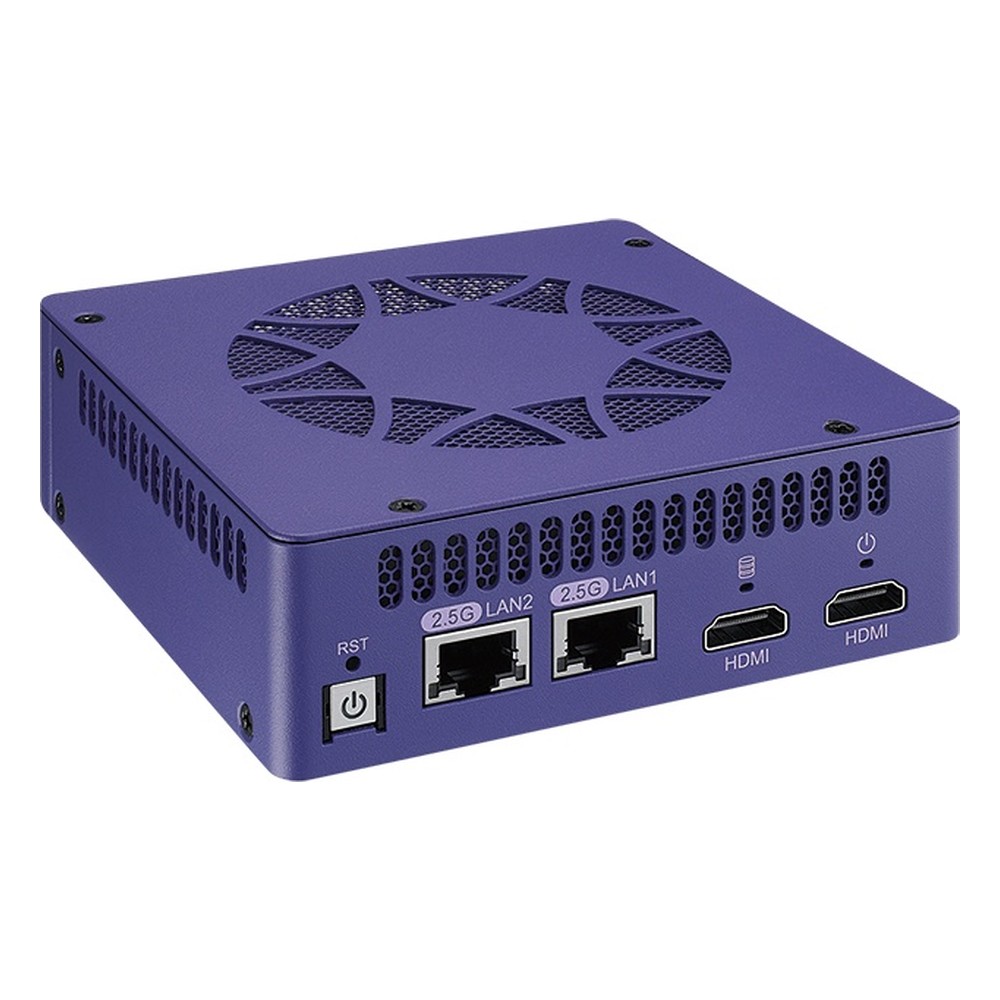

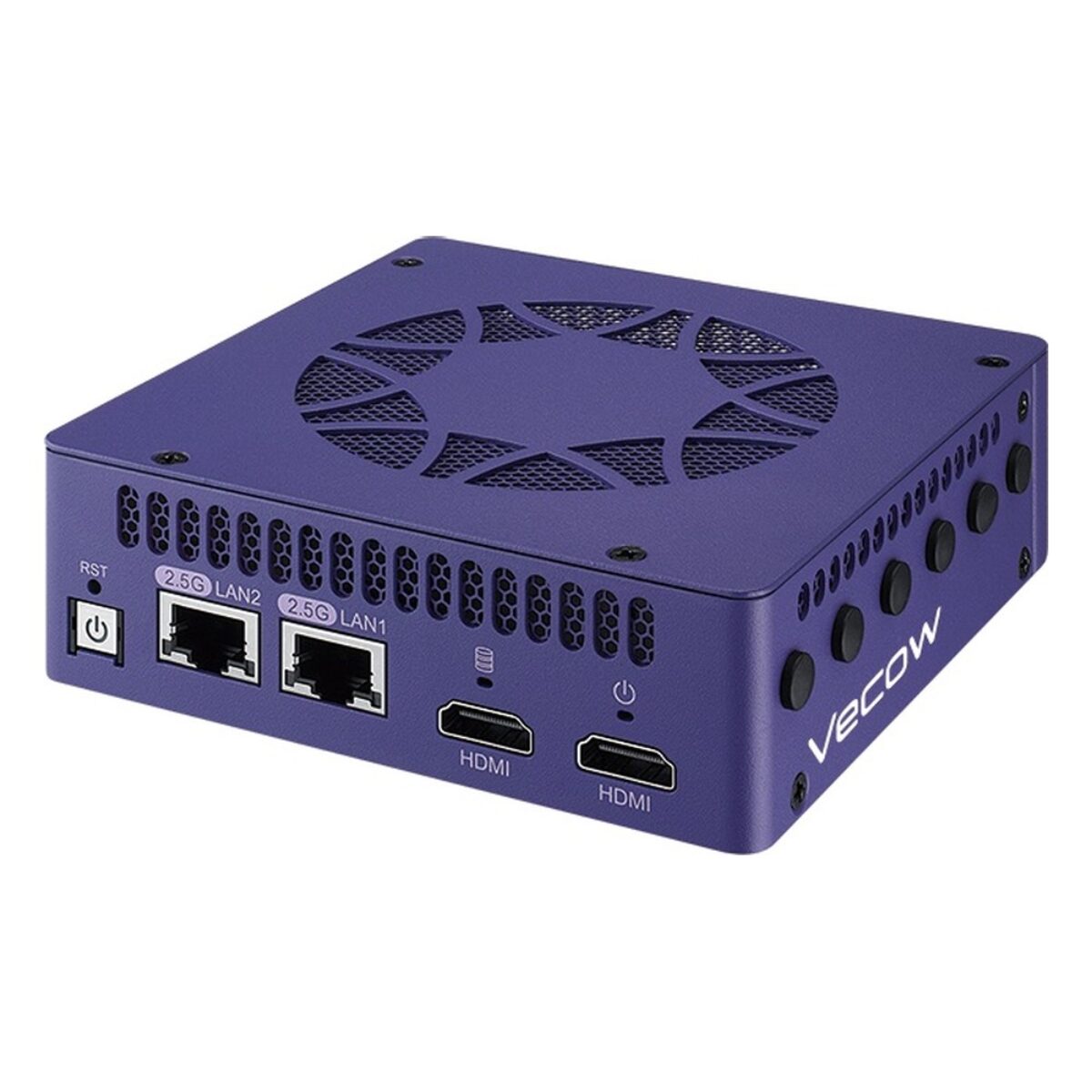

Kiosks and roadside smart city enclosures can run warm in summer, and a fanless unit may not have the headroom. The Vecow TGS-2000F-336H takes the Core Ultra 5 build of the TGS-2000 series and adds a fan lid, raising the operating ceiling to 55 °C with airflow.

The Intel Core Ultra 5 336H is a Panther Lake-H processor with 12 cores and 12 threads, Intel Xe3 graphics and an Intel AI Boost NPU rated at 47 TOPS. Two DDR5 7200 SO-DIMM sockets take up to 128 GB. For people counting, signage analytics and similar inference, the TGS-2000F-336H gives a sensible balance of AI compute and power draw, on Windows 11 or Linux.

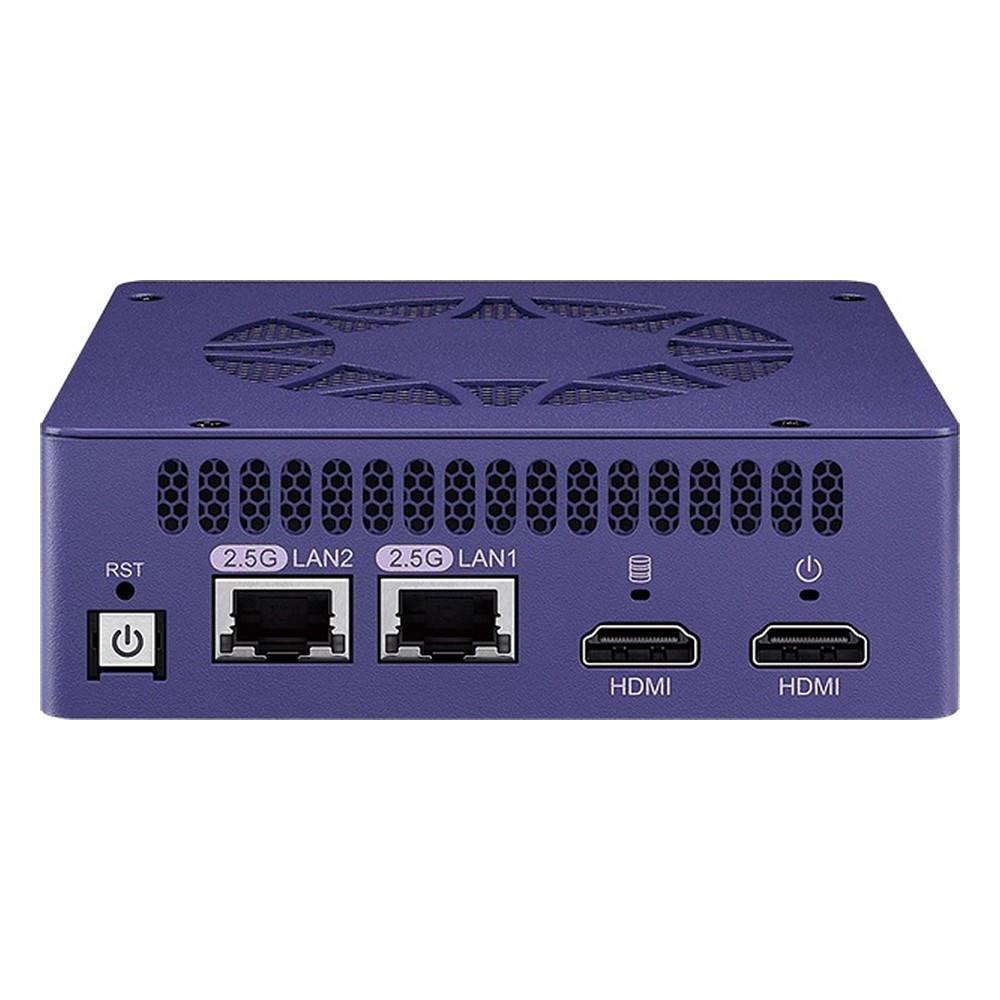

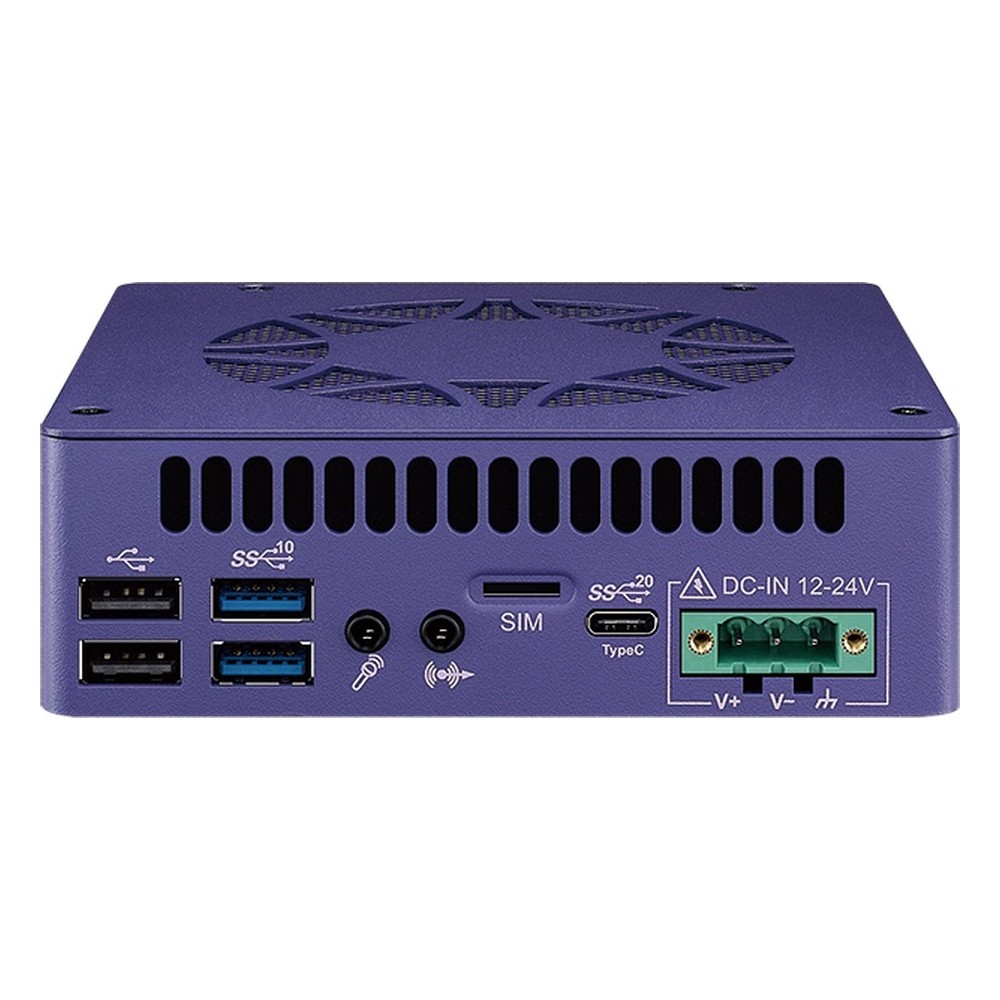

Networking is two Intel I226 2.5GbE ports, with Intel AMT on LAN1 for remote management. Displays run from two HDMI 2.1 outputs at up to 4096 x 2304 at 60 Hz and one DisplayPort 1.4 through the USB-C port. USB covers two USB 3.2 Gen 2 Type-A, two USB 2.0 and one USB 3.2 Gen 2×2 Type-C, with mic-in and line-out audio. Inside, an M.2 2280 M key socket on PCIe 4.0 x4 takes NVMe storage up to 4 TB, an M.2 E key socket takes an optional Wi-Fi and Bluetooth module, and an M.2 B key socket with a SIM slot takes an optional 4G or 5G module. Two docking connectors take optional TGS-101 to TGS-107 stack modules for GPIO, isolated DIO, isolated COM, USB 3, extra Gigabit LAN or 4G.

Power is 12 to 24 V DC on a three-pin terminal block. The TGS-2000F builds are rated from -25 °C to 55 °C with airflow and store from -40 °C to 85 °C, with shock and vibration tested to IEC 61373. CE, FCC and ICES marks apply, and the design follows EN 50155 and EN 50121-3-2 requirements. We supply it configured and tested, with memory, storage and any 5G module fitted. For more CPU, the TGS-2000F-386H moves to a Core Ultra 9, and the TGS-2000F-368H adds Arc B390 graphics.
