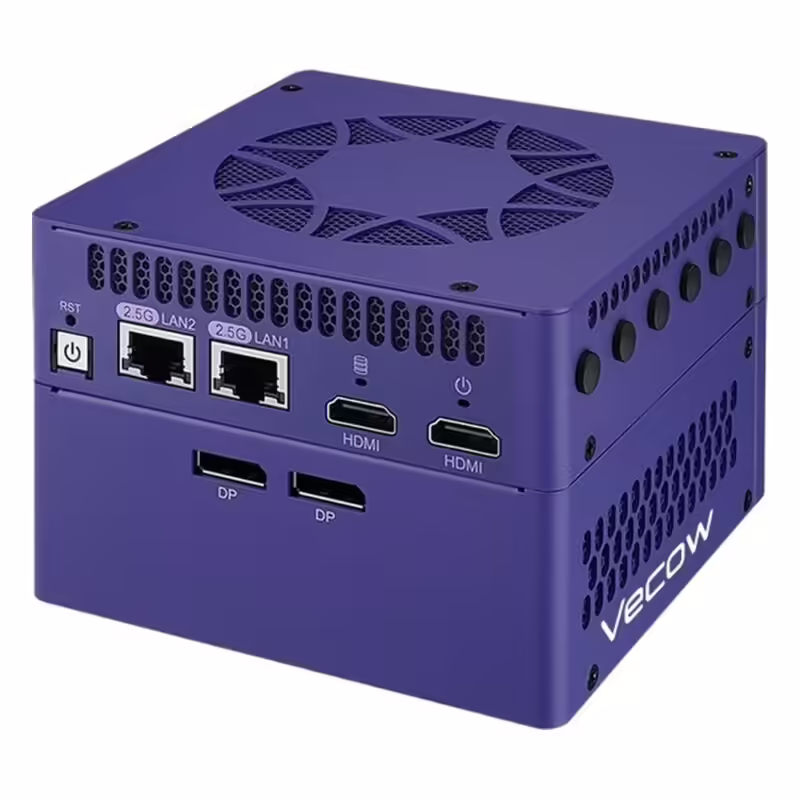

Vecow TGS-2500F-386H Intel Core Ultra 9 386H Edge AI Computer with Optional MXM GPU, 50 TOPS NPU and Wide Temperature

Some edge AI projects start on the NPU and later find a model or display wall that needs a discrete GPU. The Vecow TGS-2500F-386H plans for that inside the TGS-2000 series: it is the only model with an MXM layer, so an optional Type A MXM GPU can be fitted by request.

Compute is the Intel Core Ultra 9 386H, a Panther Lake-H processor with 16 cores and 16 threads, Intel Xe3 graphics and an Intel AI Boost NPU rated at 50 TOPS, with two DDR5 7200 SO-DIMM sockets for up to 128 GB. With an MXM GPU added, the TGS-2500F-386H can split work between CPU, NPU and discrete graphics, which can suit medical imaging and multi-camera vision.

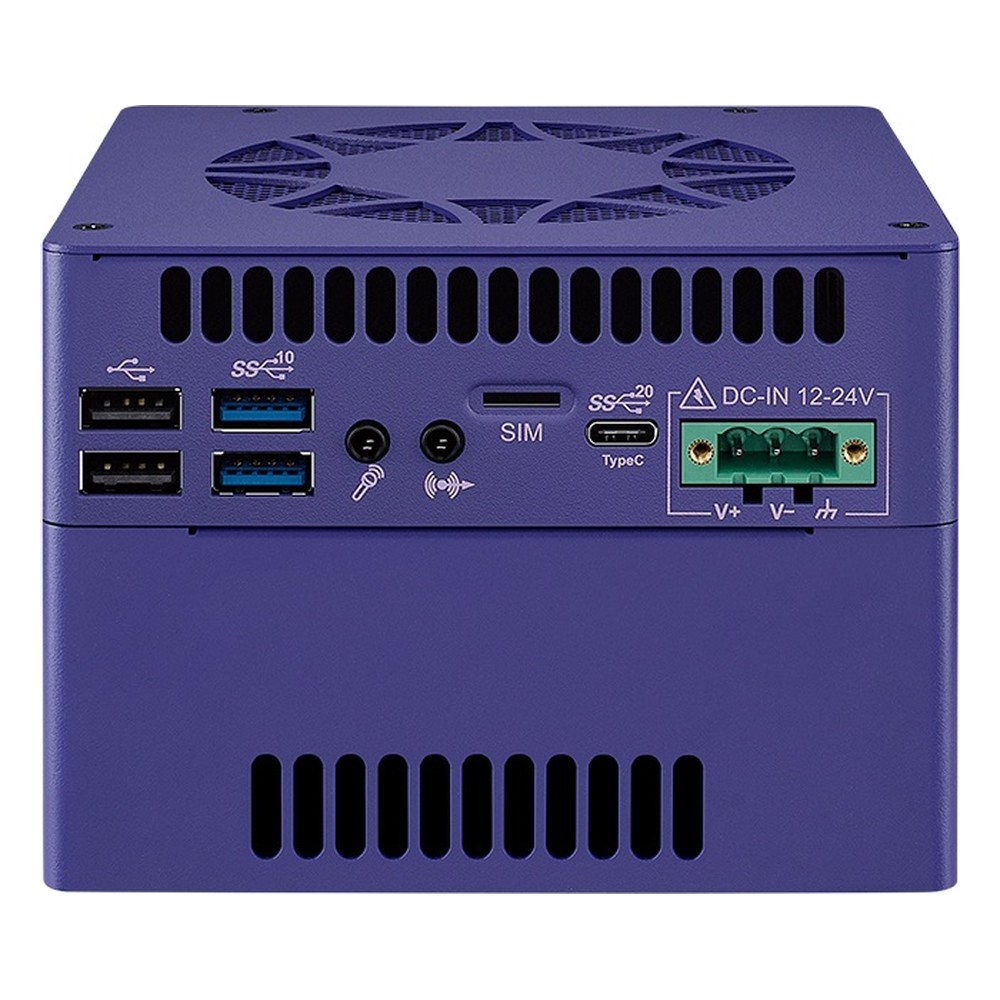

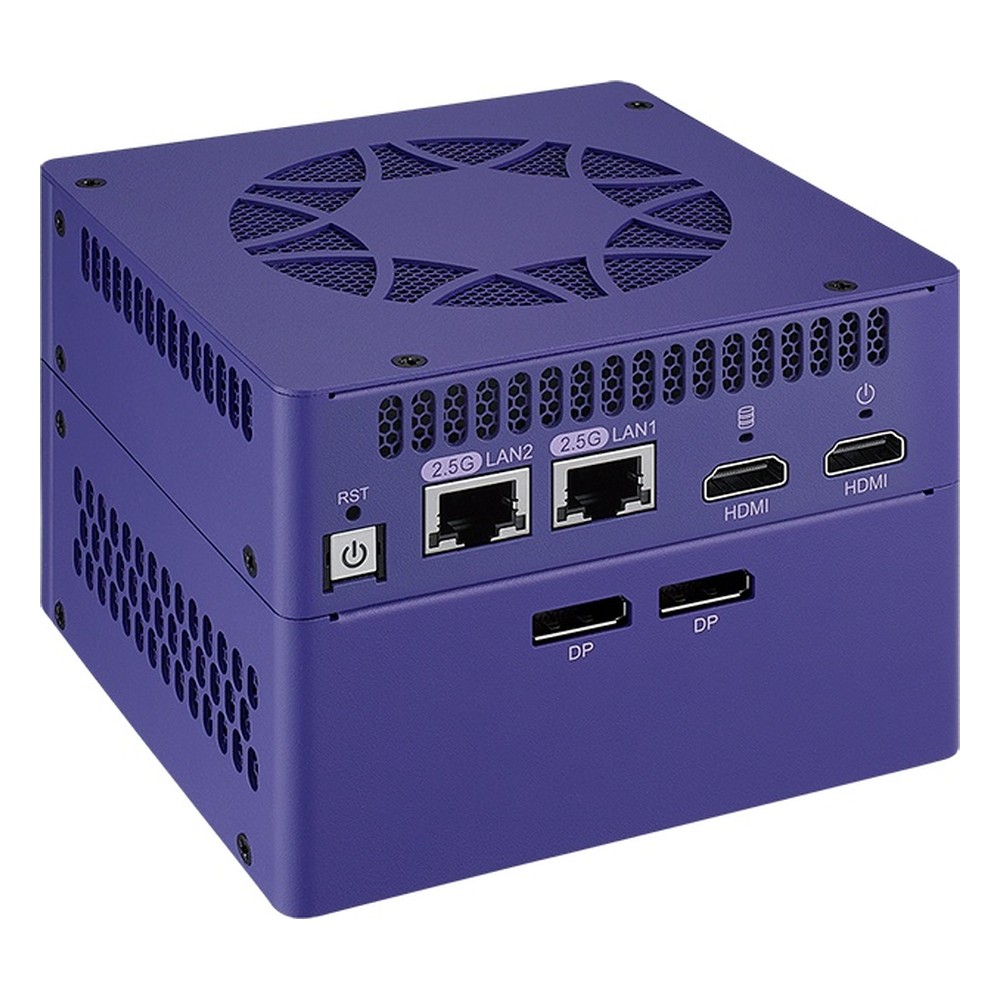

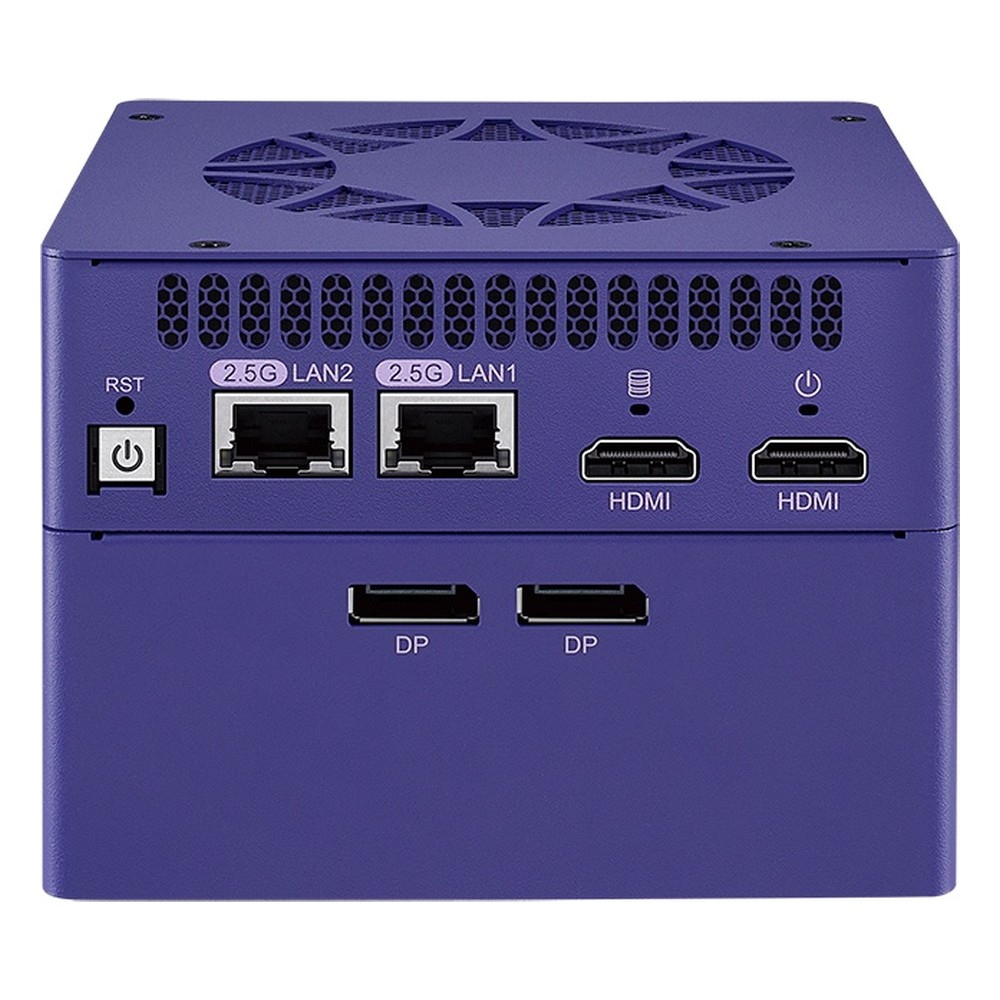

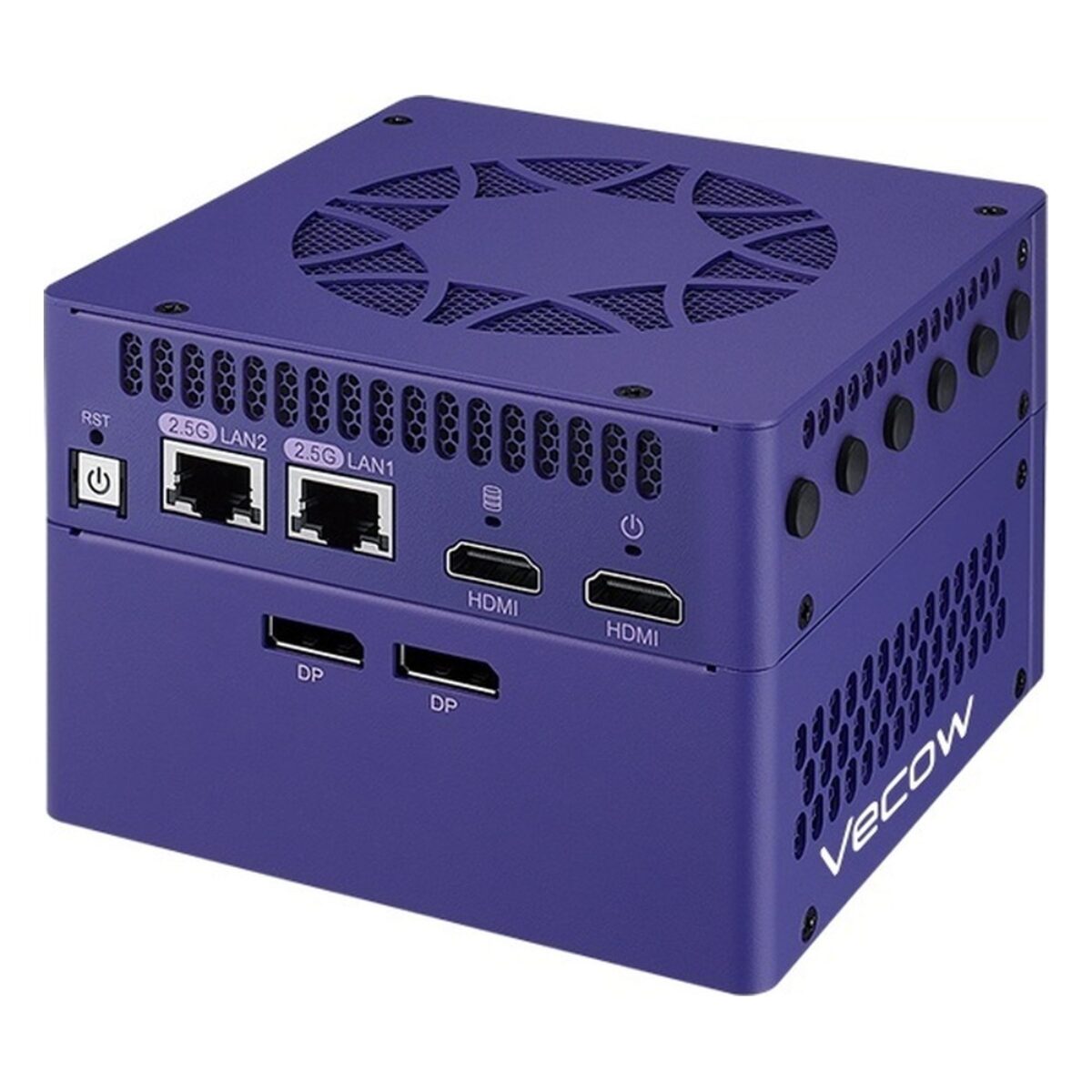

Networking is two Intel I226 2.5GbE ports, with Intel AMT on LAN1 for remote management. Displays run from two HDMI 2.1 outputs at up to 4096 x 2304 at 60 Hz and one DisplayPort 1.4 through the USB-C port, plus two further DisplayPort 1.4 outputs from the MXM layer when a GPU is fitted. USB covers two USB 3.2 Gen 2 Type-A, two USB 2.0 and one USB 3.2 Gen 2×2 Type-C, with mic-in and line-out audio. Inside, an M.2 2280 M key socket on PCIe 4.0 x4 takes NVMe storage up to 4 TB, an M.2 E key socket takes an optional Wi-Fi and Bluetooth module, and an M.2 B key socket with a SIM slot takes an optional 4G or 5G module.

Power is 24 V DC only, on a three-pin terminal block, and Vecow recommends its 180 W adapter for this model. The TGS-2500F-386H is rated from -25 °C to 55 °C with airflow, with shock and vibration tested to IEC 61373. CE, FCC and ICES marks apply, and the design follows EN 50155 and EN 50121-3-2 requirements. Up to two further layers stack beyond the MXM layer. We supply it configured and tested, with memory, storage and any agreed GPU fitted. The TGS-2000F-386H drops the MXM layer, and the TGS-1500-165H offers an MXM slot on Core Ultra 7.
