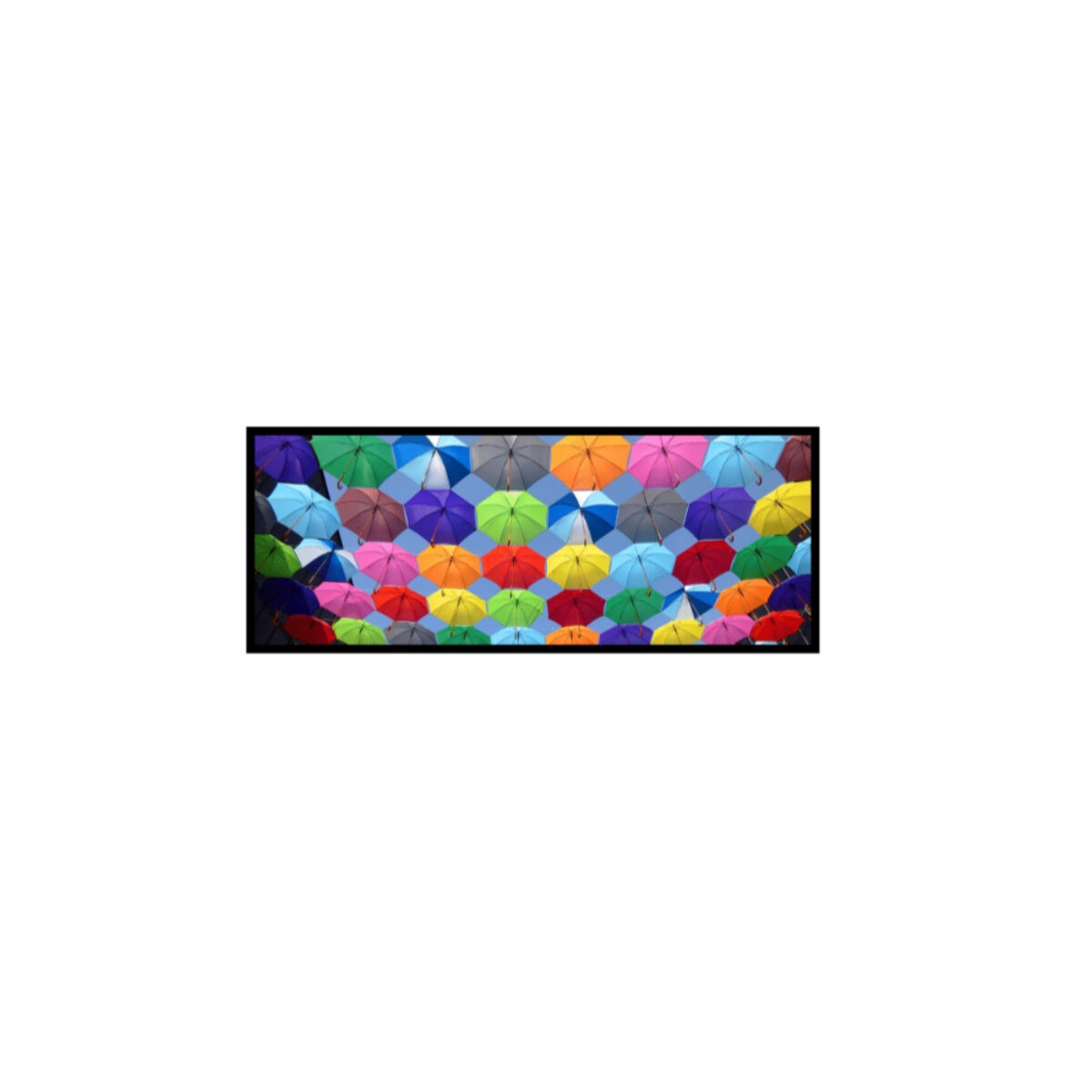

ViviSign SH123N 12.3″ Stretched Display with 1920 x 720 Bar-Type LCD and 700 Nit Brightness
CE
FCCSH123N Overview
Shelf edges, counters and point-of-sale fixtures often leave a long, narrow space where a standard 16:9 screen would waste most of its area. The SH123N is a ViviSign stretched display built for that shape: a 12.3 inch bar-type LCD at 1920 x 720, with 700 nits and a 1000:1 contrast ratio.
The panel is a native stretched LCD, made as an uncut bar-type panel rather than a standard screen cut down to size, and it is rated for 24/7 operation. It offers 170° viewing angles horizontally and vertically, so content stays legible to shoppers walking past at an angle. At 700 nits it suits well-lit shop floors. An IPS panel keeps content clear under shop lighting. ViviSign names point of sale and shelf displays as the intended uses.
The SH123N comes in two builds. As a monitor it takes one HDMI input and shows content from an external player or PC. The alternative build adds an Android 8.1 player with a quad-core Cortex-A35 processor, LAN, Wi-Fi and Bluetooth, so content can run from the display itself. Within the same range, the SH164N offers 1366 x 238 at 16.4 inch.
Power comes from an external 12 V DC adapter, drawing 15 W. The SH123N operates from 0 °C to 40 °C at 10 to 80% humidity, measures 316.2 x 133.2 x 44.8 mm. A mounting bracket is available as an option. Content is shown at the panel’s native 1920 x 720, so artwork should be designed for that canvas rather than scaled from a 16:9 layout.
SH123N Specifications
| Overview | |
|---|---|
| Brand & Model | ViviSign SH123N |
| Features | Embedded |
| Display | |
| Display | 12.3"[, 1920 x 720, FHD] |
| Brightness | 700 Nits |
| Viewing Angle | Wide Viewing Angle |
| 170° Horizontal, 170° Vertical | |
| Format | Stretched |
| Contrast | 1000:1 |
| Number of Display Inputs | 1x Display Ports |
| Video Inputs | 1x HDMI Input |
| Power | |
| Power Input | 12V DC |
| Environmental Conditions | |
| Operating Temperature | 0°C to 40°C [32°F to 104°F] |
| Storage Temperature | 0°C to 40°C [32°F to 104°F] |
| Humidity | 10-80% (Non-condensing) |
| Certification | CE FCC |
| Mechanical Properties | |
| Weight | 3 Kg (6.6 Lbs) |
| Dimensions | 316mm x 133mm x 45mm (12.44" x 5.24" x 1.77") |
- SH123N Datasheet Download
Official ViviSign USA Distributor
Things Embedded is an official ViviSign USA distributor, supplying the SH123N configured and tested for USA retail and signage projects. Within the ViviSign range the SH164N offers 1366 x 238 at 16.4 inch.
As a 12.3 inch bar-type screen the SH123N sits among our stretched displays. Where a long, narrow space needs a screen at 1920 x 720, with the option of a built-in Android player, this is the ViviSign model to specify.
