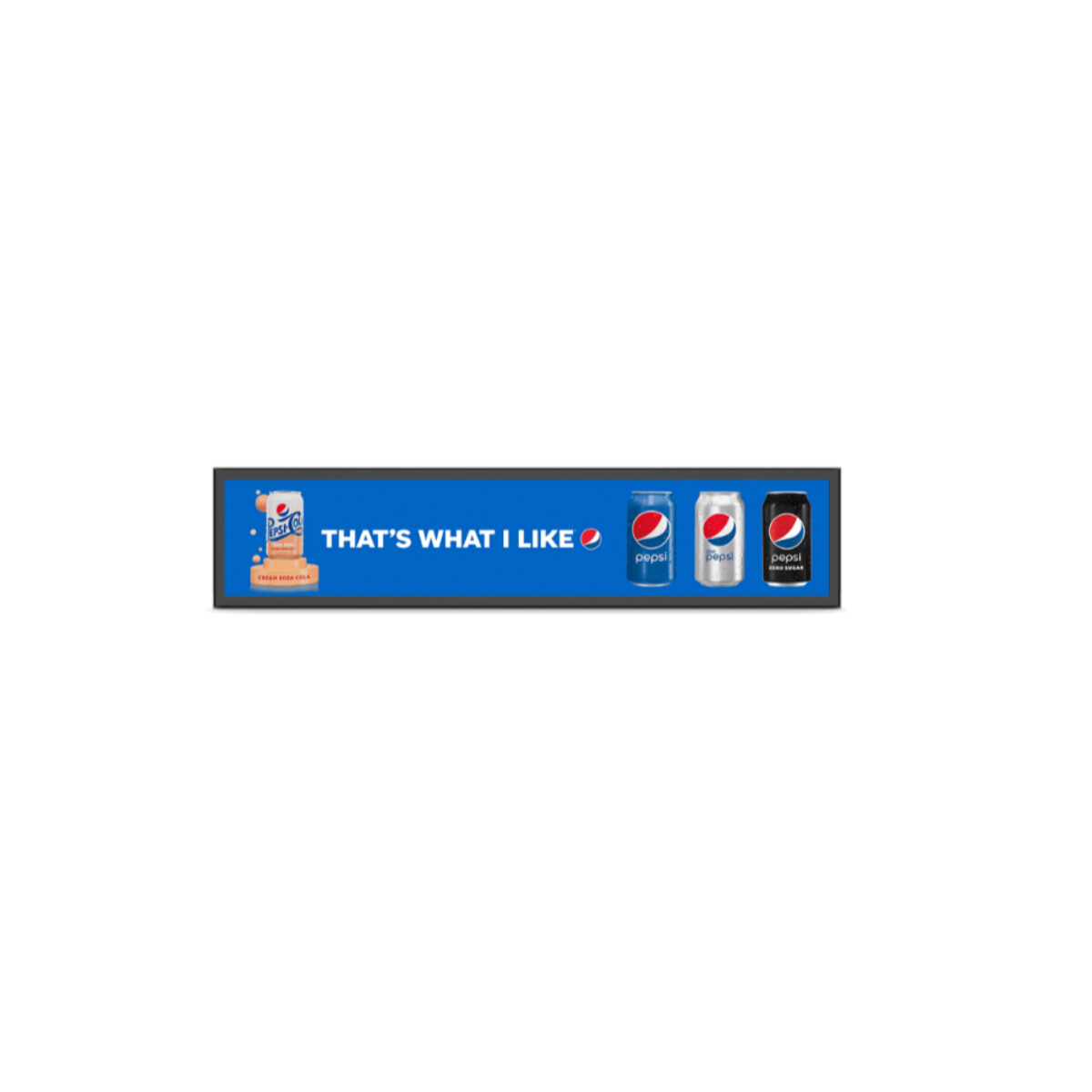

ViviSign SH212N 21.2″ Stretched Display with 1920 x 360 Bar-Type LCD and 500 Nit Brightness
CE
FCCSH212N Overview
Shelf edges, counters and point-of-sale fixtures often leave a long, narrow space where a standard 16:9 screen would waste most of its area. The SH212N is a ViviSign stretched display built for that shape: a 21.2 inch bar-type LCD at 1920 x 360, with 500 nits and a 1200:1 contrast ratio.
The panel is a native stretched LCD, made as an uncut bar-type panel rather than a standard screen cut down to size, and it is rated for 24/7 operation. It offers 178° viewing angles horizontally and vertically, so content stays legible to shoppers walking past at an angle. An anti-glare surface keeps content clear under shop lighting. ViviSign names point of sale and shelf displays as the intended uses.
The SH212N comes in two builds. As a monitor it takes two HDMI inputs and shows content from an external player or PC. The alternative build adds an Android 8.1 player with a quad-core Cortex-A35 processor, 1 GB of RAM and 8 GB of storage, LAN, Wi-Fi and Bluetooth, so content can run from the display itself. Within the same range, the SH165N offers 1280 x 631 at 16.5 inch and the SH24N offers 1920 x 360 at 24 inch.
Power comes from an external 12 V DC adapter, drawing 25 W. The SH212N operates from 0 °C to 40 °C at 10 to 80% humidity, measures 556 x 126 x 40 mm and weighs 3 kg, and ships with a mounting bracket. Content is shown at the panel’s native 1920 x 360, so artwork should be designed for that canvas rather than scaled from a 16:9 layout.
SH212N Specifications
| Overview | |
|---|---|
| Brand & Model | ViviSign SH212N |
| Features | Embedded |
| Display | |
| Display | 21.2"[, 1920 x 360, FHD] |
| Brightness | 500 Nits |
| Viewing Angle | Wide Viewing Angle |
| 178° Horizontal, 178° Vertical | |
| Format | Stretched |
| Contrast | 1200:1 |
| Number of Display Inputs | 2x Display Ports |
| Video Inputs | 2 x HDMI |
| Power | |
| Power Input | 12V DC AC Power Supply Included |
| Environmental Conditions | |
| Operating Temperature | 0°C to 40°C [32°F to 104°F] |
| Storage Temperature | 0°C to 40°C [32°F to 104°F] |
| Humidity | 10-80% (Non-condensing) |
| Certification | CE FCC |
| Mechanical Properties | |
| Weight | 3 Kg (6.6 Lbs) |
| Dimensions | 556mm x 126mm x 40mm (21.89" x 4.96" x 1.57") |
- SH212N Datasheet Download
Official ViviSign USA Distributor
Things Embedded is an official ViviSign USA distributor, supplying the SH212N configured and tested for USA retail and signage projects. Within the ViviSign range the SH165N offers 1280 x 631 at 16.5 inch and the SH24N offers 1920 x 360 at 24 inch.
As a 21.2 inch bar-type screen the SH212N sits among our stretched displays. Where a long, narrow space needs a screen at 1920 x 360, with the option of a built-in Android player, this is the ViviSign model to specify.
