ViviSign SH28W 28″ Stretched Display with 1920 x 360 Bar-Type LCD and 700 Nit Brightness
CE
FCCSH28W Overview

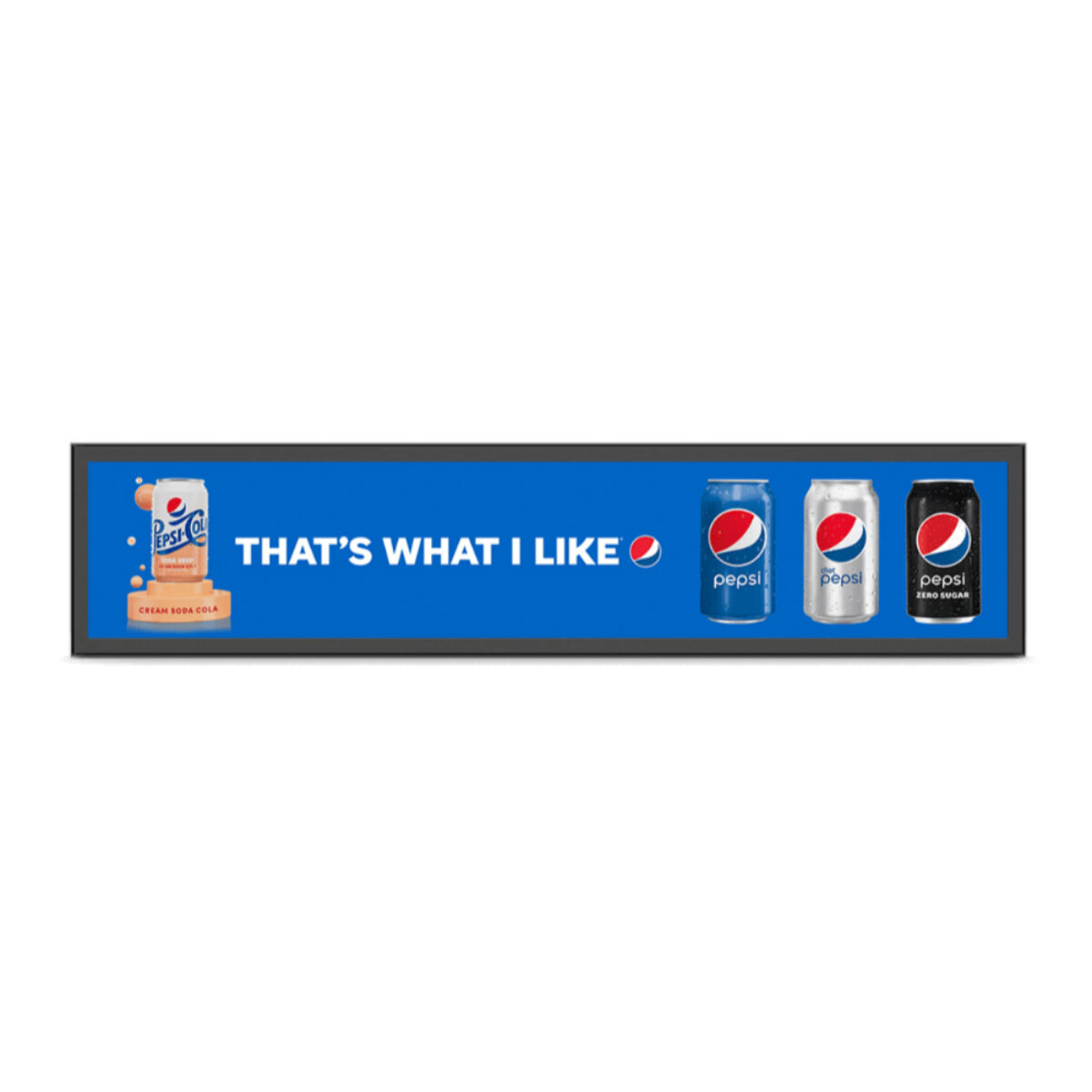

Shelf edges, counters and point-of-sale fixtures often leave a long, narrow space where a standard 16:9 screen would waste most of its area. The SH28W is a ViviSign stretched display built for that shape: a 28 inch bar-type LCD at 1920 x 360, with 700 nits and a 4000:1 contrast ratio.
The panel is a native stretched LCD, made as an uncut bar-type panel rather than a standard screen cut down to size, and it is rated for 24/7 operation. It offers 178° viewing angles horizontally and vertically, so content stays legible to shoppers walking past at an angle. At 700 nits it suits well-lit shop floors. A narrow bezel helps it fit a shelf or counter fixture. ViviSign names point of sale and shelf displays as the intended uses.
The SH28W comes in two builds. As a monitor it takes one HDMI input and shows content from an external player or PC. The alternative build adds an Android 8.1 player with a quad-core Cortex-A35 processor, LAN, Wi-Fi and Bluetooth, so content can run from the display itself. Within the same range, the SH28N offers 1920 x 360 at 28 inch and the SH286W offers 1920 x 540 at 28.6 inch.
Power comes from an external 12 V DC adapter, drawing 60 W. The SH28W operates from 0 °C to 40 °C at 10 to 80% humidity, measures 732.40 x 165.40 x 40 mm and weighs 6 kg, and ships with a mounting bracket. Content is shown at the panel’s native 1920 x 360, so artwork should be designed for that canvas rather than scaled from a 16:9 layout.
SH28W Specifications
| Overview | |
|---|---|
| Brand & Model | ViviSign SH28W |
| Features | Embedded |
| Display | |
| Display | 28"[, 1920 x 360, FHD] |
| Brightness | 700 Nits |
| Viewing Angle | Wide Viewing Angle |
| 178° Horizontal, 178° Vertical | |
| Format | Stretched |
| Contrast | 4000:1 |
| Number of Display Inputs | 1x Display Ports |
| Video Inputs | 1x HDMI Input |
| Power | |
| Power Input | 12V DC AC Power Supply Included |
| Environmental Conditions | |
| Operating Temperature | 0°C to 40°C [32°F to 104°F] |
| Storage Temperature | 0°C to 40°C [32°F to 104°F] |
| Humidity | 10-80% (Non-condensing) |
| Certification | CE FCC |
| Mechanical Properties | |
| Weight | 6 Kg (13.2 Lbs) |
| Dimensions | 732mm x 165mm x 40mm (28.82" x 6.5" x 1.57") |
- SH28W Datasheet Download
Official ViviSign USA Distributor
Things Embedded is an official ViviSign USA distributor, supplying the SH28W configured and tested for USA retail and signage projects. Within the ViviSign range the SH28N offers 1920 x 360 at 28 inch and the SH286W offers 1920 x 540 at 28.6 inch.
As a 28 inch bar-type screen the SH28W sits among our stretched displays. Where a long, narrow space needs a screen at 1920 x 360, with the option of a built-in Android player, this is the ViviSign model to specify.
