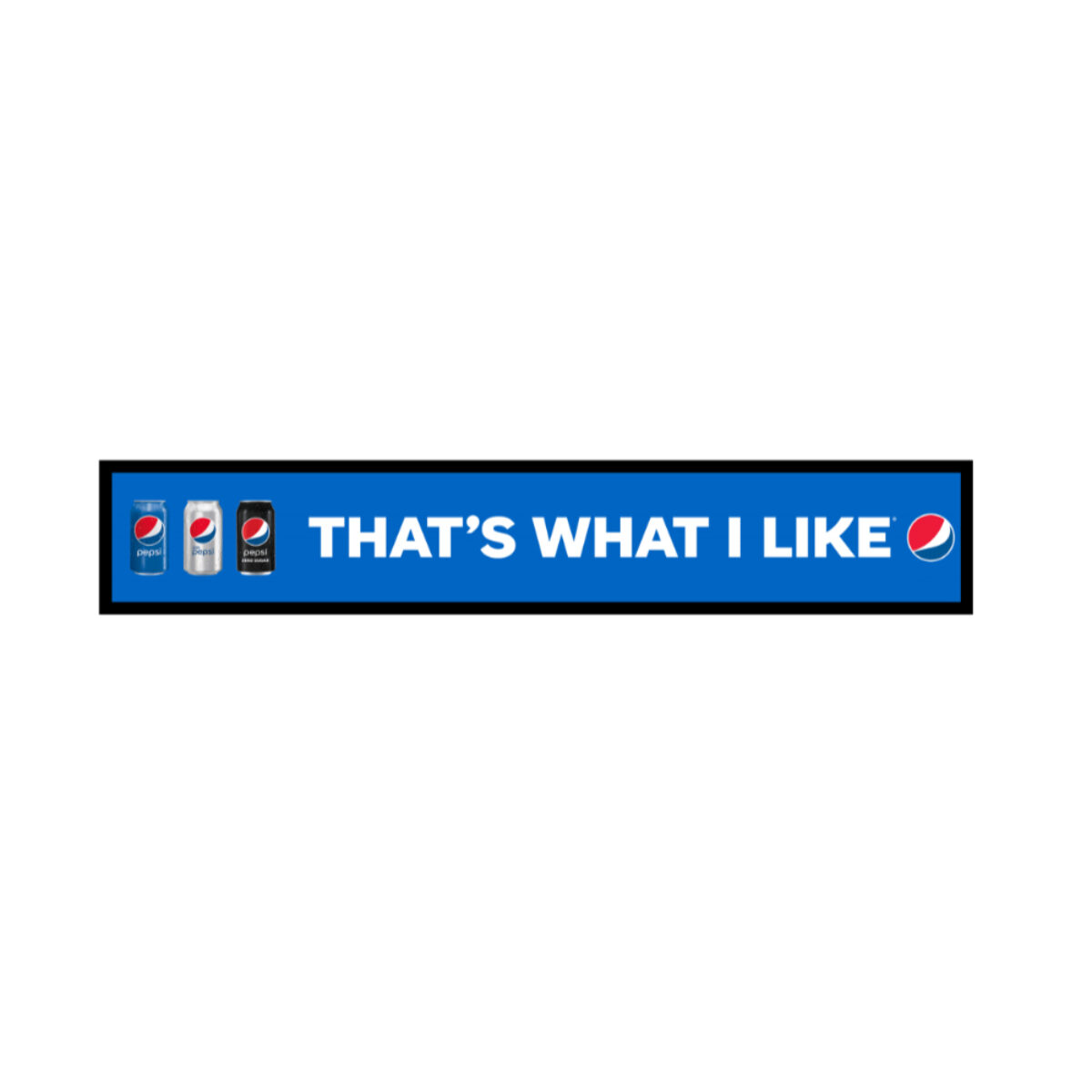

ViviSign SH366NT 36.6″ Stretched Display with 1920 x 290 Bar-Type LCD and 700 Nit Brightness
CE
FCCSH366NT Overview
Shelf edges, counters and point-of-sale fixtures often leave a long, narrow space where a standard 16:9 screen would waste most of its area. The SH366NT is a ViviSign stretched display built for that shape: a 36.6 inch bar-type LCD at 1920 x 290, with 700 nits and a 4000:1 contrast ratio.
The panel is a native stretched LCD, made as an uncut bar-type panel rather than a standard screen cut down to size, and it is rated for 24/7 operation. It offers 178° viewing angles horizontally and vertically, so content stays legible to shoppers walking past at an angle. At 700 nits it suits well-lit shop floors. ViviSign names point of sale and shelf displays as the intended uses.
The SH366NT comes in two builds. As a monitor it takes two HDMI inputs and shows content from an external player or PC. The alternative build adds an Android 8.1 player with a quad-core Cortex-A35 processor, 1 GB of RAM and 8 GB of storage, LAN, Wi-Fi and Bluetooth, so content can run from the display itself. Within the same range, the SH36N offers 1920 x 532 at 36 inch and the SH37N offers 1920 x 540 at 37 inch.
Power comes from an internal 100 to 240 V AC supply, drawing 45 W. The SH366NT operates from 0 °C to 40 °C at 10 to 80% humidity, measures 946.9 x 166.45 x 52.2 mm, and ships with a mounting bracket. Content is shown at the panel’s native 1920 x 290, so artwork should be designed for that canvas rather than scaled from a 16:9 layout.
SH366NT Specifications
| Overview | |
|---|---|
| Brand & Model | ViviSign SH366NT |
| Features | Embedded |
| Display | |
| Display | 36.6"[, 1920 x 290, FHD] |
| Brightness | 700 Nits |
| Viewing Angle | Wide Viewing Angle |
| 178° Horizontal, 178° Vertical | |
| Format | Stretched |
| Contrast | 4000:1 |
| Number of Display Inputs | 2x Display Ports |
| Video Inputs | 2 x HDMI |
| Power | |
| Power Input | AC Power Supply Included |
| Environmental Conditions | |
| Operating Temperature | 0°C to 40°C [32°F to 104°F] |
| Storage Temperature | 0°C to 40°C [32°F to 104°F] |
| Humidity | 10-80% (Non-condensing) |
| Certification | CE FCC |
| Mechanical Properties | |
| Weight | 12 Kg (26.4 Lbs) |
| Dimensions | 947mm x 166mm x 52mm (37.28" x 6.54" x 2.05") |
- SH366NT Datasheet Download
Official ViviSign USA Distributor
Things Embedded is an official ViviSign USA distributor, supplying the SH366NT configured and tested for USA retail and signage projects. Within the ViviSign range the SH36N offers 1920 x 532 at 36 inch and the SH37N offers 1920 x 540 at 37 inch.
As a 36.6 inch bar-type screen the SH366NT sits among our stretched displays. Where a long, narrow space needs a screen at 1920 x 290, with the option of a built-in Android player, this is the ViviSign model to specify.
