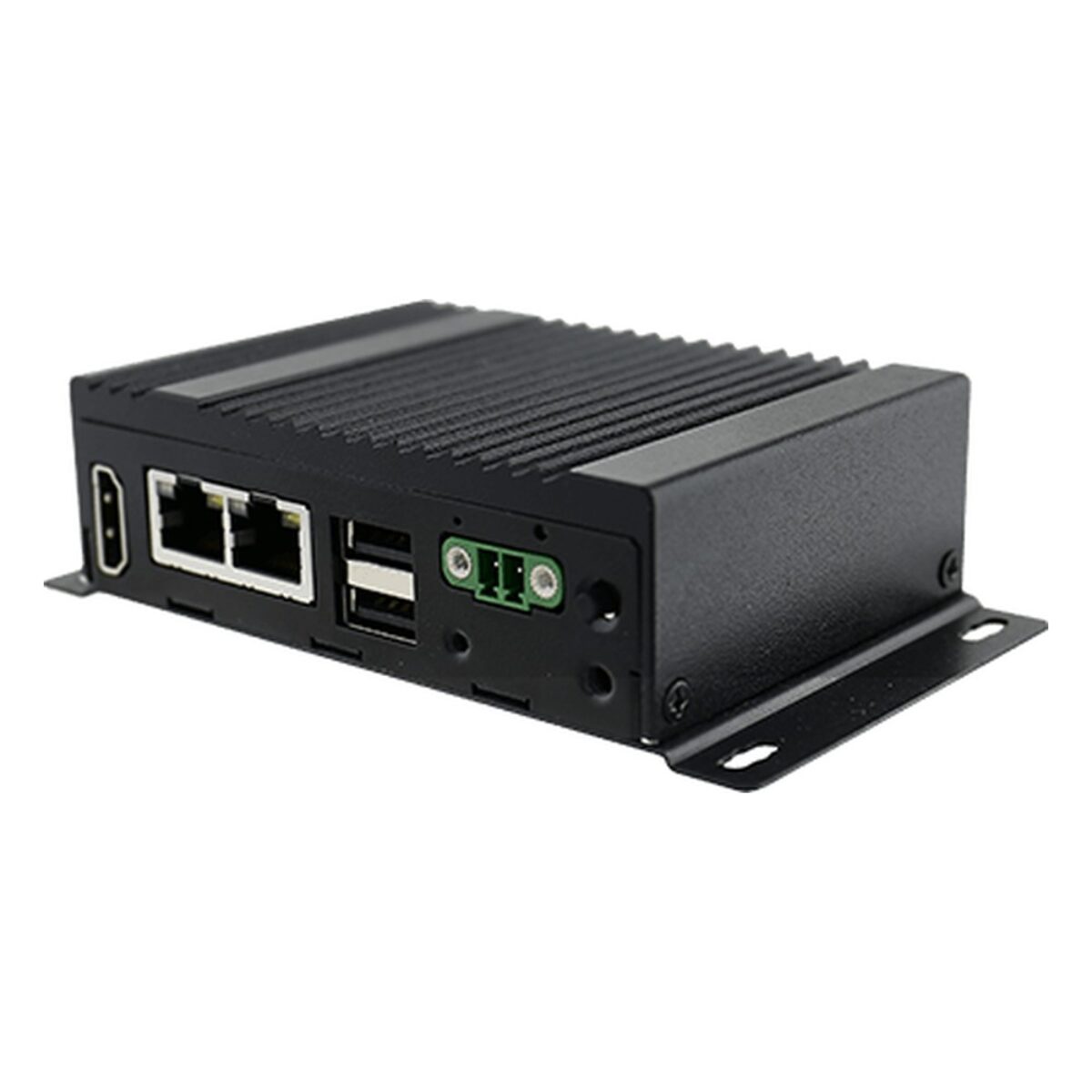

Winmate EACIL20-MR Intel Pentium N4200 Marine Embedded Computer with 9 to 36V DC

On a vessel, a small computer often ends up behind a console or in a cabinet next to the sensors it reads, where space is short and the supply is not always clean. The EACIL20-MR is Winmate’s small fanless marine computer for that kind of install, built around an Intel Pentium N4200 and listed with DNVGL-CG-0339 in its certification row. Winmate’s marine range covers navigation, vessel monitoring and industrial automation.

The Apollo Lake Pentium N4200 runs at 1.1 GHz with bursts to 2.5 GHz and has 4 GB of LPDDR4-2400 on board, which suits data logging, protocol conversion and light monitoring software. Storage is 32 GB of eMMC as standard, with 64 or 128 GB eMMC and a 128 GB mSATA SSD as options. TPM 2.0 is on board, and Windows is available as an option.

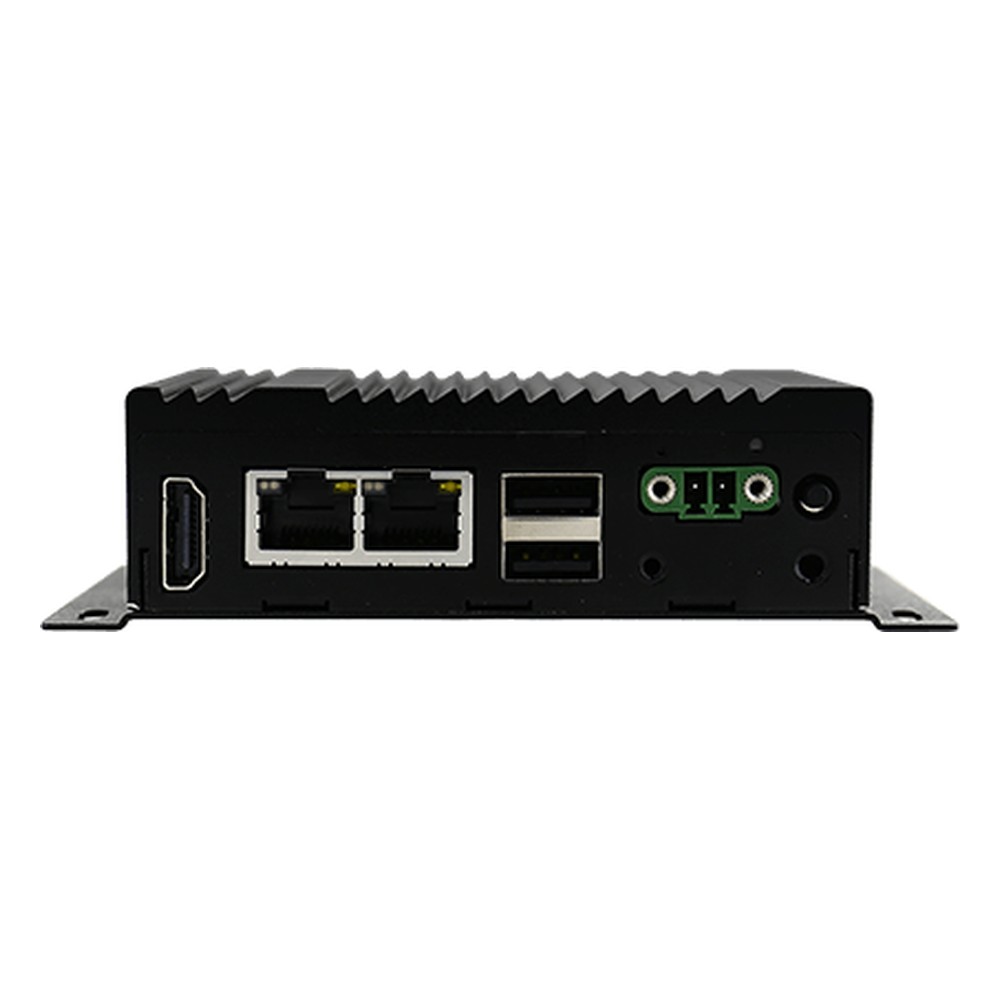

Connections are two Gigabit RJ45 ports on Intel controllers, two USB 3.2 Gen 1×1 Type-A ports and two internal USB headers, with HDMI 1.4 as an option. A full-size mPCIe slot and Winmate’s optional expansion modules let the EACIL20-MR add I/O as a project needs it, and WLAN, Bluetooth and WWAN are optional. Within the Winmate range the EACIL20 is the IoT gateway version of this design with a Celeron N3350 as standard, and the I330EAC-ITW is a larger marine computer with an 11th Gen Core i5, NMEA 0183 ports and IEC 60945 listed.

Power is 9 to 36 V DC on a two-pin terminal block at 25 W typical, and it comes with a 12 V AC adapter. The fanless metal housing is rated IP30 and runs from 0 to 55 °C, with shock tested to IEC 60068-2-27 and vibration to IEC 60068-2-64. Desk and wall mounting are standard, with VESA and DIN-rail as options. We supply the EACIL20-MR configured, with the OS installed, and tested before dispatch.
