Winmate I330EAC-IMT Intel Core Ultra 5 125U Marine Embedded Computer with 9 to 36V DC

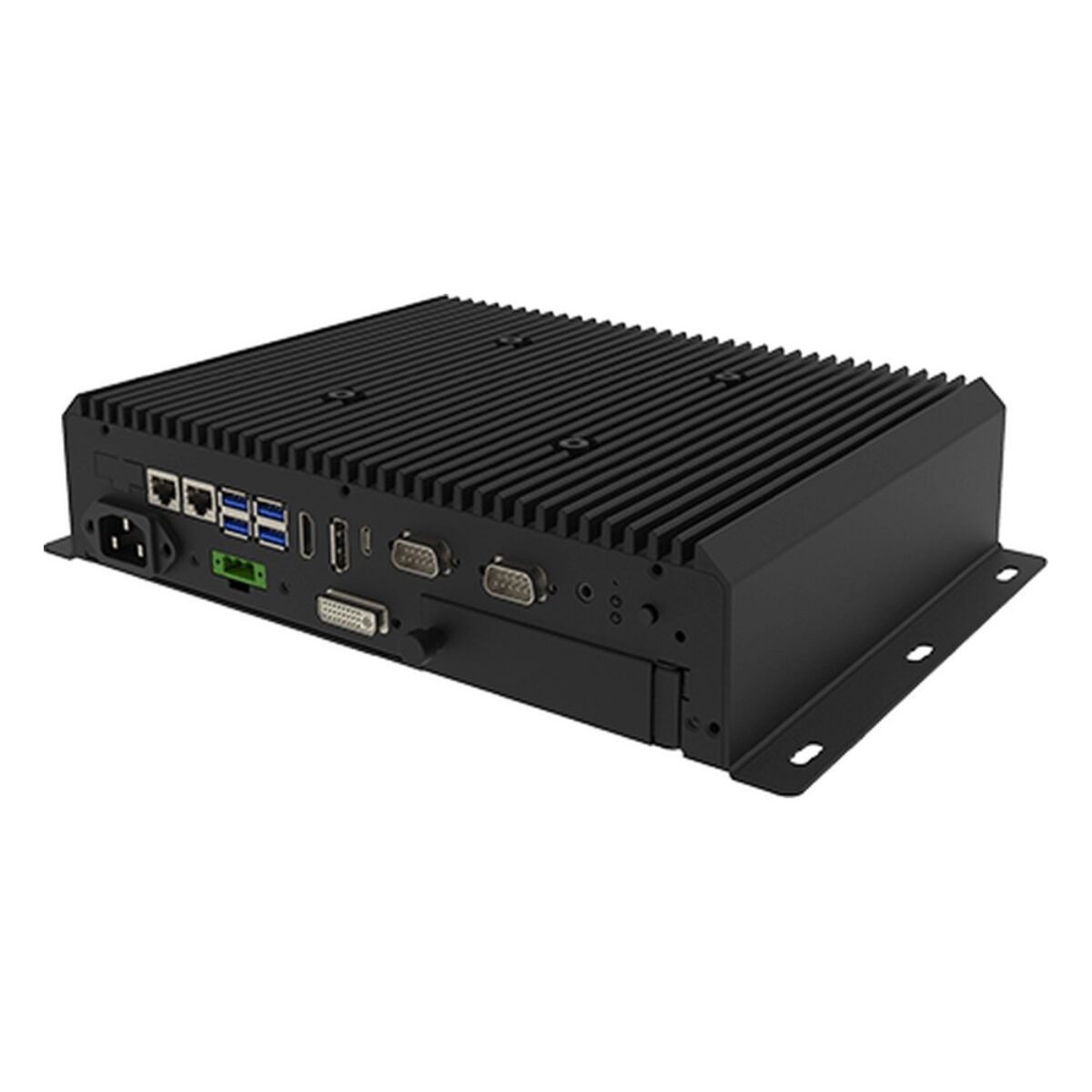

Bridge consoles collect data from many instruments at once: GPS, gyro compass, echo sounder and AIS, many of them still talking NMEA 0183. A computer that takes those feeds directly avoids an extra multiplexer in the console. The I330EAC-IMT is Winmate’s fanless marine embedded computer for that job, with an Intel Core Ultra 5 125U, eight NMEA 0183 ports and DNV-CG-0339, IEC 60945 4th edition and IACS E10 listed in its certification row.

The Core Ultra 5 125U runs at 2.1 GHz with turbo to 4.3 GHz and includes an integrated NPU, which suits chart display, sensor fusion and monitoring software. Memory is 4 GB as standard with 8, 16 or 32 GB as options. Storage is a 128 GB NVMe SSD on an M.2 2280 M-key slot with options to 4 TB, plus two optional removable 2.5″ SSD or HDD bays for swapping data drives. Windows 11 IoT Enterprise LTSC is available. That gives the I330EAC-IMT headroom for several display outputs and logging at once.

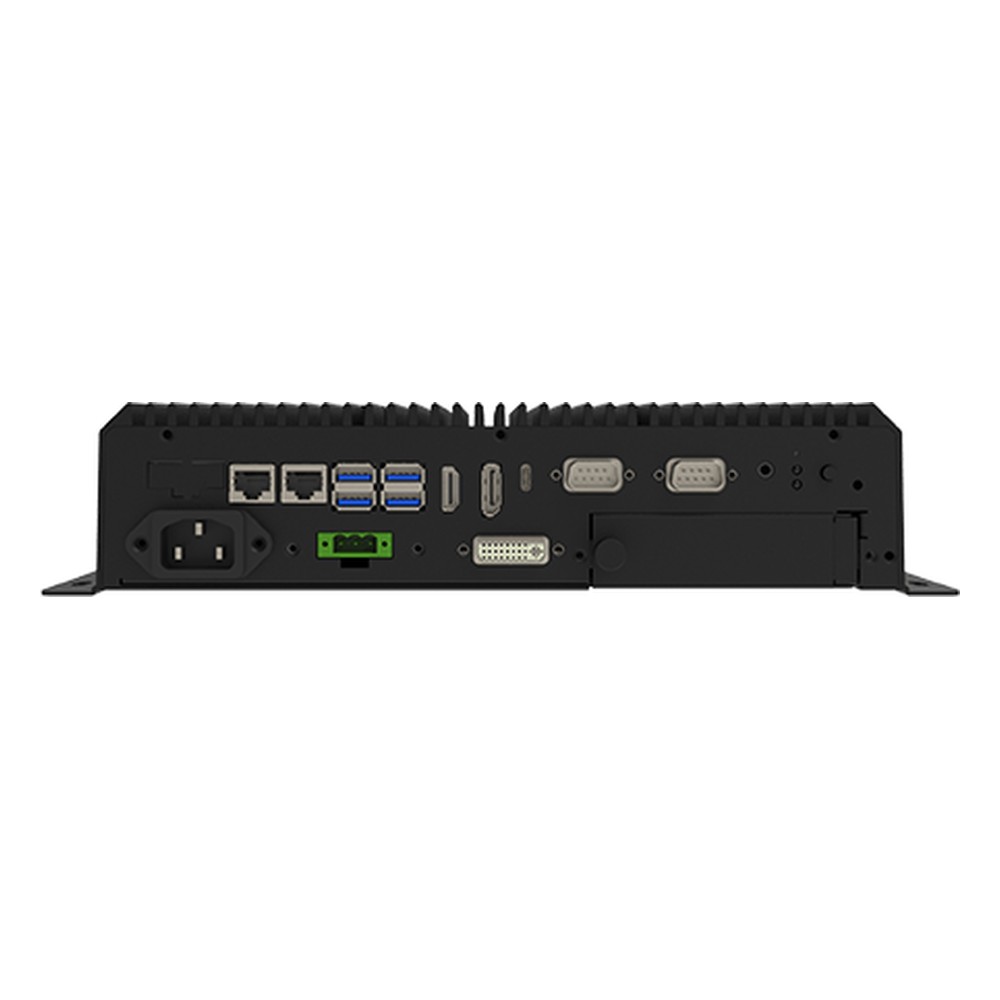

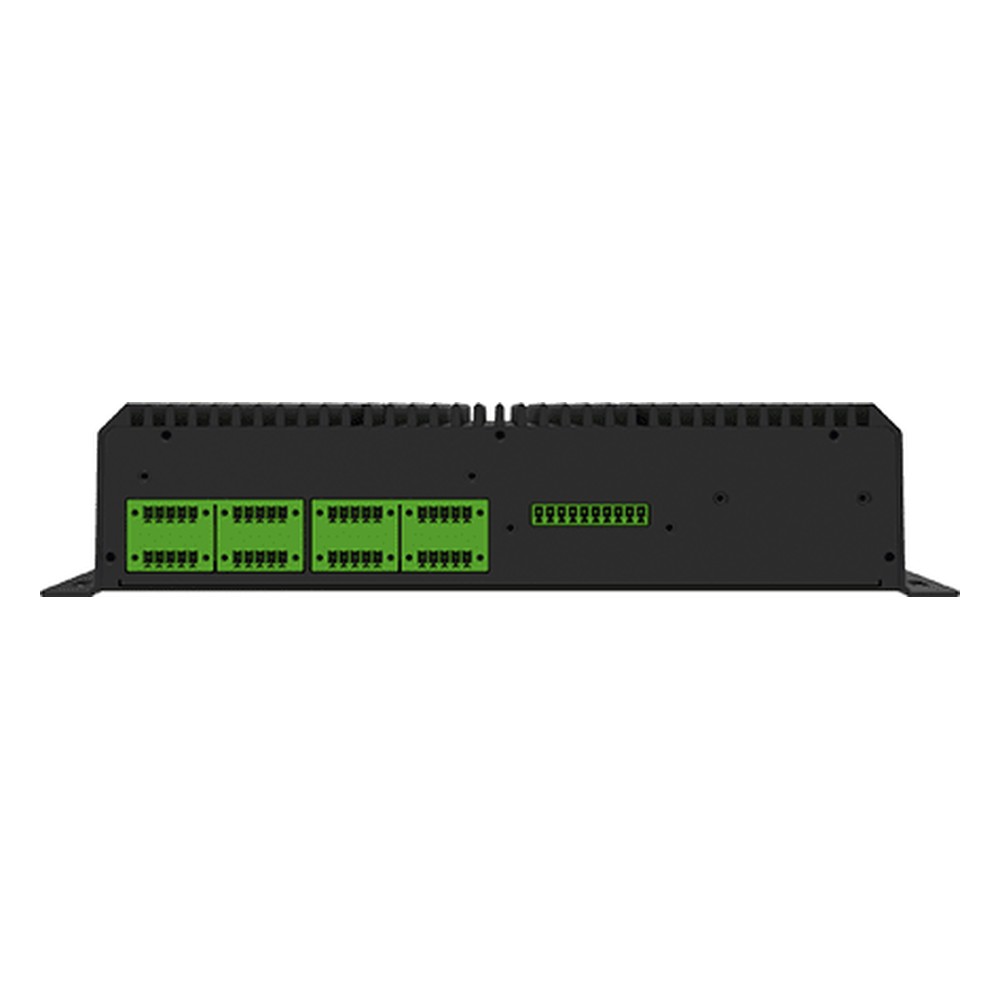

Alongside the eight NMEA 0183 ports there are eight isolated DIO lines, four in and four out, two RS-232/422/485 ports and two Gigabit LAN ports on Intel I226 controllers. USB is four USB 3.0 Type-A ports and one USB 3.0 Type-C and an audio combo jack. Video is DVI and DisplayPort as standard, with HDMI as an option. Within the Winmate range the I330EAC-ITW is the earlier version of this marine computer with an 11th Gen Core i5-1135G7, and the I330EAC-IMT-6L trades the NMEA ports and DIO for six Gigabit LAN ports on the same Core Ultra processor.

Power is 24 V DC as the approved input, with 9 to 36 V DC accepted and 115/230 V AC input as an option, and an 84 W AC adapter is supplied. Winmate lists 1.5 kV isolation power protection. The fanless aluminum housing runs from -15 to 55 °C at 5 to 95% humidity and is designed for table mounting. We supply the I330EAC-IMT configured, with the OS installed, and tested before dispatch.
