Winmate IE32SB3-101-6L Intel Elkhart Lake Celeron N6211 Embedded Computer with Six LAN Ports

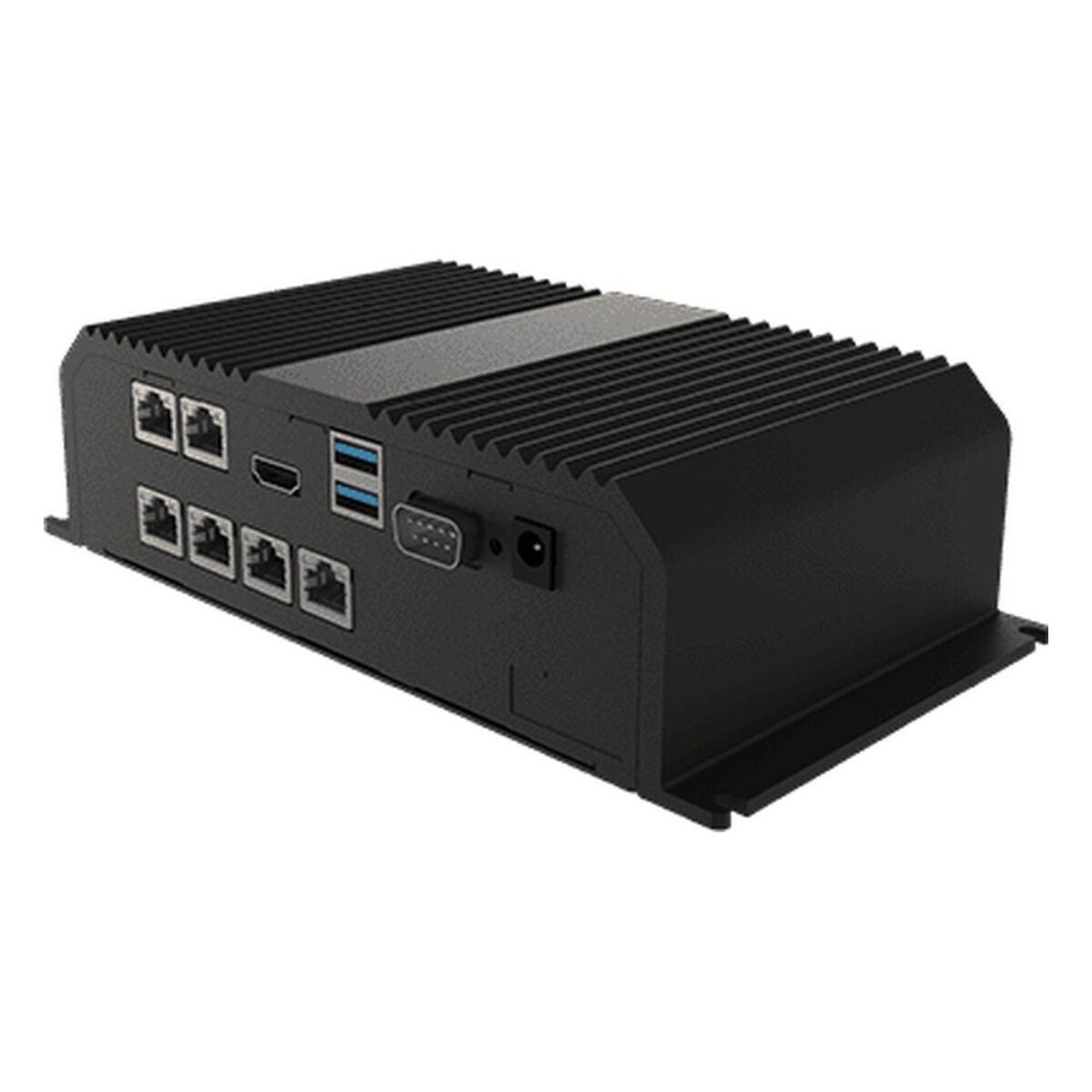

When one small computer has to bridge a machine network, a camera network and the plant LAN, the port count matters more than the processor. The IE32SB3-101-6L is Winmate’s slim fanless M Series box PC built around that need, with six LAN ports and an Elkhart Lake Intel Celeron N6211 in a quiet metal housing.

The Celeron N6211 runs at up to 3.0 GHz with one DDR4-3200 SO-DIMM slot, 4 GB as standard and 8 or 16 GB as options. That typically suits routing, protocol conversion, network monitoring and IoT gateway software. Storage is an SSD on an M.2 2242 B-key slot, 128 GB as standard with options to 2 TB, and TPM 2.0 is on board. Windows 11 IoT Enterprise, Windows 11 Pro or Linux Ubuntu 22.04 are available.

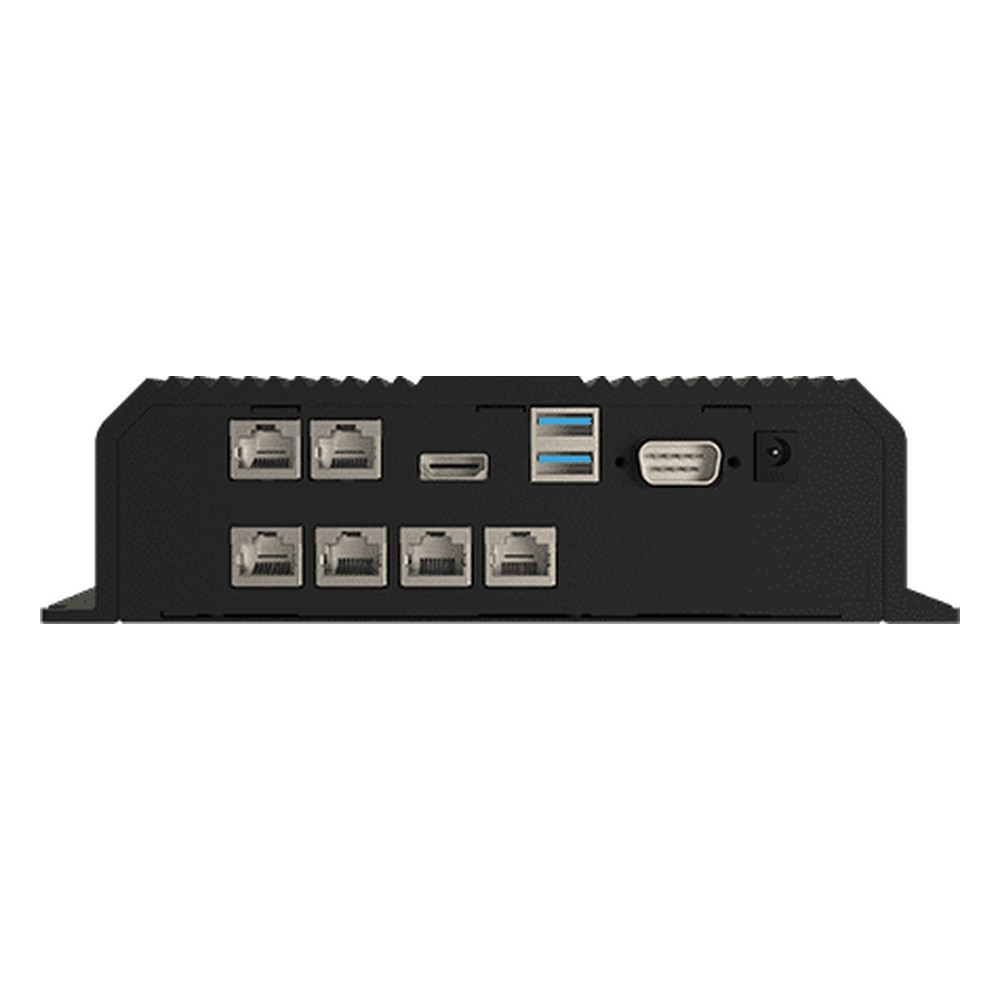

Networking is two 2.5GbE ports on Intel controllers and four Gigabit Ethernet ports, all on RJ45. The IE32SB3-101-6L also has two USB 3.2 Gen 2 Type-A ports and one RS-232/422/485 port (RS-232 by default). HDMI 2.0 is optional, and a capture card for HDMI or CVBS input is optional. Within the Winmate range the IE32SB3-101 is the same box PC with two 2.5GbE ports and an M.2 slot for optional Wi-Fi, and the ITMH100-6L brings six Gigabit LAN ports with an 11th Gen Core i5-1135G7 and a PCIe slot.

Power is 12 V DC on a DC jack, with an AC adapter supplied. The fanless metal housing runs from 0 to 55 °C and sits on a desk. It carries CE and FCC marks. We supply it configured, with the OS installed, and tested before dispatch.
