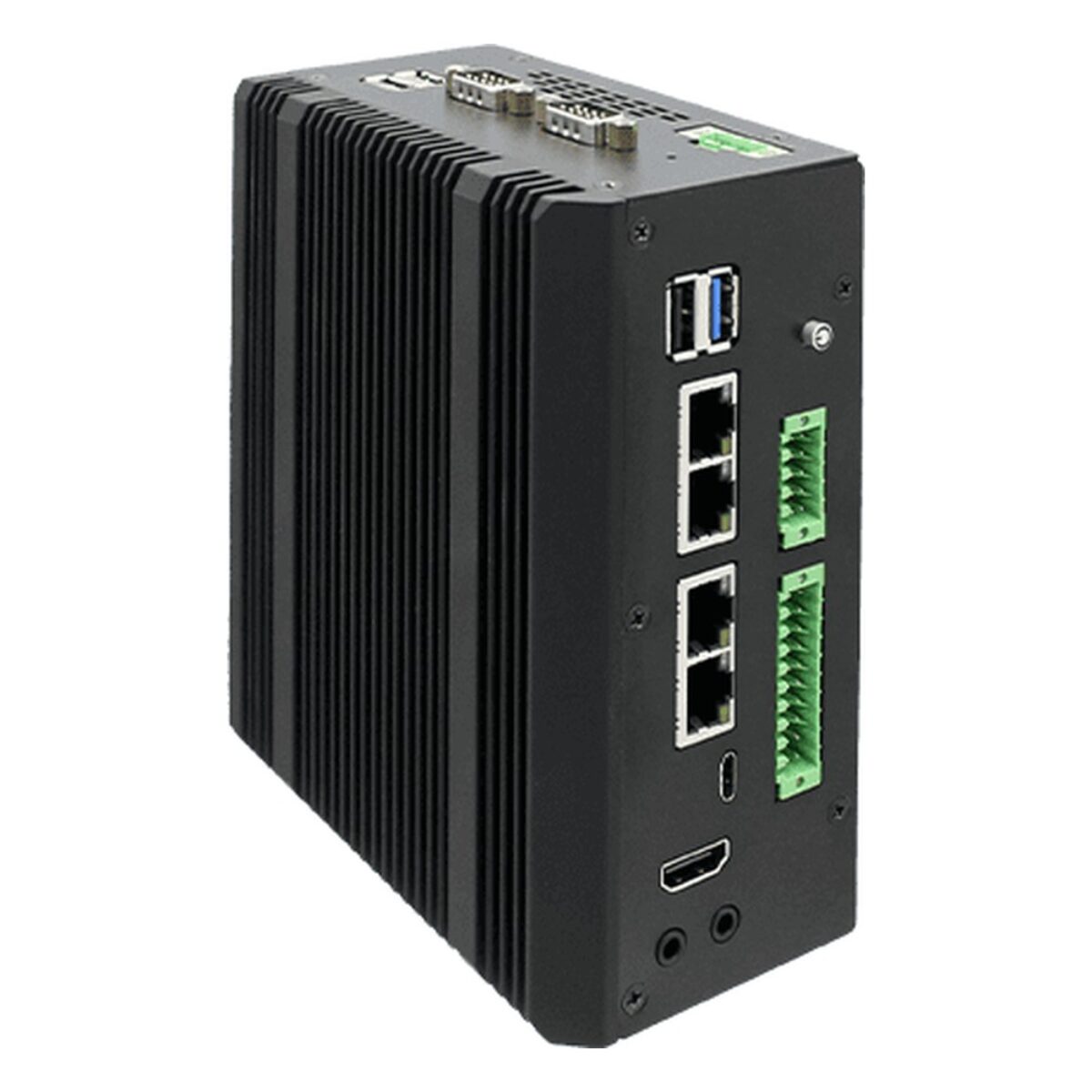

Winmate NTDRW100 NVIDIA Jetson Orin Nano Edge AI DIN-Rail Box PC with 9 to 36V DC and Wide Temperature

Running inference in the control cabinet, next to the PLC and the camera feeds, avoids shipping video across the plant. The NTDRW100 is Winmate’s fanless DIN-rail edge AI box PC for that, with an NVIDIA Jetson Orin Nano 8GB module, a PoE+ camera port and CAN FD, rated -20 to 60 °C.

The Jetson Orin Nano carries 8 GB of LPDDR5 on the module and Winmate rates it at up to 67 TOPS, which typically suits object detection, AI-assisted inspection and counting on a few camera streams. It runs Linux with NVIDIA JetPack 6.2. Storage is an NVMe SSD on an M.2 2280 M-key slot, 256 GB as standard with 512 GB, 1 or 2 TB options, and TPM 2.0 is on board.

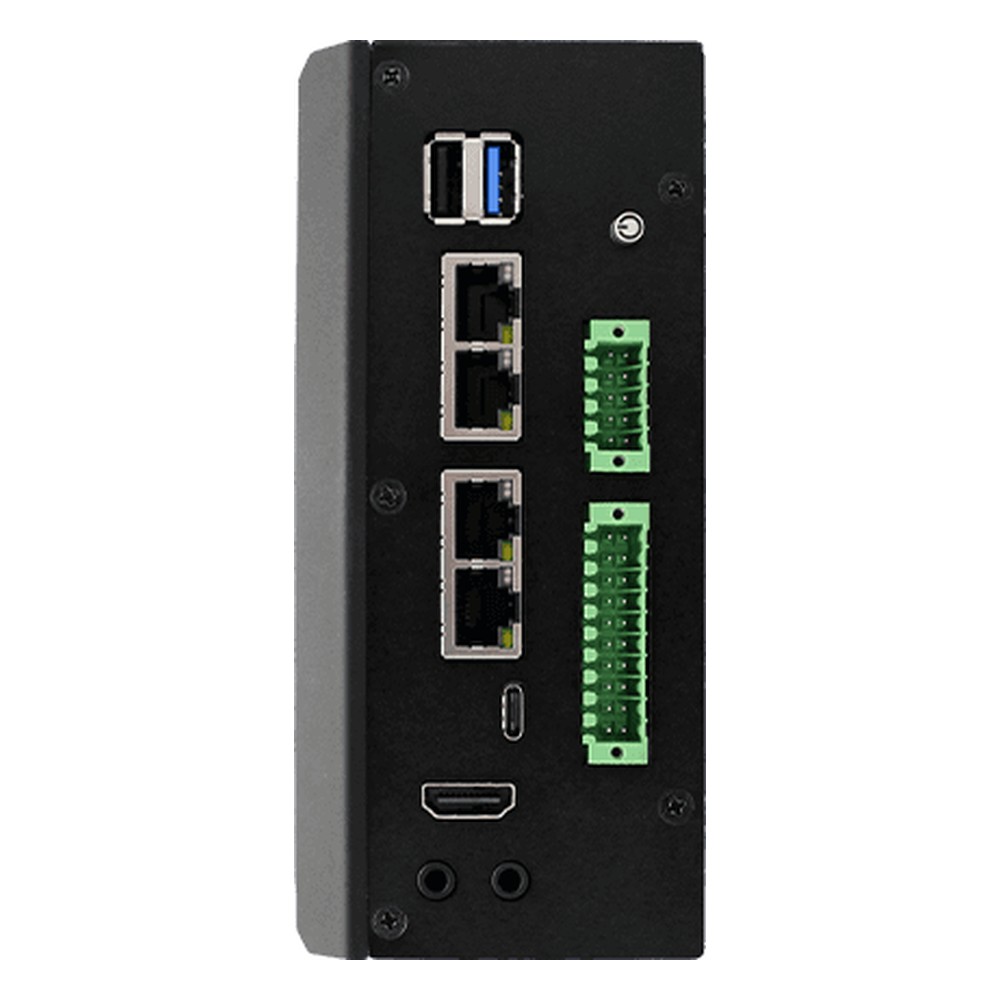

The NTDRW100 has four Gigabit Ethernet ports, one of which supplies IEEE 802.3at PoE+ at up to 30 W, three USB 3.2 Gen 2 Type-A ports, one USB 2.0 port and a USB-C OTG port. Industrial I/O is two isolated RS-232/422/485 ports on a terminal block, one on DB9, one CAN FD port on DB9 and isolated digital I/O with eight inputs and eight outputs. HDMI 2.0b is optional, as are Wi-Fi and Bluetooth on M.2 E-key and 4G or 5G on M.2 B-key with a nano SIM. Within the Winmate range the IRDRW500 uses the same DIN-rail design with a 13th Gen Core i5-1335U and an optional Hailo-8, and the WNAI-E600 steps up to an NVIDIA Jetson AGX Orin with 10GbE.

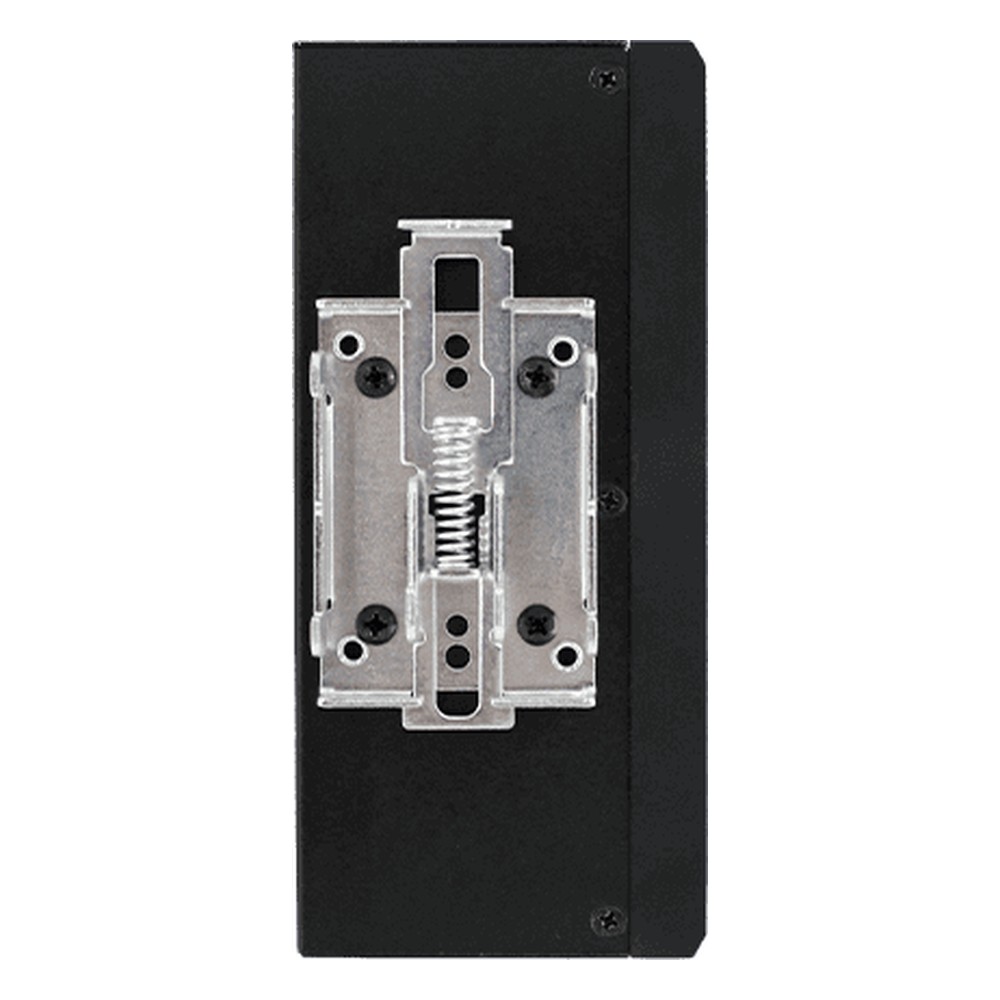

Power is an isolated 9 to 36 V DC input on a three-pin terminal block, with an AC adapter optional. Vibration is tested to MIL-STD-810H Method 514.8, with shock testing optional. DIN-rail mounting is standard, with mini DIN-rail or wall mounting optional. It carries CE and FCC marks. We supply the NTDRW100 configured, with JetPack installed, and tested before dispatch.
