Winmate R05T100-OFD1HB 5.7″ High Brightness Open Frame Monitor with 900 Nit VGA LCD and Optional Resistive Touch
Resistive
CE
FCCR05T100-OFD1HB Overview

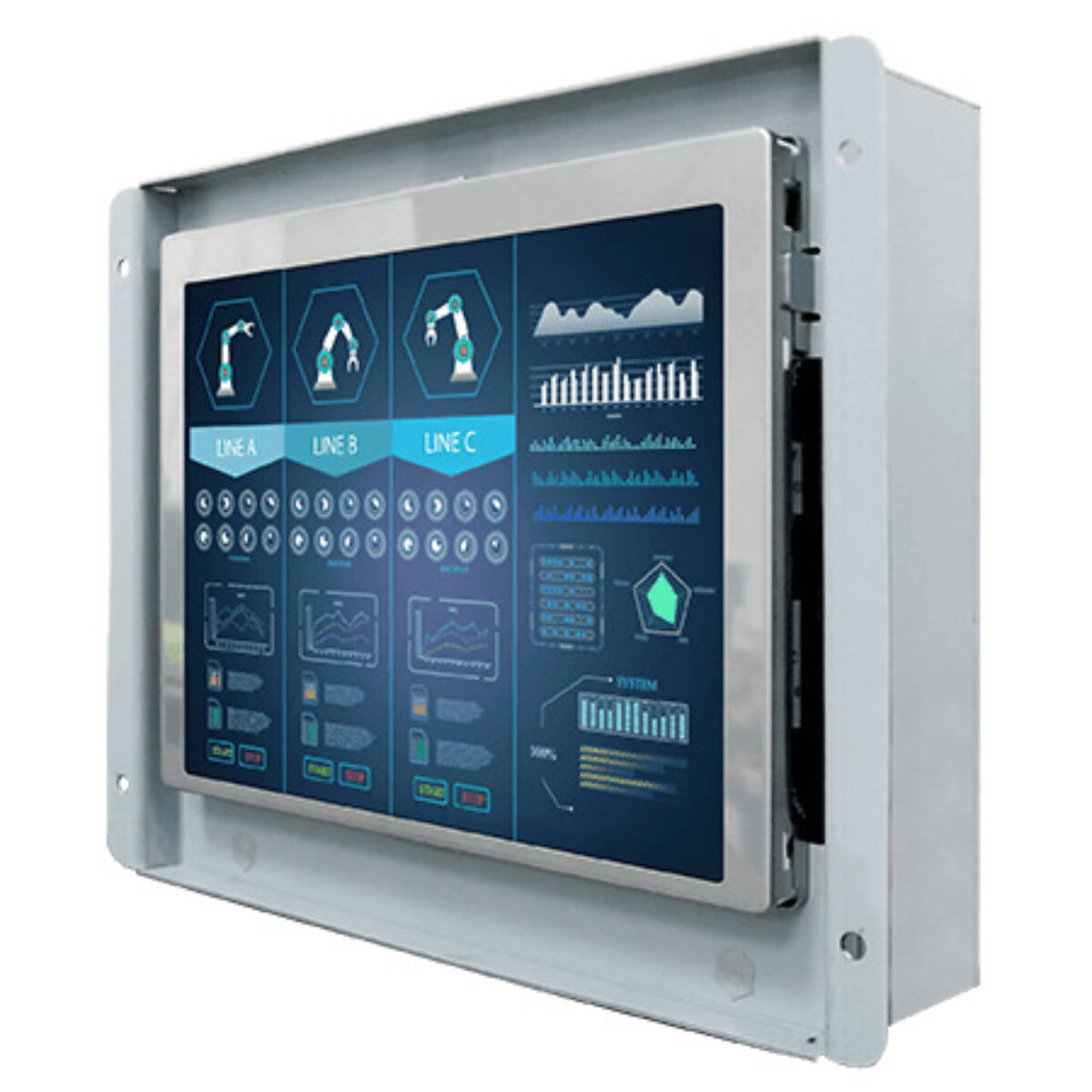

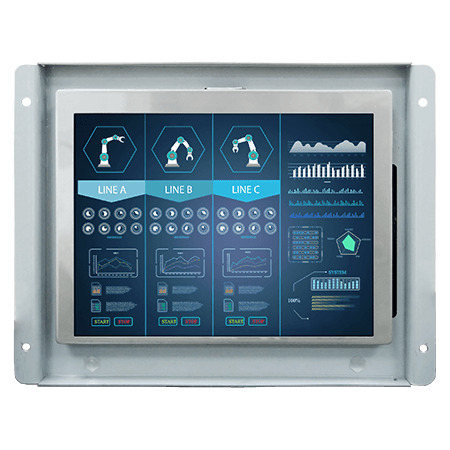

Small machines and instrument panels often have room for a screen the size of a paperback, yet it still has to be readable under bright factory lighting. The R05T100-OFD1HB is Winmate’s 5.7 inch open frame monitor for that job: a 640 x 480 VGA display at 900 nits in a compact metal housing with an aluminum bezel, built to sit behind a panel or on a VESA mount.
The panel shows 262K colors with a 300:1 contrast ratio and viewing angles of 140° horizontally and 100° vertically. Winmate calls it a high brightness display, and 900 nits gives it clear headroom over standard panels in well-lit areas. Touch is an option: specify resistive touch, which works with gloves and a stylus, or plain protection glass where the screen only shows status.
Video comes in over one VGA input, with HDMI and DVI inputs as options, so the monitor pairs with PLCs, controllers and small industrial PCs. One USB port serves the touch screen, a five-key OSD panel handles settings, and an optional 3.5 mm audio line-in drives two optional speakers. For a larger bright screen the R08T200-OFT1HB offers 8.4 inches at 1000 nits, and the W07T700-OFO1HB gives a 7 inch widescreen at 1000 nits.
Power is 12 V DC, with a 100 to 240 V AC adapter and power cord supplied. The R05T100-OFD1HB is fanless, operates from 0 to 50 °C at 10 to 90% non-condensing humidity and stores from -10 to 60 °C. It measures 168.4 x 132.8 x 38.6 mm and fits VESA or panel mounting. Winmate names industrial visualization, control rooms and equipment monitoring as target applications.
R05T100-OFD1HB Specifications
| Overview | |
|---|---|
| Brand & Model | Winmate R05T100-OFD1HB |
| Features | Fanless Industrial |
| Display | |
| Display | 5.7"[4:3, 640 x 480, VGA] |
| Touch Interface | USB |
| Touch Controller | Optional Resistive Touch |
| Brightness | 900 Nits |
| 140° Horizontal, 100° Vertical | |
| Aspect Ratio | 4:3 |
| Format | Standard |
| Contrast | 300:1 |
| Number of Display Inputs | 3x Display Ports |
| Video Inputs | 1x Optional DVI Input 1x Optional HDMI Input 1x VGA Input |
| Power | |
| Power Input | 12V DC |
| Environmental Conditions | |
| Operating Temperature | 0°C to 50°C [32°F to 122°F] |
| Storage Temperature | -10°C to 60°C [14°F to 140°F] |
| Humidity | 10-90% (Non-condensing) |
| Certification | CE FCC |
| Mechanical Properties | |
| Dimensions | 169mm x 133mm x 39mm (6.65" x 5.24" x 1.54") |
- R05T100-OFD1HB Datasheet Download
Official Winmate USA Distributor
Things Embedded is an official Winmate USA distributor, supplying the R05T100-OFD1HB configured for USA machine builders. Within the Winmate range the R08T200-OFT1HB is the 8.4 inch high brightness open frame model at 1000 nits, and the W07T700-OFO1HB offers a 7 inch widescreen open frame build at the same brightness.
As a small, bright build the R05T100-OFD1HB sits among our open frame displays, our 4:3 industrial monitors and our resistive touch monitors. Where a compact machine front needs a readable 5.7 inch screen in bright light, this is the model to specify.
