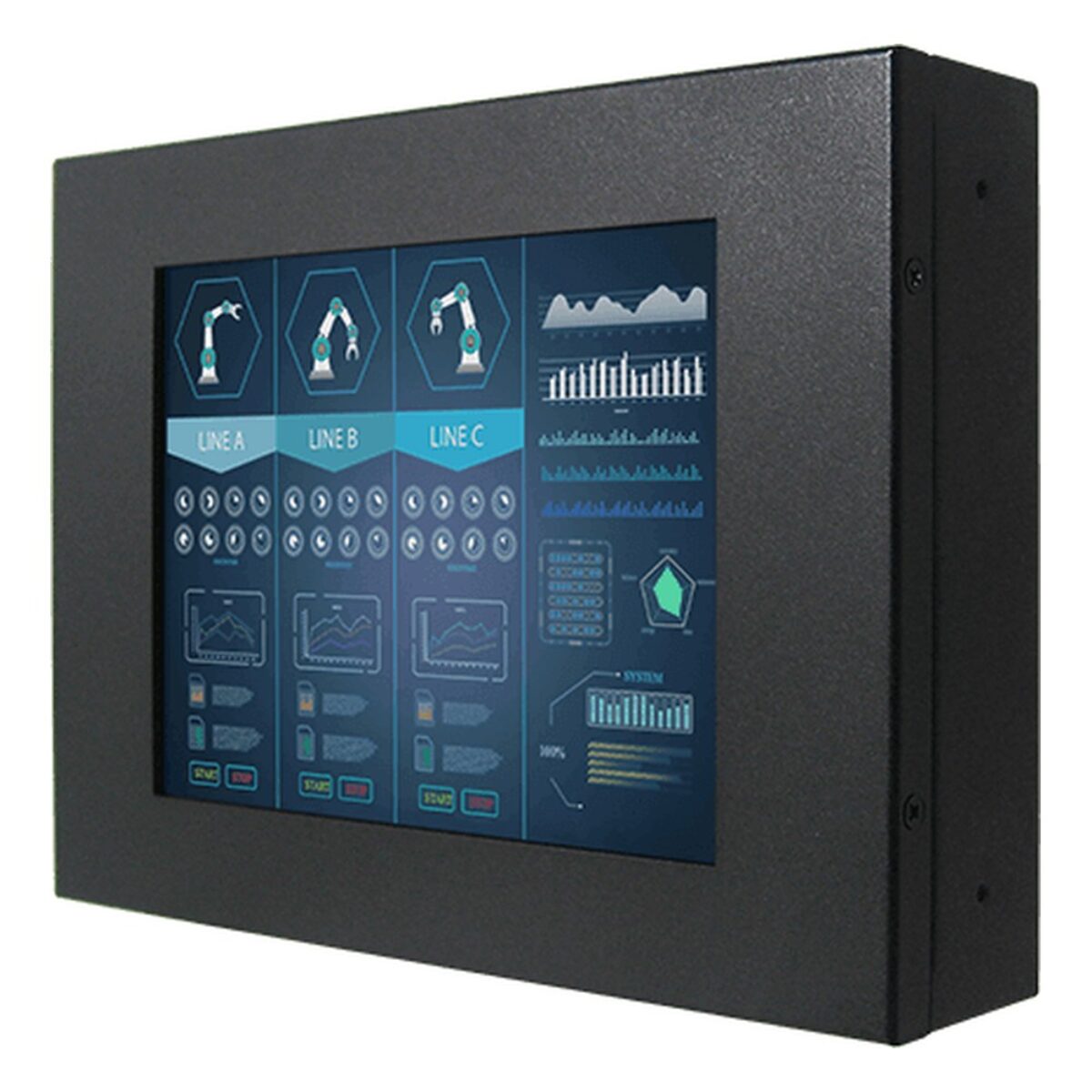

Winmate R06L200-CHA1OD 6.5″ Outdoor Chassis Monitor with Wide Temperature and Resistive Touch

Control systems, kiosks and equipment screens in unheated rooms, sheds and enclosures need a display that keeps working as the temperature swings. The R06L200-CHA1OD is Winmate’s 6.5 inch wide temperature chassis monitor for that job, with a 6.5″ VGA panel at 700 nits, resistive touch as standard and a -10 °C to 60 °C operating range. It connects to a separate computer over VGA, with HDMI or DVI as options.

The 6.5″ VGA panel runs at 700 nits with 600:1 contrast, 16.2 million colors and 160 degree horizontal and 140 degree vertical viewing angles, which suits shaded positions and indoor lighting. Resistive touch is standard, connected over one USB port, and protection glass without touch is available as an option.

Video comes in on VGA as standard, with HDMI and DVI inputs as options, so the R06L200-CHA1OD pairs with most industrial PCs and box PCs. An audio line in and two speakers are optional, and five keys (power, plus, minus, Esc and Enter) run the on-screen menu. VGA and HDMI cables and a manual come in the box. Within the Winmate range the R06L200-CHA1 is the standard chassis version with a 6.5 inch VGA LCD and resistive touch, and the R06L200-PMA1 is the panel mount model for 0 to 50 °C sites.

Power is 12 V DC in, and an AC adapter and power cord are supplied. The fanless metal housing runs from -10 °C to 60 °C and stores from -20 °C to 70 °C, at 10 to 90% humidity, non-condensing. It mounts on VESA arms, brackets or stands, and it carries CE and FCC marks. We supply the R06L200-CHA1OD configured and tested before dispatch.
