Winmate R08L200-CHU1TR 8.4″ Chassis Monitor with Transflective LCD and Resistive Touch
Resistive
Fanless
CE
FCCR08L200-CHU1TR Overview

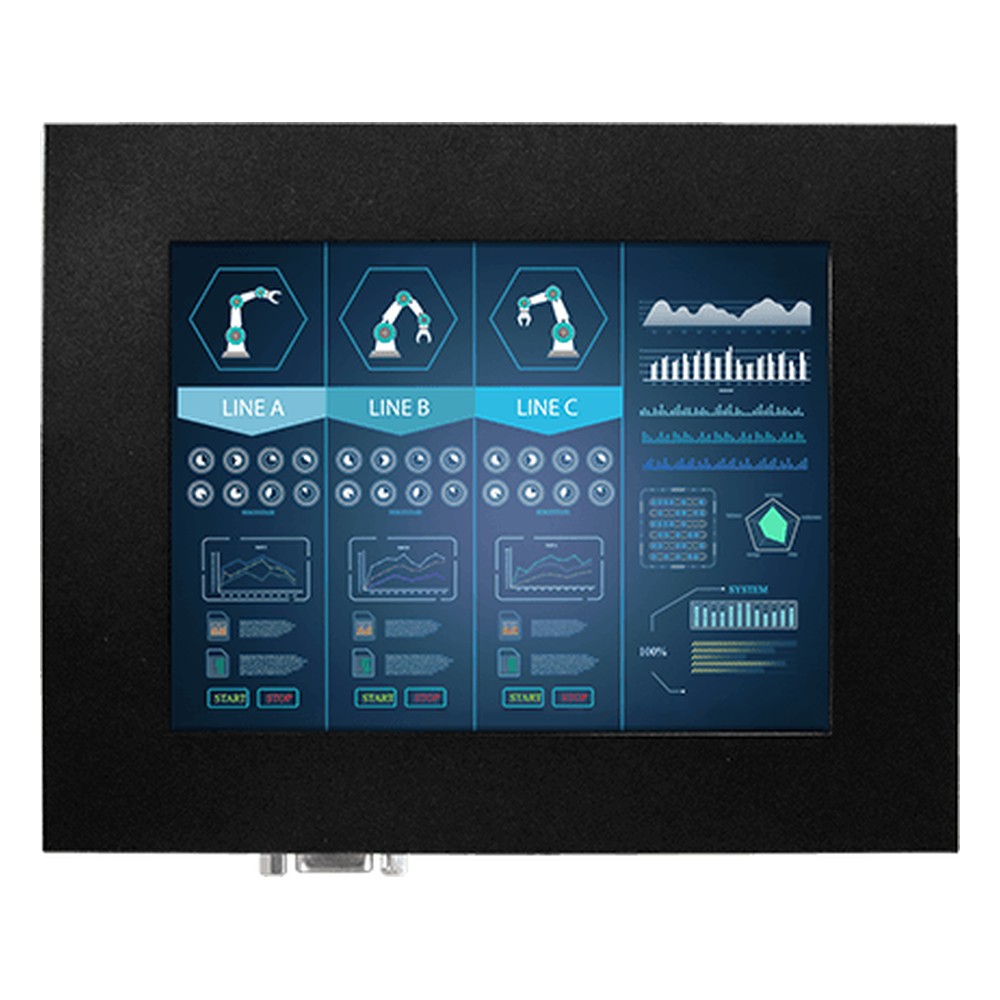

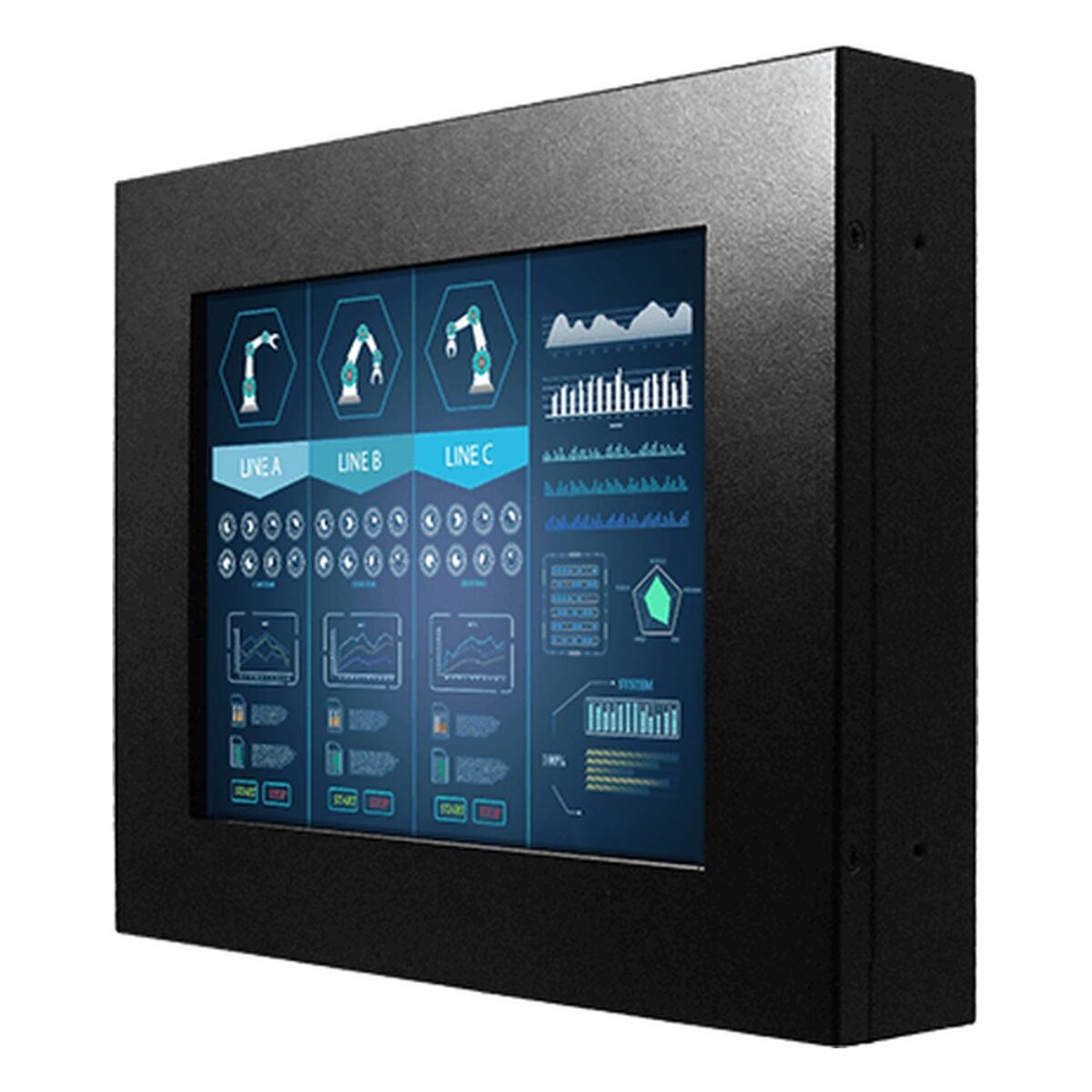

Where a screen faces strong ambient light, a transflective LCD uses that light as well as its backlight to stay readable. The R08L200-CHU1TR is Winmate’s 8.4 inch transflective chassis monitor, in a fanless metal housing with an aluminum bezel that mounts on VESA, for industrial control systems, kiosks and outdoor installations.
The 8.4″ 4:3 panel runs at 800 x 600 (SVGA) with 600 nits and a 600:1 contrast ratio, and Winmate quotes viewing angles of 150° horizontally and 130° vertically. The transflective layer helps the screen hold contrast as ambient light rises. Resistive touch comes as standard and works with gloves or a stylus. Winmate also offers SAW touch, or protection glass without touch where the screen only needs to display.
Video comes in over VGA as standard, with HDMI or DVI inputs available as options, and touch data runs over a single USB port. An audio line-in and two speakers are optional, and five keys handle the on-screen menu, with a remote control as an optional accessory. Within the Winmate range, the R08L200-CHU1 is the same chassis with a standard 600 nit panel, and the W07T700-CHA4TR is a 7″ widescreen transflective chassis monitor.
The R08L200-CHU1TR runs from 12 V DC, and an AC adapter comes with it, along with a power cord, VGA and HDMI cables and VESA screws. It operates from 0 °C to 50 °C at 10 to 90% humidity, non-condensing, and stores from -10 °C to 60 °C. The 8.4 inch monitor cools without a fan, mounts on VESA and carries CE and FCC marks. It pairs with the industrial PC of your choice, and we supply it configured and tested before dispatch.
R08L200-CHU1TR Specifications
| Overview | |
|---|---|
| Brand & Model | Winmate R08L200-CHU1TR |
| Features | Fanless Industrial |
| Display | |
| Display | 8.4"[4:3, 800 x 600, SVGA] |
| Display Treatment | Protective Glass Transflective |
| Touch Interface | USB |
| Touch Controller | Optional Surface Acoustic Wave Touch Resistive Touch |
| Brightness | 600 Nits |
| Viewing Angle | Wide Viewing Angle |
| 150° Horizontal, 130° Vertical | |
| Aspect Ratio | 4:3 |
| Format | Standard |
| Contrast | 600:1 |
| Number of Display Inputs | 3x Display Ports |
| Video Inputs | 1x Optional DVI Input 1x Optional HDMI Input 1x VGA Input |
| Power | |
| Power Input | 12V DC AC Power Supply Included |
| Environmental Conditions | |
| Thermal Dissipation | Fanless Passively Cooled Chassis |
| Operating Temperature | 0°C to 50°C [32°F to 122°F] |
| Storage Temperature | -10°C to 60°C [14°F to 140°F] |
| Humidity | 10-90% (Non-condensing) |
| Certification | CE FCC |
| Mechanical Properties | |
| Dimensions | 220mm x 160mm x 45mm (8.66" x 6.30" x 1.77") |
| Mounting Options | VESA Mount |
- R08L200-CHU1TR Datasheet Download
Official Winmate USA Distributor
Things Embedded is an official Winmate USA distributor, supplying the R08L200-CHU1TR configured and tested for USA control room, kiosk and industrial projects. Within the Winmate range the R10L600-CHP1TR is the 10.4 inch transflective version at 700 nits.
The R08L200-CHU1TR sits among our chassis monitors, our 4:3 monitors and our resistive touch monitors. Where an 8.4 inch screen faces strong ambient light, this is a sensible model to shortlist.
