Winmate R08T100-CHA1 8″ Chassis Monitor with Resistive Touch and SVGA LCD
Resistive
Fanless
CE
FCCR08T100-CHA1 Overview
A monitor in a control cabinet, kiosk or operator station usually has to fit a VESA arm or bracket and run all shift without a fan. The R08T100-CHA1 is Winmate’s 8 inch chassis monitor for that kind of job, built for industrial control systems, kiosks and outdoor installations.
The 8″ 4:3 panel runs at 800 x 600 (SVGA) with 250 nits and a 500:1 contrast ratio, and Winmate quotes viewing angles of 140° horizontally and 120° vertically. Touch is optional: specify resistive touch for gloved or stylus input, or protection glass without touch where the screen only needs to display.

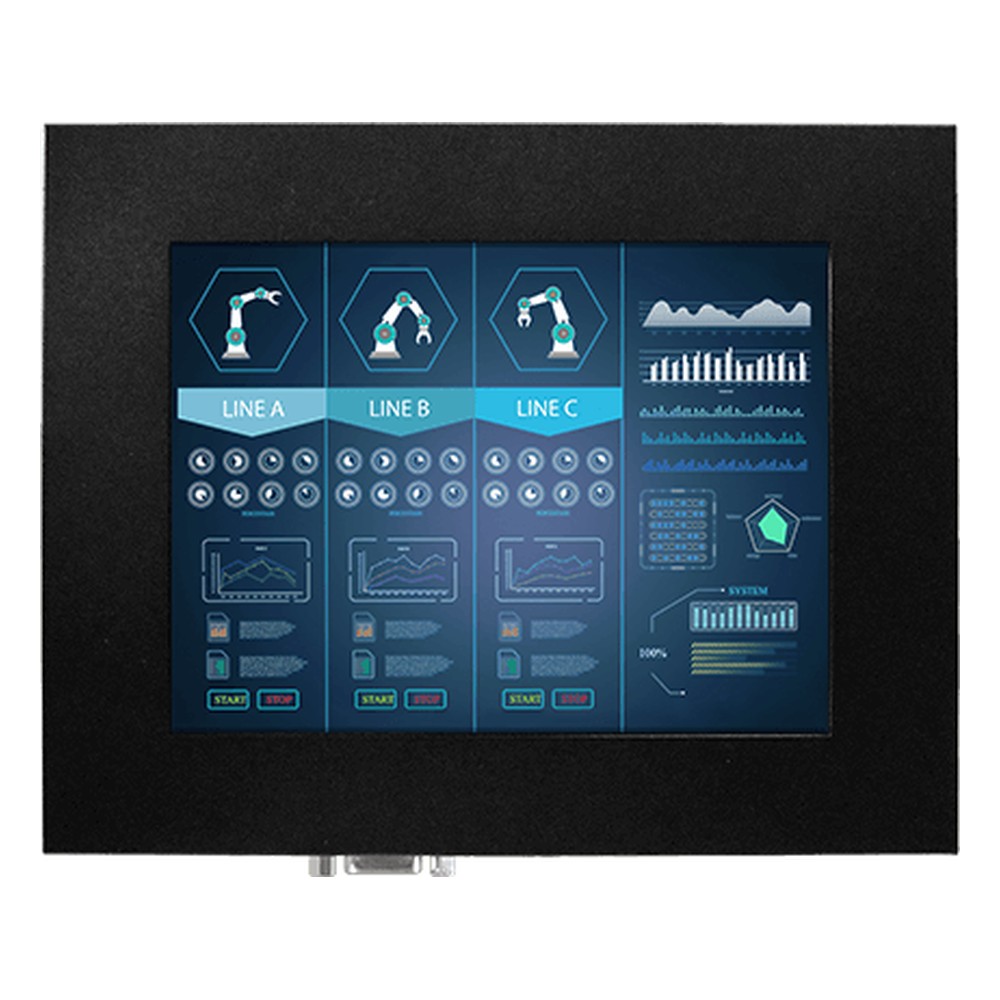

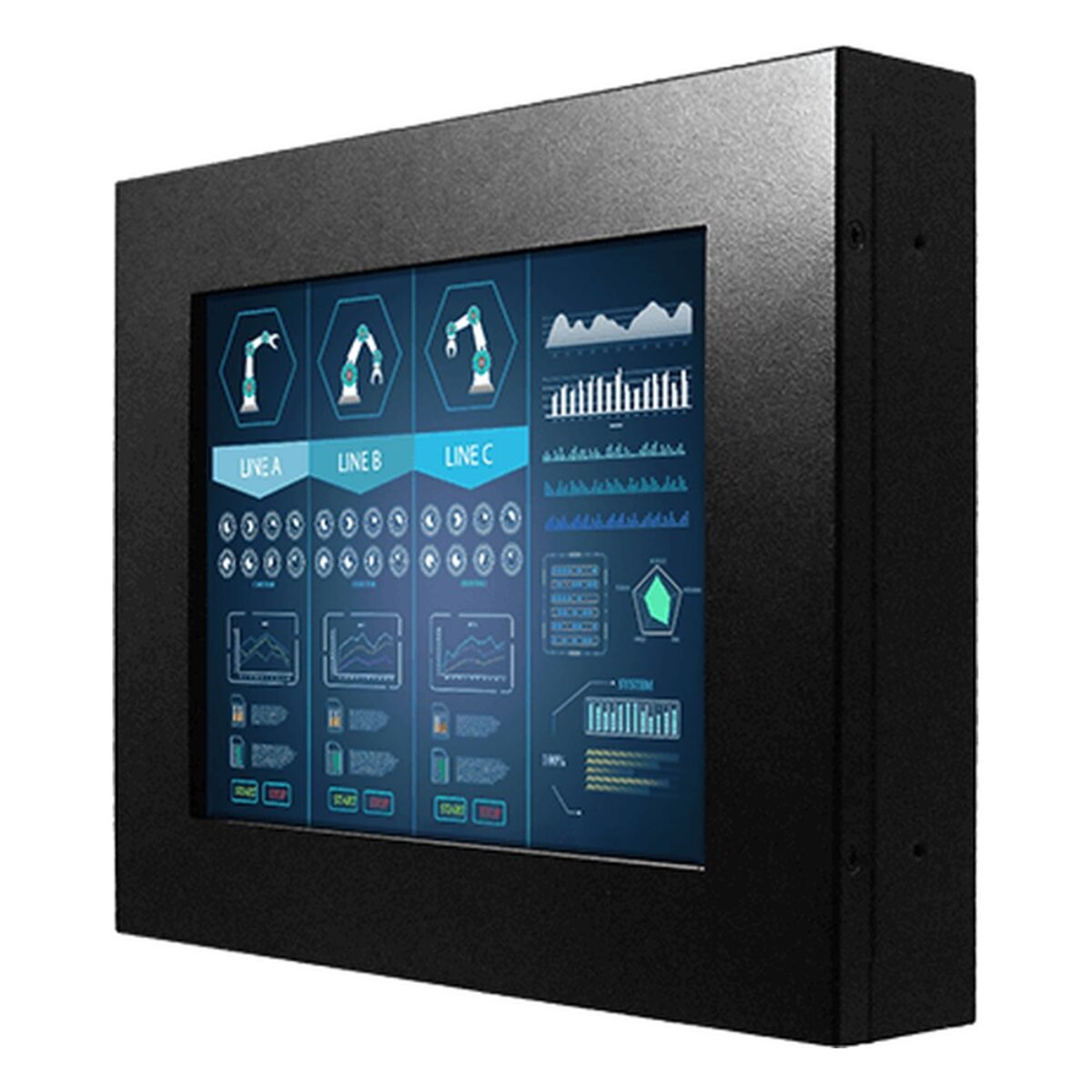

Video comes in over VGA as standard, with HDMI or DVI inputs available as options, and touch data runs over a single USB port. An audio line-in and two speakers are optional, and five keys handle the on-screen menu, with a remote control as an optional accessory. Within the Winmate range, the R08L200-CHU1 moves to an 8.4″ 600 nit panel with resistive touch as standard, and the R06L200-CHA1 is a 6.5″ 640 x 480 chassis monitor at 700 nits.
The R08T100-CHA1 runs from 12 V DC, and an AC adapter comes with it, along with a power cord, VGA and HDMI cables and VESA screws. It operates from 0 °C to 50 °C at 10 to 90% humidity, non-condensing, and stores from -10 °C to 60 °C. The 8 inch monitor cools without a fan, mounts on VESA and carries CE and FCC marks. It pairs with the industrial PC of your choice, and we supply it configured and tested before dispatch.
R08T100-CHA1 Specifications
| Overview | |
|---|---|
| Brand & Model | Winmate R08T100-CHA1 |
| Features | Fanless Industrial |
| Display | |
| Display | 8"[4:3, 800 x 600, SVGA] |
| Display Treatment | Protective Glass |
| Touch Interface | USB |
| Touch Controller | Optional Resistive Touch |
| Brightness | 250 Nits |
| 140° Horizontal, 120° Vertical | |
| Aspect Ratio | 4:3 |
| Format | Standard |
| Contrast | 500:1 |
| Number of Display Inputs | 3x Display Ports |
| Video Inputs | 1x Optional DVI Input 1x Optional HDMI Input 1x VGA Input |
| Power | |
| Power Input | 12V DC AC Power Supply Included |
| Environmental Conditions | |
| Thermal Dissipation | Fanless Passively Cooled Chassis |
| Operating Temperature | 0°C to 50°C [32°F to 122°F] |
| Storage Temperature | -10°C to 60°C [14°F to 140°F] |
| Humidity | 10-90% (Non-condensing) |
| Certification | CE FCC |
| Mechanical Properties | |
| Weight | 1.5 Kg (3.3 Lbs) |
| Dimensions | 207mm x 165mm x 26mm (8.17" x 6.51" x 1.02") |
- R08T100-CHA1 Datasheet Download
Official Winmate USA Distributor
Things Embedded is an official Winmate USA distributor, supplying the R08T100-CHA1 configured and tested for USA control room, kiosk and industrial projects. Within the Winmate range the W07T700-CHA4TR is the 7 inch widescreen transflective version.
The R08T100-CHA1 sits among our 4:3 monitors, our chassis monitors and our 7 inch class industrial monitors. Where a project needs an 8 inch chassis monitor that connects to an existing computer, this is a sensible model to shortlist.
