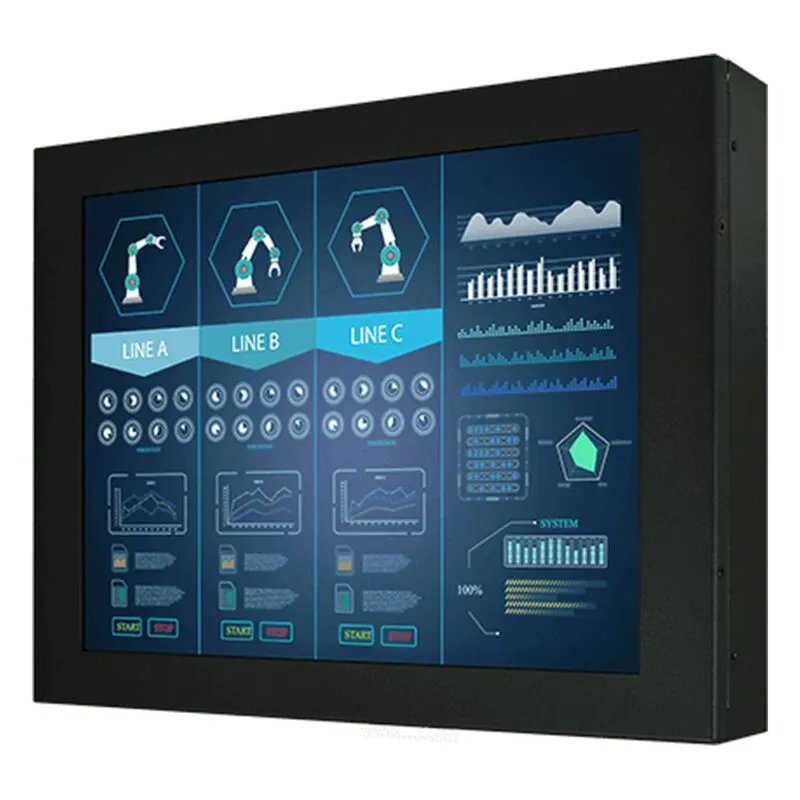

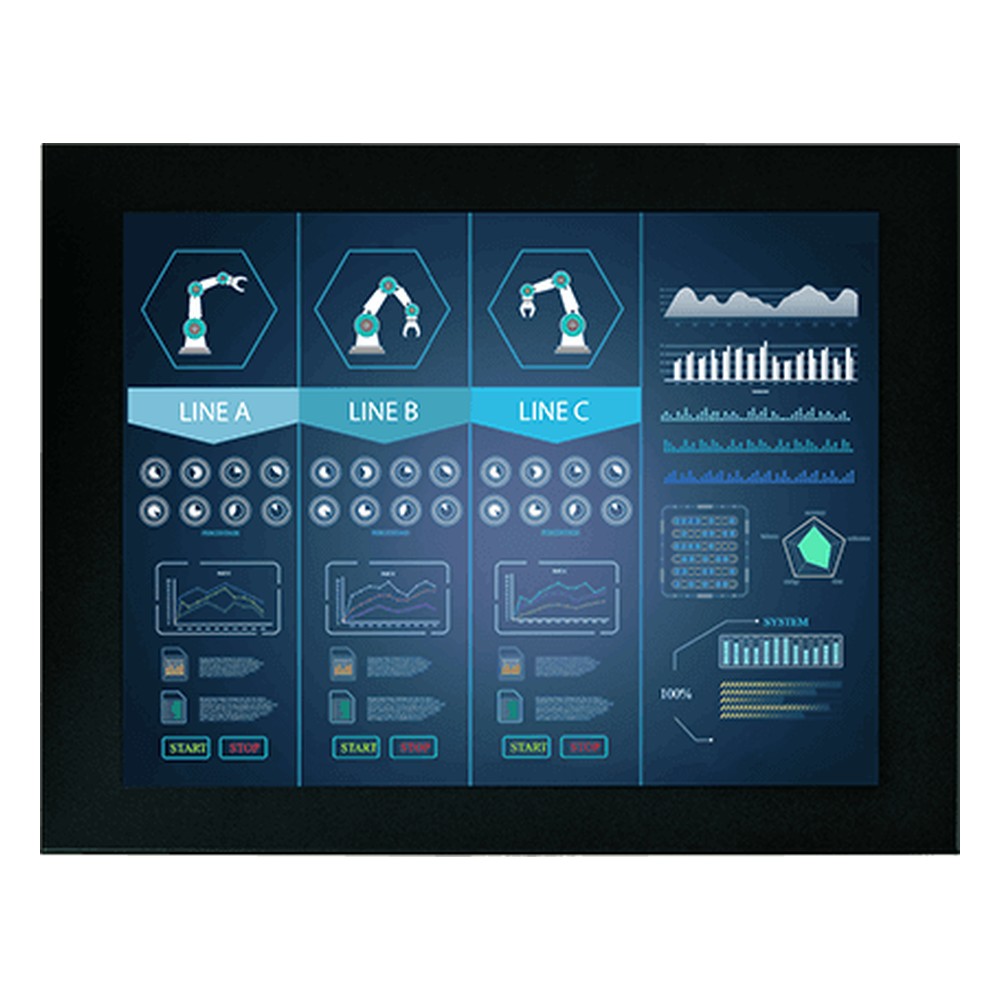

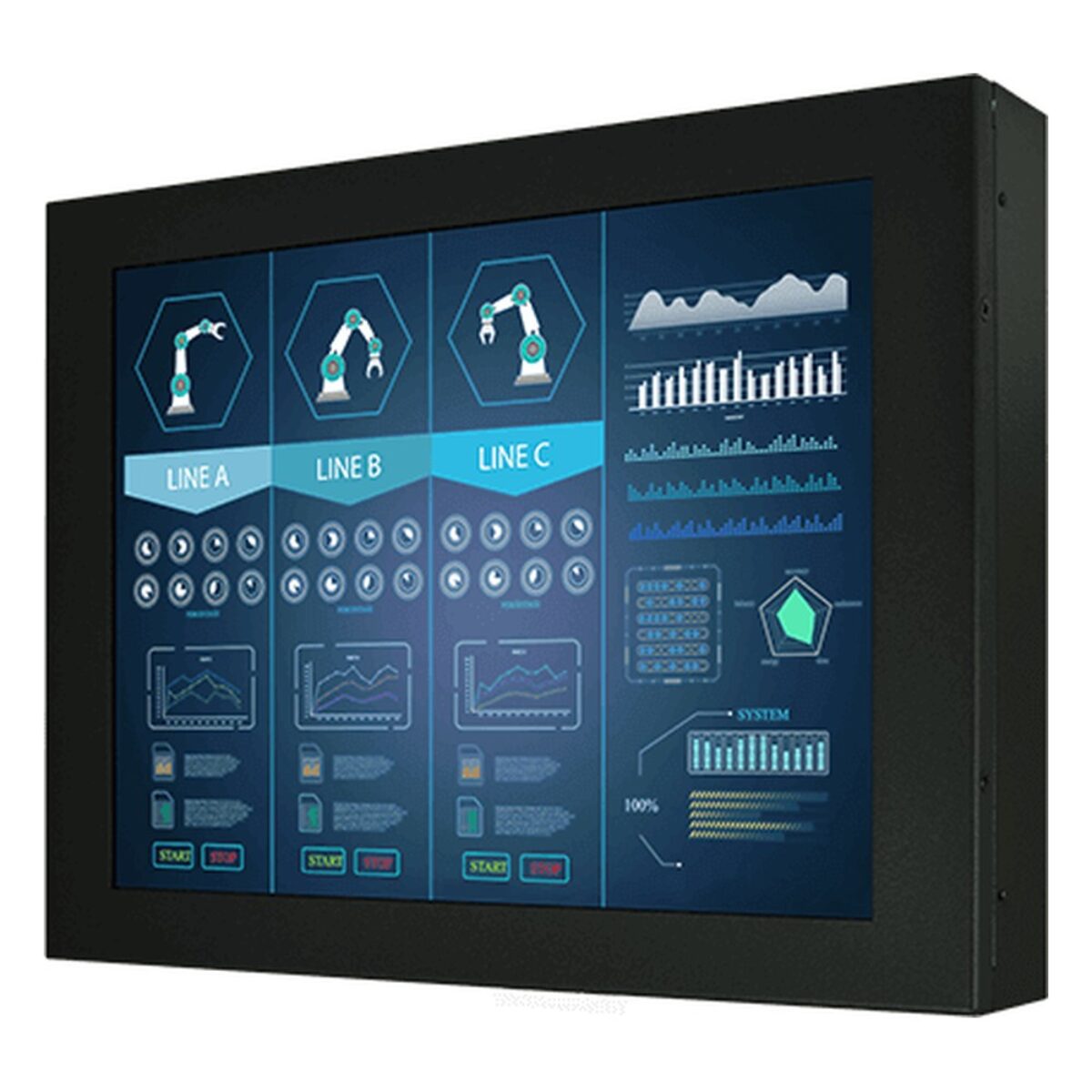

Winmate R10L100-CHT2OD 10.4″ Sunlight Readable Chassis Monitor with 1000 Nit XGA Display and Wide Temperature

Control systems, kiosks and equipment screens in bright or exposed places need a display that stays readable and keeps working as the temperature swings. The R10L100-CHT2OD is Winmate’s 10.4 inch sunlight readable chassis monitor for that job, with a 10.4″ XGA panel at 1000 nits, resistive touch as standard and a -10 °C to 60 °C operating range. It connects to a separate computer over VGA, with HDMI or DVI as options.

The 10.4″ XGA panel runs at 1000 nits with 1000:1 contrast, 16.2 million colors and 176 degree viewing angles in both directions, so the picture typically stays readable in direct light. Resistive touch is standard, connected over one USB port, and protection glass without touch is available as an option.

Video comes in on VGA as standard, with HDMI and DVI inputs as options, so the R10L100-CHT2OD pairs with most industrial PCs and box PCs. An audio line in and two speakers are optional, and five keys (power, plus, minus, Esc and Enter) run the on-screen menu. VGA and HDMI cables and a manual come in the box. Within the Winmate range the R10L100-PMT2OD is the panel mount version of this sunlight readable display, and the R10L100-CHT2 is the chassis version with a 10.4 inch XGA LCD and resistive touch.

Power is 12 V DC in, with a 24 V DC input as an option, and an AC adapter and power cord are supplied. The fanless metal housing with an aluminum bezel runs from -10 °C to 60 °C and stores from -20 °C to 70 °C, at 10 to 90% humidity, non-condensing. It mounts on VESA arms, brackets or stands, and it carries CE and FCC marks. We supply the R10L100-CHT2OD configured and tested before dispatch.
