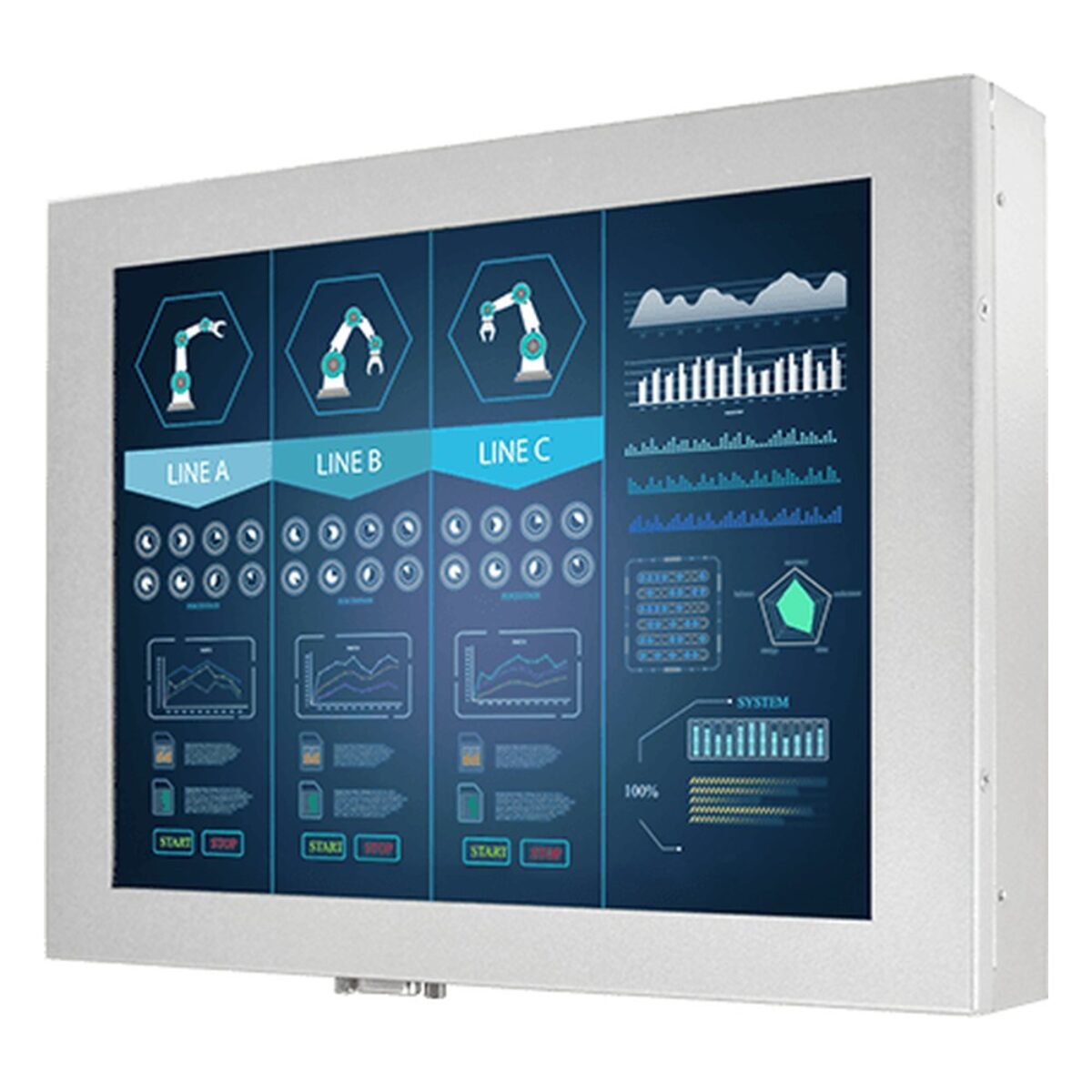

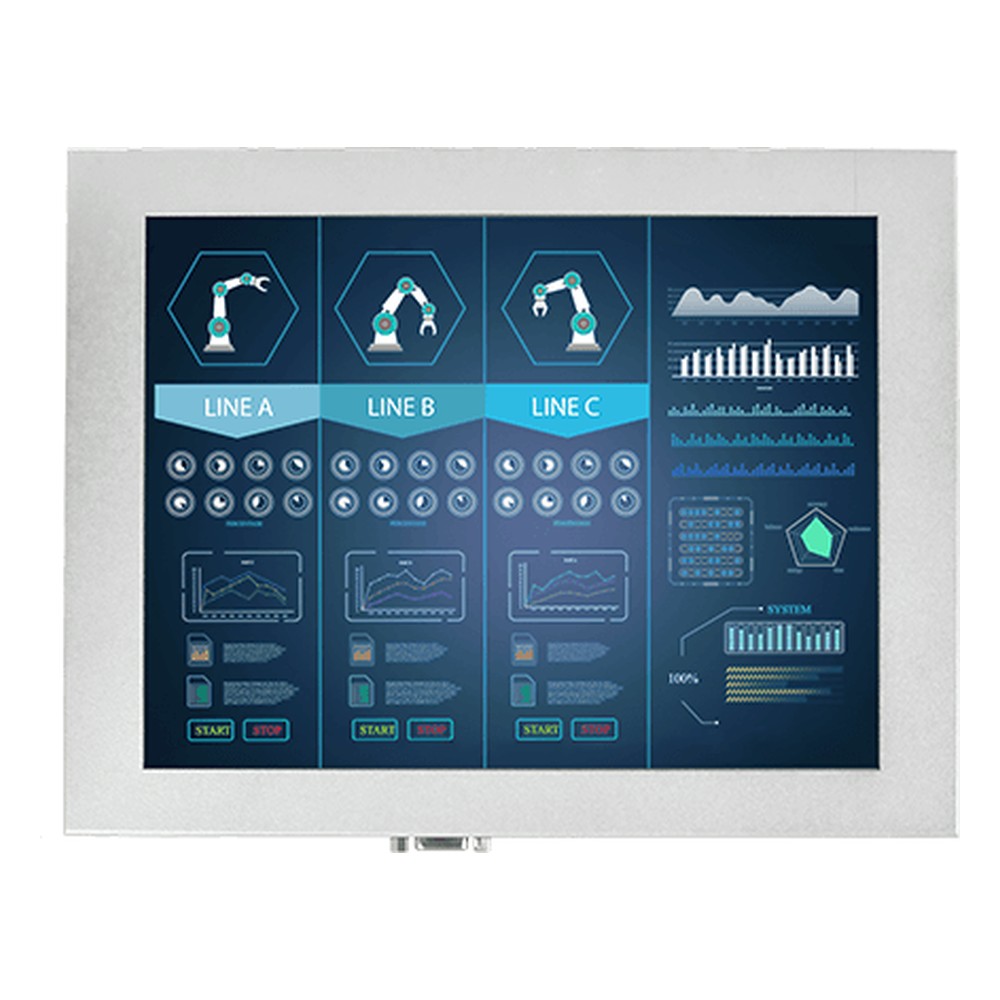

Winmate R10L600-CHP3TR 10.4″ Chassis Monitor with Transflective VGA LCD

Where a screen faces strong ambient light, a transflective LCD uses that light as well as its backlight to stay readable. The R10L600-CHP3TR is Winmate’s 10.4 inch transflective chassis monitor, in a fanless metal housing with an aluminum bezel that mounts on VESA, for industrial control systems, kiosks and outdoor installations.

The 10.4″ 4:3 panel runs at 640 x 480 (VGA) with 540 nits and a 700:1 contrast ratio, and Winmate quotes viewing angles of 160° horizontally and 140° vertically. The transflective layer helps the screen hold contrast as ambient light rises. Resistive touch comes as standard and works with gloves or a stylus. Winmate also offers SAW touch, or protection glass without touch where the screen only needs to display.

Video comes in over VGA as standard, with HDMI or DVI inputs available as options, and touch data runs over a single USB port. An audio line-in and two speakers are optional, and five keys handle the on-screen menu, with a remote control as an optional accessory. Within the Winmate range, the R10L600-CHP1TR is a transflective version with an 800 x 600 panel at 700 nits, and the R10T600-CHP3 uses a standard 640 x 480 panel at 450 nits.

The R10L600-CHP3TR runs from 12 V DC, with a 24 V DC input as an option, and an AC adapter comes with it, along with a power cord, VGA and HDMI cables and VESA screws. It operates from 0 °C to 50 °C at 10 to 90% humidity, non-condensing, and stores from -10 °C to 60 °C. The 10.4 inch monitor cools without a fan, mounts on VESA and carries CE and FCC marks. It pairs with the industrial PC of your choice, and we supply it configured and tested before dispatch.
