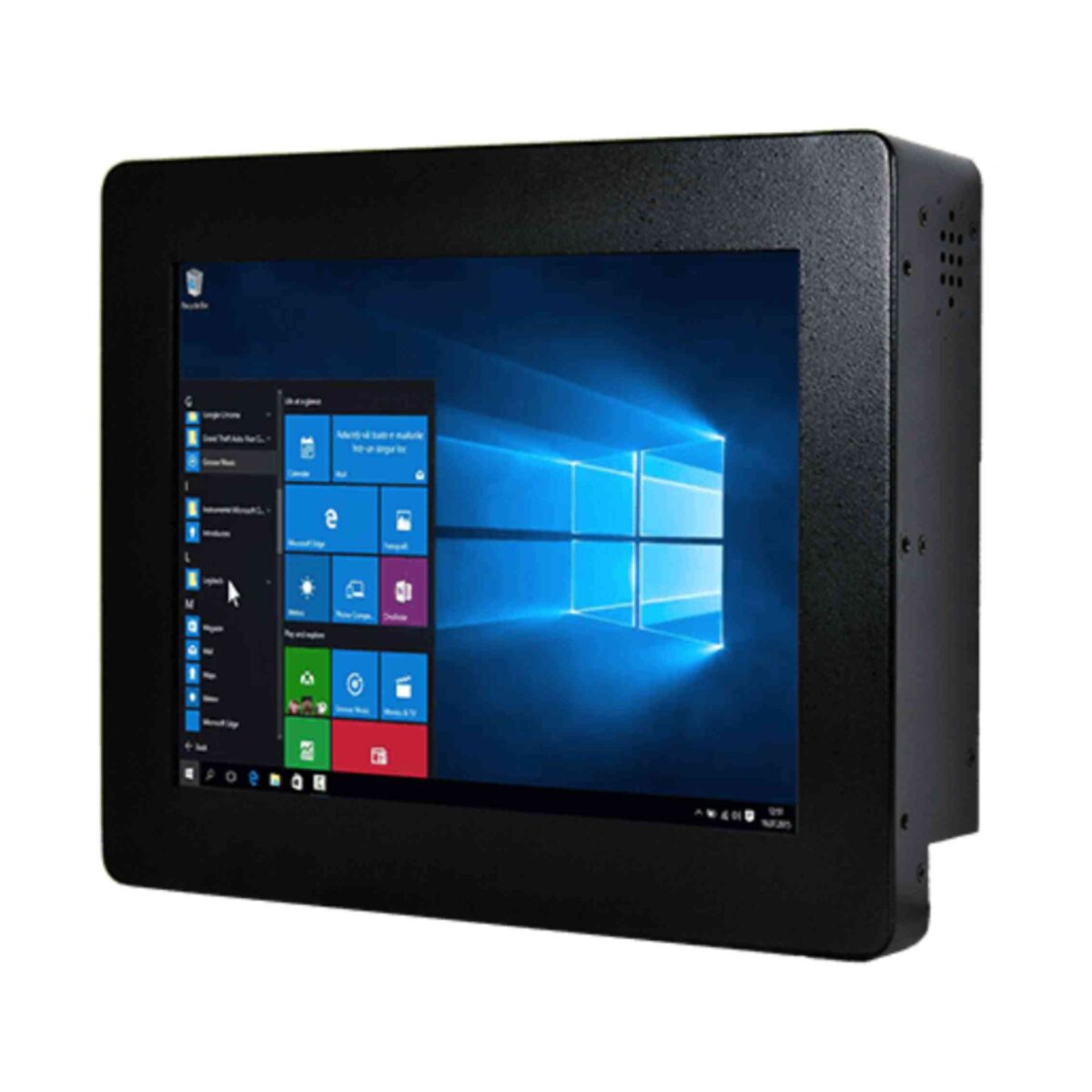

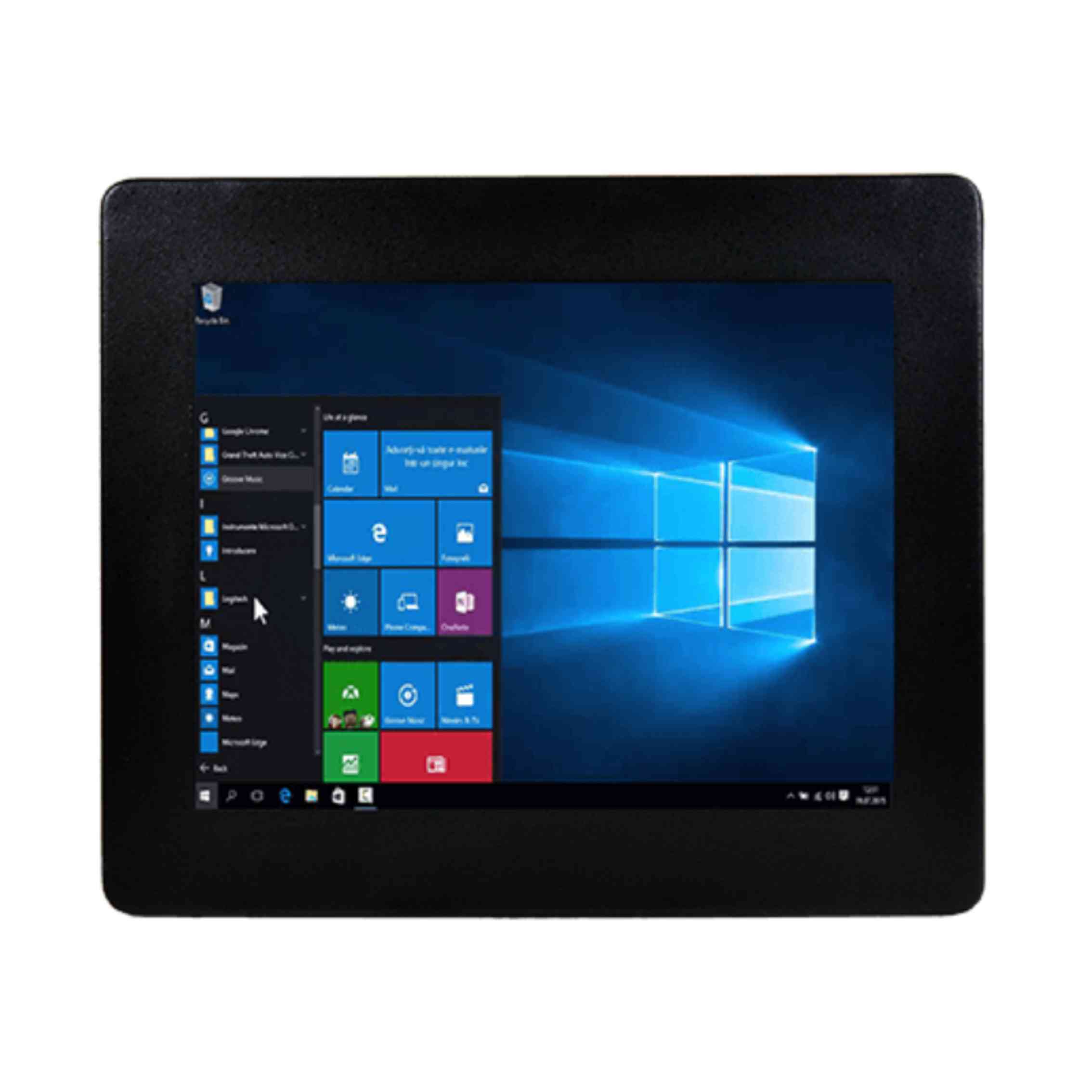

Winmate R12IE3S-CHM2 12.1″ Chassis Panel PC with Intel Celeron N6211, 500 Nit XGA Screen and Front IP65

The R12IE3S-CHM2 is Winmate's 12.1 inch chassis panel PC, combining an Intel Celeron N6211 with a 1024 x 768 screen at 500 nits in a fanless metal housing with a front rated IP65. It suits line-side HMIs on arms and walls where operators read process screens from a distance.

  • Intel Celeron N6211: Elkhart Lake processor at up to 3.0 GHz with DDR4-3200 to 16 GB and M.2 storage, with TPM 2.0 on board.
  • 500 Nit 12.1″ XGA: A 1024 x 768 panel at 500 nits and 1000:1 contrast with 178° viewing angles, readable from across a work cell.
  • Front IP65 Chassis: Fanless metal chassis with a front rated IP65 and a 75 x 75 mm VESA pattern.
  • Dual GbE and Serial: Two Gigabit Ethernet ports, two USB 3.2 Gen 2×1 ports and two serial ports connect PLCs and networks.
  • 12 V DC Supply: Runs from 12 V DC on a DC jack with a 50 W AC adapter supplied.
Touch Technology: ResistiveResistive
Processor Brand: IntelIntel
Operating Software: LinuxLinux
Operating Software: WindowsWindows
USB Generation: USB3USB3
M.2: 11x M.2
Certification: CECE
Certification: FCCFCC
USA Support Team: +1 407 214 9446 Call
Select section
  • Overview
  • Specifications
  • Downloads

R12IE3S-CHM2 Overview

An HMI viewed from several steps away needs a bright, wide-angle screen, and on an arm or wall there is no cabinet PC to drive it. The R12IE3S-CHM2 is Winmate’s 12.1 inch chassis panel PC: a fanless Intel Celeron N6211 computer and a 1024 x 768 screen at 500 nits in a metal housing with a front rated IP65.

The Intel Celeron N6211 is an Elkhart Lake processor running at up to 3.0 GHz, with the Celeron N6210 as an option. One DDR4-3200 SO-DIMM socket takes 4 GB as standard and 8 GB or 16 GB as options, and storage is a 128 GB M.2 2242 SSD with a 2.5 inch SATA bay available. TPM 2.0 is on board, and Windows 11 IoT Enterprise, Windows 10 IoT Enterprise or Ubuntu 22.04 can be supplied. The 12.1 inch panel runs at 500 nits with 1000:1 contrast and 178° viewing angles, and resistive touch or protection glass are front options.

The underside carries two Gigabit Ethernet ports on Intel controllers, two USB 3.2 Gen 2×1 ports, one RS-232/422/485 and one RS-232 port and an optional HDMI 2.0 output, with an M.2 E-key slot for a Wi-Fi and Bluetooth module. The R12IE3S-CHM2WT is the wide temperature version rated from -20 °C to 60 °C, and the R12IE3S-PMM2 is the panel mount version.

Power is 12 V DC on a 2.5 mm jack, with a 12 V, 50 W AC adapter supplied. The R12IE3S-CHM2 is fanless, operates from 0 °C to 50 °C at 10 to 90% humidity, has a front rated IP65 and carries CE and FCC marks. It measures 303 x 217 x 60 mm, weighs 3.5 kg and mounts on a 75 x 75 mm VESA pattern.

R12IE3S-CHM2 Specifications

Overview
Brand & ModelWinmate R12IE3S-CHM2
FeaturesIndustrial
Display
Display12.1"[4:3, 1024 x 768, XGA]
Display TreatmentProtective Glass
Touch ControllerOptional Resistive Touch
Brightness500 Nits
Viewing AngleWide Viewing Angle
178° Horizontal, 178° Vertical
Aspect Ratio4:3
FormatStandard
Contrast1000:1
Performance
Processor SeriesIntel Celeron N Series Elkhart Lake
Processor ModelsIntel Celeron N6210: 1.2~2.6GHz, 2 Cores, 2 Threads, 1.5MB Cache, 6.5W
Performance Cores2 Cores
Memory1x DDR4 3200MHz SO-DIMM Slot, 16GB
Secure Crypto ProcessorTPM 2.0 (Trusted Platform Module)
Operating SystemLinux Ubuntu 20.04
Windows 10
Windows 11
I/O
Ethernet2x Ethernet Ports
2x GbE LAN [RJ45]
USB2x USB Ports
2x USB 3.2 Gen 2 [Type A]
Serial2x Serial Ports
1x RS232 [DB9]
1x RS232/422/485 [DB9]
Expansion
M.21x M.2 Expansion Slots
1x M.2 B-Key [PCIe/USB/SATA] [2242]
Storage
Storage1x 2.5" HDD/SSD
1x M.2 SSD
Power
Power Input12V DC
Optional AC Power Supply
Environmental Conditions
Operating Temperature0°C to 50°C [32°F to 122°F]
Storage Temperature-10°C to 60°C [14°F to 140°F]
Humidity10-90% (Non-condensing)
CertificationCE
FCC
Mechanical Properties
Dimensions303mm x 217mm x 60mm (11.93" x 8.54" x 2.36")

Official Winmate USA Distributor

Things Embedded is an official Winmate USA distributor, supplying the R12IE3S-CHM2 configured for USA manufacturing projects. Within the Winmate range the R12IE3S-CHM2WT is the wide temperature twin for unheated buildings, and the R12IE3S-PMM2 puts the same 12.1 inch screen in a panel mount housing.

The R12IE3S-CHM2 sits among our 12 inch panel PCs, our chassis and VESA panel PCs and our resistive touch panel PCs. Where a line-side HMI needs a bright 12.1 inch screen on an arm in a heated plant, this is the model to specify.
