Winmate R12L100-GSM2(HB) 12.1″ IP65 PCAP Touch Monitor with Edge-to-Edge Front, XGA Display and M12 Connectors
PCAP
High Bright
CE
FCCR12L100-GSM2(HB) Overview

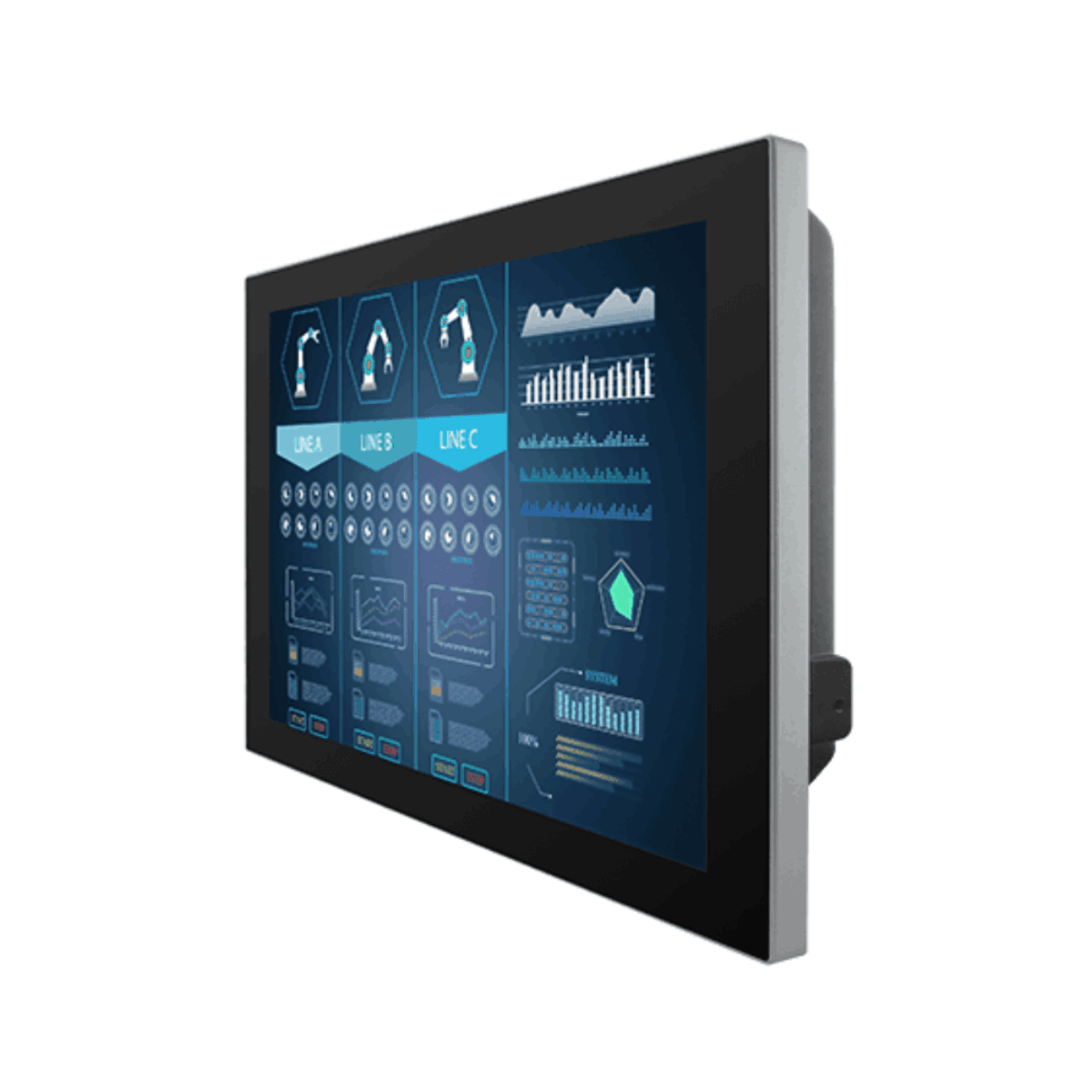

A 10 inch screen can feel cramped for a machine HMI, but a larger display still has to survive water, dust and vibration. The R12L100-GSM2(HB) is Winmate’s 12.1 inch G-WIN GS display, combining projected capacitive multi-touch with an edge-to-edge front, full IP65 sealing and M12 waterproof connectors.

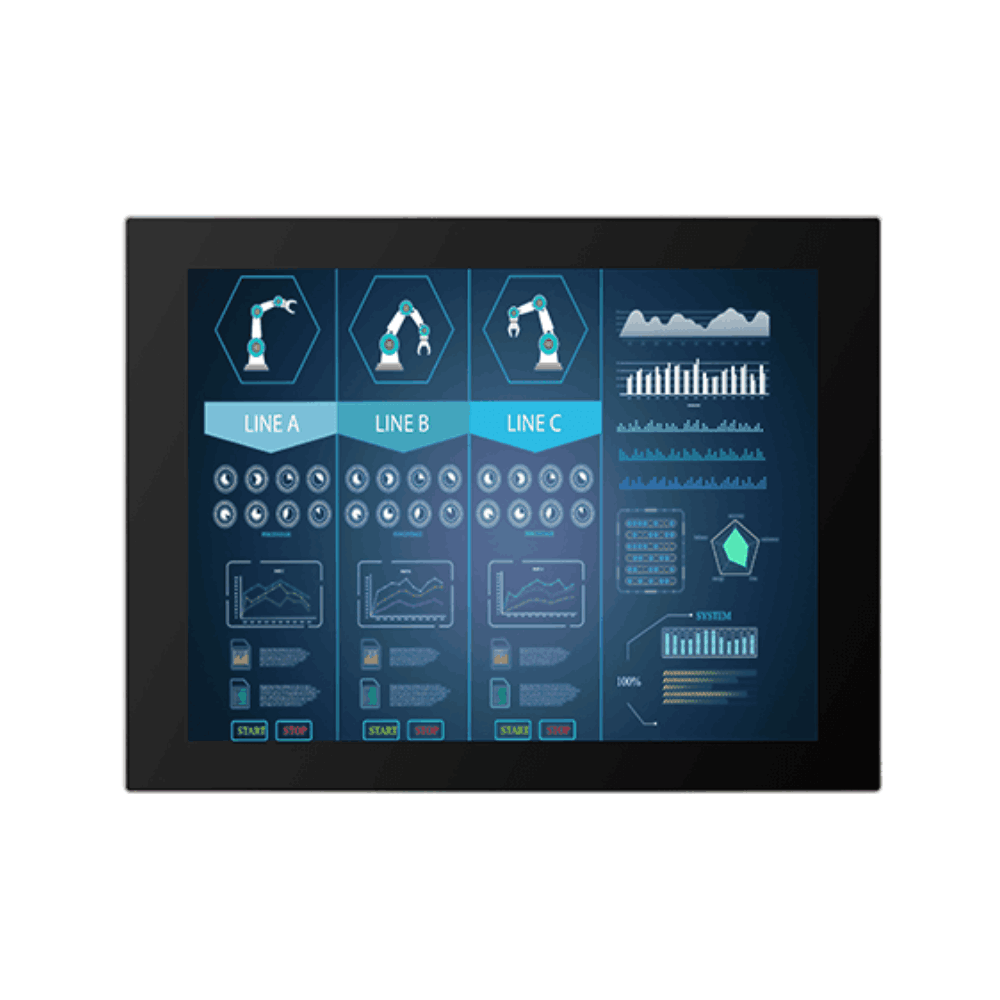

The 12.1 inch LCD runs at 1024 x 768 with 500 nits as standard and a 1000 nit panel as an option, a 1000:1 contrast ratio, 16.2M colors and 178° viewing angles. PCAP touch sits flush with the front, so there is no bezel step for dirt or water to collect in, and protection glass is available as an option. Five keys on the rear control the on-screen display.
Power, VGA and USB touch connect through M12 waterproof connectors, and three I/O protective caps are supplied for unused ports. Winmate states compliance with MIL-STD-810F/G for vibration and shock. The R10L100-GST2 is the 10.4 inch GS model, and the R12L100-PCM2OD offers a 12.1 inch PCAP chassis with front IP65 and heater and UV film options for outdoor sites.
Power is 9 to 36 V DC on an M12 connector. The monitor operates from -15 °C to 55 °C at 10 to 95% RH, withstands 40 g shock for 11 ms and vibration of up to 2.24 g rms from 5 to 500 Hz, and cools without a fan in its aluminum enclosure. It measures 296.2 x 226.7 x 45.5 mm, mounts on 75 x 75 mm VESA holes or in a panel, and carries CE and FCC marks. Winmate names industrial visualization, control rooms and equipment monitoring as applications.
R12L100-GSM2(HB) Specifications
| Overview | |
|---|---|
| Brand & Model | Winmate R12L100-GSM2(HB) |
| Features | Fanless Industrial M12 Connectors Rugged Waterproof |
| Display | |
| Display | 12.1"[4:3, 1024 x 768, XGA] |
| Display Treatment | Protective Glass |
| Touch Interface | USB |
| Touch Controller | Multi Touch PCAP |
| Brightness | 500 Nits Optional 1,000 Nits |
| Viewing Angle | Wide Viewing Angle |
| 178° Horizontal, 178° Vertical | |
| Aspect Ratio | 4:3 |
| Format | Standard |
| Contrast | 1000:1 |
| Number of Display Inputs | 1x Display Ports |
| Video Inputs | 1x VGA Input |
| Power | |
| Power Input | 9-36V DC Input [M12] |
| Environmental Conditions | |
| Operating Temperature | -15°C to 55°C [5°F to 131°F] |
| Storage Temperature | -30°C to 60°C [-22°F to 140°F] |
| Humidity | 10% - 95% (Non-condensing) |
| Ingress Protection | IP65 IP65 [Dustproof, Protection against low pressure water jets spraying from any direction] |
| Certification | CE FCC |
| Mechanical Properties | |
| Dimensions | 296mm x 227mm x 46mm (11.65" x 8.94" x 1.81") |
- R12L100-GSM2(HB) Datasheet Download
Official Winmate USA Distributor
Things Embedded is an official Winmate USA distributor, supplying the R12L100-GSM2(HB) configured for USA machine and vehicle projects. Within the Winmate range the R10L100-GST2 is the 10.4 inch GS model, and the R12L100-PCM2OD suits outdoor sites with its heater option.
Fully sealed to IP65 the R12L100-GSM2(HB) sits among our IP65 waterproof monitors, our capacitive touch monitors and our 12 inch industrial monitors. Where a machine needs a sealed 12.1 inch touch screen, this is the model to specify.
