Winmate R15IP7T-PPC3 15″ Panel Mount HMI with Intel Apollo Lake Pentium N4200 and PCAP Touch

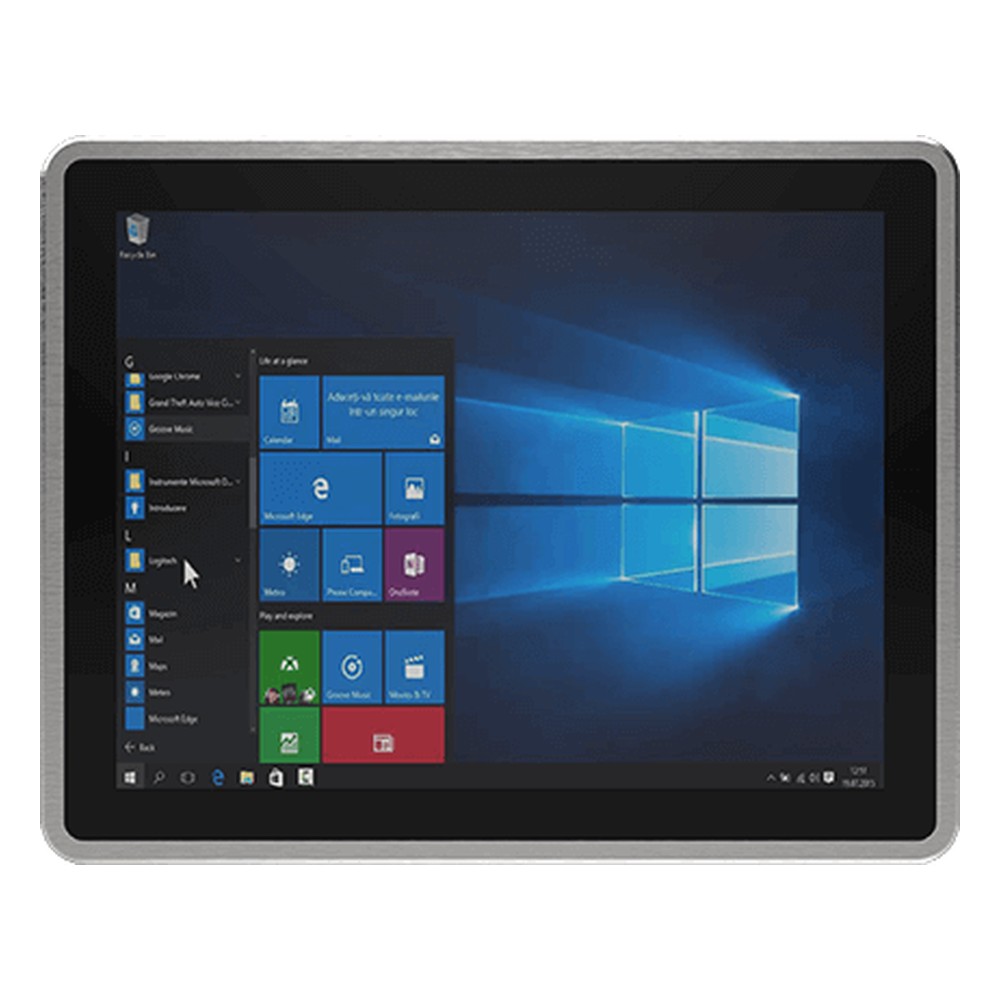

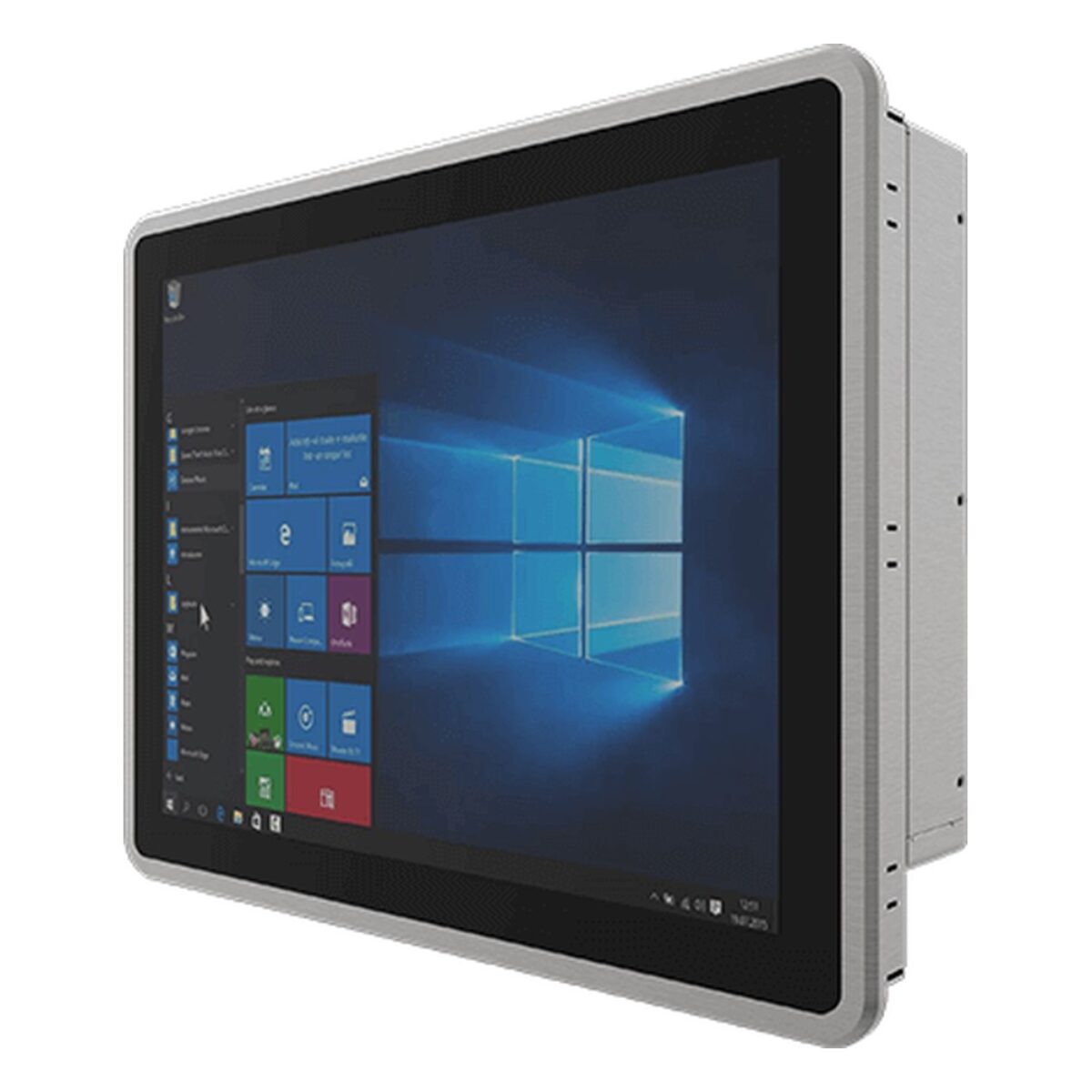

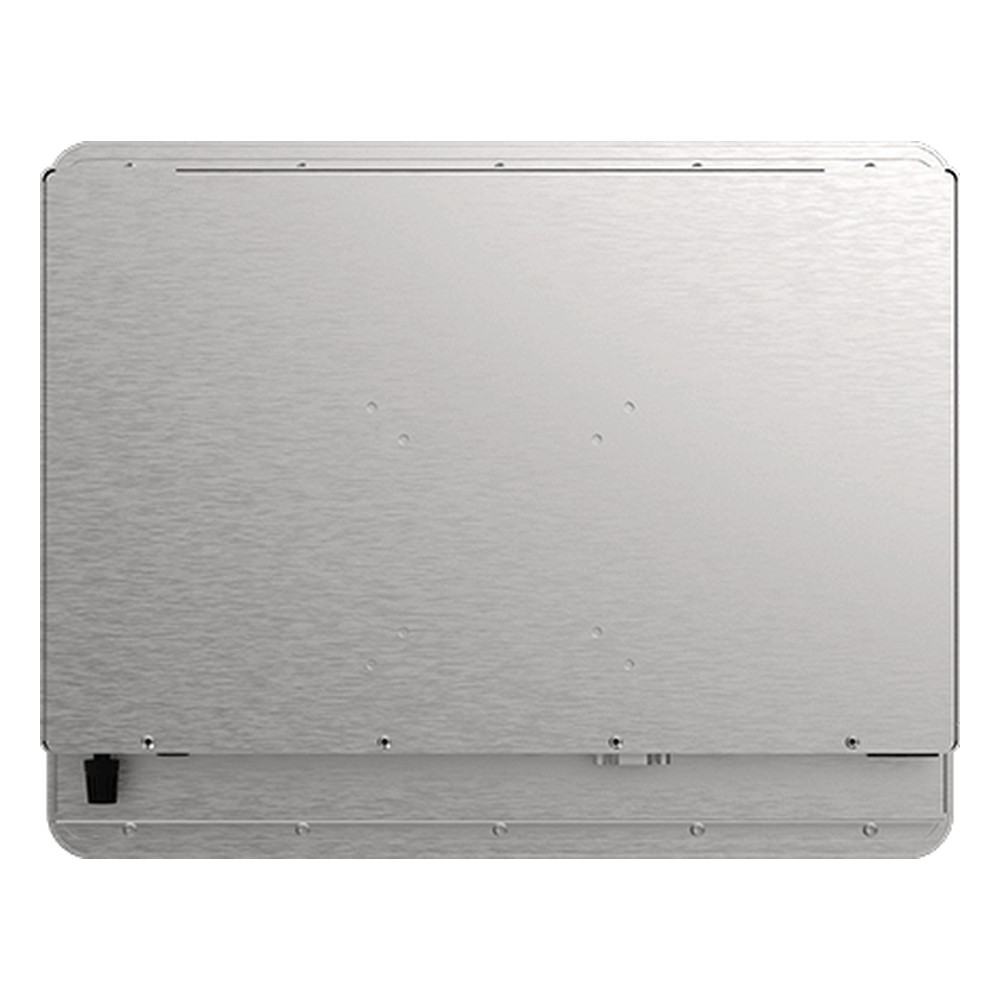

Industrial control panels, room booking screens and access control points often sit flush in a cabinet or wall cut-out, with only the front exposed. The R15IP7T-PPC3 is Winmate’s 15 inch PP Series panel mount HMI for those installs, with an Intel Pentium N4200 and a 15″ 1024 x 768 projected capacitive multi-touch display at 300 nits with 2000:1 contrast in an aluminum housing.

The Pentium N4200 runs at 1.1 GHz with burst up to 2.5 GHz, and dual-channel non-ECC SO-DIMM memory goes up to 16 GB, which typically suits HMI software, a kiosk application or a booking client. Storage is a 128 GB SSD as standard on an M.2 2242 B-key SATA slot, with options up to 1 TB, and two optional 2.5″ SATA III bays. A PCIe 2.0 x1 slot takes an expansion card, TPM 2.0 is on board, and Windows IoT Enterprise or Linux Ubuntu 20.04 can be installed.

Connections include two Gigabit LAN ports on Intel controllers, four USB 3.2 Gen 1 Type-A ports, one RS-232/422/485 and one RS-232 port, DisplayPort 1.2 with optional HDMI 1.4 and VGA, and mic in, line out and two speakers. An M.2 2230 E-key slot is there for a Wi-Fi module. Within the Winmate range the R15IAD3S-PPC3 is the same panel mount design with a 12th Gen Intel Core i5-1235U, and the R15IP7T-POC3 is the open frame version with the same Pentium N4200.

Power is 12 V DC on a DIN 4-pin connector, with a 100 to 240 V AC adapter (12 V 50 W) supplied. The fanless metal housing has a front IP65 rating and runs from 0 to 50 °C in non-condensing humidity. Panel mounting is standard with mounting clips supplied, and VESA mounting is optional with VESA screws in the box. It carries CE and FCC marks. We supply the R15IP7T-PPC3 configured, with the OS installed, and tested before dispatch.
