Winmate R15L100-CHC3HB 15″ Chassis Monitor with 1000 Nit XGA Display and Resistive Touch
Resistive
High Bright
Fanless
CE
FCCR15L100-CHC3HB Overview

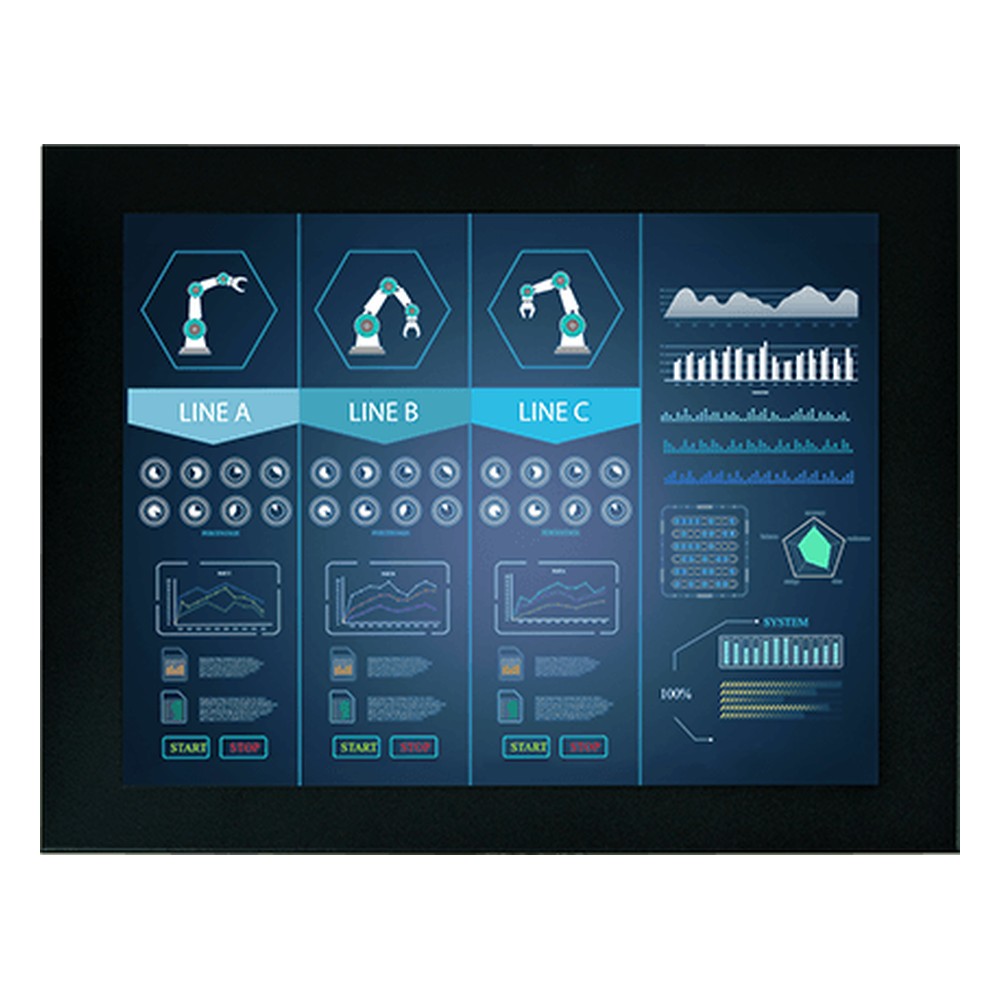

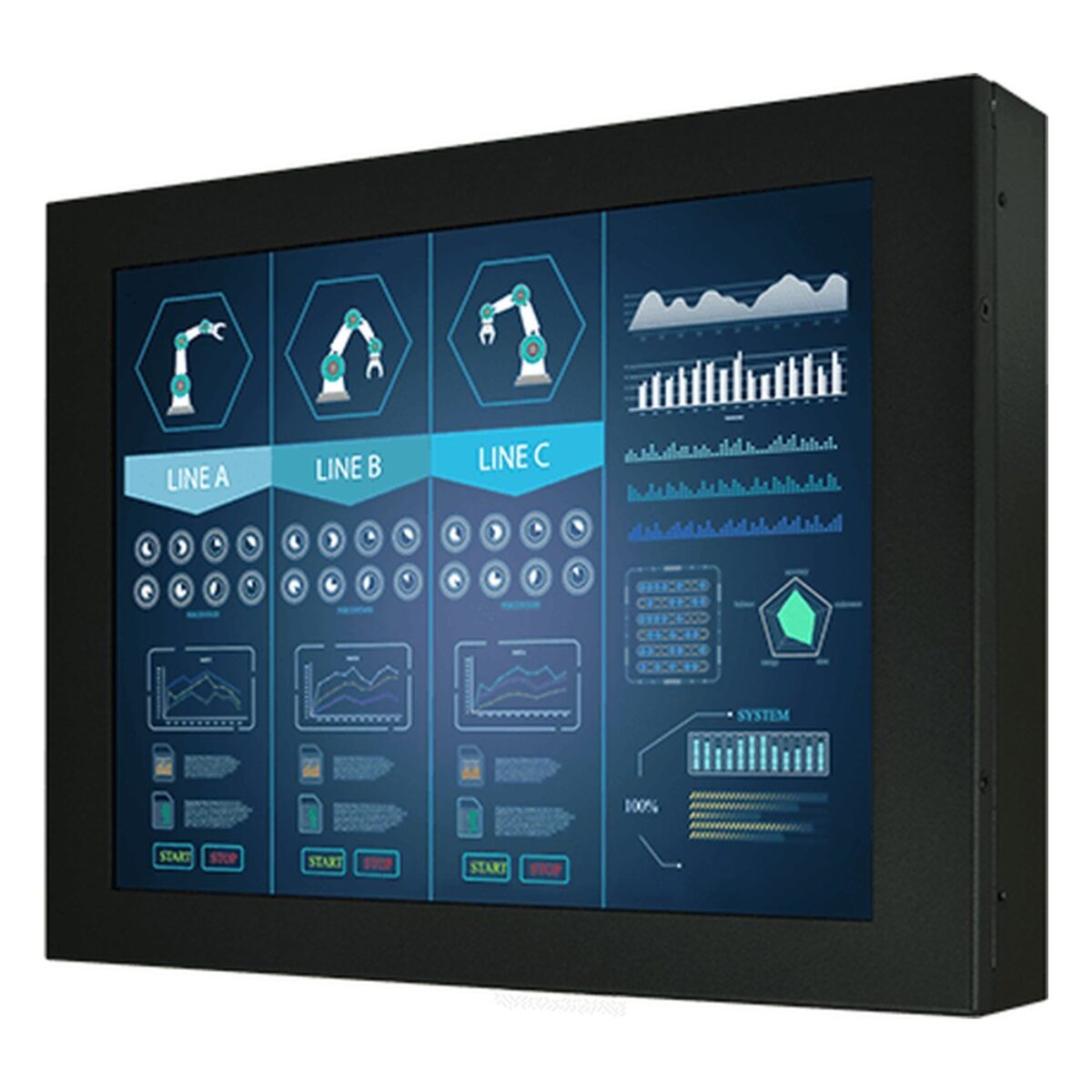

Screens near open doors, glazing or outdoor-facing counters need a brighter backlight than a standard 300 nit panel gives. The R15L100-CHC3HB is Winmate’s 15 inch chassis display for this, with a 1024 x 768 XGA panel at 1000 nits, 5-wire resistive touch as standard and a fanless chassis. Winmate names control rooms, kiosks and manufacturing as its uses.
The 15″ LCD shows 1024 x 768 at 1000 nits with a 2000:1 contrast ratio and 176° viewing angles. Resistive touch is fitted as standard and works with gloves or a stylus; SAW touch can be specified instead, or plain protection glass where the screen only needs to display. At 1000 nits the high brightness panel is sunlight readable, so it stays legible in bright surroundings.

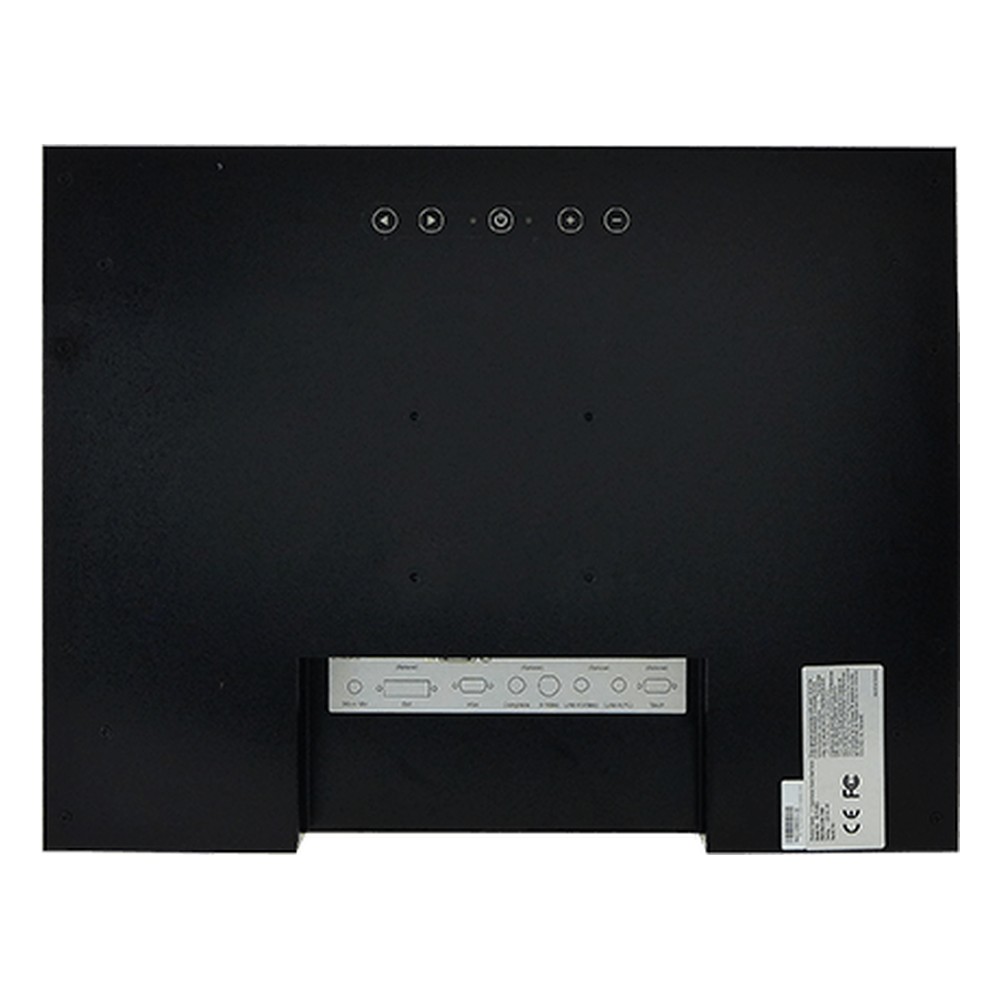

Video comes in over VGA as standard, with HDMI and DVI inputs as options, and a USB port carries touch data back to the host computer. An audio line-in, two speakers and a remote controller are optional. The R15L100-OFC3HB is the open frame version of this 1000 nit panel, and the R15L100-CHA3 is the 500 nit model in the same chassis.
Power is 12 V DC, with 24 V DC as an option, and Winmate supplies a 100 to 240 V AC adapter with a power cord, VGA and HDMI cables and VESA screws. The R15L100-CHC3HB operates from 0 °C to 50 °C and stores from -10 °C to 60 °C at 10 to 90% humidity, non-condensing, cools without a fan, mounts on VESA holes and carries CE and FCC marks. We supply it configured and tested, ready to connect to the computer you specify.
R15L100-CHC3HB Specifications
| Overview | |
|---|---|
| Brand & Model | Winmate R15L100-CHC3HB |
| Features | Fanless Industrial |
| Display | |
| Display | 15"[4:3, 1024 x 768, XGA] |
| Display Treatment | Protective Glass |
| Touch Interface | USB |
| Touch Controller | Optional Surface Acoustic Wave Touch Resistive Touch |
| Brightness | 1,000 Nits |
| Viewing Angle | Wide Viewing Angle |
| 176° Horizontal, 176° Vertical | |
| Aspect Ratio | 4:3 |
| Format | Standard |
| Contrast | 2000:1 |
| Number of Display Inputs | 3x Display Ports |
| Video Inputs | 1x Optional DVI Input 1x Optional HDMI Input 1x VGA Input |
| Power | |
| Power Input | 12V DC AC Power Supply Included |
| Environmental Conditions | |
| Thermal Dissipation | Fanless Passively Cooled Chassis |
| Operating Temperature | 0°C to 50°C [32°F to 122°F] |
| Storage Temperature | -10°C to 60°C [14°F to 140°F] |
| Humidity | 10-90% (Non-condensing) |
| Certification | CE FCC |
| Mechanical Properties | |
| Mounting Options | VESA Mount |
- R15L100-CHC3HB Datasheet Download
Official Winmate USA Distributor
Things Embedded is an official Winmate USA distributor, supplying the R15L100-CHC3HB configured and tested for USA control panel, kiosk and machine projects. Within the Winmate range the R15L100-OFC3HB is the open frame version of this 1000 nit screen.
The R15L100-CHC3HB sits among our 15 inch monitors, our sunlight readable monitors and our chassis displays. Where a 15 inch XGA screen needs to sit in a chassis of its own beside the host computer, this is the model to specify.
