Winmate R15L100-OFA1TR 15″ Transflective Open Frame Monitor with 610 Nit XGA Display
Resistive
Fanless
CE
FCCR15L100-OFA1TR Overview

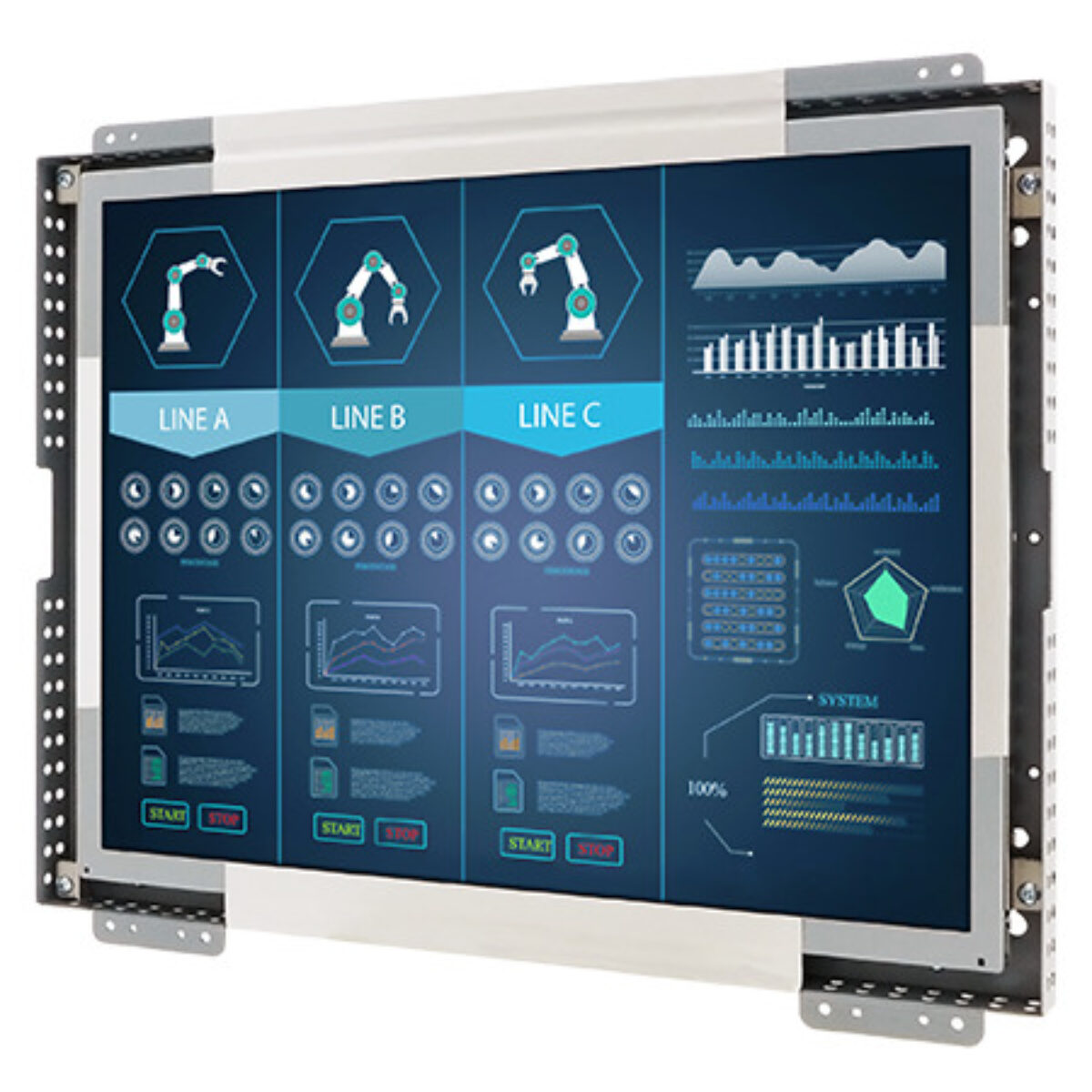

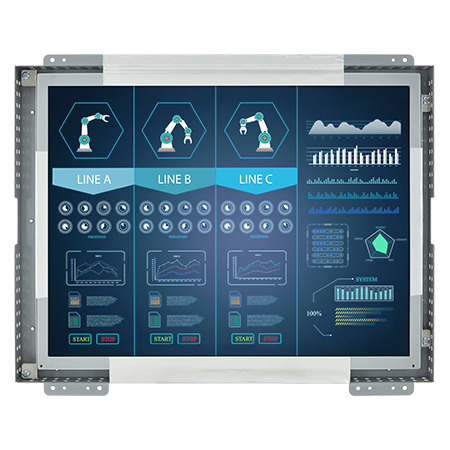

A kiosk or machine screen near a window or under strong lighting can wash out on a standard backlit panel. The R15L100-OFA1TR is Winmate’s 15 inch open frame display with a transflective 1024 x 768 panel at 610 nits, in a fanless metal frame that mounts in a panel or on VESA holes.
The 15 inch transflective LCD runs at 1024 x 768 with 610 nits, a 700:1 contrast ratio, 16.2M colors and 176° viewing angles. Winmate specifies the transflective panel for screens where ambient light falls across the display. Touch is optional: Winmate offers resistive or SAW touch, or plain protection glass where the screen is display-only. Five keys on the rear control the on-screen display.
Video comes in over VGA as standard, with HDMI and DVI inputs available as options, and a USB port carries touch data. A 3.5 mm audio line-in and two speakers can be added where the machine or kiosk needs sound. The R15L100-OFA1 is the 350 nit version of this frame for indoor sites, and the R15L100-OFC3HB uses a 1000 nit high brightness panel.
Power is 12 V DC, and Winmate supplies a 100 to 240 V AC adapter with a power cord, VGA and HDMI cables and VESA screws. The monitor operates from 0 °C to 50 °C at 10 to 90% humidity, non-condensing, and cools without a fan. It measures 358 x 293 x 53 mm, mounts on 75 x 75 mm VESA holes or in a panel, and carries CE and FCC marks. Winmate names industrial visualization, control rooms and equipment monitoring as applications.
R15L100-OFA1TR Specifications
| Overview | |
|---|---|
| Brand & Model | Winmate R15L100-OFA1TR |
| Features | Fanless Industrial |
| Display | |
| Display | 15"[4:3, 1024 x 768, XGA] |
| Display Treatment | Protective Glass Transflective |
| Touch Interface | USB |
| Touch Controller | Optional Resistive Touch Optional Surface Acoustic Wave Touch |
| Brightness | 610 Nits |
| Viewing Angle | Wide Viewing Angle |
| 176° Horizontal, 176° Vertical | |
| Aspect Ratio | 4:3 |
| Format | Standard |
| Contrast | 700:1 |
| Number of Display Inputs | 3x Display Ports |
| Video Inputs | 1x DVI Input 1x HDMI Input 1x VGA Input |
| Power | |
| Power Input | 12V DC |
| Environmental Conditions | |
| Thermal Dissipation | Fanless Passively Cooled Chassis |
| Operating Temperature | 0°C to 50°C [32°F to 122°F] |
| Storage Temperature | -10°C to 60°C [14°F to 140°F] |
| Humidity | 10-90% (Non-condensing) |
| Certification | CE FCC |
| Mechanical Properties | |
| Dimensions | 358mm x 293mm x 53mm (14.09" x 11.54" x 2.09") |
- R15L100-OFA1TR Datasheet Download
Official Winmate USA Distributor
Things Embedded is an official Winmate USA distributor, supplying the R15L100-OFA1TR configured for USA kiosk and machine builders. Within the Winmate range the R15L100-OFA1 is the 350 nit version for indoor sites, and the R15L100-OFC3HB reaches 1000 nits.
With its transflective panel the R15L100-OFA1TR sits among our open frame displays, our resistive touch monitors and our 15 inch monitors. Where ambient light falls across a kiosk or machine screen, this is the model to specify.
