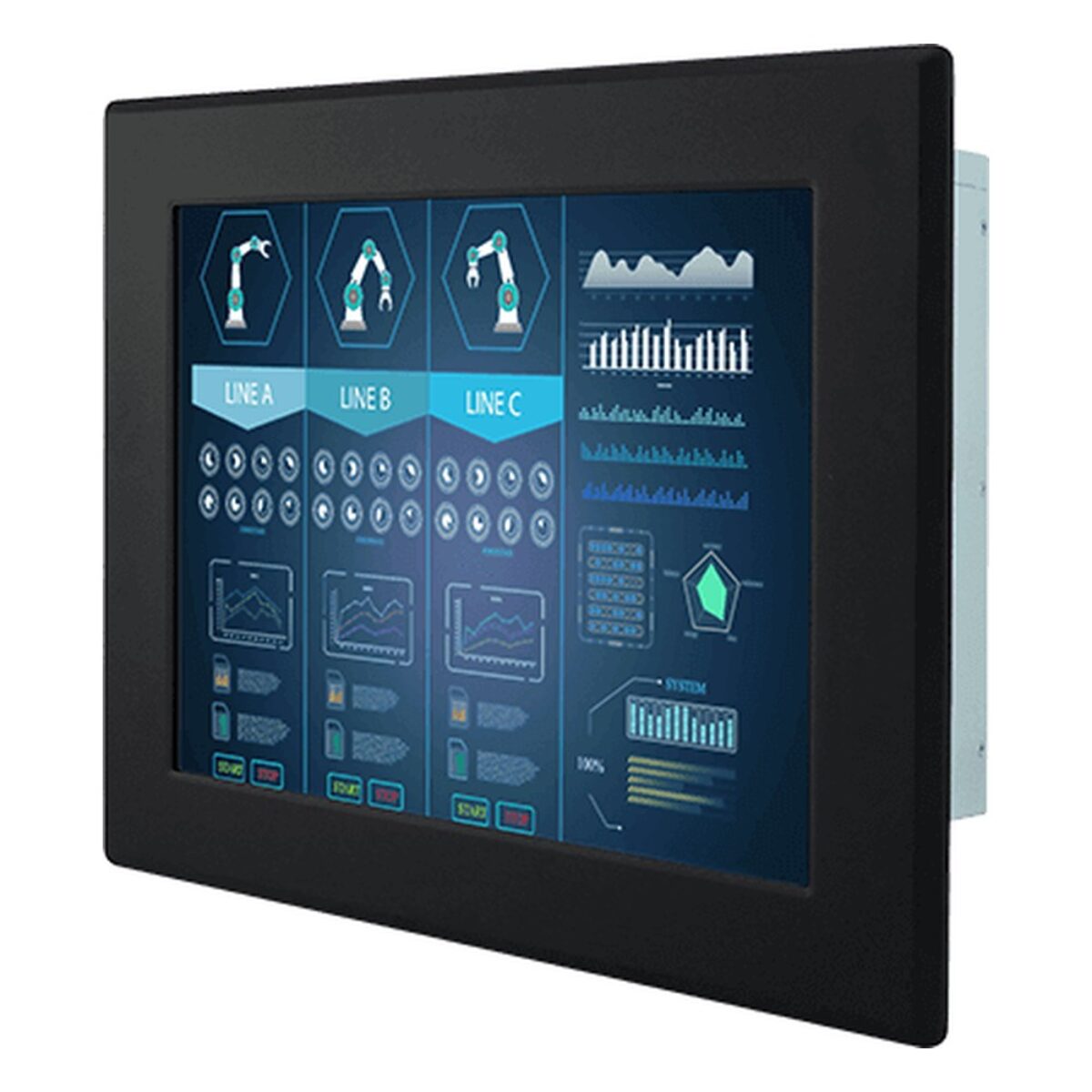

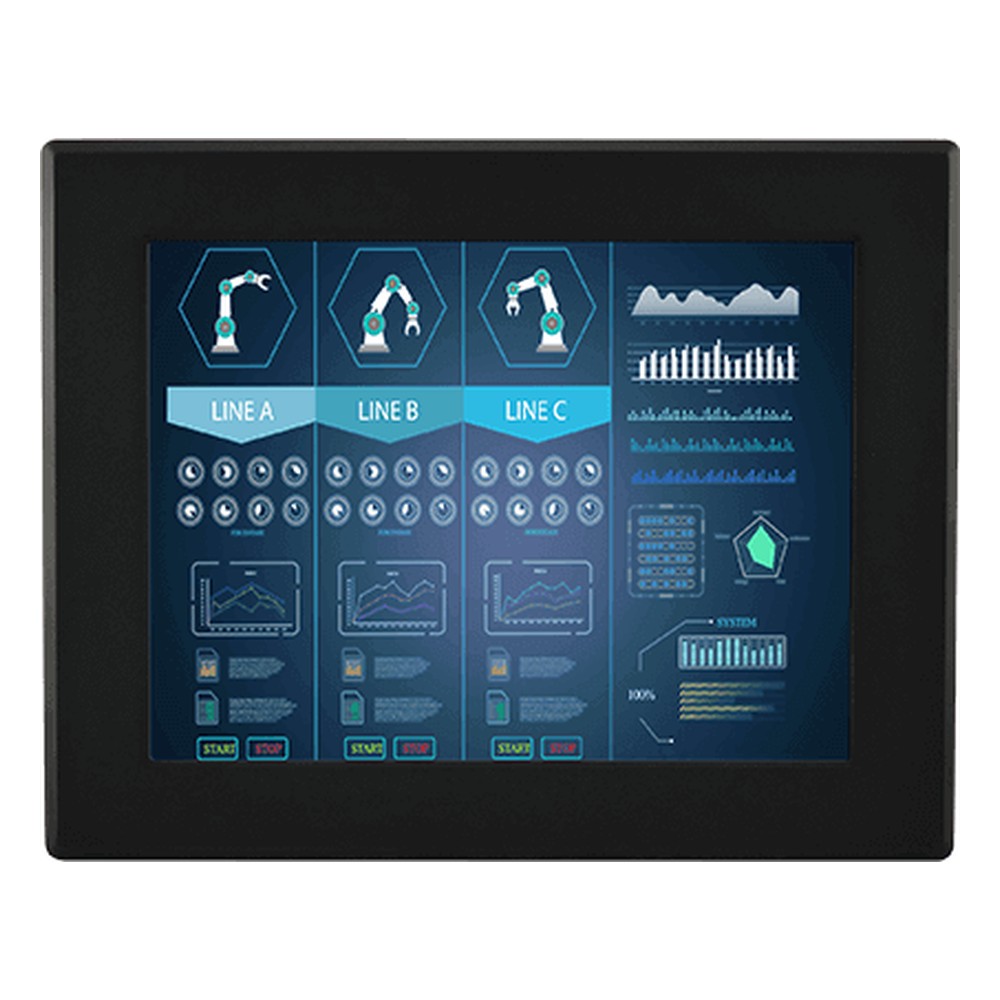

Winmate R15L100-PMC3OD 15″ Sunlight Readable Panel Mount Monitor with 1000 Nit XGA Display and Wide Temperature

Control panels and kiosk fronts in bright or unheated areas need a screen that sits in a cabinet door or console and stays readable when the light is strong. The R15L100-PMC3OD is Winmate’s 15 inch sunlight readable panel mount monitor for those installs, with a 15″ XGA panel at 1000 nits, resistive touch as standard and a -10 °C to 60 °C operating range. It pairs with a separate industrial PC over VGA, with HDMI or DVI as options.

The 15″ XGA panel runs at 1000 nits with 2000:1 contrast, 16.2 million colors and 176 degree viewing angles in both directions, so the picture typically stays readable in direct light. Resistive touch is standard, connected over one USB port, and protection glass without touch is available as an option.

Video comes in on VGA as standard, with HDMI and DVI inputs as options, so the R15L100-PMC3OD pairs with most industrial PCs and box PCs. An audio line in and two speakers are optional, and five keys (power, plus, minus, Esc and Enter) run the on-screen menu. VGA and HDMI cables and a manual come in the box. Within the Winmate range the R15L100-CHC3OD is the VESA chassis version of this sunlight readable display, and the R15L100-PMC3HB is the 1000 nit panel mount model for 0 to 50 °C sites, with SAW touch as an option.

Power is 12 V DC in, with a 24 V DC input as an option, and an AC adapter and power cord are supplied. The fanless metal housing with an aluminum bezel runs from -10 °C to 60 °C and stores from -20 °C to 70 °C, at 10 to 90% humidity, non-condensing. It takes VESA or panel mounting, and it carries CE and FCC marks. We supply the R15L100-PMC3OD configured and tested before dispatch.
