Winmate R15L100-PTC3 15″ PCAP Touch Monitor with XGA LCD and 350 Nits

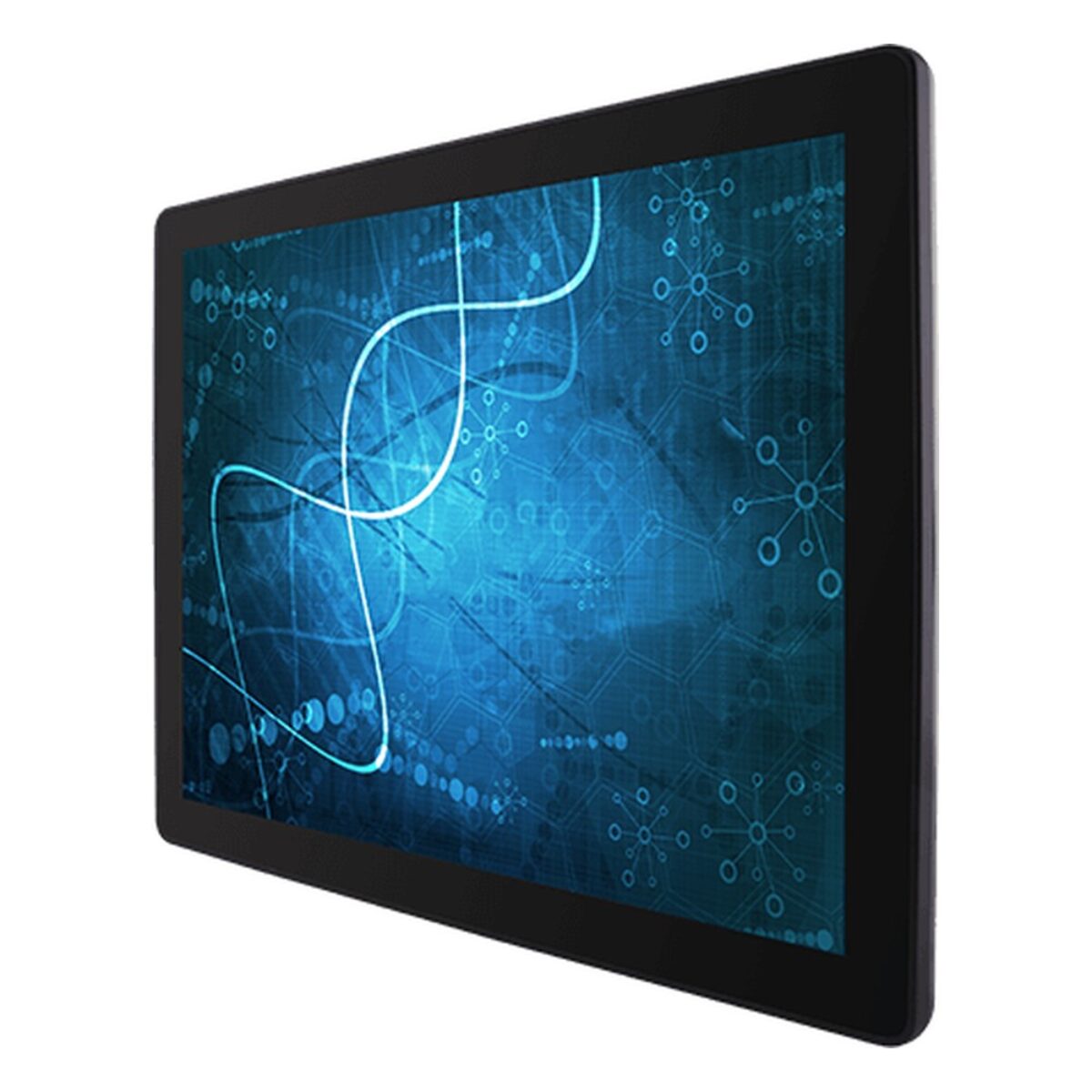

Not every touchscreen needs a computer built in. Where the PC already sits in a cabinet, under a counter or in a control room, a standalone display keeps screen and computer on separate replacement cycles. The R15L100-PTC3 is Winmate’s 15 inch chassis touch monitor for that set-up: a 15″ 1024 x 768 XGA projected capacitive display in a plastic housing, sealed to IP65 at the front.

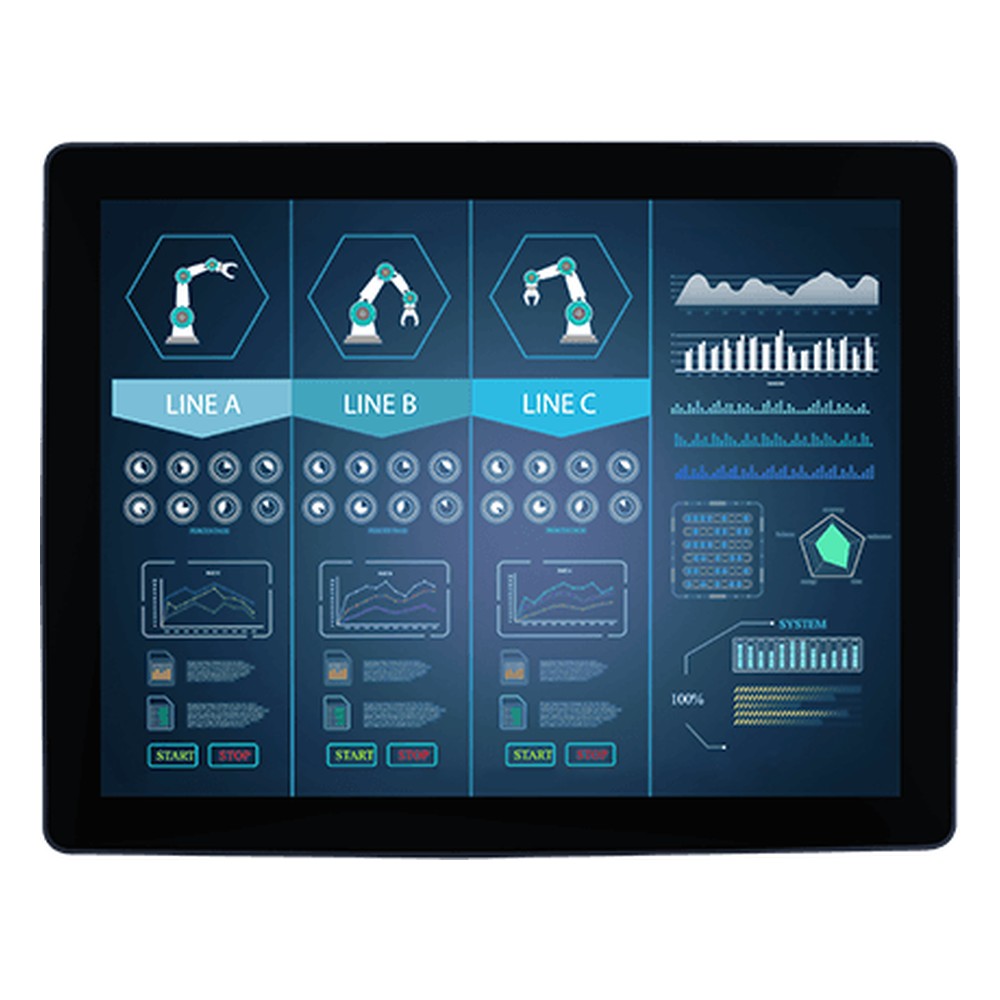

The 1024 x 768 panel runs at 350 nits with 800:1 contrast and 160 degree horizontal and 150 degree vertical viewing angles. The 4:3 format suits HMI and SCADA screens laid out for older square-format displays. Projected capacitive multi-touch reports to the host computer over USB, so swipe and pinch gestures work through the glass, and an anti-glare film is optional.

Video comes in over VGA as standard, with HDMI as an option, and a single USB port carries touch back to the computer. An audio line-in is standard and two speakers are optional. Seven keys handle power and the on-screen menu for brightness and input settings. Within the Winmate range, the R15IE3S-PTC3 is the panel PC version of this housing with an Intel Celeron N6211, and the R15L100-EHC3 is the slim panel mount 15 inch monitor with the same XGA resolution.

Power is 12 V DC, with a 24 V DC input as an option, and the monitor comes with VGA and HDMI cables, a 100 to 240 V AC to DC adapter and a power cord. The 15 inch monitor runs fanless from 0 °C to 50 °C at 10 to 90% humidity, non-condensing, stores from -10 °C to 60 °C and carries CE and FCC marks. It fits a standard VESA mount. We supply the R15L100-PTC3 configured and tested before dispatch, and we can help pair it with the right industrial PC for the job.
