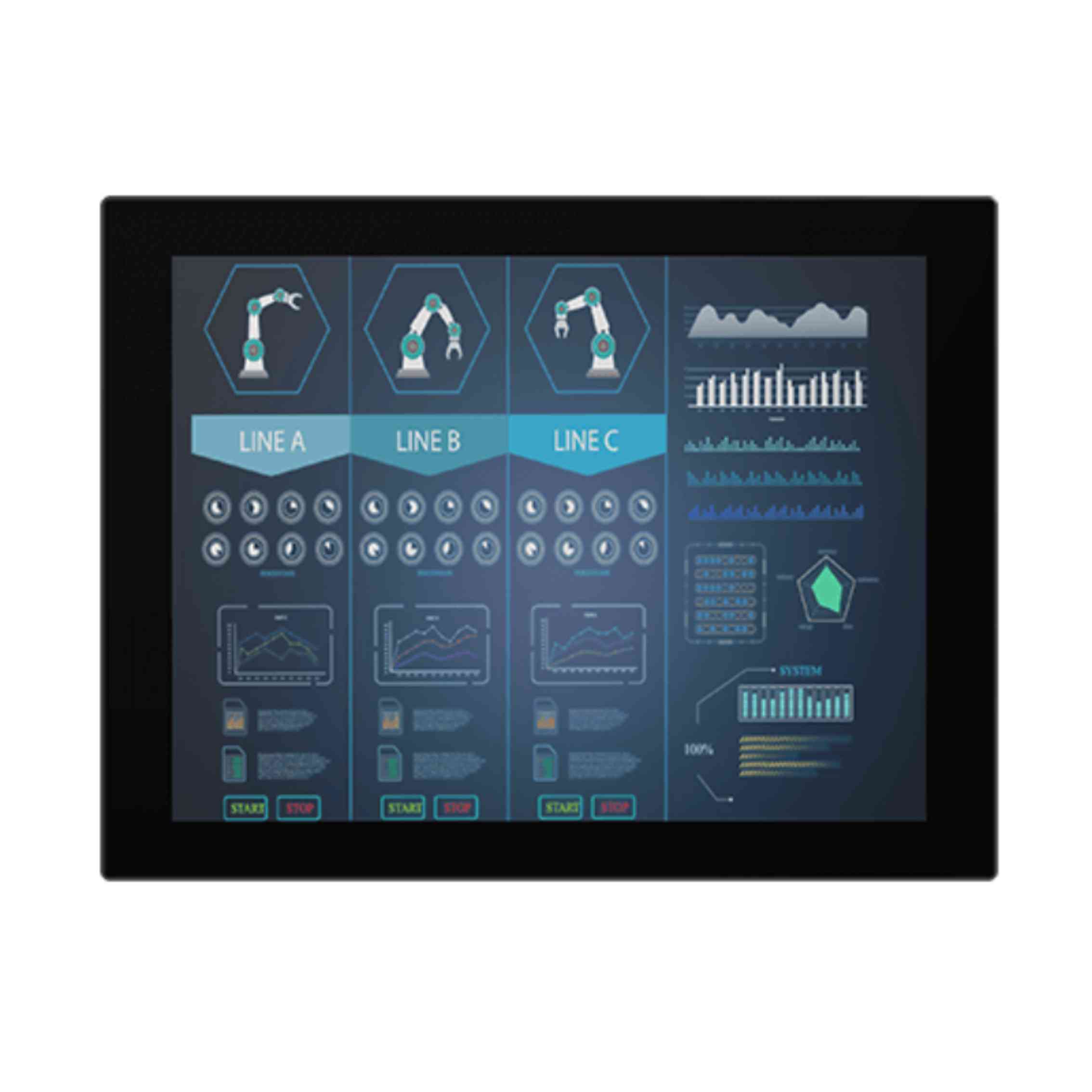

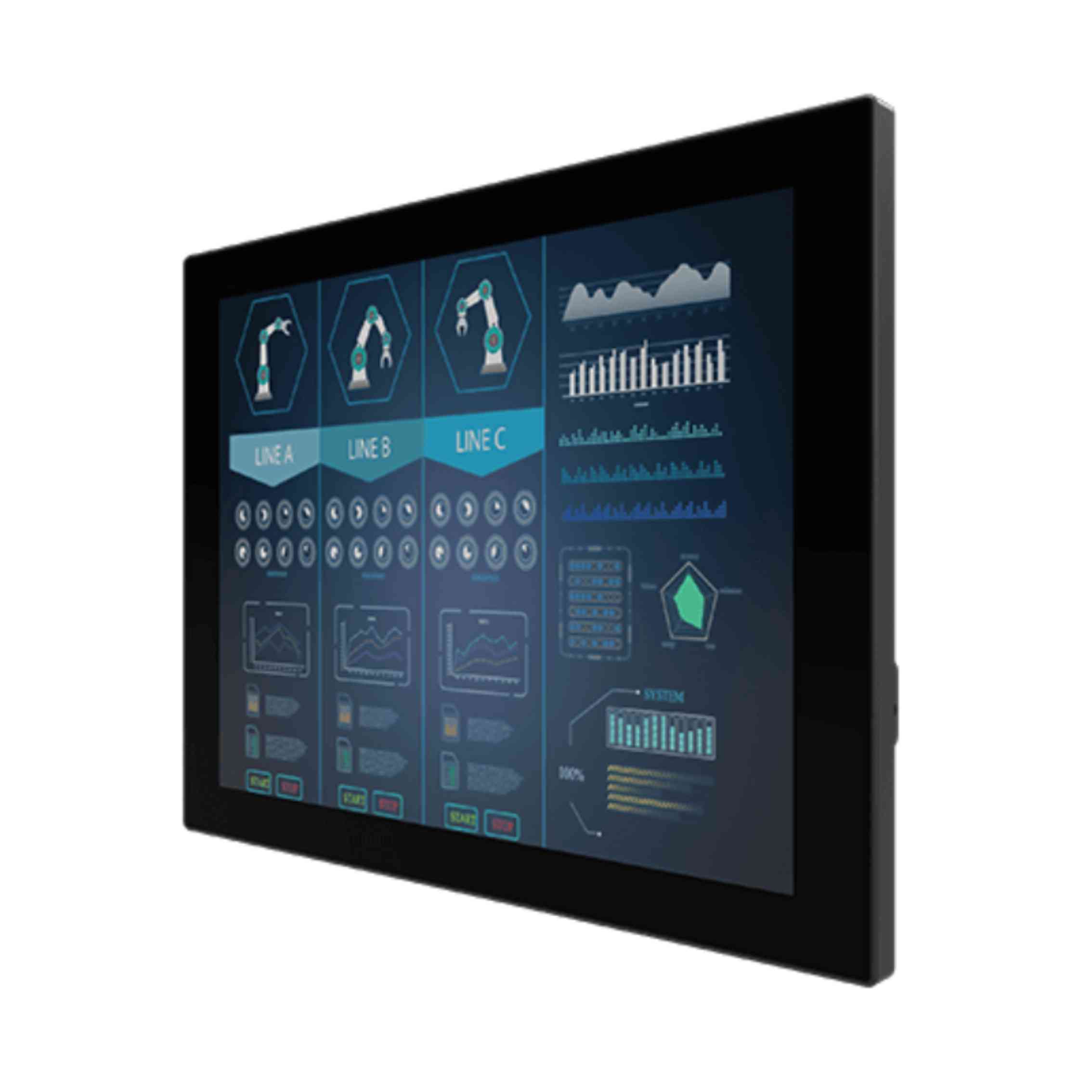

Winmate R15L600-PCC3OD 15″ Sunlight Readable PCAP Touch Chassis Monitor with 1000 Nit XGA LCD

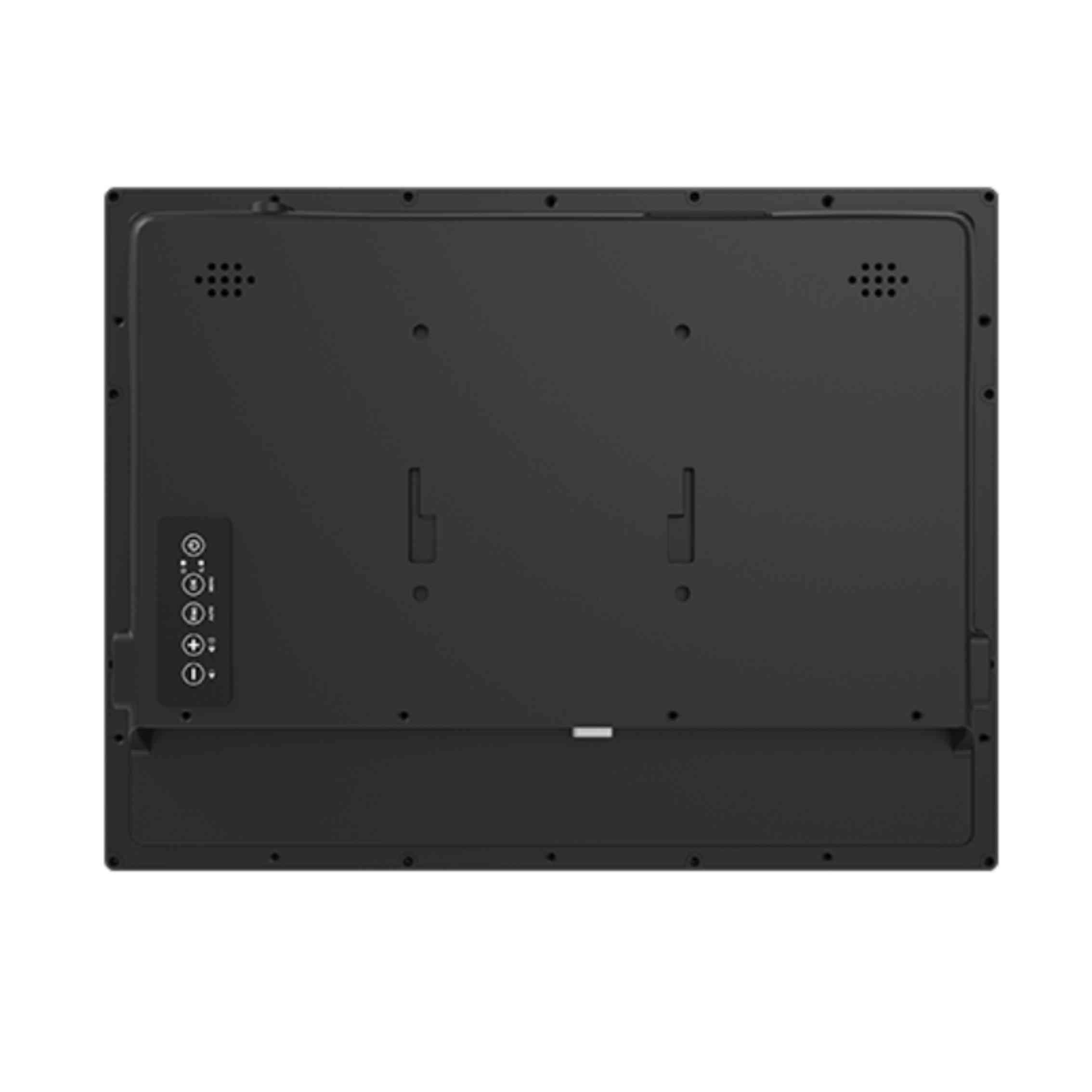

Screens near windows or in directed sunlight lose contrast fast, and a standard backlight cannot keep up. The R15L600-PCC3OD is Winmate’s 15 inch sunlight readable chassis monitor for those sites: a 1024 x 768 XGA display at 1000 nits with projected capacitive touch, in a fanless aluminum enclosure that mounts on a VESA arm or bracket.

The panel pairs its 1000 nit backlight with a 2000:1 contrast ratio, 16.2 million colors and 176° viewing angles in both planes. PCAP multi-touch responds to a light tap and connects over USB, which suits operators checking status and changing settings quickly. For screens facing directed sunlight, an optional UV film adds protection from solar radiation.

Video comes in over VGA as standard, with HDMI and DVI inputs as options, so the monitor connects to current and older PCs and controllers. A 3.5 mm audio line-in and two speakers are options. The R15L600-PPC3OD is the panel mount twin with a front IP65 rating, and the R15L600-GSC3(HB) is a 15 inch PCAP monitor with full IP65 sealing and M12 connectors.

Power is 12 V DC, with 24 V DC as an option. The R15L600-PCC3OD is fanless, operates from -10 to 60 °C, or from -25 to 60 °C with the optional heater, at 10 to 90% non-condensing humidity, and stores from -20 to 70 °C. It measures 363.4 x 277.86 x 45.2 mm, weighs 3.3 kg, mounts on VESA and carries CE and FCC marks. Winmate names industrial visualization, control rooms and equipment monitoring as target applications.
