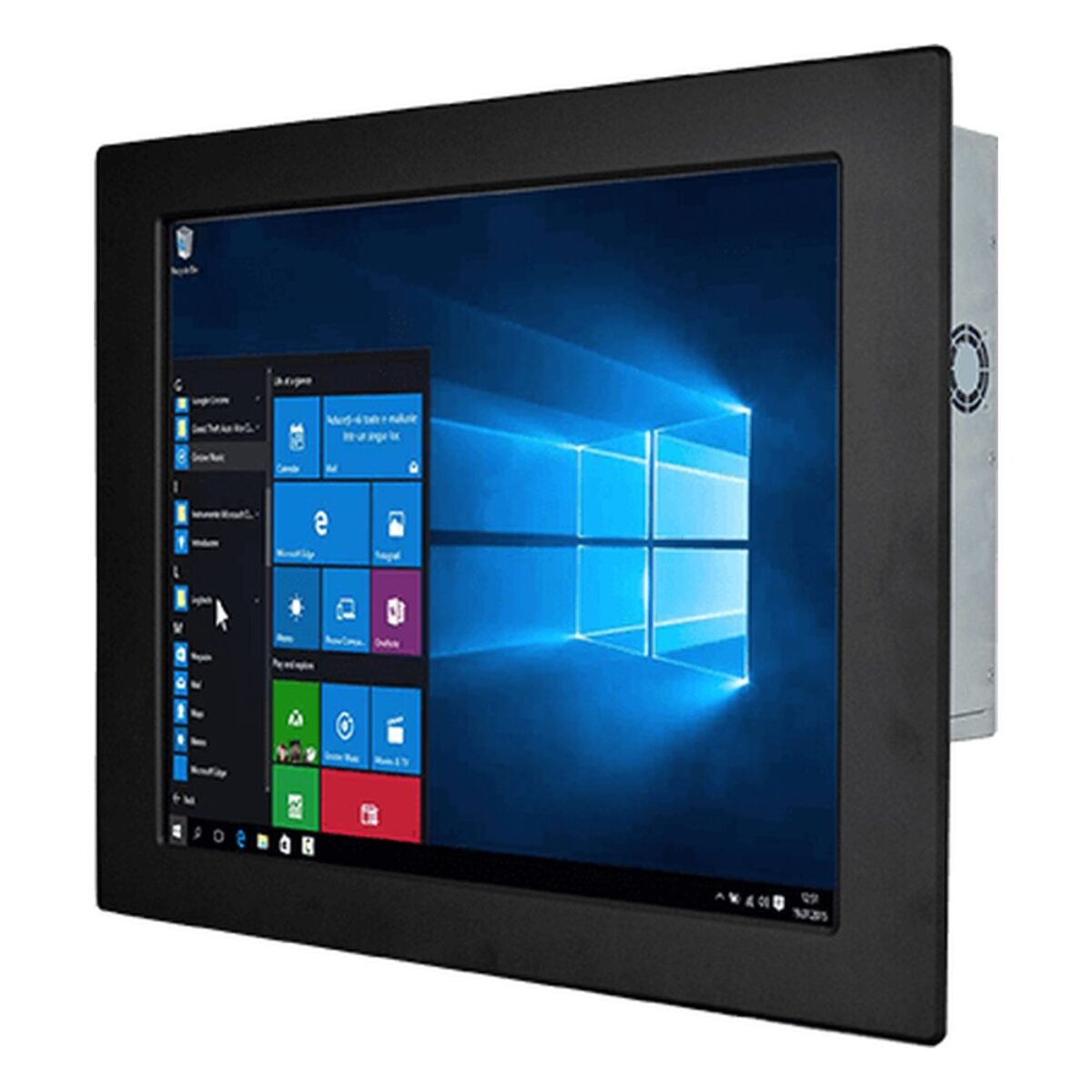

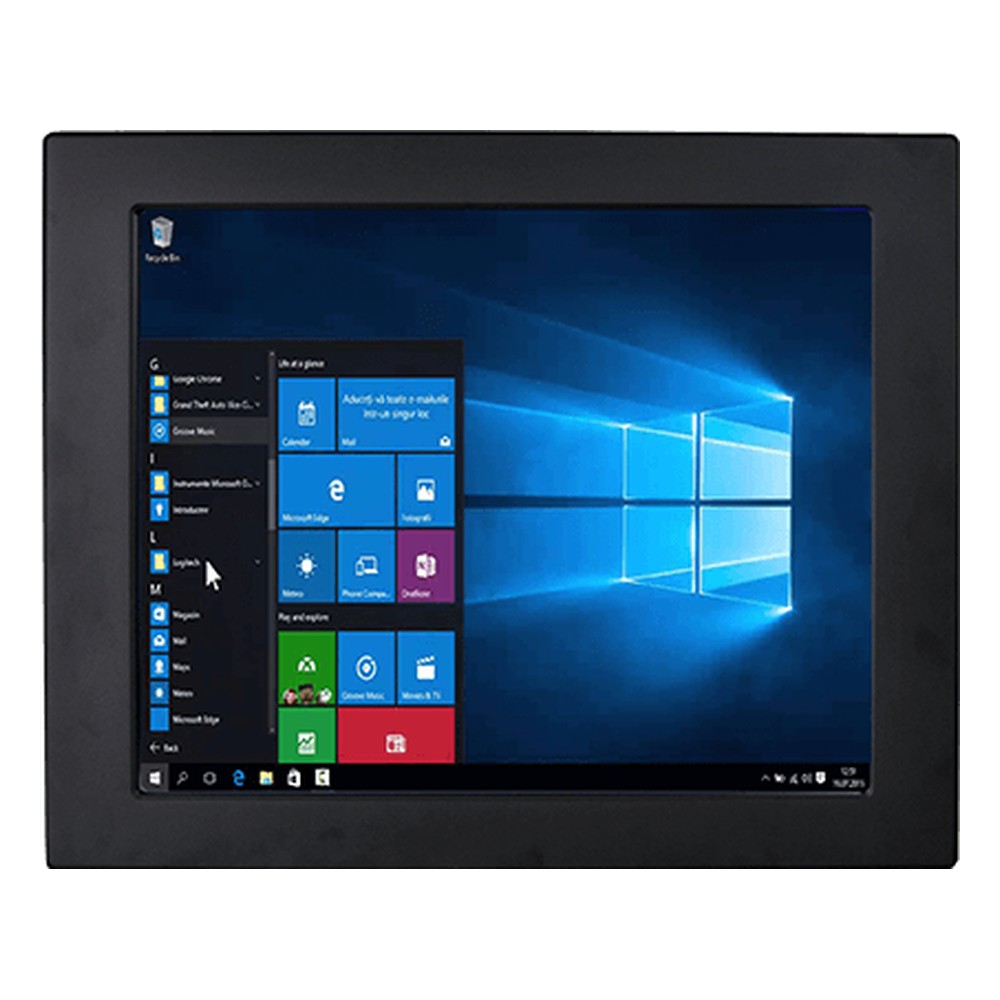

Winmate R17IF7T-PMM1 17″ Panel Mount PC with Intel Coffee Lake Core i3 to i7 and Resistive Touch

In a control cabinet door or an operator console, a panel mount PC keeps the screen flush with the panel and the computer out of the way. The R17IF7T-PMM1 is Winmate’s 17 inch panel mount PC: a 17″ SXGA display and a 9th Gen Intel Core i3 to i7 computer in a metal housing suited to clean, dry indoor panels and consoles.

It takes 9th Gen Intel Core TE processors (Coffee Lake Refresh) on the Intel Q370 chipset: the Core i7-9700TE as standard at up to 3.8 GHz, with the Core i5-9500TE or Core i3-9100TE as options, which gives headroom for SCADA software. Two DDR4 SO-DIMM sockets take up to 64 GB, a 128 GB SSD sits on an M.2 M-key slot for NVMe or SATA, and two optional 2.5″ SATA III bays support RAID 0 and 1. The 17″ panel is 1280 x 1024 at 350 nits with 1000:1 contrast, with resistive touch or protection glass as options. Windows or Linux Ubuntu 20.04 can be supplied.

Two Intel Gigabit Ethernet ports, four USB 3.2 Gen 1 Type-A ports and one RS-232/422/485 plus one RS-232 port cover PLCs, scanners and serial instruments. DisplayPort 1.2 drives a second screen, with HDMI 1.4 optional, plus mic-in, line-out and two speakers. A PCIe 3.0 x16 slot takes an add-in card, and an M.2 E-key slot takes optional Wi-Fi and Bluetooth. Within the Winmate range the R17IAD7T-PMM1 takes 12th or 14th Gen Intel Core processors up to the Core i9 in the same panel mount design, and the R17IT3S-PMM1 is the panel mount build with an Intel Core i5-1135G7.

Power is 12 V DC on a lockable four-pin DIN connector, and it comes with an AC adapter and power cord. The fan-cooled metal housing operates from 0 °C to 50 °C at 10 to 90% humidity, non-condensing, which suits indoor cabinets and consoles. The R17IF7T-PMM1 panel mounts with the supplied clips, with VESA mounting as an option. It carries CE and FCC marks. We supply it configured, with the OS installed, and tested before dispatch.
