Winmate R17IT7T-POM1 17″ Open Frame PCAP Panel PC with Intel Core i5-1135G7 and Front IP65

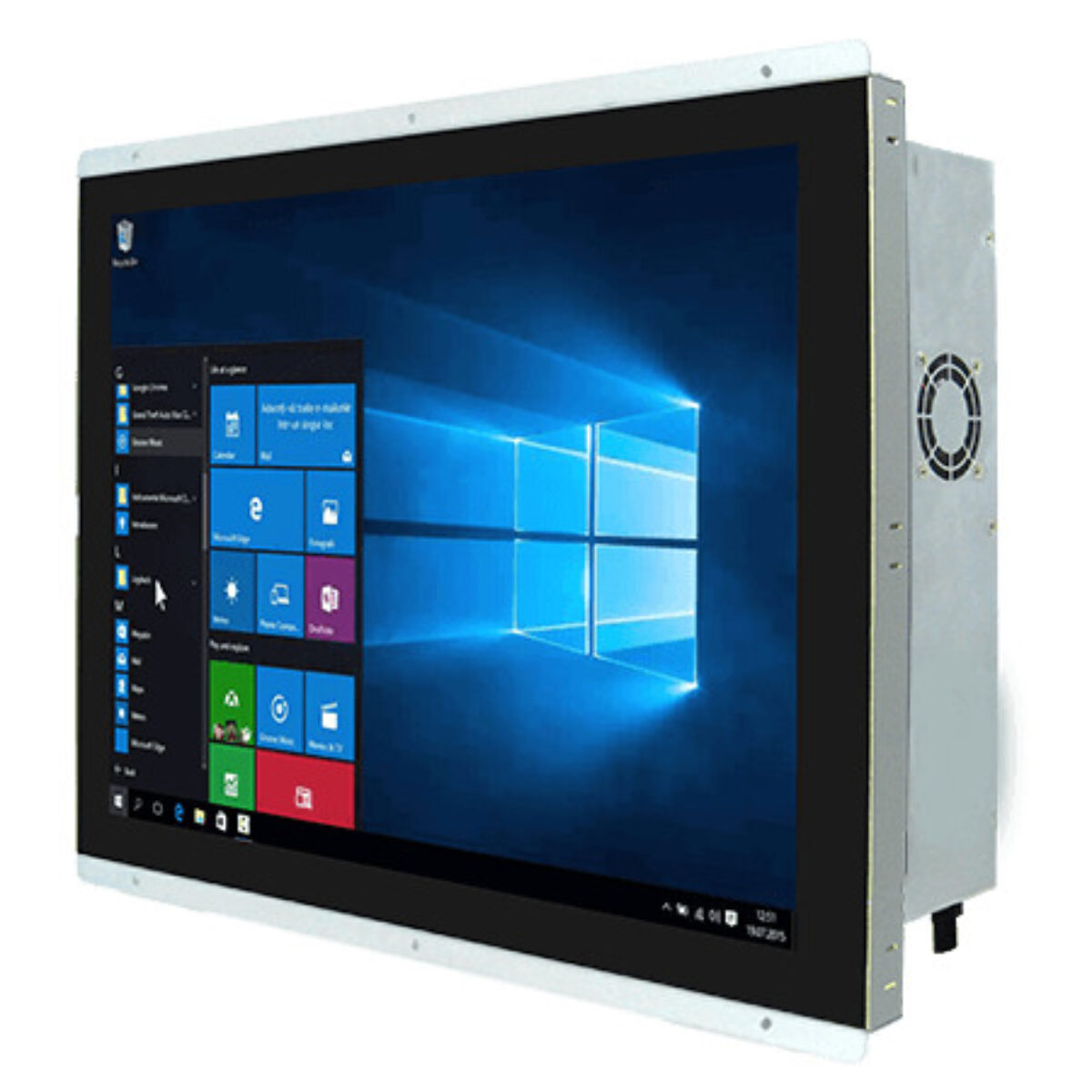

An OEM console or kiosk usually needs the computer and touch screen as one module that drops in behind the builder’s own front panel, with the touch face still able to take cleaning. The R17IT7T-POM1 is Winmate’s 17 inch open frame panel PC: a metal-housed computer with PCAP multi-touch and a front IP65 water and dust proof face, mounted by open frame brackets or VESA.

It runs an Intel Core i5-1135G7 with 8 MB cache at up to 4.2 GHz, and the vPro Intel Core i5-1145G7 is an option for remotely managed fleets. One DDR4-3200 SO-DIMM holds 4 GB as standard with options to 32 GB, or a two-socket build reaches 64 GB. Storage is one M.2 slot for a 2242 SATA or 2280 NVMe SSD from 128 GB, with NVMe options to 4 TB and an optional SATA III drive. The 1280 x 1024 screen is rated at 350 nits with a 1000:1 contrast ratio and 170° horizontal and 160° vertical viewing angles, giving more room for line overviews and work instructions than a 15 inch panel. Windows 11 IoT Enterprise, Windows 10 IoT Enterprise or Ubuntu 22.04 can be supplied.

The rear panel carries four USB 3.2 Gen 1 Type-A ports, one RS-232/422/485 and one RS-232 port, two Gigabit Ethernet ports on Intel controllers, a DisplayPort 1.4 output with HDMI 2.0 as an option, and mic-in and line-out. An M.2 E-key slot takes an optional Wi-Fi module, and TPM 2.0 is on board. The R17IT7T-PPM1 is the finished PP series version with an aluminum bezel, and the R15IT7T-POC3 is the 15 inch open frame model.

Power is 12 V DC on a DIN 4-pin connector, with a 100 to 240 V AC adapter rated at 120 W supplied. The R17IT7T-POM1 is fan cooled, operates from 0 to 50 °C at 10 to 90% humidity non-condensing, stores from -10 to 60 °C and carries CE and FCC marks. It measures 407.4 x 338.4 x 66 mm and mounts by its open frame brackets or 75 x 75 and 100 x 100 mm VESA.
