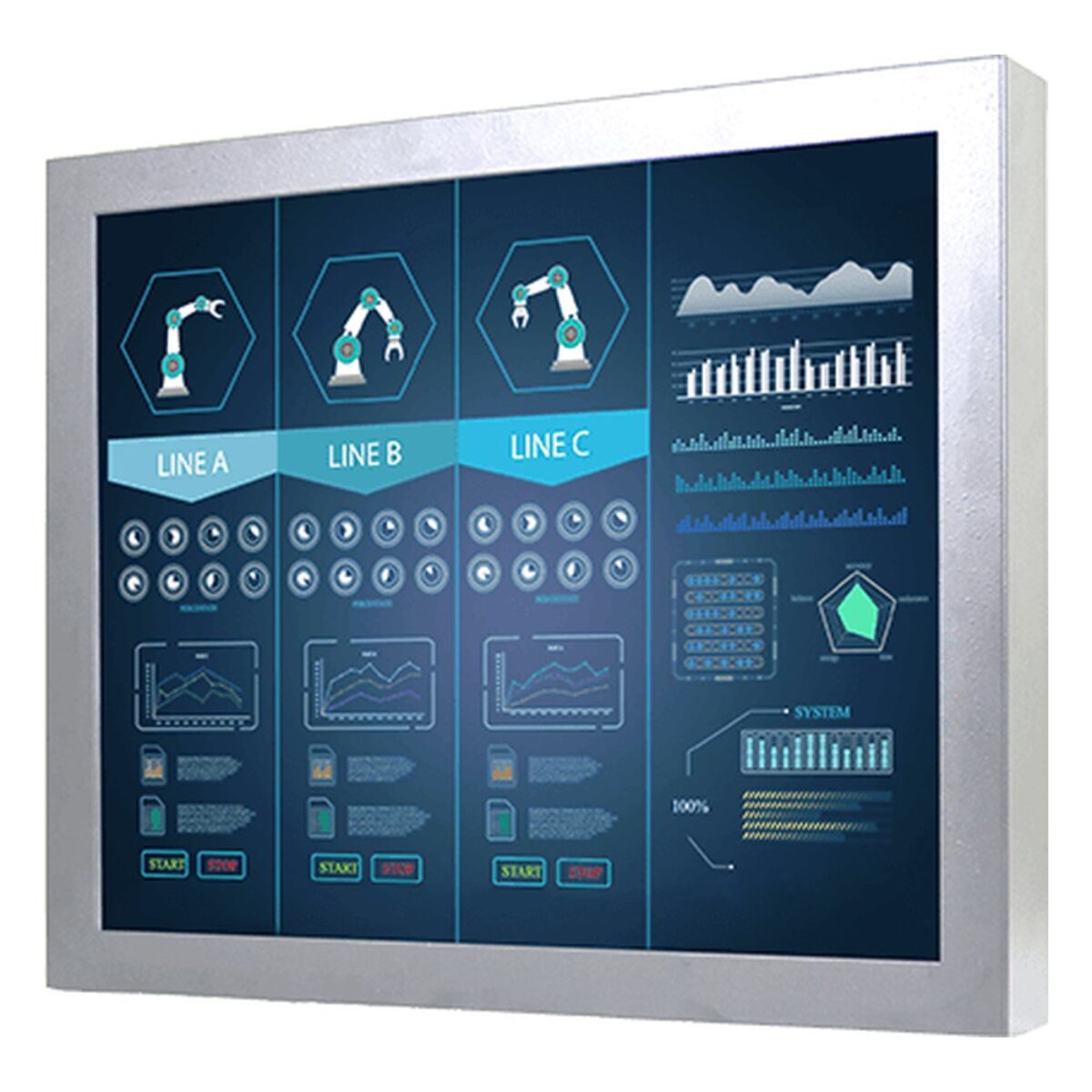

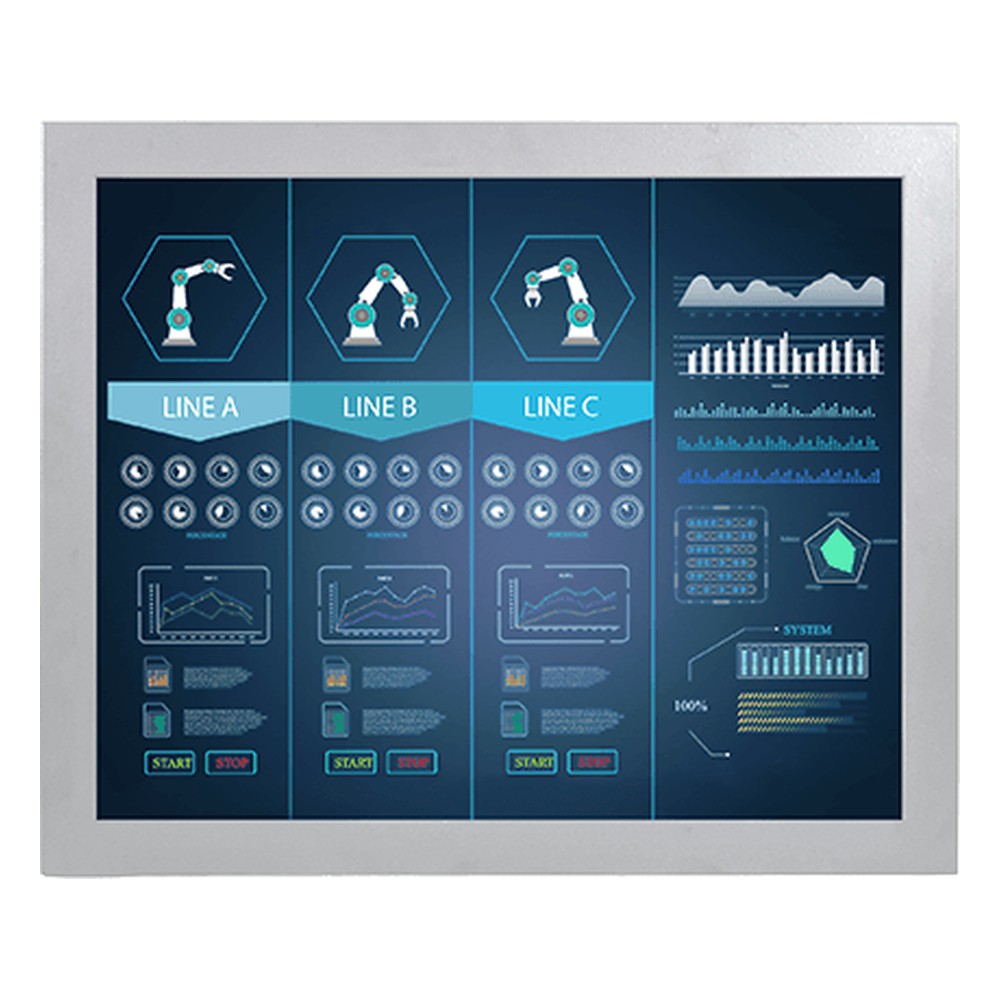

Winmate R17L500-CHA1WT 17″ Chassis Monitor with Wide Temperature and Resistive Touch
Resistive
Fanless
Extended Temp
CE
FCCR17L500-CHA1WT Overview
Kiosks and control cabinets in unheated buildings or warm plant rooms can sit outside the range of an ordinary display. The R17L500-CHA1WT is Winmate’s 17 inch wide temperature chassis monitor, rated from -20 °C to 60 °C, in a fanless metal housing that mounts on VESA.
The 17″ 5:4 panel runs at 1280 x 1024 (SXGA) with 350 nits and a 1000:1 contrast ratio, and Winmate quotes viewing angles of 170° horizontally and 160° vertically. Touch is optional: specify resistive touch for gloved or stylus input, or protection glass without touch where the screen only needs to display.
Video comes in over VGA as standard, with HDMI or DVI inputs available as options, and touch data runs over a single USB port. An audio line-in and two speakers are optional, and five keys handle the on-screen menu, with a remote control as an optional accessory. Within the Winmate range, the R17L500-CHA1HB is the 0 °C to 50 °C version with a 1000 nit panel, and the R17L500-CHM1 has resistive touch as standard and optional SAW touch.
The R17L500-CHA1WT runs from 12 V DC, with a 24 V DC input as an option, and an AC adapter comes with it, along with a power cord, VGA and HDMI cables and VESA screws. It operates from -20 °C to 60 °C at 30 to 90% humidity, non-condensing, and stores from -25 °C to 65 °C. The 17 inch monitor cools without a fan, mounts on VESA and carries CE and FCC marks. It pairs with the industrial PC of your choice, and we supply it configured and tested before dispatch.
R17L500-CHA1WT Specifications
| Overview | |
|---|---|
| Brand & Model | Winmate R17L500-CHA1WT |
| Features | Fanless Industrial |
| Display | |
| Display | 17"[5:4, 1280 x 1024, SXGA] |
| Display Treatment | Protective Glass |
| Touch Interface | USB |
| Touch Controller | Optional Resistive Touch |
| Brightness | 350 Nits |
| Viewing Angle | Wide Viewing Angle |
| 170° Horizontal, 160° Vertical | |
| Aspect Ratio | 5:4 |
| Format | Standard |
| Contrast | 1000:1 |
| Number of Display Inputs | 3x Display Ports |
| Video Inputs | 1x Optional DVI Input 1x Optional HDMI Input 1x VGA Input |
| Power | |
| Power Input | 12V DC AC Power Supply Included |
| Environmental Conditions | |
| Thermal Dissipation | Fanless Passively Cooled Chassis |
| Operating Temperature | -20°C to 60°C [-4°F to 140°F] |
| Storage Temperature | -25°C to 65°C [-13°F to 149°F] |
| Humidity | 30% - 90% (Non-condensing) |
| Certification | CE FCC |
| Mechanical Properties | |
| Dimensions | 381mm x 272mm x 55mm (15.00" x 10.71" x 2.17") |
| Mounting Options | VESA Mount |
- R17L500-CHA1WT Datasheet Download
Official Winmate USA Distributor
Things Embedded is an official Winmate USA distributor, supplying the R17L500-CHA1WT configured and tested for USA control room, kiosk and industrial projects. Within the Winmate range the R15L100-IPA3WT is a 15 inch front IP65 monitor with the same -20 to 60 °C rating.
The R17L500-CHA1WT sits among our 17 inch industrial monitors, our chassis monitors and our resistive touch monitors. Where a 17 inch screen has to run from -20 to 60 °C, this is a sensible model to shortlist.
