Winmate R19IAD3S-65M1 19″ Full IP65 Stainless Panel PC with Intel Core i5-1235U and M12 Connectors

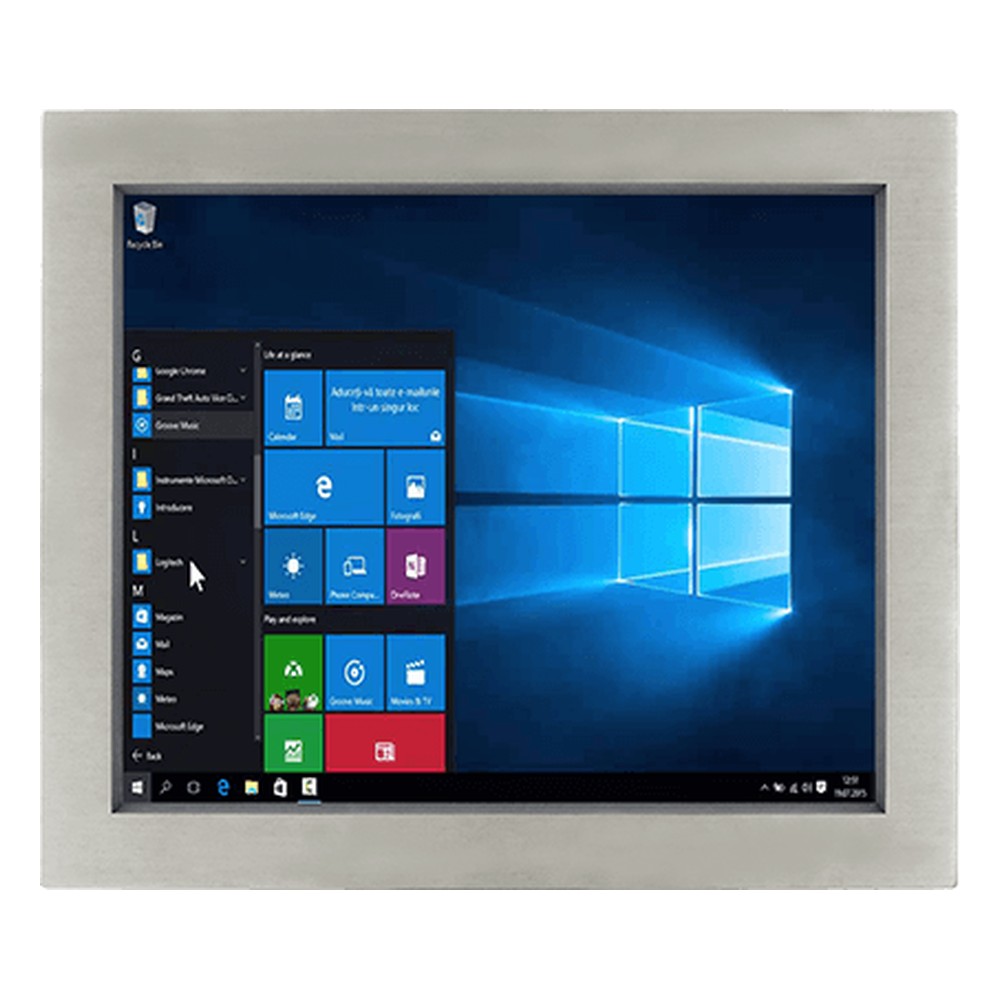

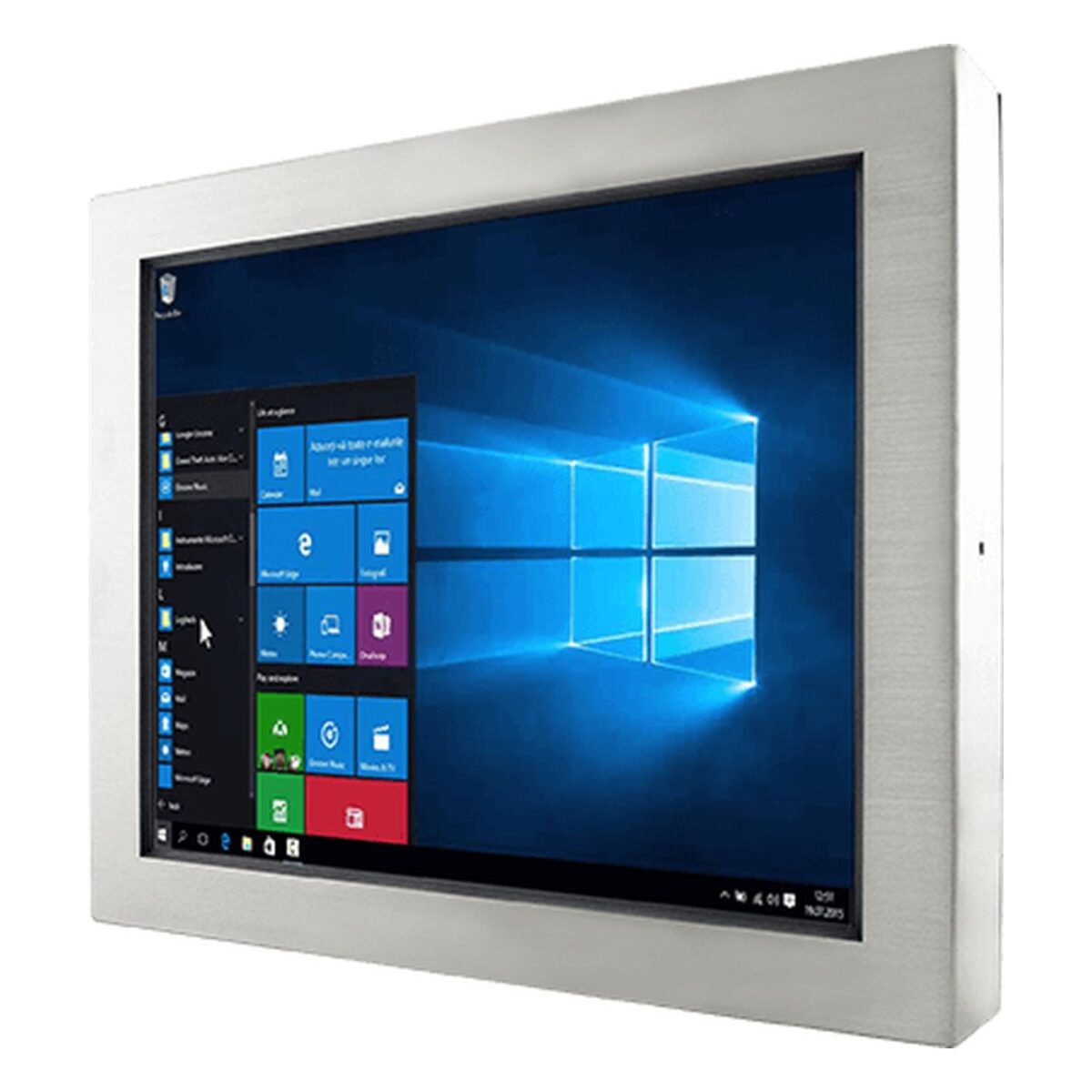

Food processing and chemical plants clean their HMIs often, and a housing sealed only at the front can let water reach the rear. The R19IAD3S-65M1 is Winmate’s 19 inch stainless steel panel PC sealed to full IP65, in a fanless housing with anti-corrosion treatment, built around a 12th Gen Intel Core i5-1235U.

The Core i5-1235U is a 10-core, 12-thread Alder Lake processor at up to 4.4 GHz with a 15 W TDP and Intel Iris Xe graphics, typically enough for HMI and SCADA clients alongside line data software. One DDR5 SO-DIMM holds 8 GB as standard with options to 32 GB, storage is a 128 GB SSD with options to 4 TB, plus an optional SATA III bay for a 2.5″ drive up to 2 TB. TPM 2.0 is on board, and Windows 11 IoT Enterprise, Windows 11 Pro or Linux Ubuntu 22.04 can be installed. The 19″ screen is a 1280 x 1024 panel at 250 nits with 1000:1 contrast, offered with 5-wire resistive touch or anti-reflection protection glass without touch, and optical bonding with anti-moisture treatment as an option.

Every connection is sealed: 12 V DC power, two USB 2.0 ports on one M12 connector and one RS-232 port on M12, plus a waterproof Gigabit LAN RJ45 connector. An AC adapter with a waterproof connector, external USB, COM and LAN cables and waterproof caps are supplied. Wi-Fi and Bluetooth are optional. The R19IAD3S-SPM1 is the same 19 inch size in SUS 316 stainless steel with PCAP touch, and the R19IE3S-65M1 is the earlier version of this full IP65 design with an Intel Celeron N6211.

The R19IAD3S-65M1 runs fanless from 0 °C to 45 °C at 10 to 90% humidity, non-condensing, and stores from -20 °C to 60 °C. It mounts on VESA as standard, with a yoke mount as an option, and carries CE and FCC marks. We supply it configured, with the OS installed, and tested before dispatch. We can advise on touch or plain glass for your cleaning routine.
