Winmate R19IAD7T-IPA1 19″ Front IP65 Panel PC with Intel Core i3 to i9 LGA1700 and Resistive Touch

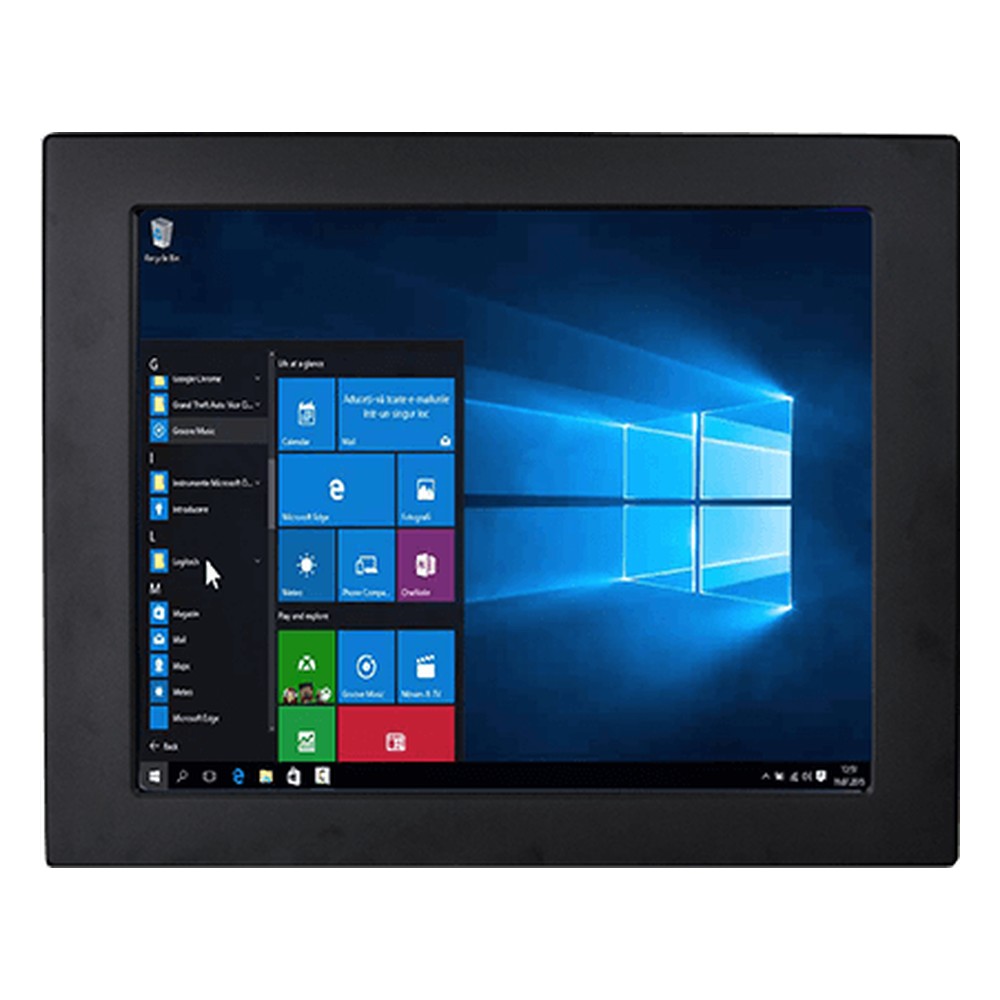

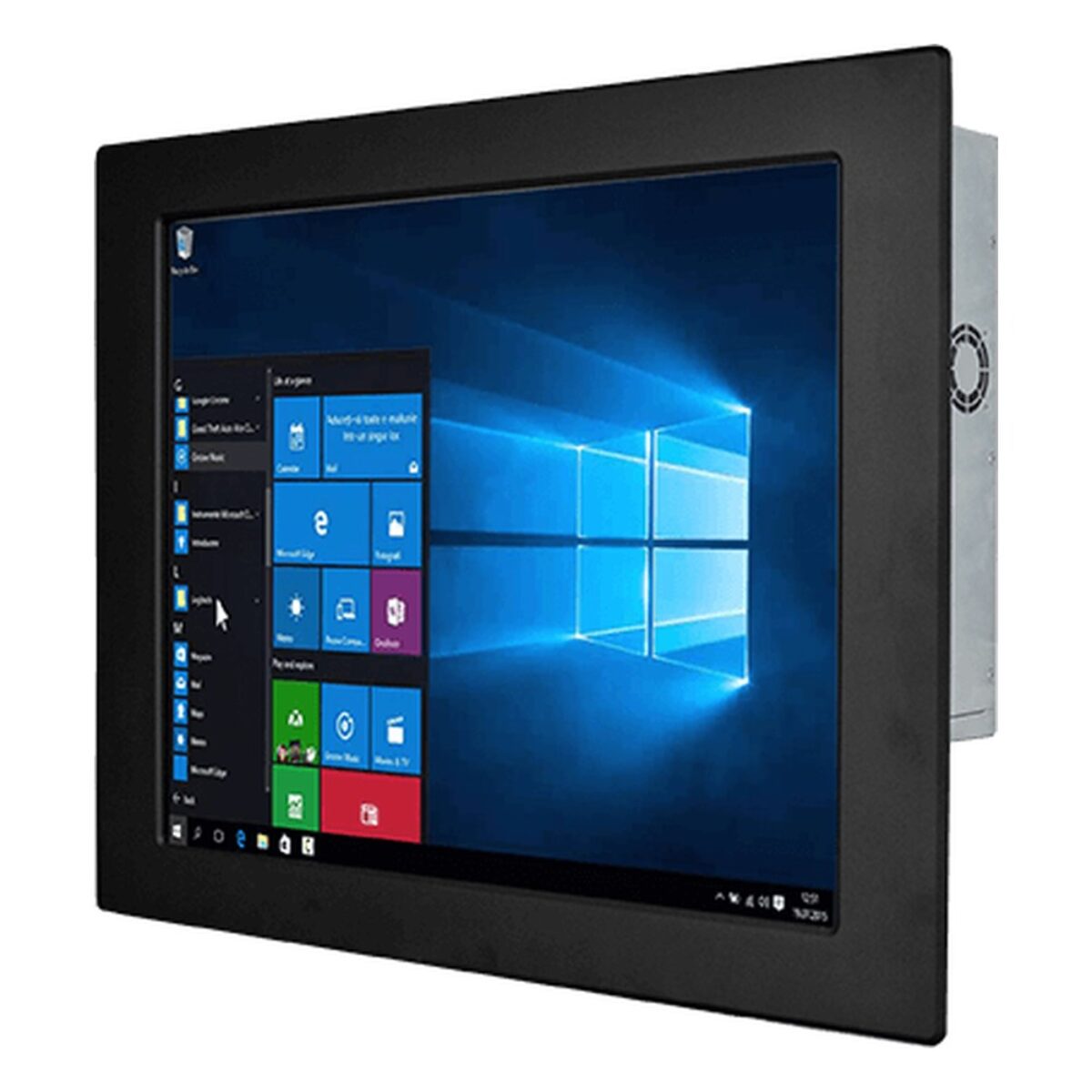

Factory automation lines and kiosks in wet or dusty areas need a screen that wipes clean at the front. The R19IAD7T-IPA1 is Winmate’s 19 inch front IP65 panel PC: a 19″ 5:4 display and an LGA1700 Intel Core computer in a metal housing that fits into a cabinet door or console cut-out.

It takes a choice of 12th Gen Intel Core TE (Alder Lake-S) and 14th Gen Intel Core T (Raptor Lake Refresh) processors on the Intel R680E chipset, from the Core i3-12100TE as standard to the Core i9-14900T, so one design can suit a simple operator screen or heavier visualization. Two DDR5-4800 SO-DIMM sockets take up to 64 GB, and a 128 GB M.2 NVMe SSD can grow to 4 TB, with two optional 2.5″ SATA III bays supporting RAID. The 19″ panel is 1280 x 1024 at 400 nits with 1000:1 contrast, with resistive touch or protection glass as options.

Two Intel 2.5GbE ports can separate control and plant networks, and four USB 3.2 Gen 2 Type-A ports at 10 Gbps take scanners and storage. One RS-232/422/485 port and one RS-232 port link PLCs and serial instruments. DisplayPort 1.4a drives a second screen at up to 4096 x 2160 at 60 Hz, with HDMI 2.0b optional, plus mic-in and line-out. Optional Wi-Fi and Bluetooth fit an M.2 E-key slot, and TPM 2.0 is on board. The R19IT3S-IPA1 is the earlier 19 inch front IP65 build with an Intel Core i5-1135G7, and the R19IAD7T-PMA1 is the panel mount version of the same housing.

Power is 12 V DC on a four-pin DIN connector, and it comes with a 220 W AC adapter. The R19IAD7T-IPA1 is fan cooled, runs from 0 to 50 °C at 10 to 90% humidity non-condensing and carries CE and FCC marks. It is rated IP65 at the front and fits a cut-out with the supplied clips, with VESA optional. We supply it configured, with Windows 11 IoT Enterprise, Windows 11 Pro or Ubuntu 22.04 installed, and tested before dispatch.
