Winmate R19IAN3S-GCM1 19″ G-WIN Front IP65 Panel PC with Quad-Core Intel N150 and MIL-STD-810G

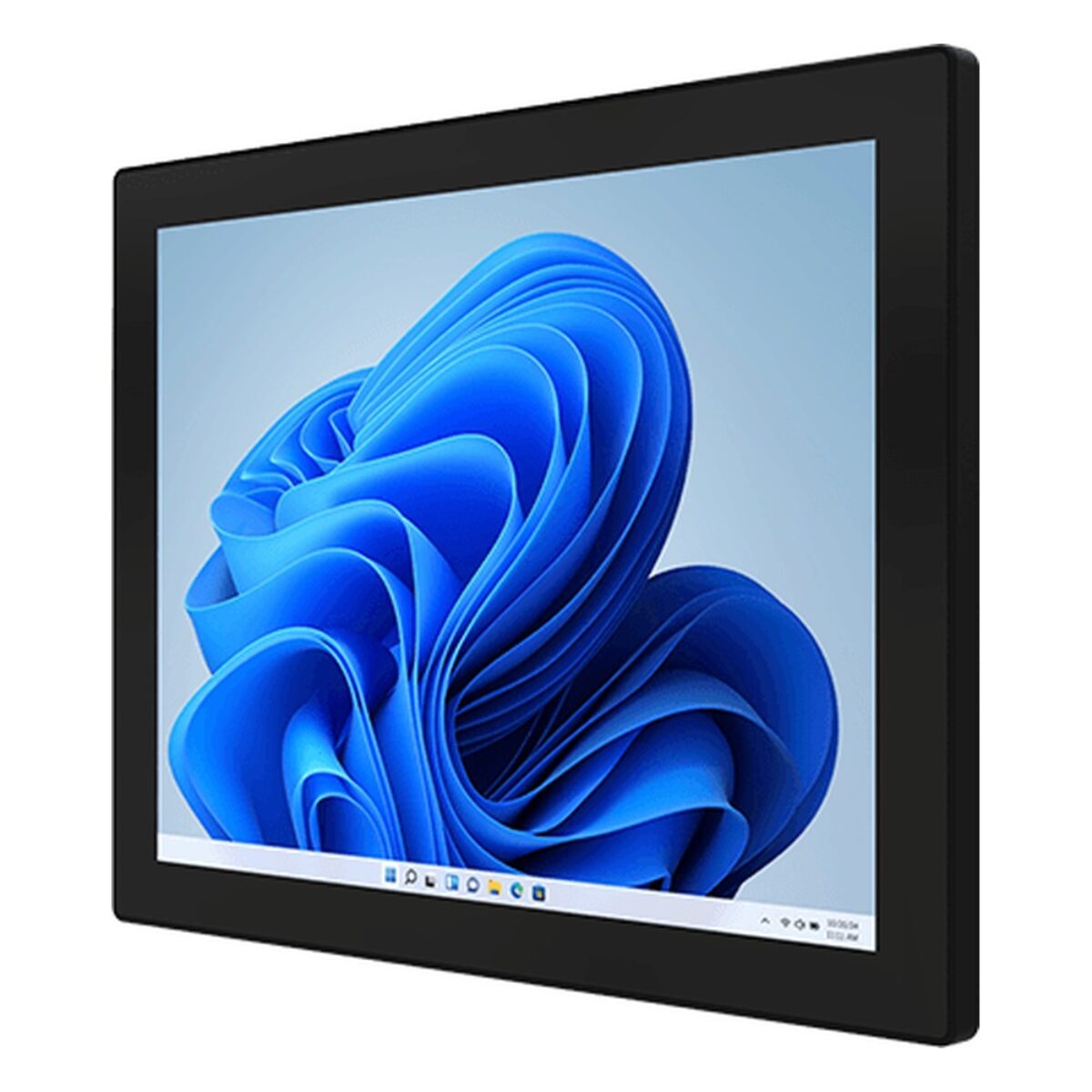

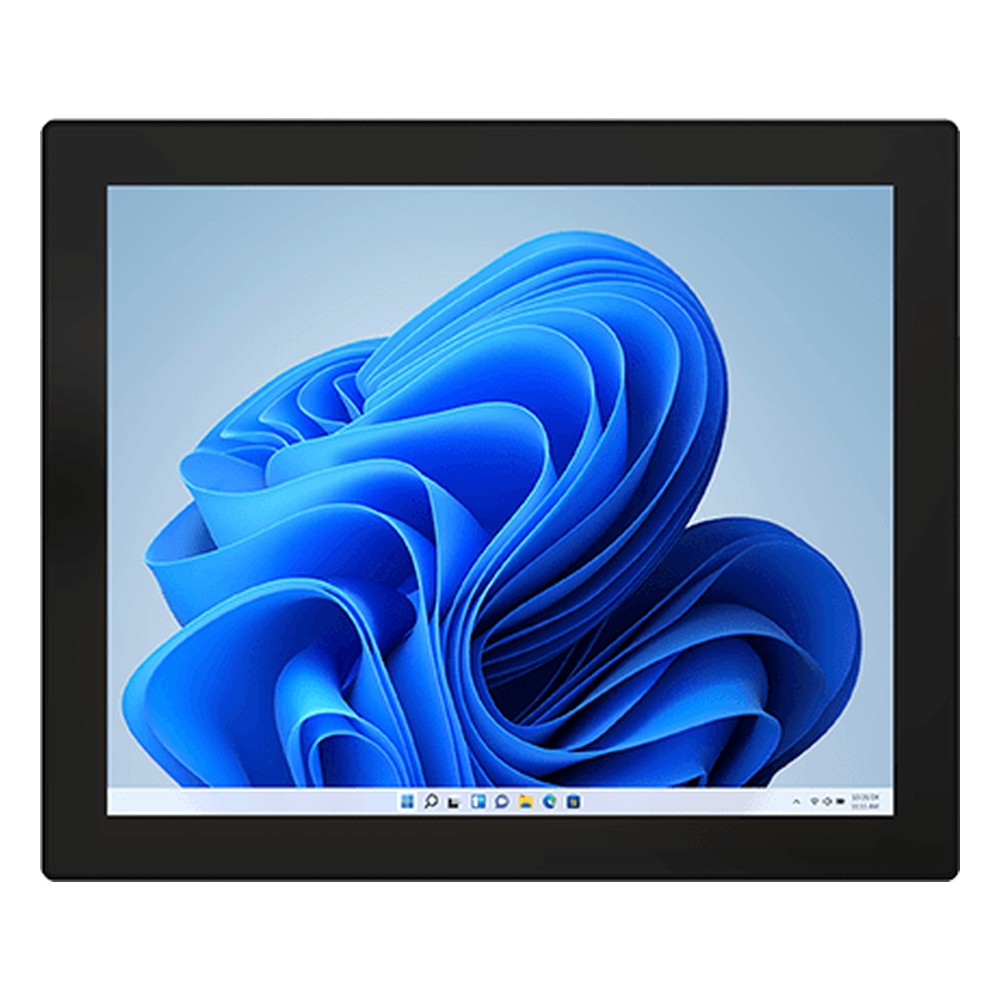

Plenty of 19 inch HMIs run SCADA views and line overviews built for a 5:4 screen, and a like-for-like replacement saves redrawing them. The R19IAN3S-GCM1 is Winmate’s 19″ G-WIN GC panel PC for machine control, factory automation and operator HMI, with a fanless Intel Processor N150 behind an edge-to-edge 1280 x 1024 PCAP display with a front IP65 rating.

The N150 is a low-power quad-core processor running at up to 3.6 GHz, which suits HMI runtimes and browser dashboards without the noise or dust intake of a fan. Memory is 8 GB as standard with a 16 GB option, and storage is a 128 GB SSD with options up to 2 TB. TPM 2.0 is on board, and Windows 11 IoT Enterprise, Windows 11 Pro or Linux Ubuntu 24.04 can be installed. The 19 inch panel shows 1280 x 1024 at 250 nits with 1000:1 contrast and 170 degree horizontal viewing under projected capacitive multi-touch.

Connections are two 2.5GbE ports on Intel controllers, two USB 3.2 Gen 2 Type-A ports, one USB 3.2 Gen 2 Type-C port with DP Alt mode up to 4096 x 2160 at 60 Hz, an optional HDMI 2.0b output and one RS-232/422/485 port, with Wi-Fi and Bluetooth as options. The R19IAD7T-GCM1 is the same 19 inch GC design with a fan-cooled LGA1700 board taking Core i3 to i9 processors, and the R19MG3S-GCM1 uses a MediaTek Genio 510 Arm processor for Android or Linux projects.

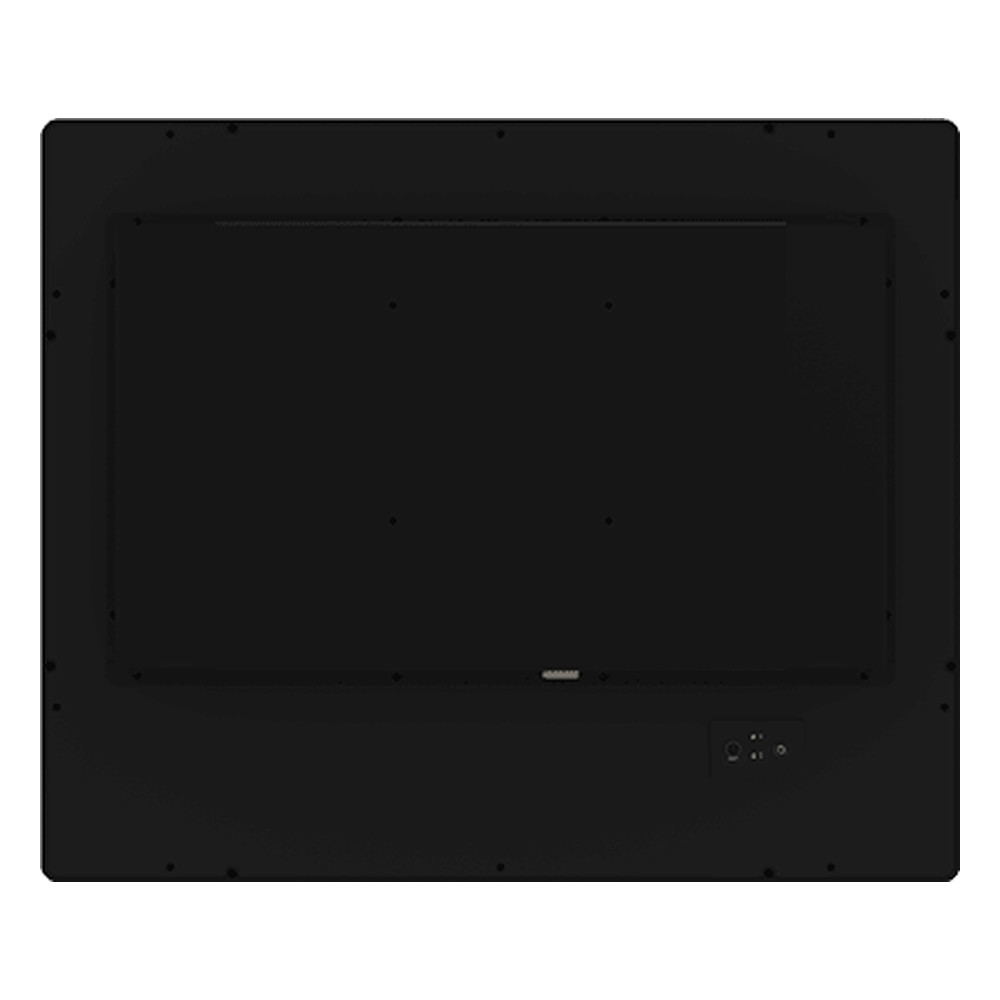

Power is 12 V DC as standard, with a 9 to 36 V DC input as an option, and an AC adapter comes in the box. The R19IAN3S-GCM1 runs from 0 °C to 50 °C in a metal housing with a plastic bezel, is tested to MIL-STD-810G Method 516.6 for shock and Method 514.6 for vibration, mounts on VESA and carries CE and FCC marks. We supply it configured, with the operating system installed, and tested before dispatch.
