Winmate R19IT3S-MRA2 19″ Marine Panel PC with Intel Core i7-1165G7 and IP66 Front

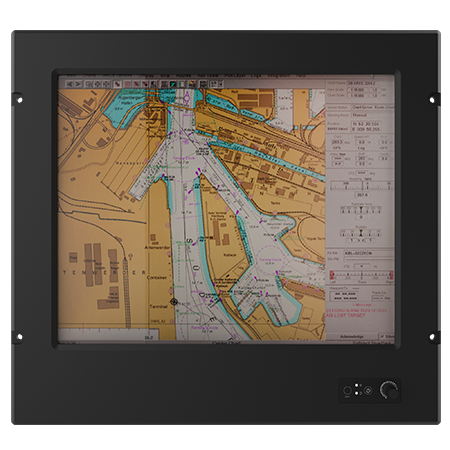

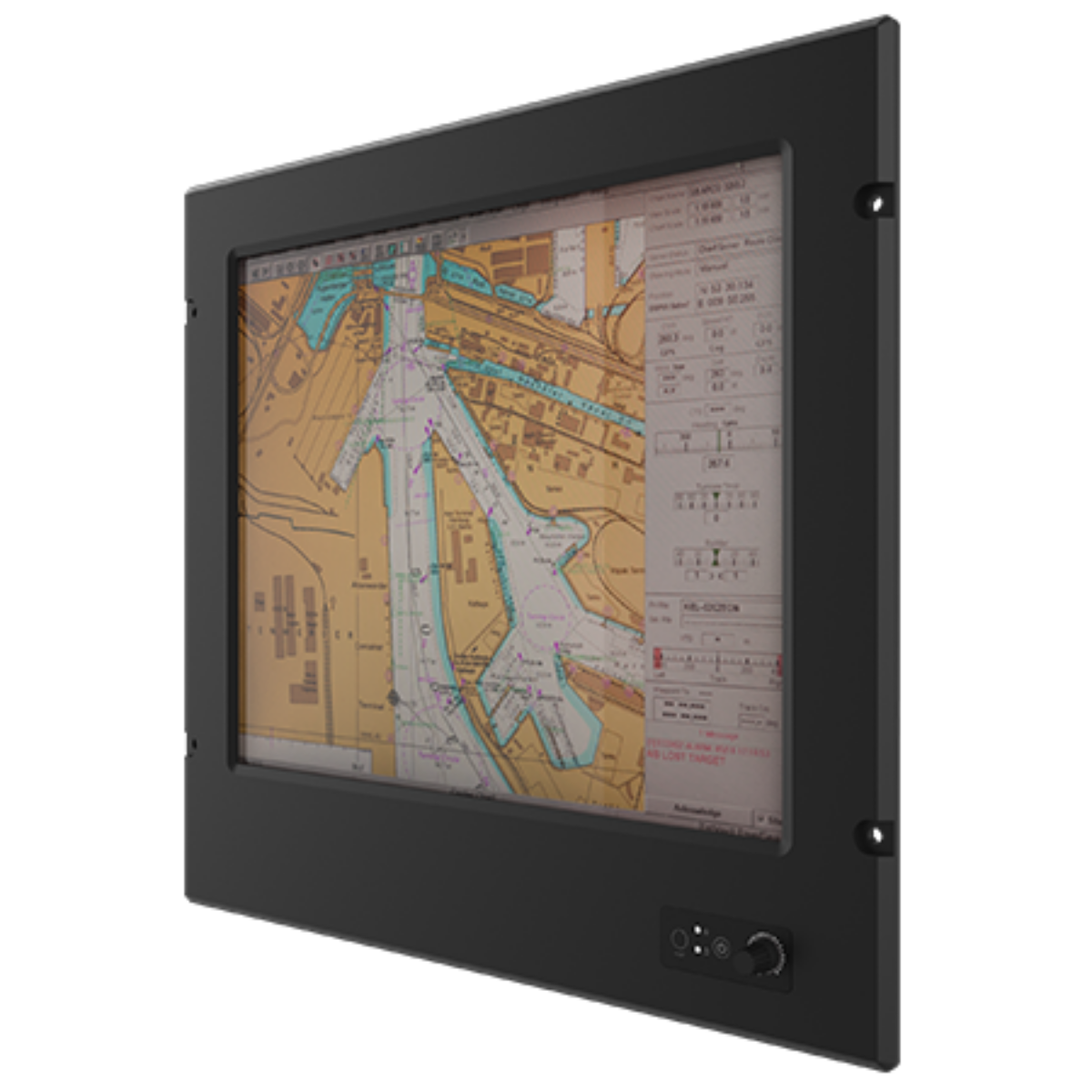

The largest screen on a bridge or in an offshore control room has to show a lot at once, dim fully at night and cope with vibration, humidity and a fluctuating DC supply. The R19IT3S-MRA2 is Winmate’s 19 inch marine panel PC for that job: a fanless computer with an Intel Core i7-1165G7, an IP66 front side and a powder-coated aluminum bezel designed for panel (flush) mounting in a bridge or control console.

The display is a 350 nit 1280 x 1024 SXGA panel with 1000:1 contrast and 170 by 160 degree viewing angles, and a front dimming knob sets the backlight from nearly 0% to 100% for night watches. Resistive touch is fitted as standard, with AR glass as an option. The Intel Core i7-1165G7 runs at up to 4.7 GHz with one DDR4-2400 SO-DIMM socket, 4 GB as standard and options to 32 GB. Storage is a 128 GB M.2 2242 B-key SSD with options to 512 GB, or an M.2 2280 NVMe SSD up to 4 TB, and Windows 10 or 11 IoT Enterprise or Linux Ubuntu 22.04 can be supplied.

Two 10/100/1000 Mbps RJ45 ports on Intel Ethernet controllers connect to the ship network, alongside two USB 3.0 ports, one RS-232 port with four RS-232 or four isolated RS-422/485 ports as an option and a VGA output with HDMI as an option for a second screen. Within the same line the R17IT3S-MRM1 is the 17 inch version for smaller consoles.

Power is a 24 V DC input with isolation that accepts 9 to 36 V DC, drawing 65 W typical, and a 12 V 84 W AC adapter is supplied. The fanless design operates from -15 °C to 55 °C at 5 to 95% humidity, with a 15 G, 11 ms shock rating and vibration to 0.7 g under DNVGL CG-0339 (Class A). Winmate states it is built and tested according to DNVGL-CG-0339, IEC 60945 and IACS E10, and it carries CE and FCC marks. It measures 483 x 444 x 77.5 mm, weighs 9.6 kg and flush mounts with the four M6 bolts supplied, or on VESA.
