Winmate R19IT7T-IPM1 19″ Front IP65 Panel PC with 11th Gen Intel Core i5 and Resistive Touch
Resistive
Intel
Linux
Windows
2.5GbE
USB3
2x M.2
1x PCIe
Wi-Fi
NVMe SSD
Fanless
Front IP65
CE
FCCR19IT7T-IPM1 Overview

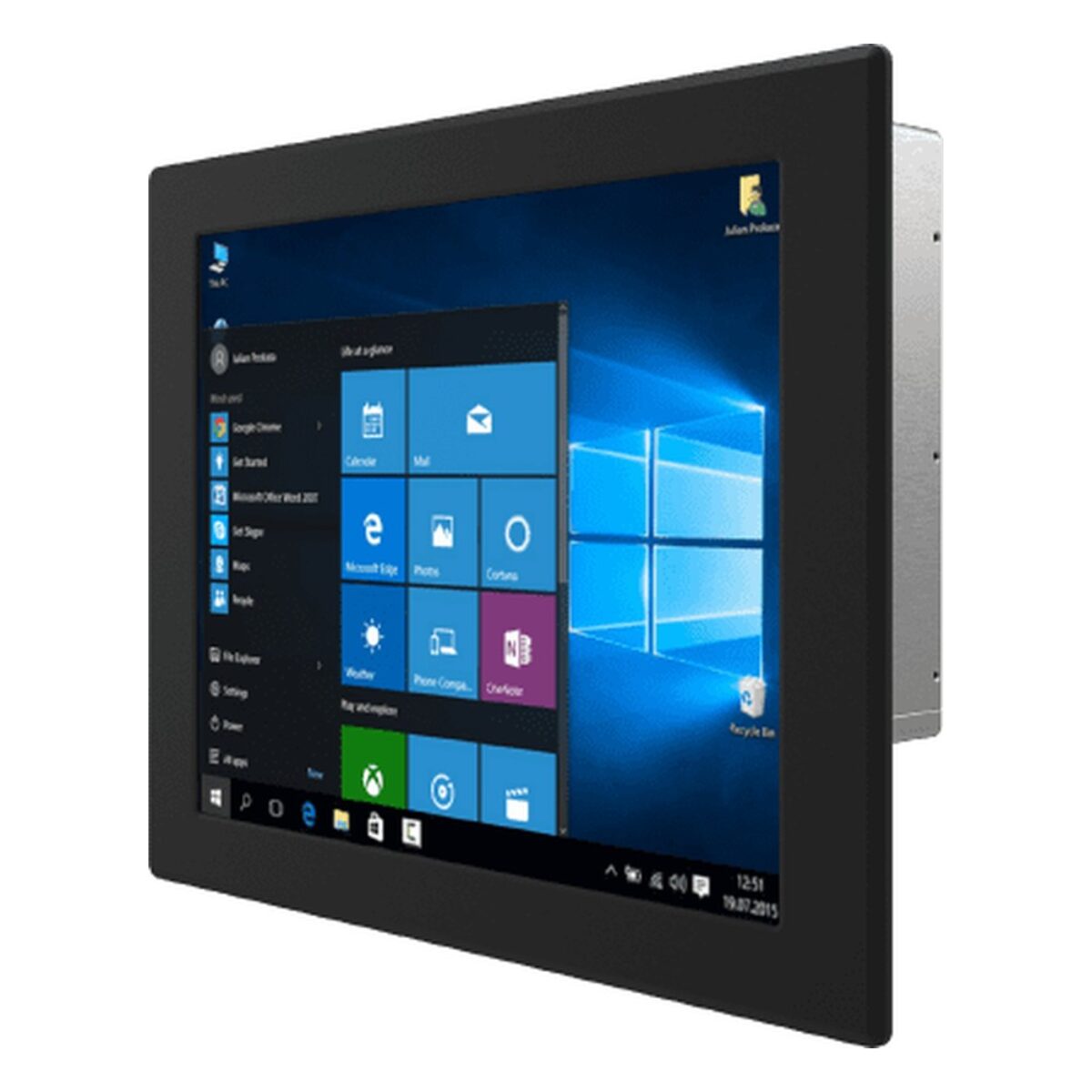

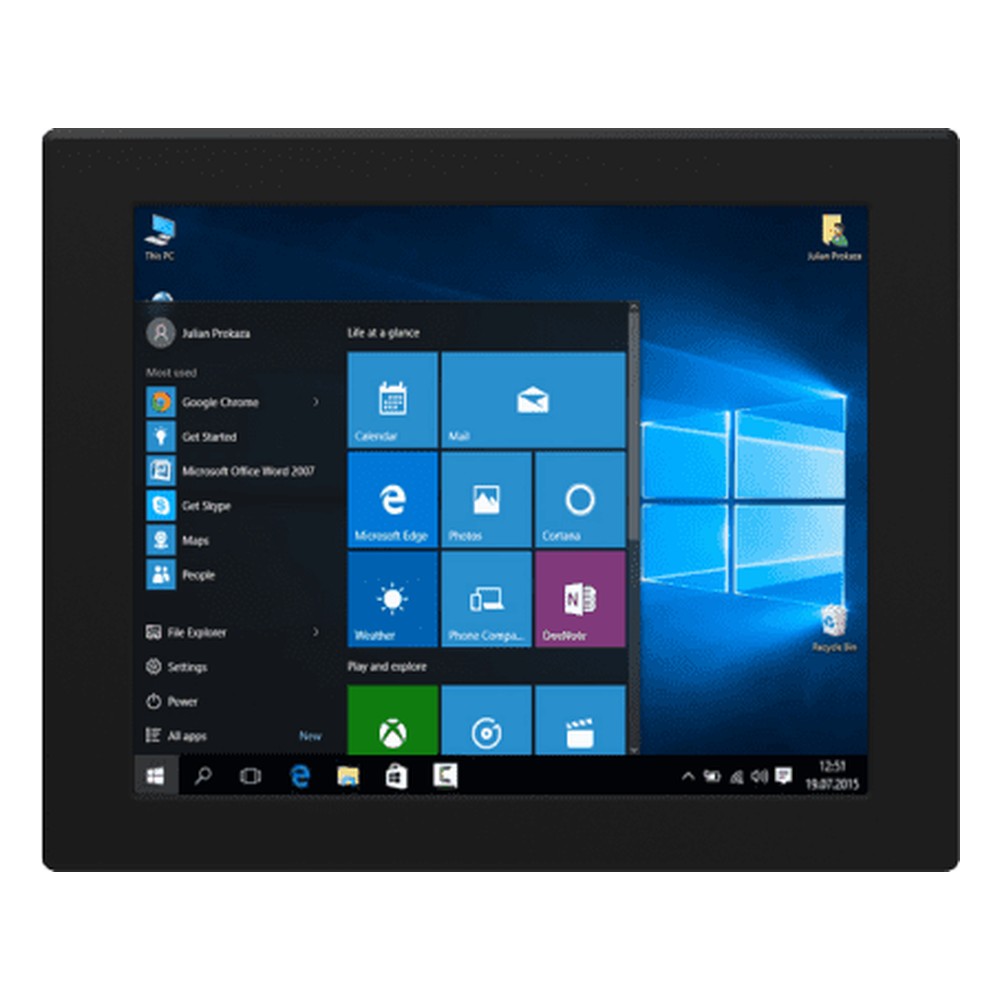

Factory operator stations and kiosks need a front that can be wiped down safely. The R19IT7T-IPM1 is Winmate’s 19 inch front IP65 panel PC for that: a fanless metal unit with an Intel Core i5-1135G7 and a 19″ 1280 x 1024 SXGA display at 250 nits with 1000:1 contrast. Winmate pitches the front IP65 range at factory automation, outdoor kiosks and poolside installations.
The Intel Core i5-1135G7 is a quad-core, eight-thread Tiger Lake processor at 2.4 GHz with turbo to 4.2 GHz and Intel Iris Xe graphics, typically enough for HMI runtimes and SCADA clients without a fan. Two DDR4 SO-DIMM sockets take up to 64 GB. A 128 GB NVMe SSD is standard, with options to 4 TB, plus an optional 2.5″ SATA III bay. TPM 2.0 is on board, with Windows 11 IoT Enterprise, Windows 11 Pro or Linux Ubuntu 22.04.
One 2.5GbE and one Gigabit LAN port run on Intel controllers. Four USB 3.2 Gen 2 Type-A ports, two DB9 serial ports (one RS-232/422/485, one RS-232), DisplayPort 1.4 with optional HDMI 2.0, and mic in and line out complete the set. A PCIe x16 slot with x4 Gen4 signals takes an add-in card, and Wi-Fi with Bluetooth is optional. The R19IT7T-IPA1 is the same front IP65 model with a brighter 400 nit panel, and the R17IT7T-IPM1 is the 17 inch front IP65 version with a 350 nit SXGA screen.

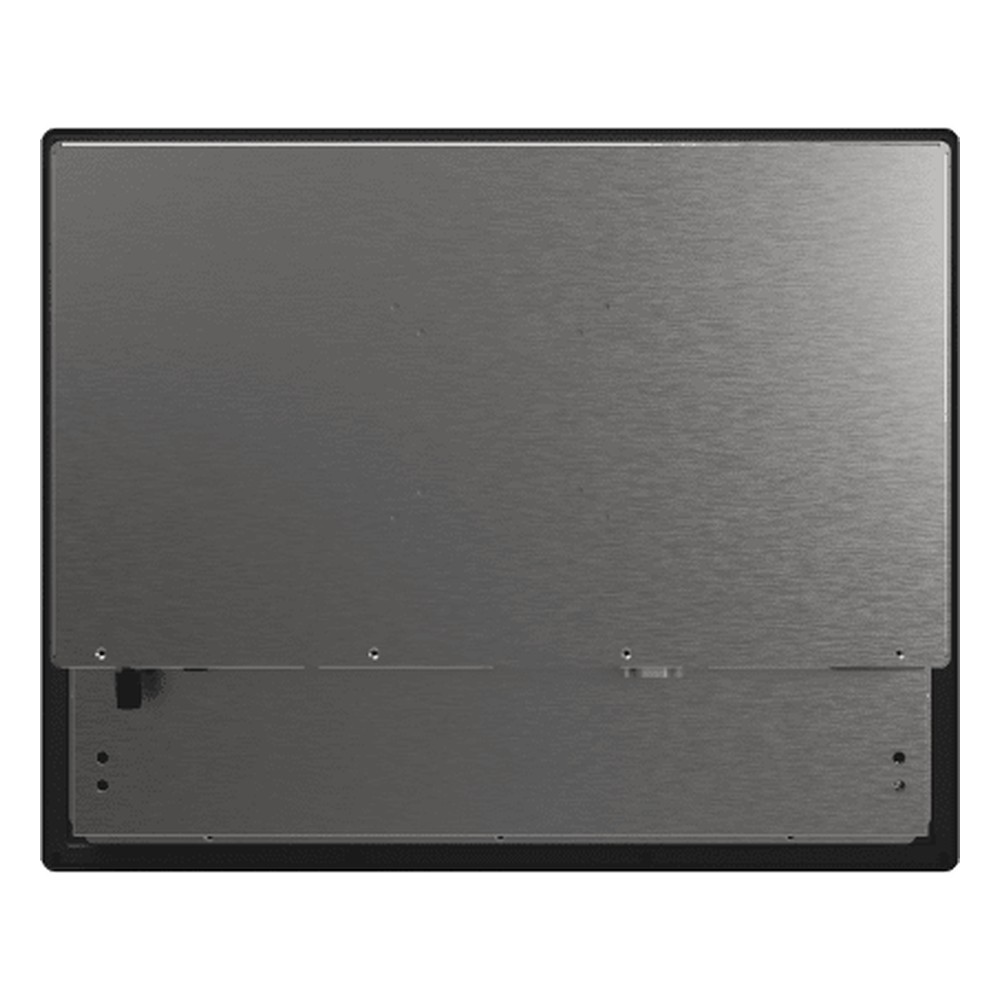

The front is rated IP65 against dust and water jets. It fits as an open frame or panel mount, with mounting clips supplied, and VESA mounting is an option. Power is 12 V DC on a DIN 4-pin connector, and a 12 V 120 W AC adapter is supplied. The fanless metal housing operates from 0 °C to 50 °C, stores from -10 °C to 60 °C and works at 10 to 90% humidity, non-condensing, and carries CE and FCC marks. We supply the R19IT7T-IPM1 configured, with the OS installed, and tested before dispatch.
R19IT7T-IPM1 Specifications
| Overview | |
|---|---|
| Brand & Model | Winmate R19IT7T-IPM1 |
| Features | Fanless Industrial |
| Display | |
| Display | 19"[5:4, 1280 x 1024, SXGA] |
| Display Treatment | Protective Glass |
| Touch Controller | Optional Resistive Touch |
| Brightness | 250 Nits |
| Viewing Angle | Wide Viewing Angle |
| 170° Horizontal, 160° Vertical | |
| Aspect Ratio | 5:4 |
| Format | Standard |
| Contrast | 1000:1 |
| Performance | |
| Processor Series | Intel Core 11th Gen Tiger Lake |
| Processor Models | Intel Core i5-1135G7: 2.4~4.2GHz, 4 Cores, 8 Threads, 8MB Cache, 15W |
| Performance Cores | 4 Cores |
| Memory | 2x DDR4 3200MHz SO-DIMM Slots, 64GB |
| PCIe Gen Support | PCIe 4.0 |
| Secure Crypto Processor | TPM 2.0 (Trusted Platform Module) |
| Operating System | Linux Ubuntu 22.04 Windows 11 |
| Graphics | |
| Integrated GPU | Intel Iris Xe Series |
| Display Outputs | 1x Display Port |
| Audio | |
| Interface | Line-Out Mic-In |
| I/O | |
| Ethernet | 2x Ethernet Ports |
| 1x 2.5 GbE LAN [RJ45] 1x GbE LAN [RJ45] | |
| USB | 4x USB Ports |
| 4x USB 3.2 Gen 2 [Type A] | |
| Serial | 2x Serial Ports |
| 1x RS232 [DB9] 1x RS232/422/485 [DB9] | |
| Expansion | |
| M.2 | 2x M.2 Expansion Slots |
| 1x M.2 E-Key [2230] 1x M.2 M-Key [PCIe] [2280] | |
| PCIe | 1x PCIe Slots |
| 1x PCIe [x16 Slot] [x4 Signal] [Gen4] | |
| Wireless Connectivity | Optional WiFi/Bluetooth |
| Storage | |
| Storage | 1x 2.5" HDD/SSD 1x M.2 SSD |
| NVMe | NVMe SSD Support |
| Power | |
| Power Input | 12V DC [4-Pin] AC Power Supply Included |
| Environmental Conditions | |
| Thermal Dissipation | Fanless Passively Cooled Chassis |
| Operating Temperature | 0°C to 50°C [32°F to 122°F] |
| Storage Temperature | -10°C to 60°C [14°F to 140°F] |
| Humidity | 10-90% (Non-condensing) |
| Ingress Protection | Front IP65 Front IP65 [Dustproof, Protection against low pressure water jets spraying from the front side] |
| Certification | CE FCC |
| Mechanical Properties | |
| Weight | 6.9 Kg (15.2 Lbs) |
| Dimensions | 474mm x 384mm x 78mm (18.66" x 15.12" x 3.07") |
- R19IT7T-IPM1 Datasheet Download
Official Winmate USA Distributor
Things Embedded is an official Winmate USA distributor, supplying the R19IT7T-IPM1 configured, with the OS installed, and tested for USA factory automation and kiosk projects. Within the Winmate range the R19IT7T-OFM1 is the 19 inch open frame build for OEM enclosures.
The R19IT7T-IPM1 sits among our front IP65 panel PCs, our 19 inch panel PCs and our resistive touch panel PCs. If you need a PCIe card, a second drive or a particular OS fitted before it ships, our team can set that up.
