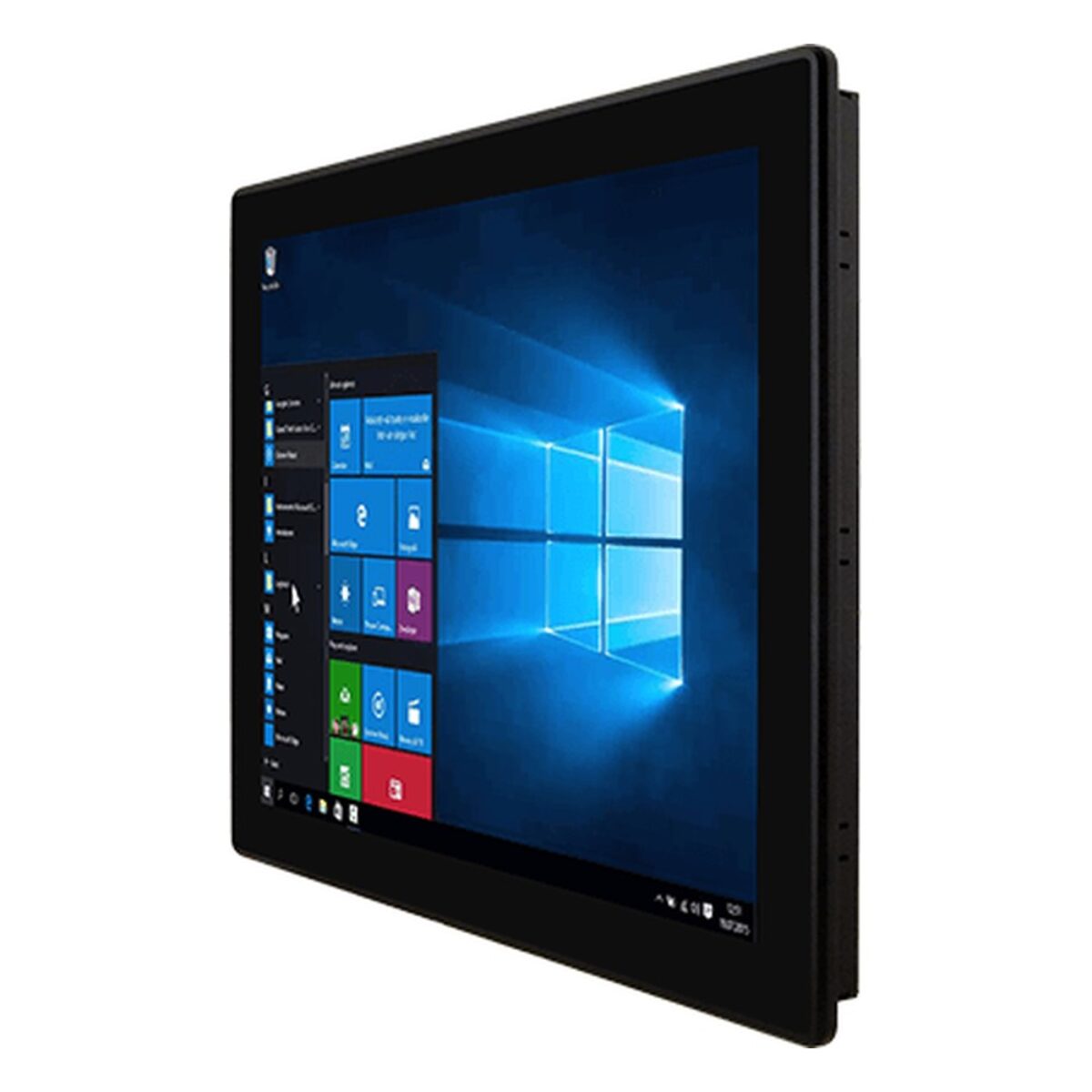

Winmate R19ITWS-MHA1 19″ M Series HMI Panel PC with Intel Core i5-1135G7 and 9 to 29V DC

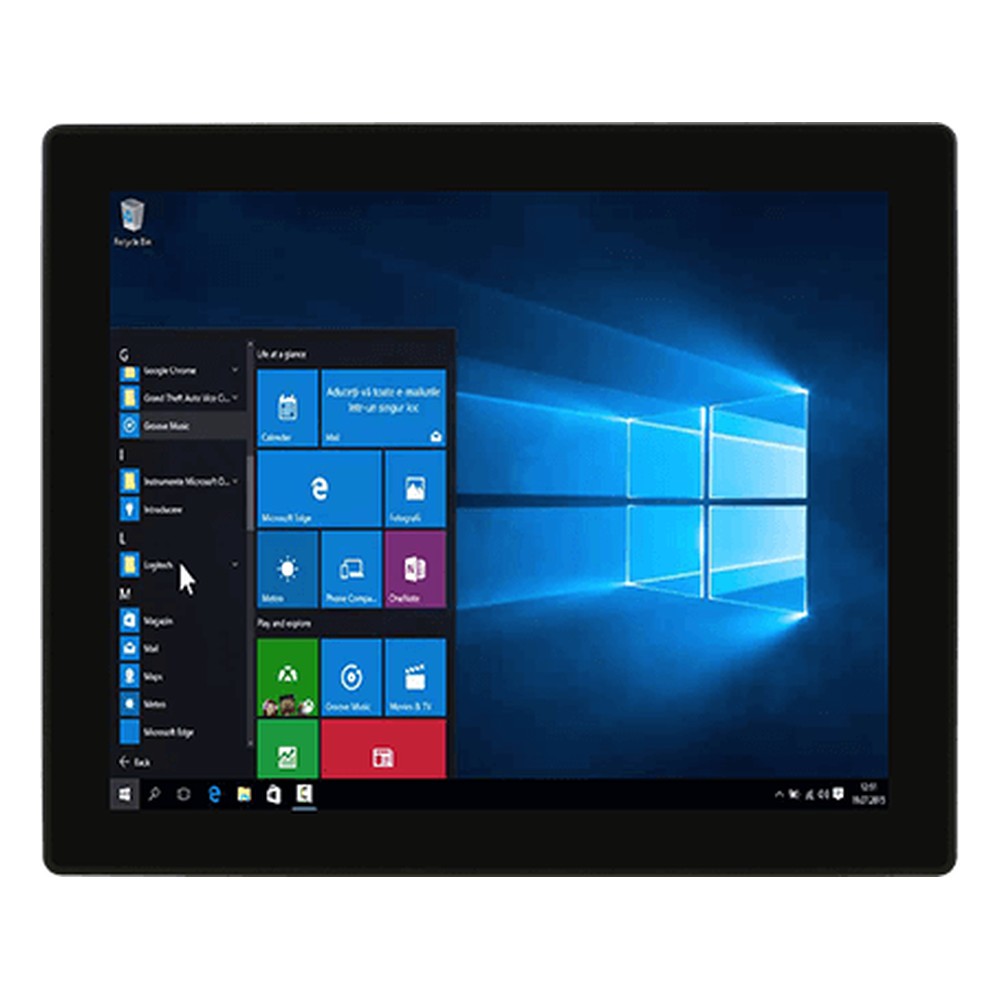

A 19 inch HMI on a control desk or large machine often ends up hosting extra cards and drives that would otherwise need a separate PC. The R19ITWS-MHA1 is Winmate’s 19 inch M series HMI panel PC built for that, with a 19″ 1280 x 1024 PCAP multi-touch screen at 400 nits, an 11th Gen Intel Core i5-1135G7 and a 9 to 29 V DC input.

The Core i5-1135G7 runs at 2.4 GHz with turbo up to 4.2 GHz and Intel Iris Xe graphics, with two DDR4 SO-DIMM sockets fitted with 4 GB and options to 32 GB. Storage is a 128 GB NVMe SSD on an M.2 2280 M-key slot, with up to 512 GB, and two removable 2.5″ SSDs are optional in swappable bays, which suits sites that keep a spare drive on the shelf. TPM 2.0 is on board, with Windows 11 IoT Enterprise, Windows 11 Pro or Linux Ubuntu 22.04.

Expansion is the point of the M series: a PCIe x16 slot wired with x4 signals, an mPCIe slot, an M.2 2230 E-key slot for optional Wi-Fi and Bluetooth and the M.2 NVMe slot. Connections include two Gigabit LAN ports on Intel I211-AT and I219-LM controllers, four USB 3.2 Gen 1 Type-A ports, two RS-232/422/485 ports (RS-232 by default), DisplayPort 1.4 with optional HDMI 2.0, and an audio combo jack. Within the Winmate range the R19ITWS-MHA3-EX is the Class I, Division 2 version at 19 inch, and the R17ITWS-MHM1 is the 17 inch M series model.

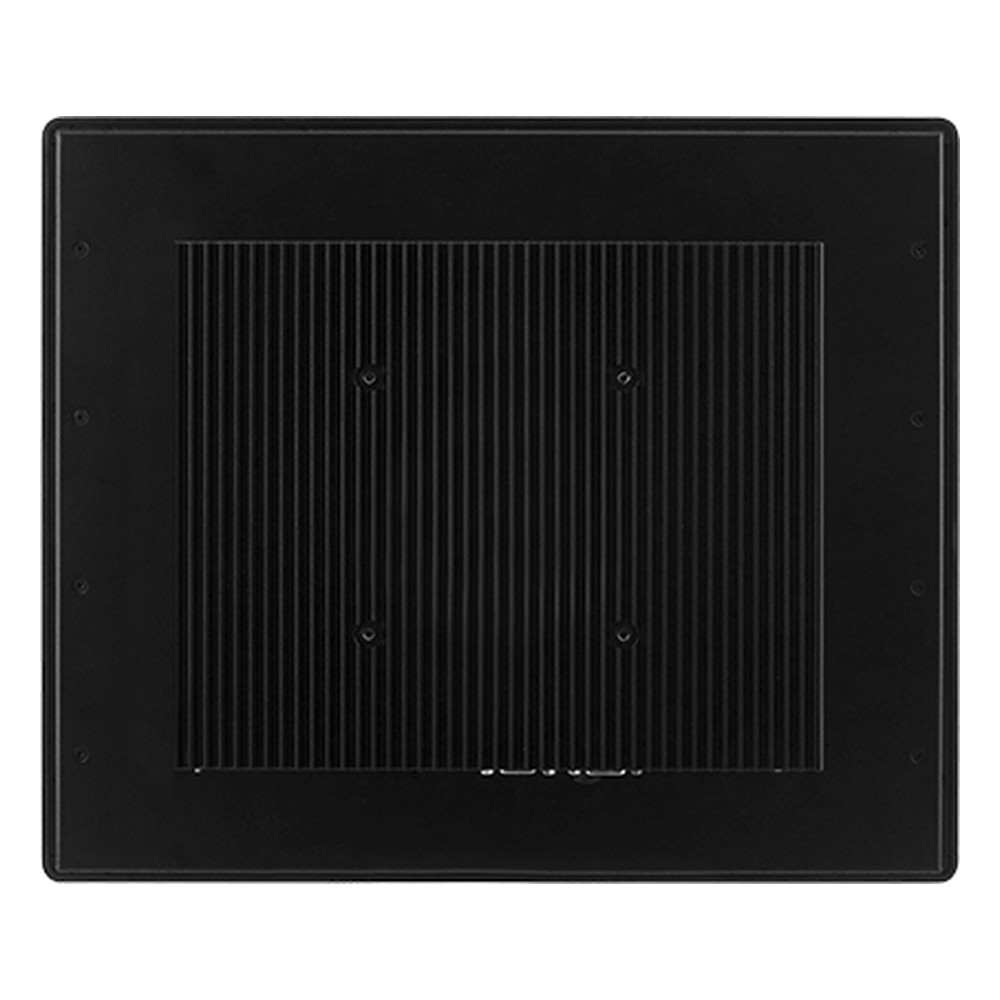

Power is 9 to 29 V DC on a three-pin terminal block with a protection fuse, and the R19ITWS-MHA1 also comes with a 100 to 240 V AC adapter, a power cord and an open wire cable for the terminal block. The fanless, anti-corrosion treated aluminum housing runs from 0 to 50 °C and is rated IP65 at the front. Panel mounting with the supplied clips is standard and VESA mounting is optional, with VESA screws in the box. It carries CE and FCC marks. We supply it configured, with the OS installed, and tested before dispatch.
