Winmate R19L100-GCA3OD 19″ Sunlight Readable PCAP Touch Monitor with 1000 Nit SXGA Panel
PCAP
High Bright
Extended Temp
Front IP65
CE
FCCR19L100-GCA3OD Overview

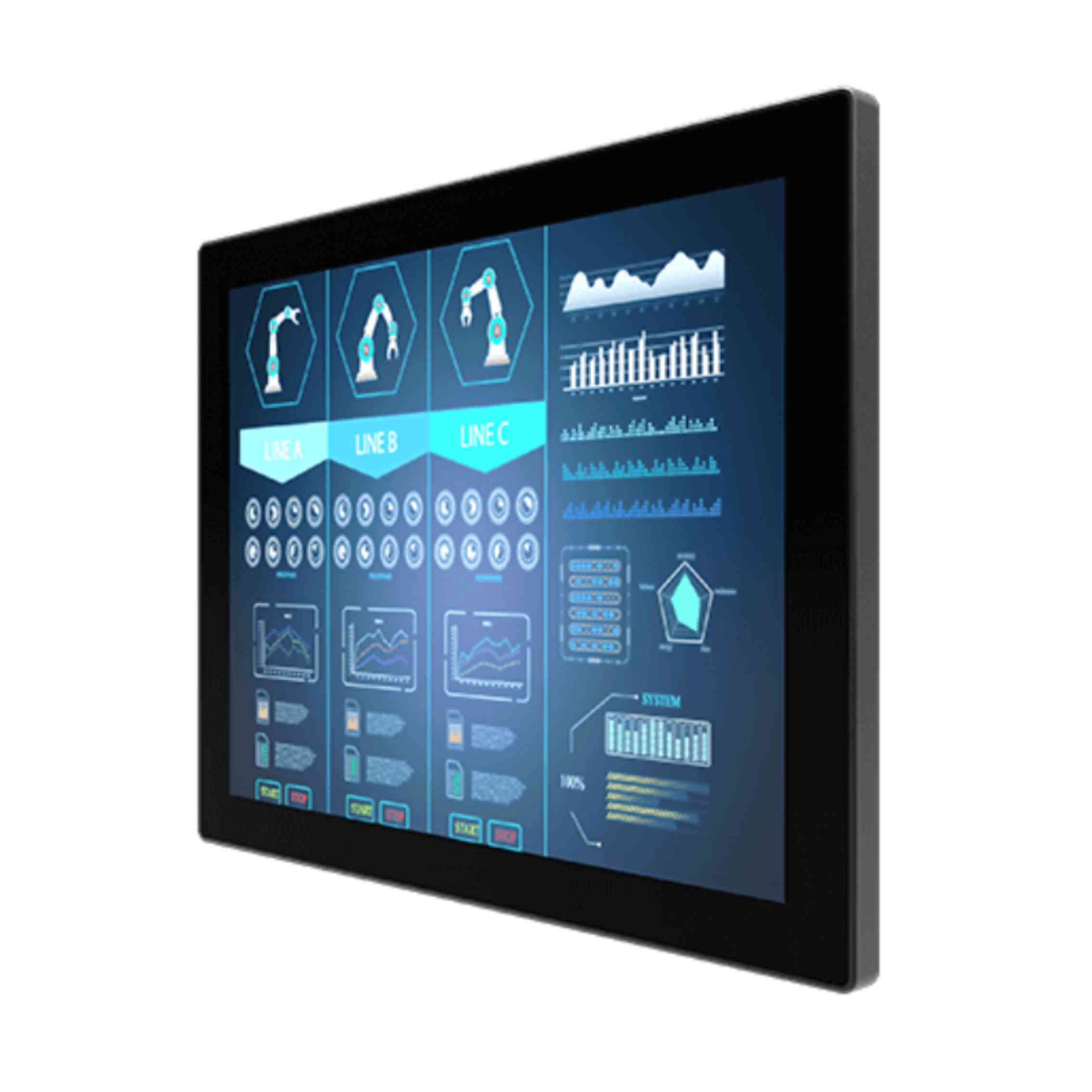

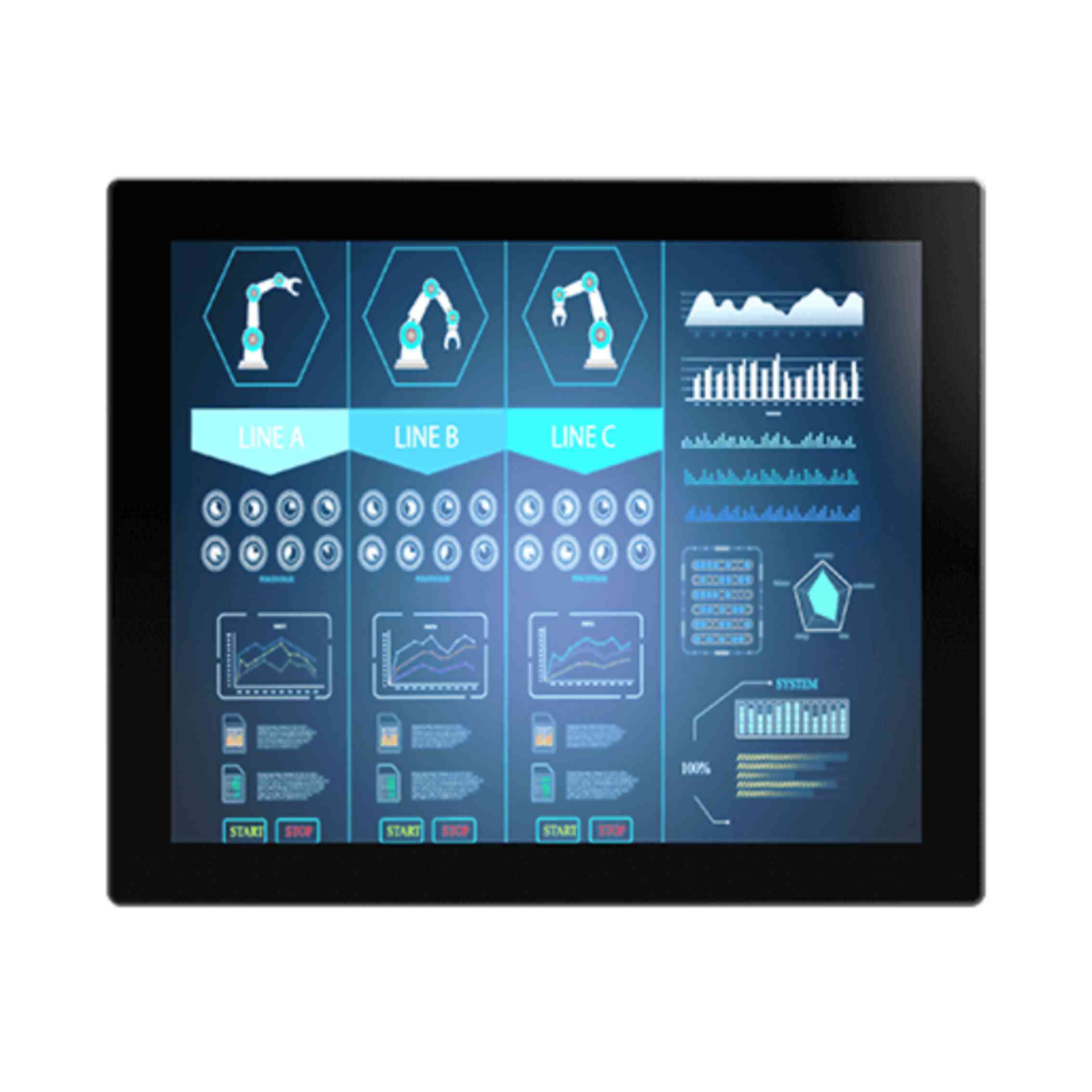

A touch screen near a loading door or under skylights can become unreadable when the sun moves round. The R19L100-GCA3OD is Winmate’s 19 inch sunlight readable touch monitor, with a 1000 nit 1280 x 1024 panel, PCAP multi-touch and an operating range from -10 to 60 °C.
The 5:4 SXGA panel pairs 1000 nits with a 1000:1 contrast ratio and 170 degree horizontal and 160 degree vertical viewing angles. Winmate offers a UV film for solar radiation protection in direct sunlight, and a heater option extends operation down to -25 °C. Projected capacitive multi-touch connects over USB for light finger input. The active area measures 376.3 x 301.1 mm, and the panel shows 16.7 million colors.
VGA is the standard input, with HDMI or DVI as options, and a five-key OSD handles set-up. Where the screen sits indoors under normal lighting, the R19L100-GCM1 uses the same 19 inch chassis at 250 nits with a front IP65 rating, and the W07L100-EHT1OD brings a 1000 nit sunlight readable panel to 7 inches.

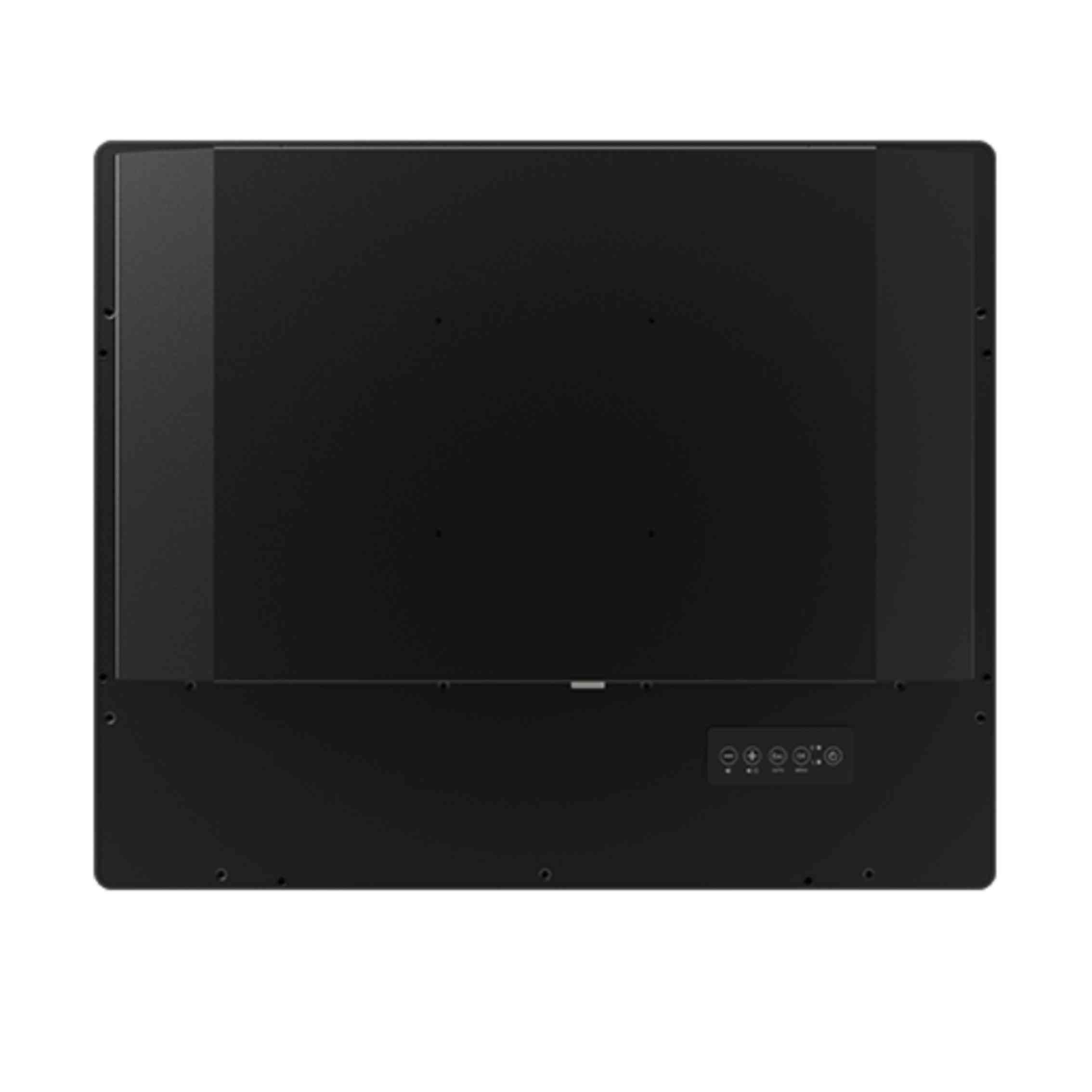

The monitor has a plastic bezel and metal back cover, measures 445 x 370 x 51 mm and fits a 414 x 315 mm panel cut-out or 100 x 100 mm VESA. It runs from 12 V DC, with 24 V DC as an option and a 100 to 240 V AC adapter supplied, is fanless, stores from -20 to 70 °C and carries CE and FCC marks. Winmate does not state an IP rating for this model, so plan an enclosure where rain or spray can reach it.
R19L100-GCA3OD Specifications
| Overview | |
|---|---|
| Brand & Model | Winmate R19L100-GCA3OD |
| Features | Fanless Industrial |
| Display | |
| Display | 19"[5:4, 1280 x 1024, SXGA] |
| Touch Controller | Multi Touch PCAP |
| Brightness | 1,000 Nits |
| Viewing Angle | Wide Viewing Angle |
| 170° Horizontal, 160° Vertical | |
| Aspect Ratio | 5:4 |
| Format | Standard |
| Contrast | 1000:1 |
| Number of Display Inputs | 3x Display Ports |
| Video Inputs | 1x Optional DVI Input 1x Optional HDMI Input 1x VGA Input |
| Power | |
| Power Input | 12V DC |
| Environmental Conditions | |
| Operating Temperature | -10°C to 60°C [14°F to 140°F] -25°C to 60°C [-13°F to 140°F] |
| Storage Temperature | -20°C to 70°C [-4°F to 158°F] |
| Humidity | 10-90% (Non-condensing) |
| Ingress Protection | Front IP65 Front IP65 [Dustproof, Protection against low pressure water jets spraying from the front side] |
| Certification | CE FCC |
| Mechanical Properties | |
| Dimensions | 445mm x 370mm x 51mm (17.52" x 14.57" x 2.01") |
- R19L100-GCA3OD Datasheet Download
Official Winmate USA Distributor
Things Embedded is an official Winmate USA distributor, supplying the R19L100-GCA3OD configured for USA logistics and industrial projects. Within the Winmate range the R19L100-GCM1 is the 250 nit front IP65 model on the same chassis, and the W07L100-EHT1OD is a 7 inch 1000 nit panel mount monitor.
At 1000 nits the R19L100-GCA3OD sits among our sunlight readable monitors, our PCAP touch monitors and our 19 inch industrial monitors. Where a touch screen faces daylight through doors, glazing or skylights, this is the model to specify.
