Winmate R19L300-CHA1HB 19″ Chassis Monitor with 1000 Nit SXGA Display and Resistive Touch
Resistive
High Bright
Fanless
CE
FCCR19L300-CHA1HB Overview

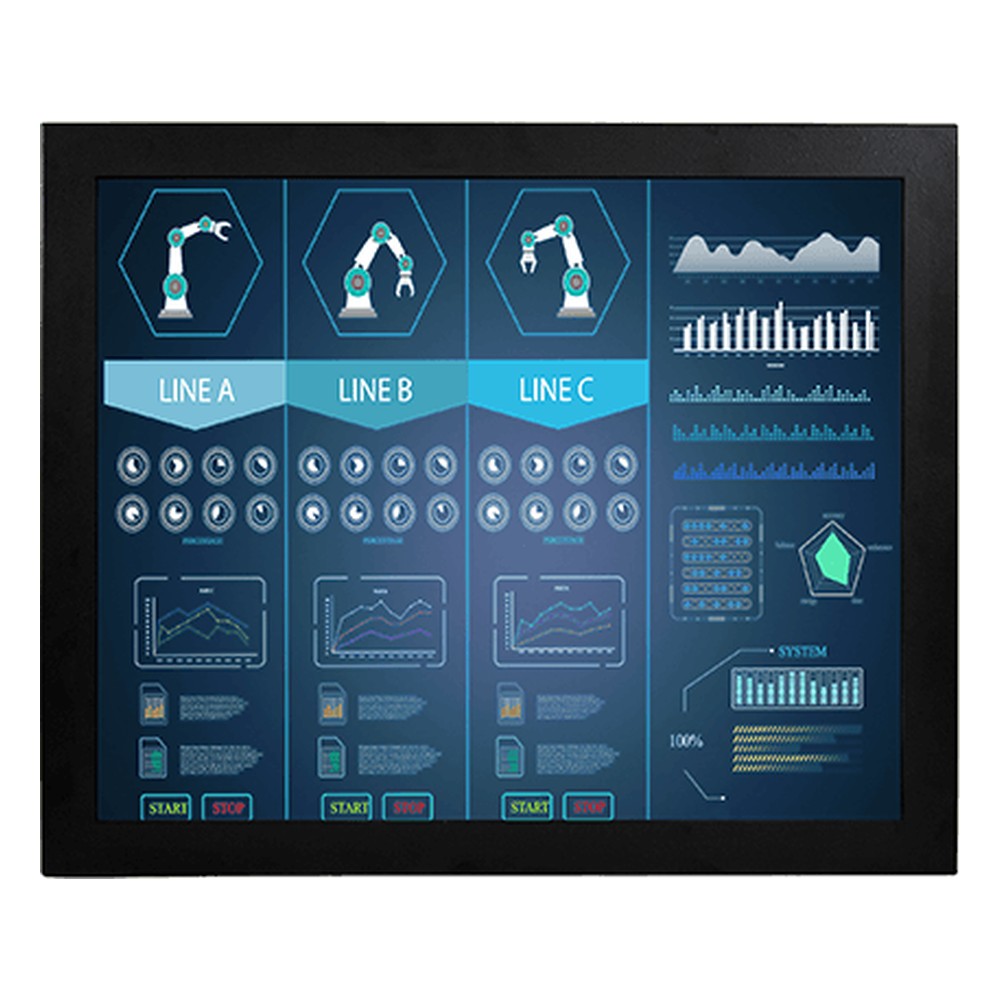

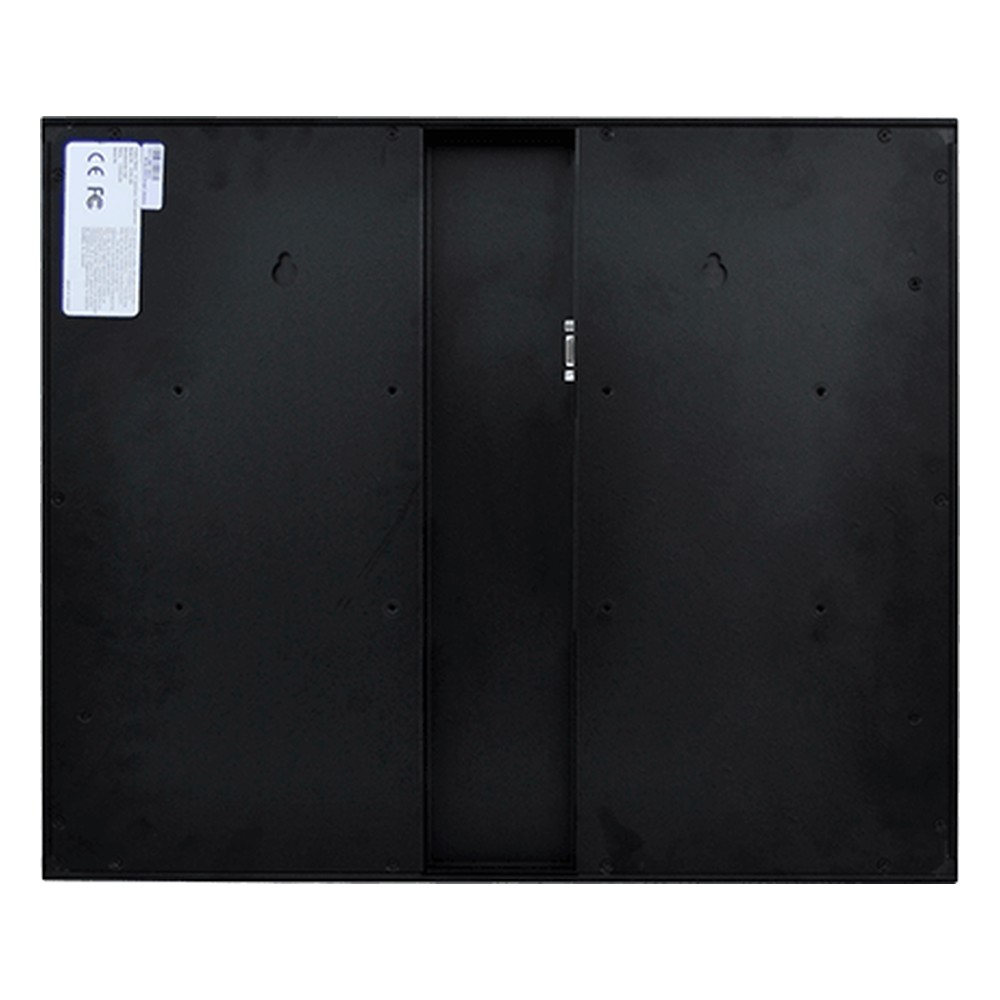

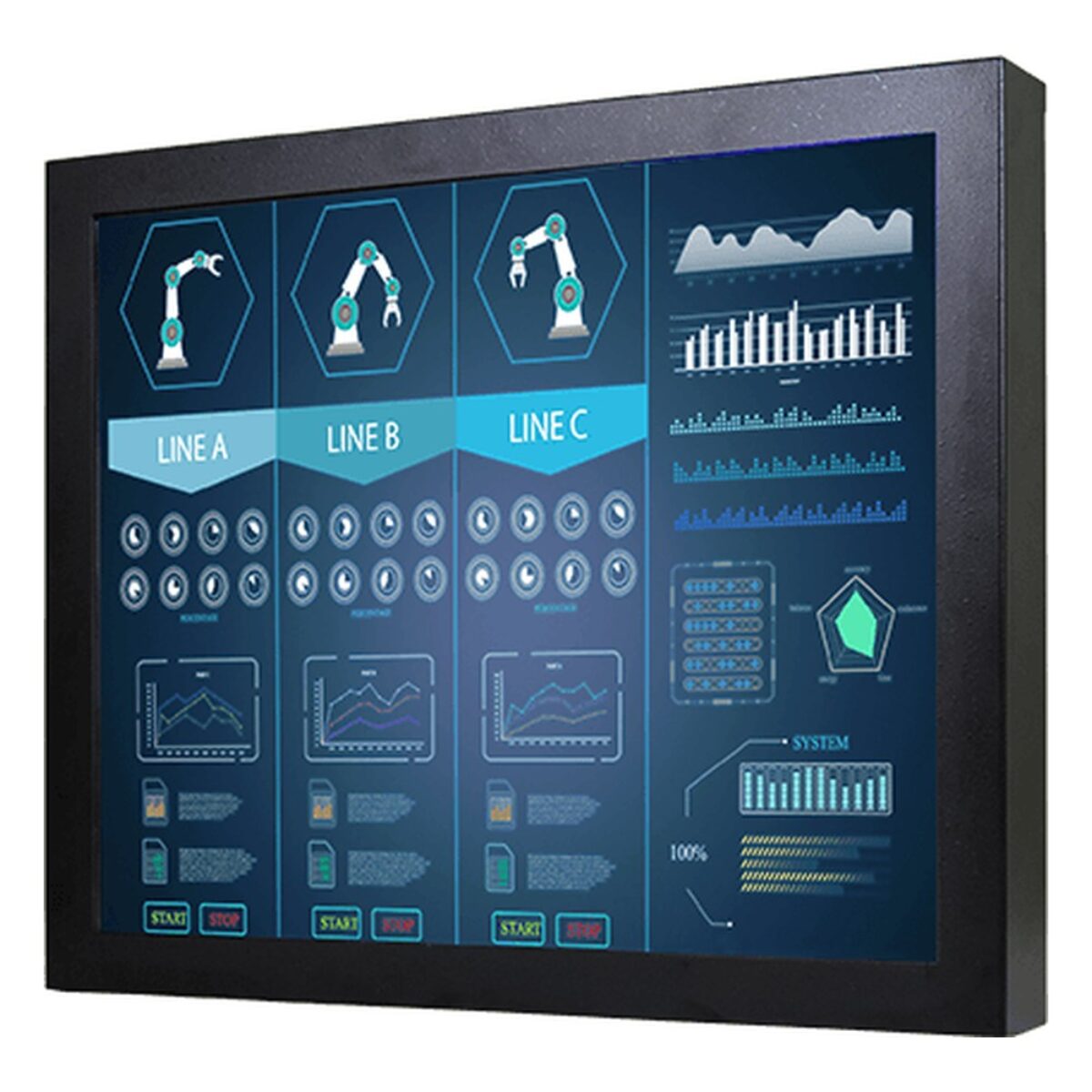

In bright control rooms, kiosks and manufacturing areas, a standard panel can wash out. The R19L300-CHA1HB is Winmate’s 19 inch high brightness chassis monitor, with a 1000 nit panel that suits sunlight-readable installations, in a fanless metal housing that mounts on VESA.
The 19″ 5:4 panel runs at 1280 x 1024 (SXGA) with 1000 nits and a 1000:1 contrast ratio, and Winmate quotes viewing angles of 170° horizontally and 160° vertically. That brightness helps where windows or strong overhead lighting fall on the screen. Resistive touch comes as standard and works with gloves or a stylus. Winmate also offers SAW touch, or protection glass without touch where the screen only needs to display.
Video comes in over VGA as standard, with HDMI or DVI inputs available as options, and touch data runs over a single USB port. An audio line-in and two speakers are optional, and five keys handle the on-screen menu, with a remote control as an optional accessory. Within the Winmate range, the R19L300-CHA1 is the standard 400 nit version of this chassis, and the R19L300-CHM2TR uses a 350 nit transflective panel with 2000:1 contrast.
The R19L300-CHA1HB runs from 12 V DC, with a 24 V DC input as an option, and an AC adapter comes with it, along with a power cord, VGA and HDMI cables and VESA screws. It operates from 0 °C to 50 °C at 10 to 90% humidity, non-condensing, and stores from -10 °C to 60 °C. The 19 inch monitor cools without a fan, mounts on VESA and carries CE and FCC marks. It pairs with the industrial PC of your choice, and we supply it configured and tested before dispatch.
R19L300-CHA1HB Specifications
| Overview | |
|---|---|
| Brand & Model | Winmate R19L300-CHA1HB |
| Features | Fanless Industrial |
| Display | |
| Display | 19"[5:4, 1280 x 1024, SXGA] |
| Display Treatment | Protective Glass |
| Touch Interface | USB |
| Touch Controller | Optional Surface Acoustic Wave Touch Resistive Touch |
| Brightness | 1,000 Nits |
| Viewing Angle | Wide Viewing Angle |
| 170° Horizontal, 160° Vertical | |
| Aspect Ratio | 5:4 |
| Format | Standard |
| Contrast | 1000:1 |
| Number of Display Inputs | 3x Display Ports |
| Video Inputs | 1x Optional DVI Input 1x Optional HDMI Input 1x VGA Input |
| Power | |
| Power Input | 12V DC AC Power Supply Included |
| Environmental Conditions | |
| Thermal Dissipation | Fanless Passively Cooled Chassis |
| Operating Temperature | 0°C to 50°C [32°F to 122°F] |
| Storage Temperature | -10°C to 60°C [14°F to 140°F] |
| Humidity | 10-90% (Non-condensing) |
| Certification | CE FCC |
| Mechanical Properties | |
| Dimensions | 430mm x 355mm x 40mm (16.93" x 13.98" x 1.57") |
| Mounting Options | VESA Mount |
- R19L300-CHA1HB Datasheet Download
Official Winmate USA Distributor
Things Embedded is an official Winmate USA distributor, supplying the R19L300-CHA1HB configured and tested for USA control room, kiosk and industrial projects. Within the Winmate range the R17L500-CHA1HB is the 17 inch SXGA version at 1000 nits.
The R19L300-CHA1HB sits among our sunlight readable monitors, our 19 inch industrial monitors and our chassis monitors. Where a 19 inch screen has to stay readable in bright light, this is a sensible model to shortlist.
