Winmate S17L500-IPA1TR 17″ Panel Mount Monitor with Transflective LCD and Resistive Touch

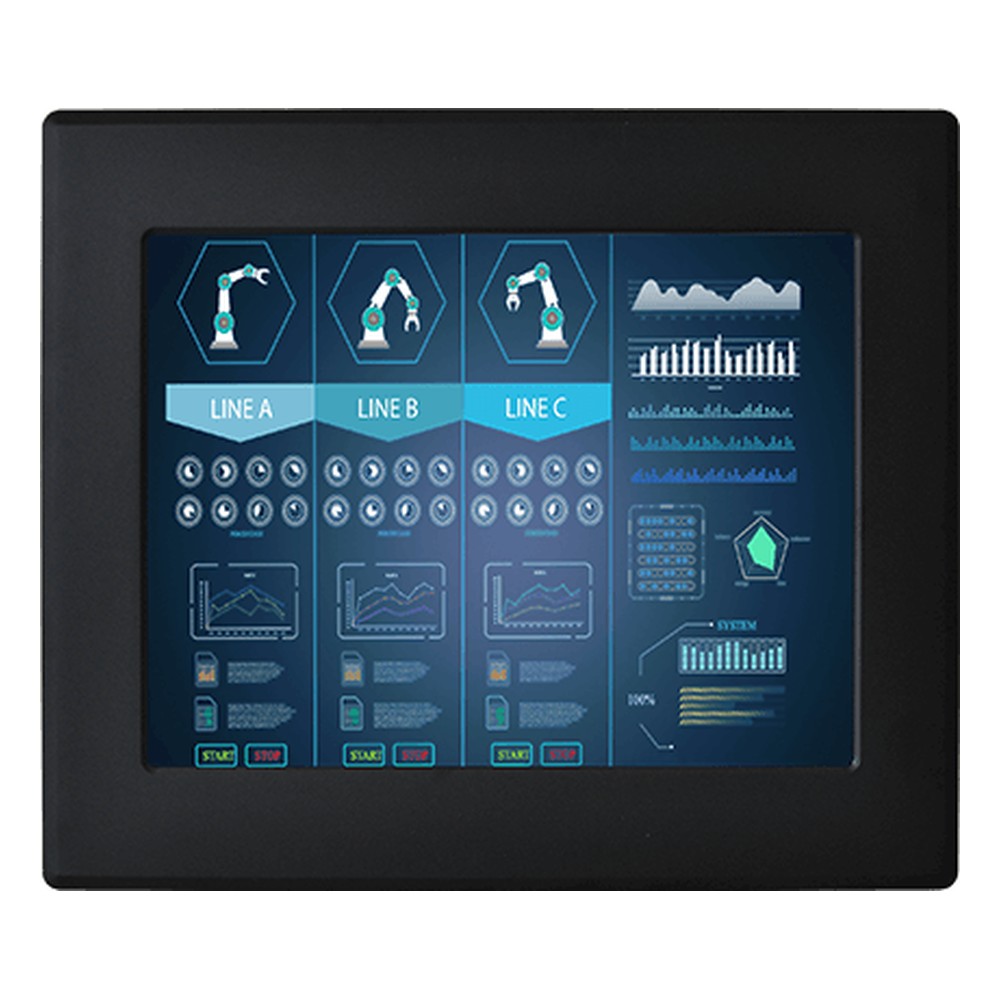

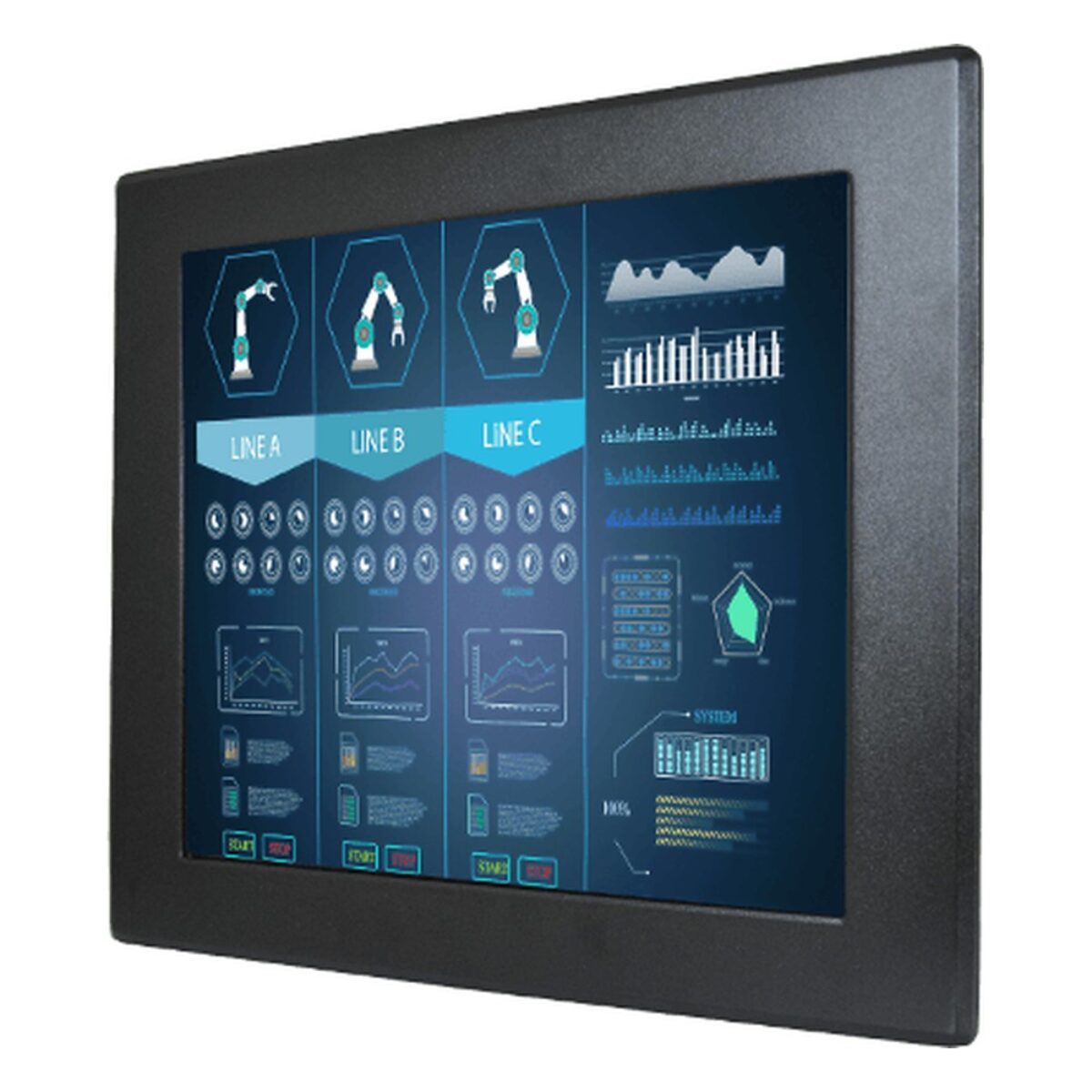

A 5:4 display near a loading door or under a skylight has to stay legible as daylight moves across the screen. The S17L500-IPA1TR is Winmate’s 17 inch transflective industrial monitor for that job: an SXGA panel in a fanless metal housing with an aluminum bezel. It connects to a separate industrial computer or controller and fits into cabinets, racks and fixtures.

The 17″ 1280 x 1024 transflective panel runs at 400 nits with 1000:1 contrast and 170 degree horizontal and 160 degree vertical viewing angles, and a transflective panel uses ambient light as well as its backlight, which helps where daylight reaches the screen. The 5:4 format matches many existing HMI and SCADA screen layouts. Touch is optional: resistive touch, which works with gloved fingers or a stylus, or a protection glass without touch can be specified to suit the job.

Video comes in over VGA as standard, with HDMI or DVI inputs as options. Touch connects over a single USB port. Set-up is through a five-key OSD. An audio line-in and two speakers are optional, as is a remote controller. The S17L500-IPA1HB is the 1000 nit version of this monitor, and the S17L500-IPA1WT is the wide temperature version, rated from -20 °C to 60 °C.

The 17 inch monitor mounts into a panel cut-out or on VESA. It runs from 12 V DC, with a 24 V DC input as an option, and a 100 to 240 V AC adapter, power cord and VGA and HDMI cables are supplied. It operates from 0 °C to 50 °C at 10 to 90% humidity, non-condensing, and stores from -10 °C to 60 °C, and it carries CE and FCC marks. We supply the S17L500-IPA1TR configured and tested before dispatch, ready to pair with the computer that drives it.
