Winmate W10L100-CHH2 10.1″ Chassis Monitor with Resistive Touch and WXGA LCD
Resistive
Fanless
CE
FCCW10L100-CHH2 Overview

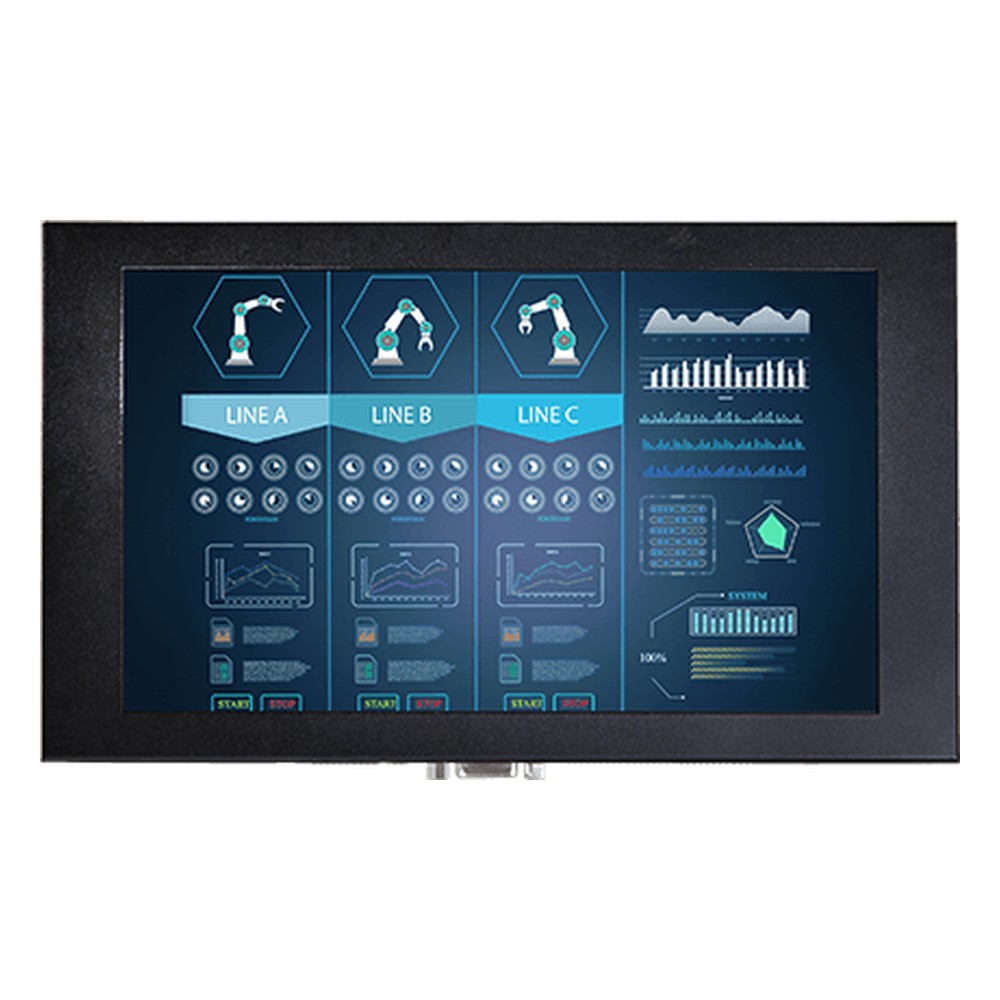

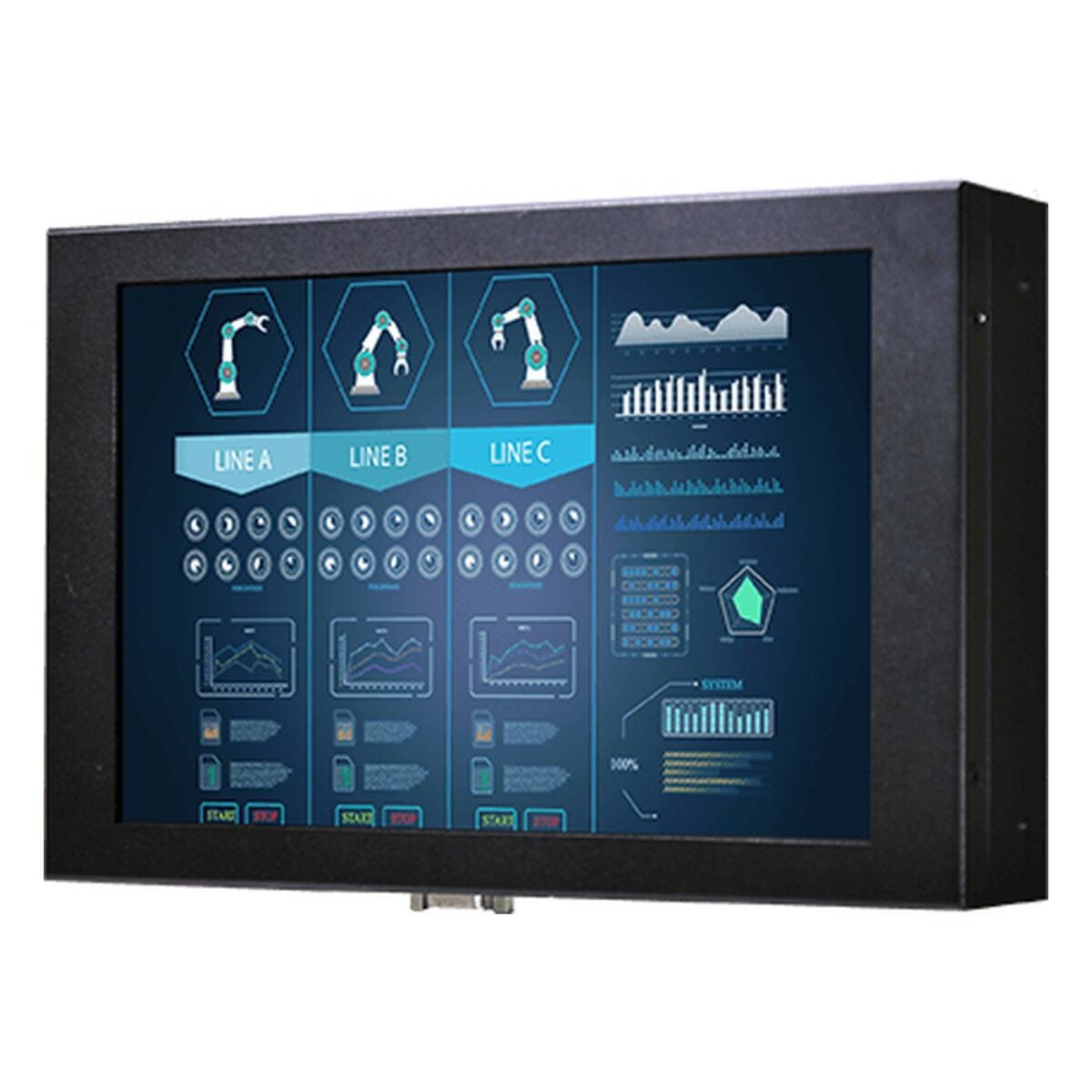

Status displays on small machines and test rigs need a widescreen panel that fits where a 4:3 screen would not. The W10L100-CHH2 is Winmate’s 10.1 inch chassis display for this, with a 1280 x 800 WXGA panel at 350 nits, optional resistive touch and a fanless metal housing with an aluminum bezel. Winmate names industrial visualization, control rooms and equipment monitoring as its uses.
The 10.1″ LCD shows 1280 x 800 at 350 nits with an 800:1 contrast ratio and 170° viewing angles. Touch is optional: resistive touch can be added for operator input, or plain protection glass fitted where the screen only needs to display. The 1280 x 800 widescreen format suits dashboards and trend views laid out side by side.
Video comes in over VGA as standard, with HDMI and DVI inputs as options, and a USB port carries touch data back to the host computer. An audio line-in, two speakers and a remote controller are optional. The W10L100-OFH2 is the open frame version of this WXGA panel, and the W10L100-CHA1 is the 1920 x 1200, 800 nit chassis model.
Power is 12 V DC, with 24 V DC as an option, and Winmate supplies a 100 to 240 V AC adapter with a power cord, VGA and HDMI cables and VESA screws. The W10L100-CHH2 operates from 0 °C to 50 °C and stores from -10 °C to 60 °C at 10 to 90% humidity, non-condensing, cools without a fan, mounts on VESA holes and carries CE and FCC marks. We supply it configured and tested, ready to connect to the computer you specify.
W10L100-CHH2 Specifications
| Overview | |
|---|---|
| Brand & Model | Winmate W10L100-CHH2 |
| Features | Fanless Industrial |
| Display | |
| Display | 10.1"[5:3, 1280 x 800, WXGA] |
| Display Treatment | Protective Glass |
| Touch Interface | USB |
| Touch Controller | Optional Resistive Touch |
| Brightness | 350 Nits |
| Viewing Angle | Wide Viewing Angle |
| 170° Horizontal, 170° Vertical | |
| Aspect Ratio | 5:3 |
| Format | Widescreen |
| Contrast | 800:1 |
| Number of Display Inputs | 3x Display Ports |
| Video Inputs | 1x Optional DVI Input 1x Optional HDMI Input 1x VGA Input |
| Power | |
| Power Input | 12V DC AC Power Supply Included |
| Environmental Conditions | |
| Thermal Dissipation | Fanless Passively Cooled Chassis |
| Operating Temperature | 0°C to 50°C [32°F to 122°F] |
| Storage Temperature | -10°C to 60°C [14°F to 140°F] |
| Humidity | 10-90% (Non-condensing) |
| Certification | CE FCC |
| Mechanical Properties | |
| Weight | 1.2 Kg (2.6 Lbs) |
| Dimensions | 270mm x 160mm x 38mm (10.63" x 6.30" x 1.50") |
| Mounting Options | VESA Mount |
- W10L100-CHH2 Datasheet Download
Official Winmate USA Distributor
Things Embedded is an official Winmate USA distributor, supplying the W10L100-CHH2 configured and tested for USA control panel, kiosk and machine projects. Within the Winmate range the W10L100-CHA1 raises resolution to 1920 x 1200 at 800 nits.
The W10L100-CHH2 sits among our 10 inch monitors, our chassis displays and our resistive touch monitors. Where a 10.1 inch WXGA screen needs to sit in a chassis of its own beside the host computer, this is the model to specify.
