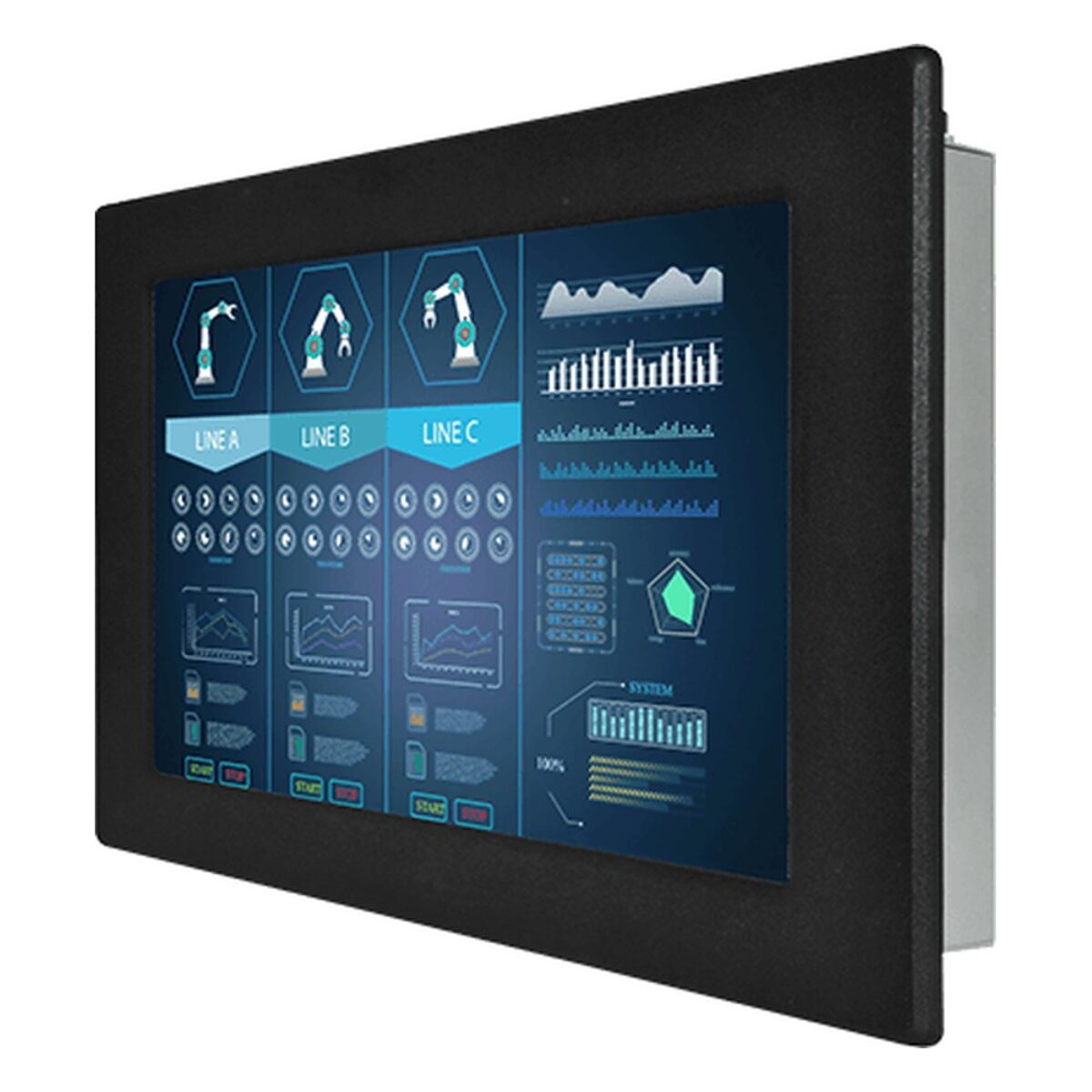

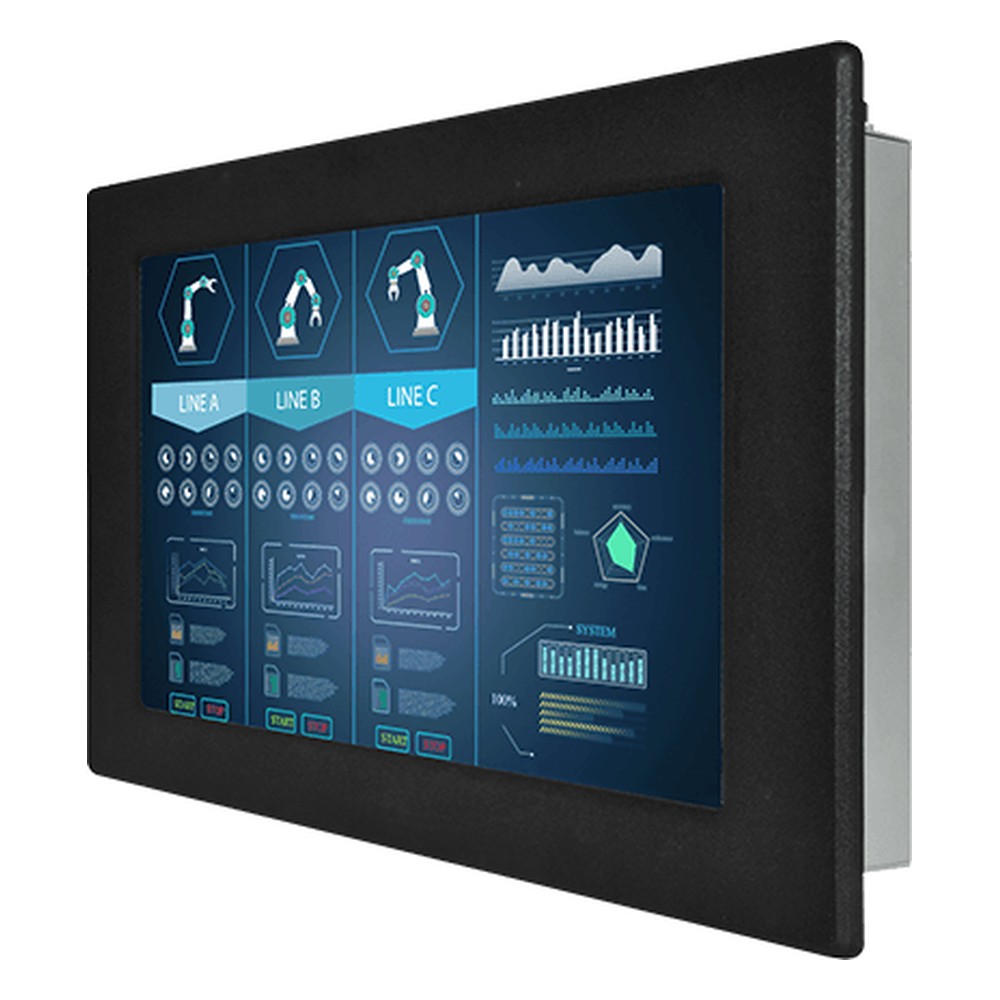

Winmate W10L100-IPH2 10.1″ Front IP65 Monitor with Resistive Touch and WXGA LCD
Resistive
Fanless
Front IP65
CE
FCCW10L100-IPH2 Overview
Operator screens in cabinets and kiosk fronts usually face the wet, dusty side of the installation. The W10L100-IPH2 is Winmate’s 10.1 inch front IP65 monitor, sealed to IP65 at the front and made to panel mount into factory automation, kiosks and outdoor installations.

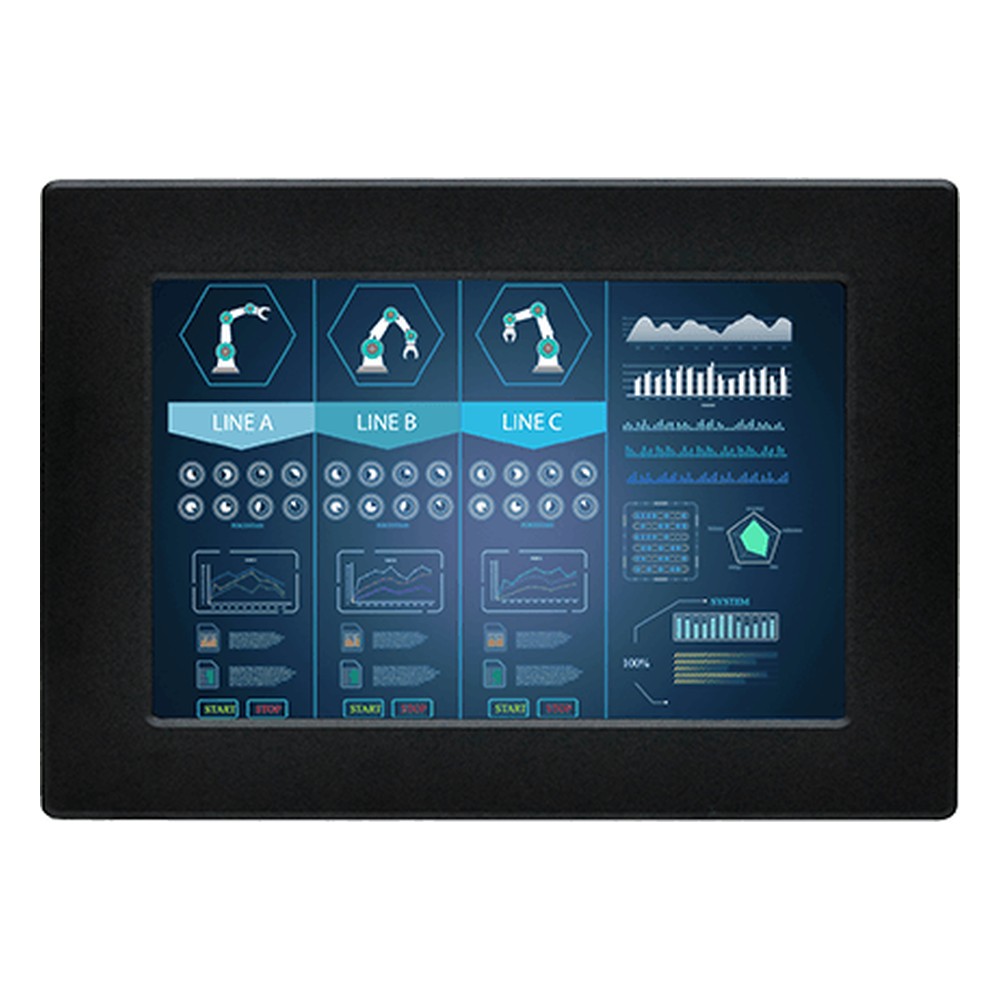

The 10.1″ 16:10 panel runs at 1280 x 800 (WXGA) with 350 nits and an 800:1 contrast ratio, and Winmate quotes viewing angles of 170° in both directions. Touch is optional: specify resistive touch for gloved or stylus input, or protection glass without touch where the screen only needs to display.

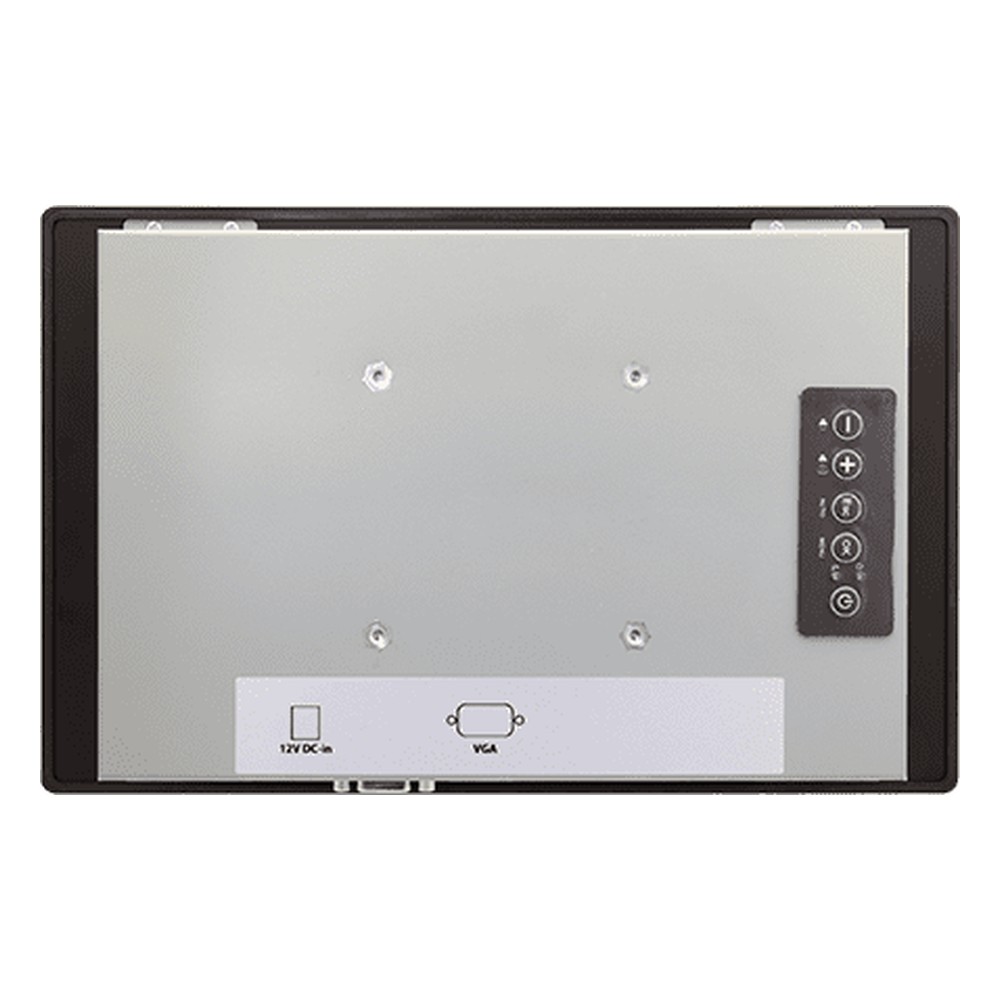

Video comes in over VGA as standard, with HDMI or DVI inputs available as options, and touch data runs over a single USB port. An audio line-in and two speakers are optional, and five keys handle the on-screen menu, with a remote control as an optional accessory. Within the Winmate range, the R10L100-IPT2 is a 10.4″ 4:3 version with a 1024 x 768 panel, and the R10L100-IPP3 is a 10.4″ 4:3 version with a 640 x 480 panel.
The W10L100-IPH2 runs from 12 V DC, with a 24 V DC input as an option, and an AC adapter comes with it, along with a power cord, VGA and HDMI cables and VESA screws. It operates from 0 °C to 50 °C at 10 to 90% humidity, non-condensing, and stores from -10 °C to 60 °C. The fanless metal housing with an aluminum bezel mounts into a panel cut-out or on VESA, and the 10.1 inch monitor carries CE and FCC marks. It pairs with the industrial PC of your choice, and we supply it configured and tested before dispatch.
W10L100-IPH2 Specifications
| Overview | |
|---|---|
| Brand & Model | Winmate W10L100-IPH2 |
| Features | Fanless Industrial |
| Display | |
| Display | 10.1"[8:5, 1280 x 800, WXGA] |
| Display Treatment | Protective Glass |
| Touch Interface | USB |
| Touch Controller | Optional Resistive Touch |
| Brightness | 350 Nits |
| Viewing Angle | Wide Viewing Angle |
| 170° Horizontal, 170° Vertical | |
| Aspect Ratio | 8:5 |
| Format | Widescreen |
| Contrast | 800:1 |
| Number of Display Inputs | 3x Display Ports |
| Video Inputs | 1x Optional DVI Input 1x Optional HDMI Input 1x VGA Input |
| Power | |
| Power Input | 12V DC AC Power Supply Included |
| Environmental Conditions | |
| Thermal Dissipation | Fanless Passively Cooled Chassis |
| Operating Temperature | 0°C to 50°C [32°F to 122°F] |
| Storage Temperature | -10°C to 60°C [14°F to 140°F] |
| Humidity | 10-90% (Non-condensing) |
| Ingress Protection | Front IP65 Front IP65 [Dustproof, Protection against low pressure water jets spraying from the front side] |
| Certification | CE FCC |
| Mechanical Properties | |
| Weight | 1.3 Kg (2.8 Lbs) |
| Dimensions | 286mm x 182mm x 38mm (11.26" x 7.17" x 1.50") |
- W10L100-IPH2 Datasheet Download
Official Winmate USA Distributor
Things Embedded is an official Winmate USA distributor, supplying the W10L100-IPH2 configured and tested for USA machine, kiosk and factory automation projects. Within the Winmate range the W10IE3S-IPH2 is the panel PC version of this design, with an Intel Celeron N6211 built in.
The W10L100-IPH2 sits among our 10 inch industrial monitors, our front IP65 monitors and our panel mount monitors. Where a project needs a 10.1 inch front IP65 monitor that connects to an existing computer, this is a sensible model to shortlist.
