Winmate W14IE3S-EHA1 14″ PCAP Touch HMI with Intel N150 and FHD Display

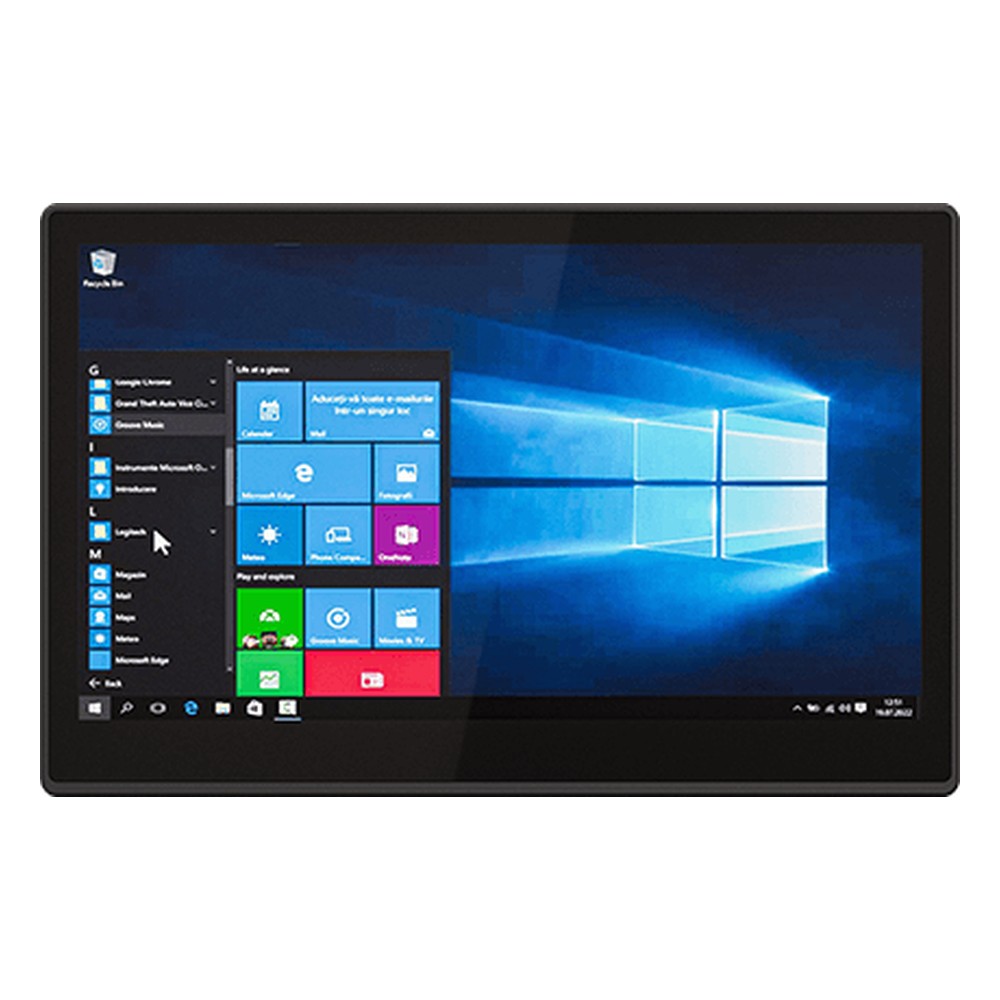

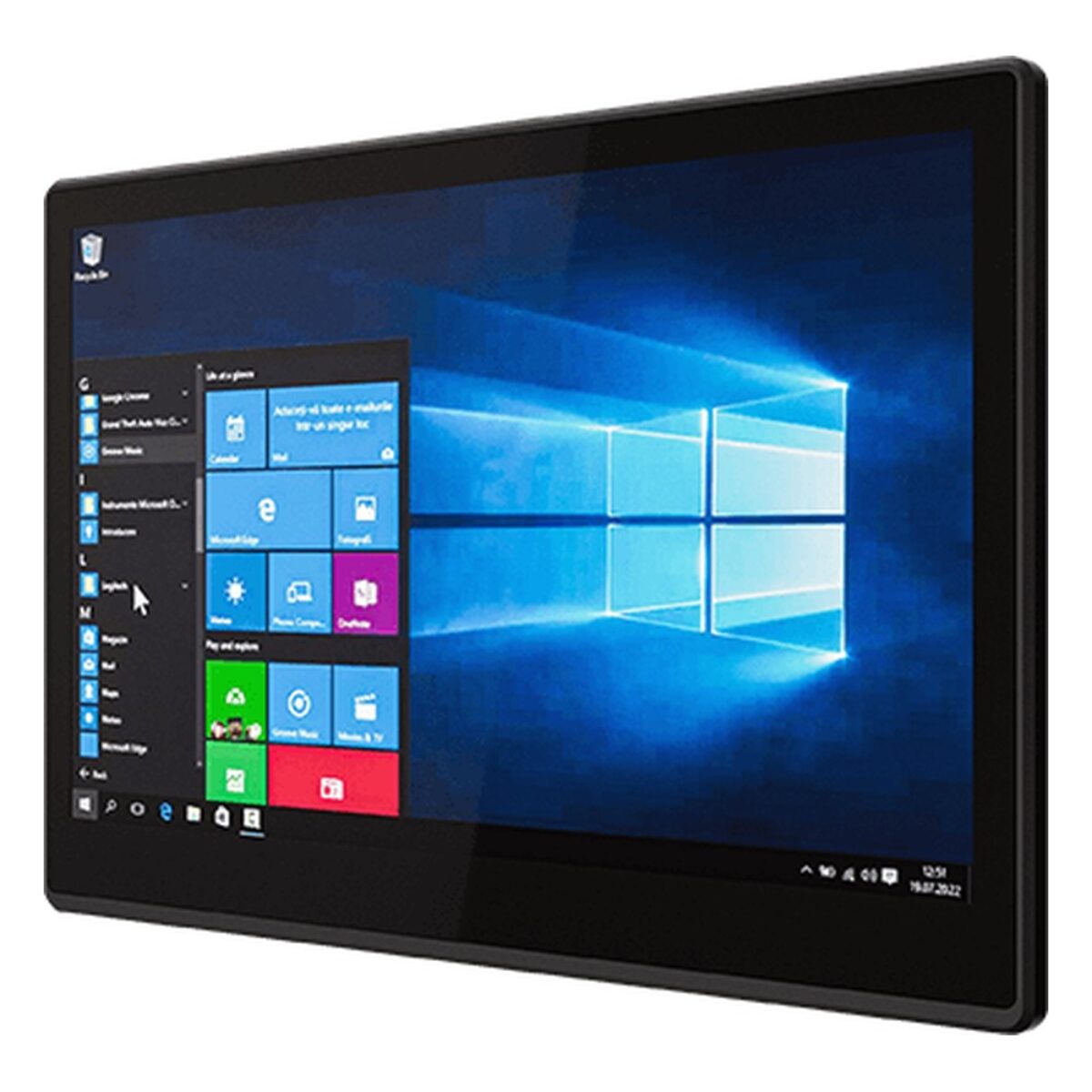

Machine control panels and operator HMIs often go into a cabinet door or machine guard, where the front gets splashed and wiped and Full HD detail helps with busy screens. The W14IE3S-EHA1 is Winmate’s 14 inch E Series HMI panel PC for those positions, with an Intel Processor N150 and a 14″ 1920 x 1080 projected capacitive multi-touch display at 700 nits with 1200:1 contrast.

The Intel Processor N150 runs at up to 3.6 GHz with 6 MB of cache, 8 GB of memory as standard and 16 GB as an option, which typically leaves room for HMI software and a SCADA client. Storage is a 128 GB SSD as standard with options up to 2 TB, and TPM 2.0 is on board. Windows 11 IoT Enterprise, Windows 11 Pro or Linux Ubuntu 24.04 can be installed, and an M.2 2230 E-key slot takes optional Wi-Fi and Bluetooth.

Connections include two 2.5GbE ports on Intel controllers, two USB 3.2 Gen 1 Type-A ports, one USB 3.2 Gen 2 Type-C port with DisplayPort Alt mode and one RS-232/422/485 port, set to RS-232 by default. HDMI 2.0 is optional. Within the Winmate range the W14MG3S-EHA1 is the same 14 inch housing with an Arm-based MediaTek Genio 510, and the W15IE3S-EHA4 is the 15.6 inch E Series model with an Intel Celeron N6211.

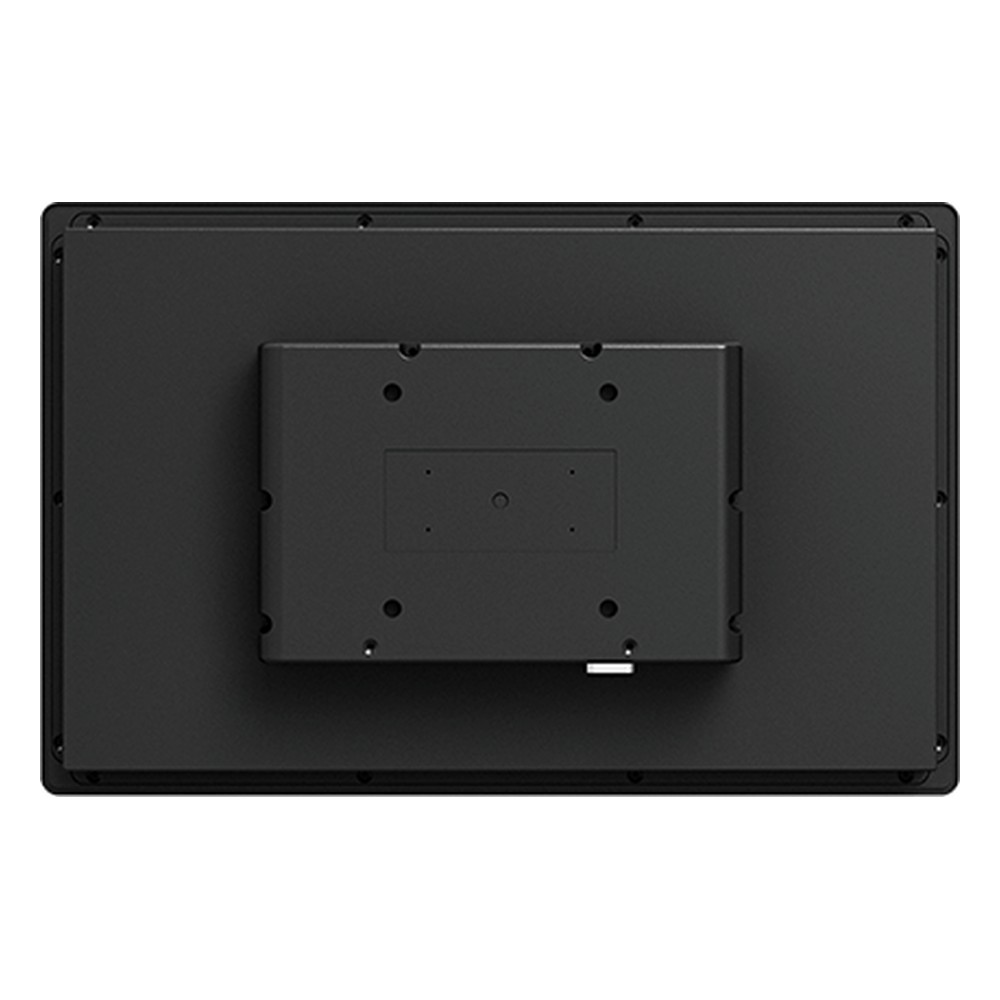

Power is 12 V DC on a DC jack, with a 100 to 240 V AC adapter supplied. The fanless metal and ABS+PC housing has a front IP65 rating and runs from 0 to 50 °C in non-condensing humidity. Panel mounting is standard with mounting clips supplied, and VESA mounting is optional with VESA screws in the box. It carries CE and FCC marks. We supply the W14IE3S-EHA1 configured, with the OS installed, and tested before dispatch.
